City life plugin

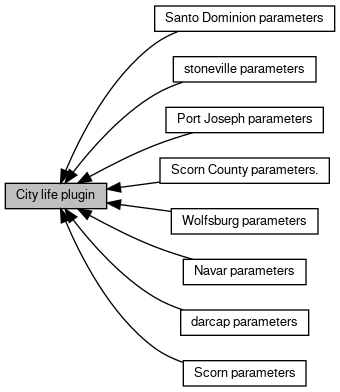

Collaboration diagram for City life plugin:

Modules
	Scorn parameters
	darcap parameters
	Navar parameters
	Port Joseph parameters
	stoneville parameters
	Wolfsburg parameters
	Santo Dominion parameters
	Scorn County parameters.

Files
file	citylife.c

Data Structures
struct	mapzone
struct	spawn_point
struct	spawn_zone

Macros
#define	FIRST_MOVE_KEY   "citylife_first_move"

Functions
CF_PLUGIN int	citylife_runPluginCommand (object *op, char *params)
CF_PLUGIN void *	getPluginProperty (int *type,...)
CF_PLUGIN int	initPlugin (const char *iversion, f_plug_api gethooksptr)

Variables
CF_PLUGIN char	SvnRevPlugin [] = SVN_REV
static const mapzone	available_zones []
static const mapzone *	get_zone_for_map (mapstruct *map)
static object *	get_npc (const mapzone *zone)
static void	add_npc_to_zone (const mapzone *zone, mapstruct *map)
static void	add_npc_to_point (const mapzone *zone, mapstruct *map)
static void	add_npcs_to_map (mapstruct *map)
static void	add_npc_to_random_map (void)
CF_PLUGIN int	citylife_globalEventListener (int *type,...)
CF_PLUGIN int	postInitPlugin (void)
CF_PLUGIN int	eventListener (int *type,...)
CF_PLUGIN int	closePlugin (void)

Detailed Description

This plugin adds random NPCs to town, and makes them enter houses, spawns new ones.

When a map is loaded, NPCs are randomly added so they appear already. During the course of the server, some will enter houses (disappear), others will exit from houses (appear on a house).

For each map to be processed, two things are defined:

• spawn zones, where NPCs should be added when the map is loaded
• spawn points, from which to add new NPCs while the map is in memory. Should probably be houses and such.

NPCs use a key/value to prevent them from immediately entering the building they exited.

Todo:

• define spawn points/zones for other towns
• vary NPCs based on time of day
• define "objectives" to go to
• make NPCs pause when player talks to them

Macro Definition Documentation

FIRST_MOVE_KEY

#define FIRST_MOVE_KEY   "citylife_first_move"

Key to contain whether it's the first move of the NPC or not.

Definition at line 110 of file citylife.c.

Referenced by eventListener(), and get_npc().

Function Documentation

add_npc_to_point()

static void add_npc_to_point ( const mapzone *  zone, mapstruct *  map  )

static

Add an NPC somewhere at a spawn point.

Parameters

zone	map zone definition from which to get a spawn point.
map	map to insert into.

Definition at line 664 of file citylife.c.

References cf_object_free_drop_inventory(), cf_object_teleport(), mapzone::count_points, get_npc(), mapzone::points, RANDOM, spawn_point::x, and spawn_point::y.

Referenced by add_npc_to_random_map().

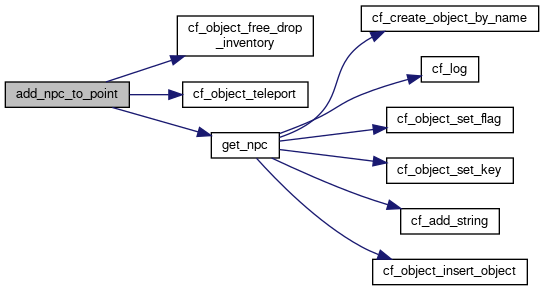

Here is the call graph for this function:

Here is the caller graph for this function:

add_npc_to_random_map()

static void add_npc_to_random_map ( void  )

static

Find a suitable map loaded and add an NPC to it.

Definition at line 697 of file citylife.c.

References add_npc_to_point(), cf_map_has_been_loaded(), mapzone::count_points, MAP_IN_MEMORY, RANDOM, and zones.

Referenced by citylife_globalEventListener().

Here is the call graph for this function:

Here is the caller graph for this function:

add_npc_to_zone()

static void add_npc_to_zone ( const mapzone *  zone, mapstruct *  map  )

static

Add an NPC somewhere in a spawn zone.

Parameters

zone	map zone definition from which to get a spawn zone.
map	map to insert into.

Definition at line 645 of file citylife.c.

References cf_object_free_drop_inventory(), cf_object_teleport(), mapzone::count_zones, spawn_zone::ex, spawn_zone::ey, get_npc(), RANDOM, spawn_zone::sx, spawn_zone::sy, and mapzone::zones.

Referenced by add_npcs_to_map().

Here is the call graph for this function:

Here is the caller graph for this function:

add_npcs_to_map()

static void add_npcs_to_map ( mapstruct *  map )

static

Add some NPCs to the map, based on the zone definition.

Parameters

map	map to add to.

Definition at line 679 of file citylife.c.

References add_npc_to_zone(), cf_log(), get_zone_for_map(), llevDebug, mapdef::path, PLUGIN_NAME, mapzone::population, and RANDOM.

Referenced by citylife_globalEventListener().

Here is the call graph for this function:

Here is the caller graph for this function:

citylife_globalEventListener()

CF_PLUGIN int citylife_globalEventListener	(	int *	type,
			...
	)

Definition at line 716 of file citylife.c.

References add_npc_to_random_map(), add_npcs_to_map(), EVENT_CLOCK, EVENT_MAPLOAD, and RANDOM.

Referenced by postInitPlugin().

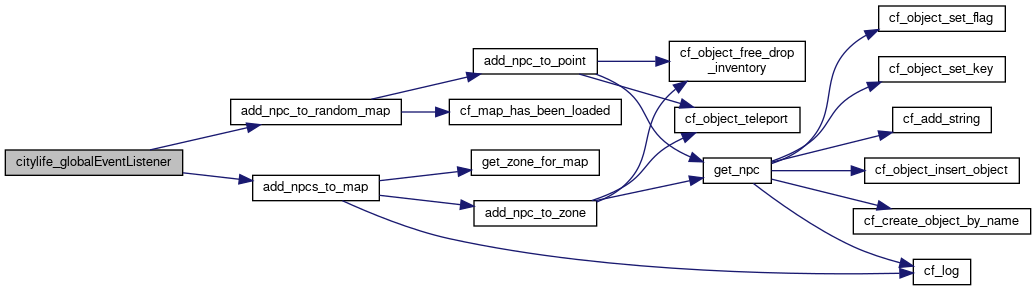

Here is the call graph for this function:

Here is the caller graph for this function:

citylife_runPluginCommand()

CF_PLUGIN int citylife_runPluginCommand	(	object *	op,
		char *	params
	)

Definition at line 105 of file citylife.c.

closePlugin()

CF_PLUGIN int closePlugin

(

void

)

Unloading of plugin.

Returns

0.

Close the plugin.

Closes the sqlite database.

Returns

0.

Definition at line 829 of file citylife.c.

References cf_log(), llevDebug, and PLUGIN_VERSION.

Here is the call graph for this function:

eventListener()

CF_PLUGIN int eventListener	(	int *	type,
			...
	)

Unused.

Parameters

type

unused.

Returns

0.

Handles an object-related event. Doesn't do anything.

Parameters

type

ignored.

Returns

0.

If the key doesn't exist, it means 'who' wasn't created by us, since we do set the key each time. So play it safe and totally remove the event.

Definition at line 770 of file citylife.c.

References cf_log(), cf_map_get_object_at(), cf_object_free_drop_inventory(), cf_object_get_key(), cf_object_get_object_property(), cf_object_move(), cf_object_remove(), cf_object_set_flag(), cf_object_set_key(), CFAPI_OBJECT_PROP_INVENTORY, CFAPI_OBJECT_PROP_OB_ABOVE, CFAPI_OBJECT_PROP_OB_BELOW, FIRST_MOVE_KEY, FLAG_NO_DROP, llevInfo, and RANDOM.

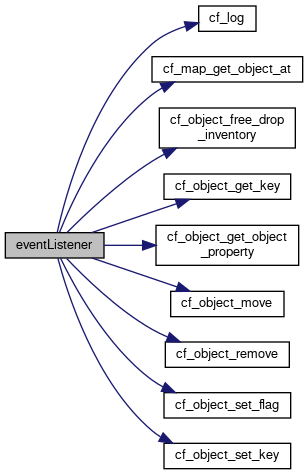

Here is the call graph for this function:

get_npc()

static object* get_npc ( const mapzone *  zone )

static

Creates a NPC for the specified zone, and do needed initialization.

Parameters

zone	what NPCs to create.

Returns

new NPC, with event handled for time. NULL if invalid archetype in the zone.

Definition at line 614 of file citylife.c.

References mapzone::archetypes_count, mapzone::available_archetypes, cf_add_string(), cf_create_object_by_name(), cf_log(), cf_object_insert_object(), cf_object_set_flag(), cf_object_set_key(), FIRST_MOVE_KEY, FLAG_RANDOM_MOVE, FLAG_UNDEAD, llevError, PLUGIN_NAME, and RANDOM.

Referenced by add_npc_to_point(), and add_npc_to_zone().

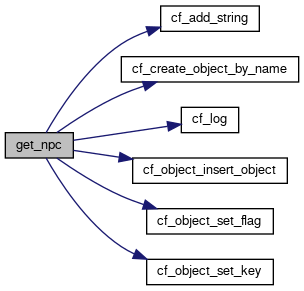

Here is the call graph for this function:

Here is the caller graph for this function:

get_zone_for_map()

static const mapzone* get_zone_for_map ( mapstruct *  map )

static

Finds if a map has a zone defined.

Parameters

map	candidat map.

Returns

map zone, NULL if not defined.

Definition at line 597 of file citylife.c.

References mapzone::count_points, and mapdef::path.

Referenced by add_npcs_to_map().

Here is the caller graph for this function:

getPluginProperty()

CF_PLUGIN void* getPluginProperty	(	int *	type,
			...
	)

Get the plugin identification or full name.

Parameters

type

unused.

Returns

NULL.

Gets a plugin property.

Parameters

type

ignored.

Returns

• the name, if asked for 'Identification'.
• the version, if asked for 'FullName'.
• NULL else.

Definition at line 79 of file citylife.c.

References buf, PLUGIN_NAME, PLUGIN_VERSION, and snprintf.

initPlugin()

CF_PLUGIN int initPlugin	(	const char *	iversion,
		f_plug_api	gethooksptr
	)

Plugin initialisation function.

Parameters

iversion	server version.
gethooksptr	function to get the hooks.

Returns

0

Plugin initialization.

Parameters

iversion	server version.
gethooksptr	function to get hooks.

Returns

0.

Main plugin entry point.

Parameters

iversion	server version.
gethooksptr	function to get hooks from.

Returns

always 0.

Definition at line 71 of file citylife.c.

References cf_init_plugin(), cf_log(), llevDebug, and PLUGIN_VERSION.

Here is the call graph for this function:

postInitPlugin()

CF_PLUGIN int postInitPlugin

(

void

)

Plugin initialisation. Also sets the initial last_hr

Returns

0.

Plugin was initialized, now to finish.

Registers events, initializes the database.

Returns

0.

Plugin initialisation.

Returns

0.

Definition at line 740 of file citylife.c.

References cf_log(), cf_system_register_global_event(), citylife_globalEventListener(), EVENT_CLOCK, EVENT_MAPLOAD, llevDebug, PLUGIN_NAME, and PLUGIN_VERSION.

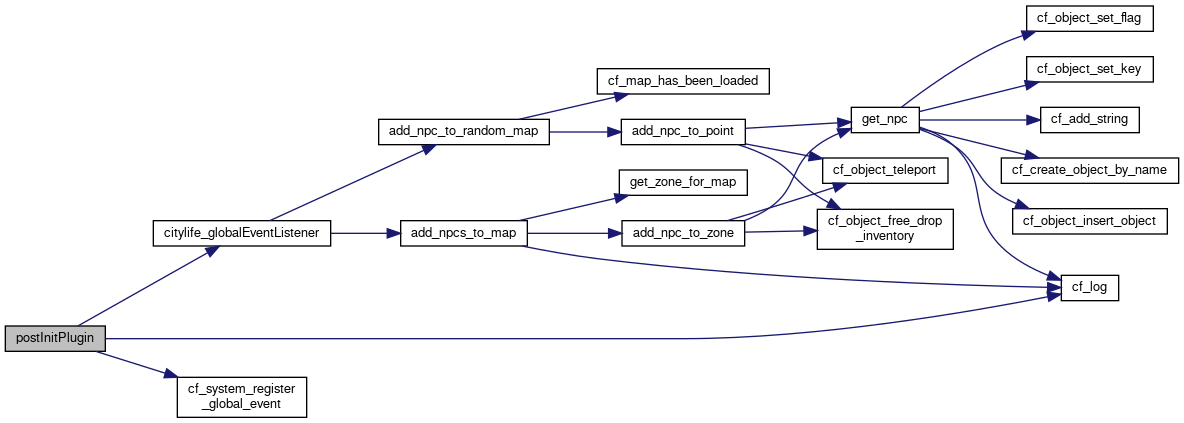

Here is the call graph for this function:

Variable Documentation

available_zones

const mapzone available_zones[]

static

Initial value:

= {
    { scorn_nw_points, 5, scorn_nw_zones, 1, 2, "/world/world_104_115", scorn_archs, 12 },
    { scorn_ne_points, 5, scorn_ne_zones, 1, 5, "/world/world_105_115", scorn_archs, 12 },
    { scorn_sw_points, 3, scorn_sw_zones, 1, 5, "/world/world_104_116", scorn_archs, 12 },
    { scorn_se_points, 4, scorn_se_zones, 1, 5, "/world/world_105_116", scorn_archs, 12 },
    { scorncounty_points, 8, scorncounty_zones, 4, 8, "/world/world_105_116", scorncounty_archs, 4},
    { darcap_points, 19, darcap_zones, 3, 4, "/world/world_116_102", darcap_archs, 12},
    { navar_nw_points, 8, navar_nw_zones, 4, 2, "/world/world_121_116", navar_archs, 15 },
    { navar_ne_points, 6, navar_ne_zones, 3, 5, "/world/world_122_116", navar_archs, 15 },
    { navar_sw_points, 3, navar_sw_zones, 2, 3, "/world/world_121_117", navar_archs, 15 },
    { navar_se_points, 8, navar_se_zones, 4, 5, "/world/world_122_117", navar_archs, 15 },
    { port_joseph_points, 6, port_joseph_zones, 1, 3, "/world/world_101_114", port_joseph_archs, 8 },
    { stoneville_points, 5, stoneville_zones, 1, 2, "/world/world_103_127", stoneville_archs, 8 },
    { wolfsburg_points, 8, wolfsburg_zones, 1, 4, "/world/world_128_109", wolfsburg_archs, 8 },
    { santo_dominion_points, 8, santo_dominion_zones, 2, 3, "/world/world_102_108", santo_dominion_archs, 8 },
    { NULL, -1, NULL, -1, 1, "", NULL, 0 },
}

All maps we work on.

Definition at line 571 of file citylife.c.

SvnRevPlugin

CF_PLUGIN char SvnRevPlugin[] = SVN_REV

Definition at line 69 of file citylife.c.
