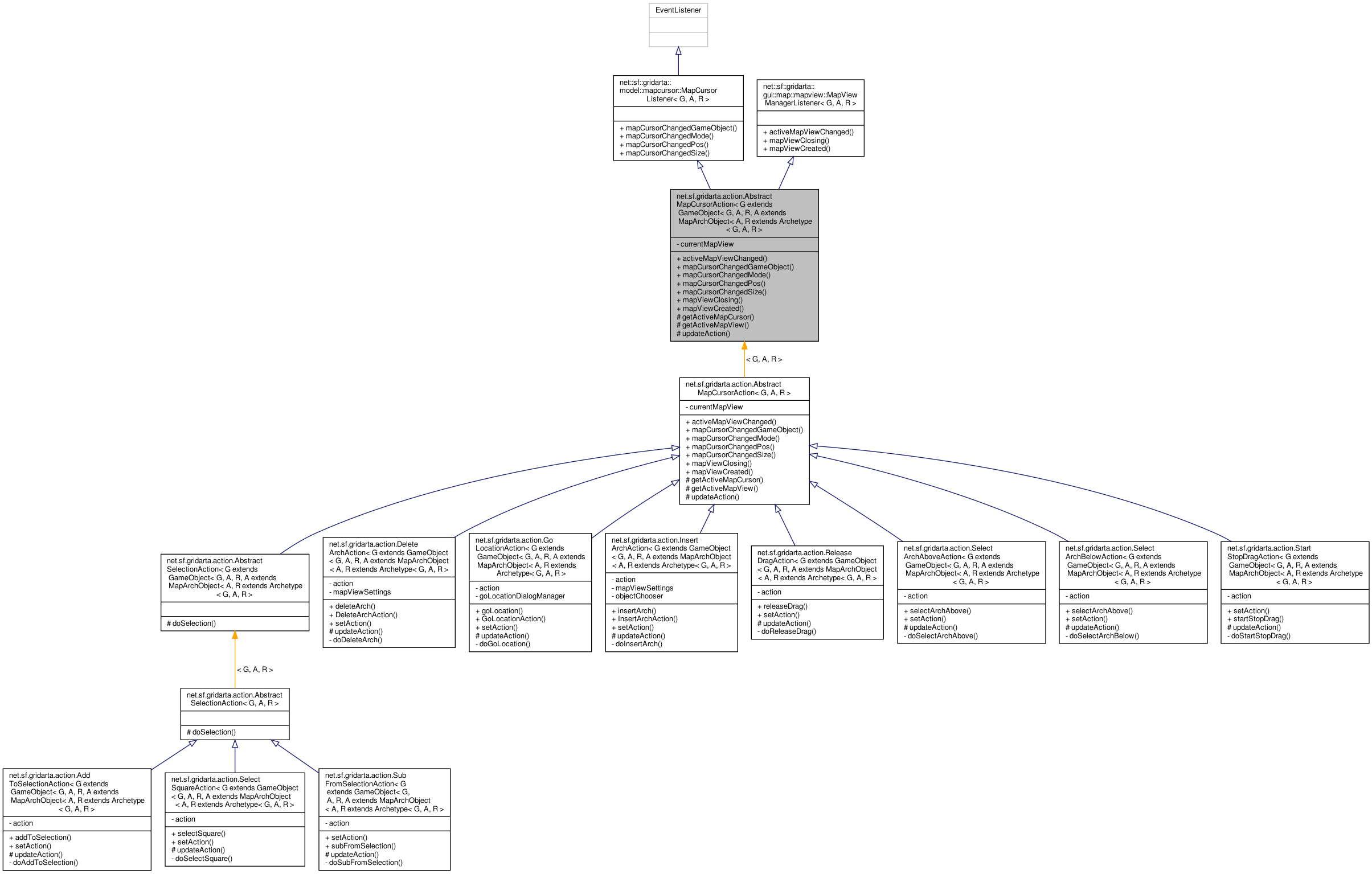

Inheritance diagram for net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

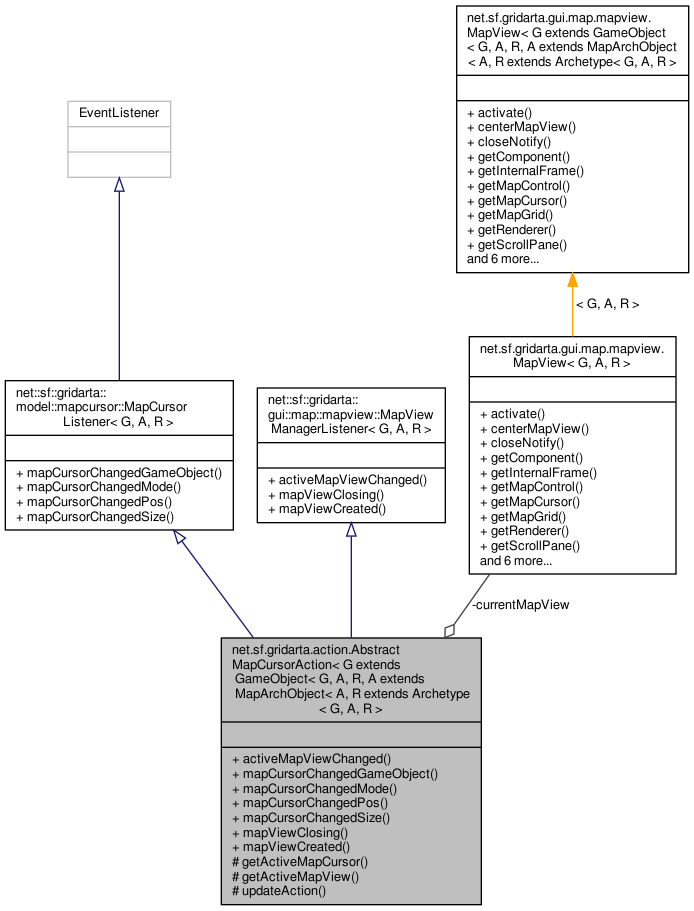

Collaboration diagram for net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
void	activeMapViewChanged (@Nullable final MapView< G, A, R > mapView)

void	mapCursorChangedGameObject (@Nullable final MapSquare< G, A, R > mapSquare, @Nullable final G gameObject)

void	mapCursorChangedMode ()

void	mapCursorChangedPos (@NotNull final Point location)

void	mapCursorChangedSize ()

void	mapViewClosing (@NotNull final MapView< G, A, R > mapView)

void	mapViewCreated (@NotNull final MapView< G, A, R > mapView)

Protected Member Functions
MapCursor< G, A, R >	getActiveMapCursor ()

MapView< G, A, R >	getActiveMapView ()

abstract void	updateAction ()

Private Attributes
MapView< G, A, R >	currentMapView

Detailed Description

Abstract base class for actions that have to track the current map cursor.

Author: Andreas Kirschbaum

Definition at line 38 of file AbstractMapCursorAction.java.

Member Function Documentation

◆ activeMapViewChanged()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.activeMapViewChanged ( @Nullable final MapView< G, A, R > mapView )

This event handler is called when the current map view has changed.

Parameters

mapView

the new map view or

null

if no opened map view exists

Implements net.sf.gridarta.gui.map.mapview.MapViewManagerListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 72 of file AbstractMapCursorAction.java.

◆ getActiveMapCursor()

MapCursor<G, A, R> net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getActiveMapCursor ( )

protected

Return the map cursor of the current map view if it is active.

Returns: the map cursor, or
null

if the cursor is not active, or if no map view exists

Definition at line 52 of file AbstractMapCursorAction.java.

◆ getActiveMapView()

MapView<G, A, R> net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getActiveMapView ( )

protected

Return the current map view.

Returns: the current map view or
null

Definition at line 62 of file AbstractMapCursorAction.java.

◆ mapCursorChangedGameObject()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCursorChangedGameObject	(	@Nullable final MapSquare< G, A, R >	mapSquare,
		@Nullable final G	gameObject
	)

@noinspection NoopMethodInAbstractClass

Implements net.sf.gridarta.model.mapcursor.MapCursorListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 107 of file AbstractMapCursorAction.java.

◆ mapCursorChangedMode()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCursorChangedMode ( )

This event handler is called when MapCursor changes mode (drag, select).

Implements net.sf.gridarta.model.mapcursor.MapCursorListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 99 of file AbstractMapCursorAction.java.

◆ mapCursorChangedPos()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCursorChangedPos ( @NotNull final Point location )

This event handler is called when MapCursor has moved.

Parameters

location the new location

Implements net.sf.gridarta.model.mapcursor.MapCursorListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 94 of file AbstractMapCursorAction.java.

◆ mapCursorChangedSize()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCursorChangedSize ( )

@noinspection NoopMethodInAbstractClass

Implements net.sf.gridarta.model.mapcursor.MapCursorListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 115 of file AbstractMapCursorAction.java.

◆ mapViewClosing()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewClosing ( @NotNull final MapView< G, A, R > mapView )

@noinspection NoopMethodInAbstractClass

Implements net.sf.gridarta.gui.map.mapview.MapViewManagerListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 89 of file AbstractMapCursorAction.java.

◆ mapViewCreated()

void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewCreated ( @NotNull final MapView< G, A, R > mapView )

@noinspection NoopMethodInAbstractClass

Implements net.sf.gridarta.gui.map.mapview.MapViewManagerListener< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Definition at line 81 of file AbstractMapCursorAction.java.

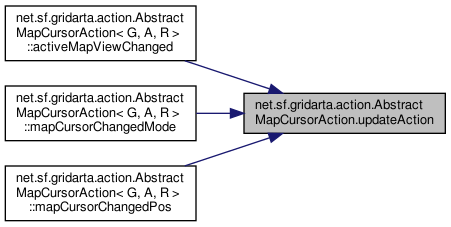

◆ updateAction()

abstract void net.sf.gridarta.action.AbstractMapCursorAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.updateAction ( )
