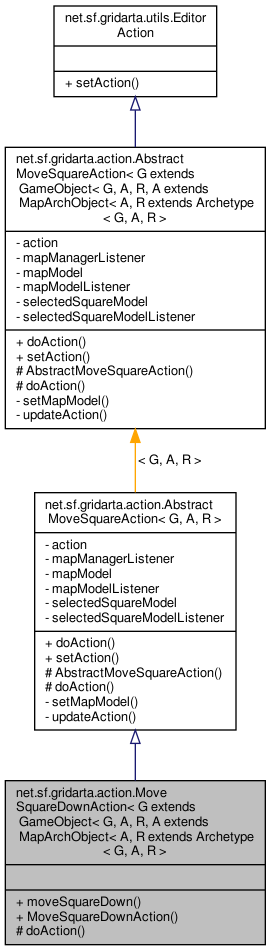

Inheritance diagram for net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

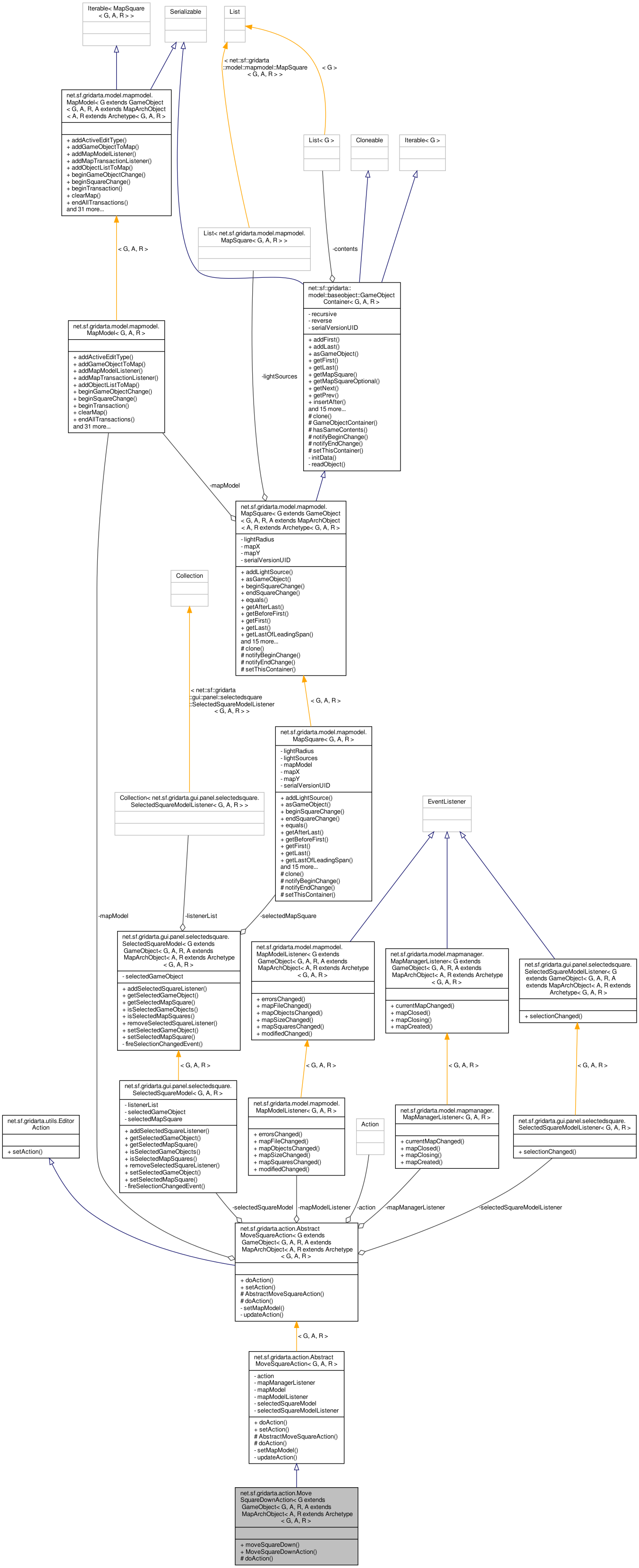

Collaboration diagram for net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
void	moveSquareDown ()

	MoveSquareDownAction (@NotNull final SelectedSquareModel< G, A, R > selectedSquareModel, @Nullable final MapManager< G, A, R > mapManager)

Public Member Functions inherited from net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >
boolean	doAction (final boolean performAction)

void	setAction ( @NotNull final Action action, @NotNull final String name)

Protected Member Functions
boolean	doAction (final boolean performAction, @Nullable final G gameObject)

Protected Member Functions inherited from net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >
	AbstractMoveSquareAction ( @NotNull final SelectedSquareModel< G, A, R > selectedSquareModel, @Nullable final MapManager< G, A, R > mapManager)

abstract boolean	doAction (boolean performAction, @Nullable G gameObject)

Detailed Description

An net.sf.gridarta.utils.EditorAction that moves the selected game object in the SelectedSquareModel down.

Author: Andreas Kirschbaum

Definition at line 37 of file MoveSquareDownAction.java.

Constructor & Destructor Documentation

◆ MoveSquareDownAction()

net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.MoveSquareDownAction	(	@NotNull final SelectedSquareModel< G, A, R >	selectedSquareModel,
		@Nullable final MapManager< G, A, R >	mapManager
	)

Creates a new instance.

Parameters

selectedSquareModel	the selected square model to update
mapManager	the map manager to track or null

Definition at line 44 of file MoveSquareDownAction.java.

References net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >.selectedSquareModel.

Member Function Documentation

◆ doAction()

boolean net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doAction	(	final boolean	performAction,
		@Nullable final G	gameObject
	)

protected

Definition at line 57 of file MoveSquareDownAction.java.

References net.sf.gridarta.model.mapmodel.MapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.beginTransaction(), net.sf.gridarta.model.mapmodel.MapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.endTransaction(), net.sf.gridarta.model.mapmodel.MapSquare< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMapModel(), net.sf.gridarta.model.mapmodel.MapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMapSquare(), and net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >.mapModel.

Referenced by net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.moveSquareDown().

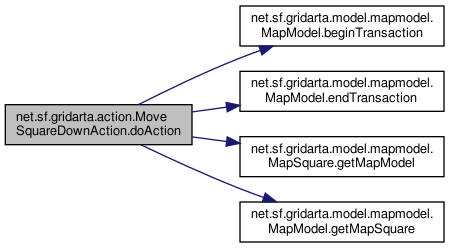

Here is the call graph for this function:

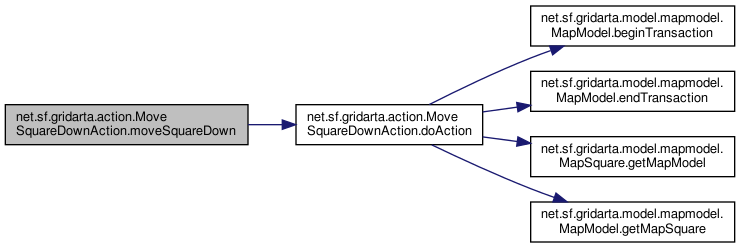

Here is the caller graph for this function:

◆ moveSquareDown()

void net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.moveSquareDown ( )

Action method for moving an arch down within its square.

Definition at line 52 of file MoveSquareDownAction.java.

References net.sf.gridarta.action.MoveSquareDownAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doAction().
