net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R > Class Template Reference

Collaboration diagram for net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
Action	createAction (@NotNull final String name, @NotNull final String category, @NotNull final EditorAction editorAction)
void	createActionOptional (@NotNull final String name, @NotNull final String category, @Nullable final EditorAction editorAction)
void	createToggleAction (@NotNull final String name, @NotNull final String category, @NotNull final EditorAction editorAction)
	EditorActionManager (@NotNull final MapViewManager< G, A, R > mapViewManager)

Private Member Functions
void	addEditorAction (@NotNull final EditorAction editorAction)

Private Attributes
MapView< G, A, R >	currentMapView
final Collection< MapCursorListener< G, A, R > >	mapCursorListeners = new ArrayList<>()
final MapViewManager< G, A, R >	mapViewManager
final MapViewManagerListener< G, A, R >	mapViewManagerListener

Static Private Attributes
static final ActionBuilder	ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")

Detailed Description

Maintains a set of EditorAction instances and calls their event listener callbacks. The following event listener interfaces may be implemented by an editor action:

MapViewManagerListener: The editor action is registered in the global MapViewManager instance and receives events related to the current map view.

MapCursorListener: The editor action receives map cursor related events for the current map view.

Author

Andreas Kirschbaum

Definition at line 52 of file EditorActionManager.java.

Constructor & Destructor Documentation

EditorActionManager()

net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.EditorActionManager

(

@NotNull final MapViewManager< G, A, R >

mapViewManager

)

Creates a new instance.

Parameters

mapViewManager

the map view manager for tracking open maps

Definition at line 118 of file EditorActionManager.java.

References net.sf.gridarta.gui.map.mapview.MapViewManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addMapViewManagerListener(), net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.currentMapView, net.sf.gridarta.gui.map.mapview.MapViewManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getActiveMapView(), net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewManager, and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewManagerListener.

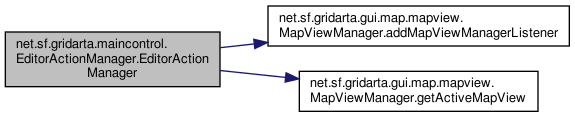

Here is the call graph for this function:

Member Function Documentation

addEditorAction()

void net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction ( @NotNull final EditorAction  editorAction )

private

Records the event types an EditorAction is interested in.

Parameters

editorAction

the editor action

Definition at line 165 of file EditorActionManager.java.

References net.sf.gridarta.gui.map.mapview.MapViewManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addMapViewManagerListener(), net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.currentMapView, net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCursorListeners, net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewManager, and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewManagerListener.

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createAction(), and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createToggleAction().

Here is the call graph for this function:

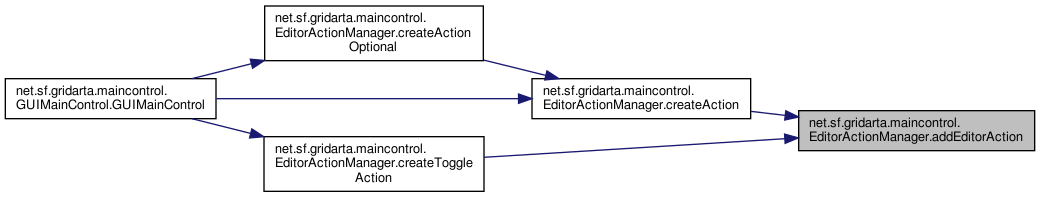

Here is the caller graph for this function:

createAction()

Action net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createAction	(	@NotNull final String	name,
		@NotNull final String	category,
		@NotNull final EditorAction	editorAction
	)

Initializes a new action.

Parameters

name	the name of the action
category	the category of the action
editorAction	the editor to initialize

Returns

the action

Definition at line 132 of file EditorActionManager.java.

References net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.ACTION_BUILDER, net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction(), and net.sf.gridarta.utils.ActionUtils.newAction().

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createActionOptional(), and net.sf.gridarta.maincontrol.GUIMainControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.GUIMainControl().

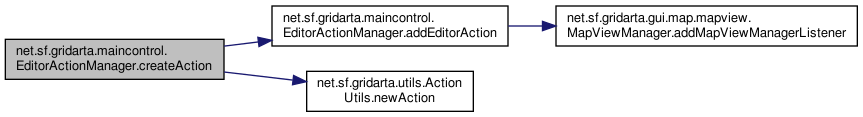

Here is the call graph for this function:

Here is the caller graph for this function:

createActionOptional()

void net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createActionOptional	(	@NotNull final String	name,
		@NotNull final String	category,
		@Nullable final EditorAction	editorAction
	)

Initializes a new action.

Parameters

name	the name of the action
category	the category of the action
editorAction	the editor to initialize or null to do nothing

Definition at line 144 of file EditorActionManager.java.

References net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createAction().

Referenced by net.sf.gridarta.maincontrol.GUIMainControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.GUIMainControl().

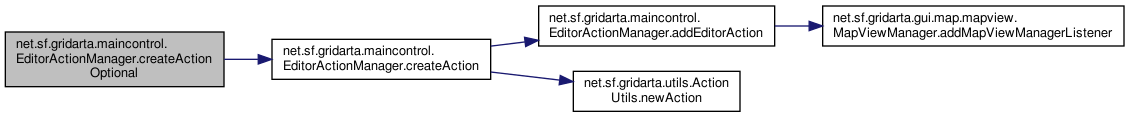

Here is the call graph for this function:

Here is the caller graph for this function:

createToggleAction()

void net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createToggleAction	(	@NotNull final String	name,
		@NotNull final String	category,
		@NotNull final EditorAction	editorAction
	)

Initializes a new action.

Parameters

name	the name of the action
category	the category of the action
editorAction	the editor to initialize

Definition at line 156 of file EditorActionManager.java.

References net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.ACTION_BUILDER, net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction(), and net.sf.gridarta.utils.ActionUtils.newToggleAction().

Referenced by net.sf.gridarta.maincontrol.GUIMainControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.GUIMainControl().

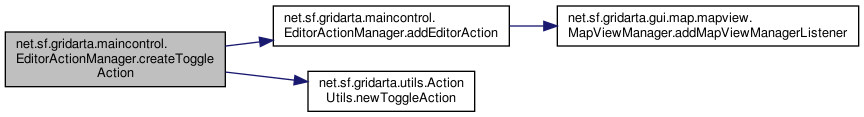

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ACTION_BUILDER

final ActionBuilder net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")

staticprivate

The ActionBuilder.

Definition at line 58 of file EditorActionManager.java.

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createAction(), and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createToggleAction().

currentMapView

MapView<G, A, R> net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.currentMapView

private

The active map view, or

null

if no map view exists.

Definition at line 77 of file EditorActionManager.java.

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction(), and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.EditorActionManager().

mapCursorListeners

final Collection<MapCursorListener<G, A, R> > net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCursorListeners = new ArrayList<>()

private

The EditorActions that are interested in {} events.

Definition at line 71 of file EditorActionManager.java.

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction().

mapViewManager

final MapViewManager<G, A, R> net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewManager

private

The MapViewManager for tracking open maps.

Definition at line 64 of file EditorActionManager.java.

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction(), and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.EditorActionManager().

mapViewManagerListener

final MapViewManagerListener<G, A, R> net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapViewManagerListener

private

Initial value:

= new MapViewManagerListener<G, A, R>() {

        @Override
        public void activeMapViewChanged(@Nullable final MapView<G, A, R> mapView) {
            final MapView<G, A, R> tmpMapView = currentMapView;
            if (tmpMapView != null) {
                for (final MapCursorListener<G, A, R> mapCursorListener : mapCursorListeners) {
                    tmpMapView.getMapCursor().removeMapCursorListener(mapCursorListener);
                }
            }
            currentMapView = mapView;
            if (mapView != null) {
                for (final MapCursorListener<G, A, R> mapCursorListener : mapCursorListeners) {
                    mapView.getMapCursor().addMapCursorListener(mapCursorListener);
                }
            }
        }

        @Override
        public void mapViewCreated(@NotNull final MapView<G, A, R> mapView) {

        }

        @Override
        public void mapViewClosing(@NotNull final MapView<G, A, R> mapView) {

        }

    }

The map view manager listener used to detect changed current maps. @noinspection FieldCanBeLocal

Definition at line 84 of file EditorActionManager.java.

Referenced by net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addEditorAction(), and net.sf.gridarta.maincontrol.EditorActionManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.EditorActionManager().

---

The documentation for this class was generated from the following file:

• src/gridarta/src/main/java/net/sf/gridarta/maincontrol/EditorActionManager.java
