net.sf.gridarta.utils.DelayedChangeManager Class Reference

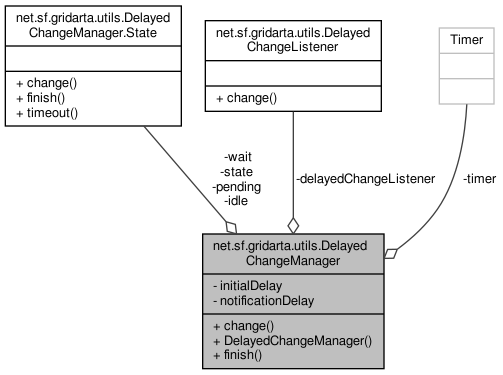

Collaboration diagram for net.sf.gridarta.utils.DelayedChangeManager:

Classes
interface	State
class	TimeoutTimerTask

Public Member Functions
void	change ()
	DelayedChangeManager (final int initialDelay, final int notificationDelay, @NotNull final DelayedChangeListener delayedChangeListener)
void	finish ()

Private Attributes
final DelayedChangeListener	delayedChangeListener
final State	idle
final int	initialDelay
final int	notificationDelay
final State	pending
State	state = idle
final Timer	timer = new Timer()
final State	wait

Detailed Description

Helper for reducing the number of change events: calls to change() will be forwarded to DelayedChangeListener#change(). Forwarded calls are dropped if they would happen very quickly.

Author

Andreas Kirschbaum

Definition at line 32 of file DelayedChangeManager.java.

Constructor & Destructor Documentation

DelayedChangeManager()

net.sf.gridarta.utils.DelayedChangeManager.DelayedChangeManager	(	final int	initialDelay,
		final int	notificationDelay,
		@NotNull final DelayedChangeListener	delayedChangeListener
	)

Creates a new instance.

Parameters

initialDelay	the initial delay for a series of events in milliseconds
notificationDelay	the delay for following events in a series of events; in milliseconds
delayedChangeListener	the delayed change listener to forward events to

Definition at line 199 of file DelayedChangeManager.java.

References net.sf.gridarta.utils.DelayedChangeManager.delayedChangeListener, net.sf.gridarta.utils.DelayedChangeManager.initialDelay, and net.sf.gridarta.utils.DelayedChangeManager.notificationDelay.

Member Function Documentation

change()

void net.sf.gridarta.utils.DelayedChangeManager.change

(

)

Delivers a change event to the associated DelayedChangeListener.

Definition at line 208 of file DelayedChangeManager.java.

References net.sf.gridarta.utils.DelayedChangeManager.State.change(), and net.sf.gridarta.utils.DelayedChangeManager.state.

Here is the call graph for this function:

finish()

void net.sf.gridarta.utils.DelayedChangeManager.finish

(

)

Finishes a series of change events. Calling this function is optional: if it is called, a pending change event is immediately forwarded; otherwise when the notification timeout has expired.

Definition at line 218 of file DelayedChangeManager.java.

References net.sf.gridarta.utils.DelayedChangeManager.State.finish(), and net.sf.gridarta.utils.DelayedChangeManager.state.

Here is the call graph for this function:

Member Data Documentation

delayedChangeListener

final DelayedChangeListener net.sf.gridarta.utils.DelayedChangeManager.delayedChangeListener

private

The DelayedChangeListener events are forwarded to.

Definition at line 51 of file DelayedChangeManager.java.

Referenced by net.sf.gridarta.utils.DelayedChangeManager.DelayedChangeManager().

idle

final State net.sf.gridarta.utils.DelayedChangeManager.idle

private

Initial value:

= new State() {

        @NotNull
        @Override
        public State change() {
            timer.schedule(new TimeoutTimerTask(), initialDelay);
            return pending;
        }

        @NotNull
        @Override
        public State finish() {
            return idle;
        }

        @NotNull
        @Override
        public State timeout() {
            assert false;
            return idle;
        }

    }

The state "idle" of the FSM.

Definition at line 104 of file DelayedChangeManager.java.

initialDelay

final int net.sf.gridarta.utils.DelayedChangeManager.initialDelay

private

The delay in millisecond the first forwarded event is delayed. This allows combining the first few events of a long series of events without delaying the delivery for a long time (notificationDelay).

Definition at line 39 of file DelayedChangeManager.java.

Referenced by net.sf.gridarta.utils.DelayedChangeManager.DelayedChangeManager().

notificationDelay

final int net.sf.gridarta.utils.DelayedChangeManager.notificationDelay

private

The interval in milliseconds events are forwarded during a long series of events.

Definition at line 45 of file DelayedChangeManager.java.

Referenced by net.sf.gridarta.utils.DelayedChangeManager.DelayedChangeManager().

pending

final State net.sf.gridarta.utils.DelayedChangeManager.pending

private

Initial value:

= new State() {

        @NotNull
        @Override
        public State change() {
            return pending;
        }

        @NotNull
        @Override
        public State finish() {
            delayedChangeListener.change();
            return wait;
        }

        @NotNull
        @Override
        public State timeout() {
            timer.schedule(new TimeoutTimerTask(), notificationDelay);
            delayedChangeListener.change();
            return wait;
        }

    }

The state "pending" of the FSM.

Definition at line 132 of file DelayedChangeManager.java.

state

State net.sf.gridarta.utils.DelayedChangeManager.state = idle

private

The FSM's current state.

Definition at line 188 of file DelayedChangeManager.java.

Referenced by net.sf.gridarta.utils.DelayedChangeManager.change(), net.sf.gridarta.utils.DelayedChangeManager.finish(), and net.sf.gridarta.utils.DelayedChangeManager.TimeoutTimerTask.run().

timer

final Timer net.sf.gridarta.utils.DelayedChangeManager.timer = new Timer()

private

The Timer for delaying events.

Definition at line 57 of file DelayedChangeManager.java.

wait

final State net.sf.gridarta.utils.DelayedChangeManager.wait

private

Initial value:

= new State() {

        @NotNull
        @Override
        public State change() {
            return pending;
        }

        @NotNull
        @Override
        public State finish() {
            return wait;
        }

        @NotNull
        @Override
        public State timeout() {
            return idle;

        }

    }

The state "wait" of the FSM.

Definition at line 161 of file DelayedChangeManager.java.

---

The documentation for this class was generated from the following file:

• src/utils/src/main/java/net/sf/gridarta/utils/DelayedChangeManager.java
