net.sf.gridarta.utils.Xtea Class Reference

Collaboration diagram for net.sf.gridarta.utils.Xtea:

Public Member Functions
void	decrypt (final byte @NotNull[] ciphertext, final byte @NotNull[] plaintext)
void	encrypt (final byte @NotNull[] plaintext, final byte @NotNull[] ciphertext)
	Xtea (final byte @NotNull[] key)

Static Private Member Functions
static int	getInt (final byte @NotNull[] data, final int offset)
static void	putInt (final int value, final byte @NotNull[] data, final int offset)

Private Attributes
final int[]	k = new int[4]

Static Private Attributes
static final int	DELTA = 0x9E3779B9
static final int	NUM_ROUNDS = 32

Detailed Description

Implements the XTEA algorithm.

Author

Andreas Kirschbaum

Definition at line 28 of file Xtea.java.

Constructor & Destructor Documentation

Xtea()

net.sf.gridarta.utils.Xtea.Xtea

(

final byte @NotNull[]

key

)

Creates a new instance.

Parameters

key	the key to use; must be 16 bytes

Definition at line 49 of file Xtea.java.

References net.sf.gridarta.utils.Xtea.getInt(), and net.sf.gridarta.utils.Xtea.k.

Here is the call graph for this function:

Member Function Documentation

decrypt()

void net.sf.gridarta.utils.Xtea.decrypt	(	final byte @NotNull[]	ciphertext,
		final byte @NotNull[]	plaintext
	)

Decrypts a data block.

Parameters

ciphertext	the block to decrypt; must be 8 bytes
plaintext	the decrypted block; must be 8 bytes

Definition at line 89 of file Xtea.java.

References net.sf.gridarta.utils.Xtea.DELTA, net.sf.gridarta.utils.Xtea.getInt(), net.sf.gridarta.utils.Xtea.k, net.sf.gridarta.utils.Xtea.NUM_ROUNDS, and net.sf.gridarta.utils.Xtea.putInt().

Referenced by net.sf.gridarta.utils.XteaTest.test().

Here is the call graph for this function:

Here is the caller graph for this function:

encrypt()

void net.sf.gridarta.utils.Xtea.encrypt	(	final byte @NotNull[]	plaintext,
		final byte @NotNull[]	ciphertext
	)

Encrypts a data block.

Parameters

plaintext	the block to encrypt; must be 8 bytes
ciphertext	the encrypted block; must be 8 bytes

Definition at line 65 of file Xtea.java.

References net.sf.gridarta.utils.Xtea.DELTA, net.sf.gridarta.utils.Xtea.getInt(), net.sf.gridarta.utils.Xtea.k, net.sf.gridarta.utils.Xtea.NUM_ROUNDS, and net.sf.gridarta.utils.Xtea.putInt().

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.getCacheFile(), and net.sf.gridarta.utils.XteaTest.test().

Here is the call graph for this function:

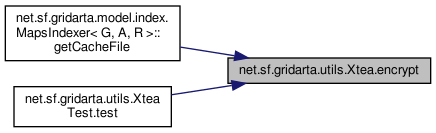

Here is the caller graph for this function:

getInt()

static int net.sf.gridarta.utils.Xtea.getInt ( final byte @NotNull[]  data, final int  offset  )

staticprivate

Converts 4 data bytes to an

int

.

Parameters

data	the data array
offset	the starting offset into data

Returns

the

int

value

Definition at line 115 of file Xtea.java.

Referenced by net.sf.gridarta.utils.Xtea.decrypt(), net.sf.gridarta.utils.Xtea.encrypt(), and net.sf.gridarta.utils.Xtea.Xtea().

Here is the caller graph for this function:

putInt()

static void net.sf.gridarta.utils.Xtea.putInt ( final int  value, final byte @NotNull[]  data, final int  offset  )

staticprivate

Converts an

int

value into 4 data bytes.

Parameters

value	the int value
data	the data array
offset	the starting offset into data

Definition at line 125 of file Xtea.java.

Referenced by net.sf.gridarta.utils.Xtea.decrypt(), and net.sf.gridarta.utils.Xtea.encrypt().

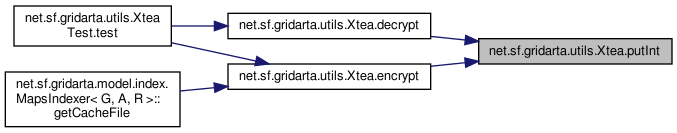

Here is the caller graph for this function:

Member Data Documentation

DELTA

final int net.sf.gridarta.utils.Xtea.DELTA = 0x9E3779B9

staticprivate

The magic constant (1<<32)/PHI.

Definition at line 38 of file Xtea.java.

Referenced by net.sf.gridarta.utils.Xtea.decrypt(), and net.sf.gridarta.utils.Xtea.encrypt().

k

final int [] net.sf.gridarta.utils.Xtea.k = new int[4]

private

The state.

Definition at line 43 of file Xtea.java.

Referenced by net.sf.gridarta.utils.Xtea.decrypt(), net.sf.gridarta.utils.Xtea.encrypt(), and net.sf.gridarta.utils.Xtea.Xtea().

NUM_ROUNDS

final int net.sf.gridarta.utils.Xtea.NUM_ROUNDS = 32

staticprivate

The number of rounds.

Definition at line 33 of file Xtea.java.

Referenced by net.sf.gridarta.utils.Xtea.decrypt(), and net.sf.gridarta.utils.Xtea.encrypt().

---

The documentation for this class was generated from the following file:

• src/utils/src/main/java/net/sf/gridarta/utils/Xtea.java
