net.sf.gridarta.textedit.textarea.tokenmarker.Node Class Reference

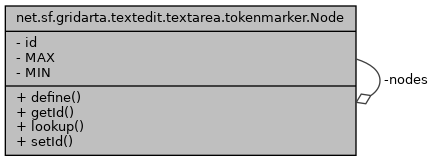

Collaboration diagram for net.sf.gridarta.textedit.textarea.tokenmarker.Node:

Public Member Functions
Node	define (final char ch)
byte	getId ()
Node	lookup (final char ch)
void	setId (final byte id)

Private Attributes
byte	id = Token.NULL
final Node[]	nodes = new Node[MAX - MIN + 1]

Static Private Attributes
static final char	MAX = 'z'
static final char	MIN = 'A'

Detailed Description

A node in the tree that is used to store all key-value pairs.

Author

Andreas Kirschbaum

Definition at line 30 of file Node.java.

Member Function Documentation

define()

Node net.sf.gridarta.textedit.textarea.tokenmarker.Node.define

(

final char

ch

)

Looks up or defines the next node for a given character.

Parameters

ch	the character

Returns

the next node

Exceptions

IndexOutOfBoundsException

if the character is not withing MIN .. MAX

Definition at line 63 of file Node.java.

References net.sf.gridarta.textedit.textarea.tokenmarker.Node.MIN, and net.sf.gridarta.textedit.textarea.tokenmarker.Node.nodes.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.KeywordMap.add().

Here is the caller graph for this function:

getId()

byte net.sf.gridarta.textedit.textarea.tokenmarker.Node.getId

(

)

Returns the id for this node.

Returns

this id, or

token.NULL

if no key matches this node

Definition at line 93 of file Node.java.

References net.sf.gridarta.textedit.textarea.tokenmarker.Node.id.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.KeywordMap.lookup().

Here is the caller graph for this function:

lookup()

Node net.sf.gridarta.textedit.textarea.tokenmarker.Node.lookup

(

final char

ch

)

Looks up the next node for a given character.

Parameters

ch	the character

Returns

the next node, or

null

if no key matching exists

Definition at line 77 of file Node.java.

References net.sf.gridarta.textedit.textarea.tokenmarker.Node.MAX, net.sf.gridarta.textedit.textarea.tokenmarker.Node.MIN, and net.sf.gridarta.textedit.textarea.tokenmarker.Node.nodes.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.KeywordMap.lookup().

Here is the caller graph for this function:

setId()

void net.sf.gridarta.textedit.textarea.tokenmarker.Node.setId

(

final byte

id

)

Sets the id to return for this node.

Parameters

id	the ide to set

Definition at line 85 of file Node.java.

References net.sf.gridarta.textedit.textarea.tokenmarker.Node.id.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.KeywordMap.add().

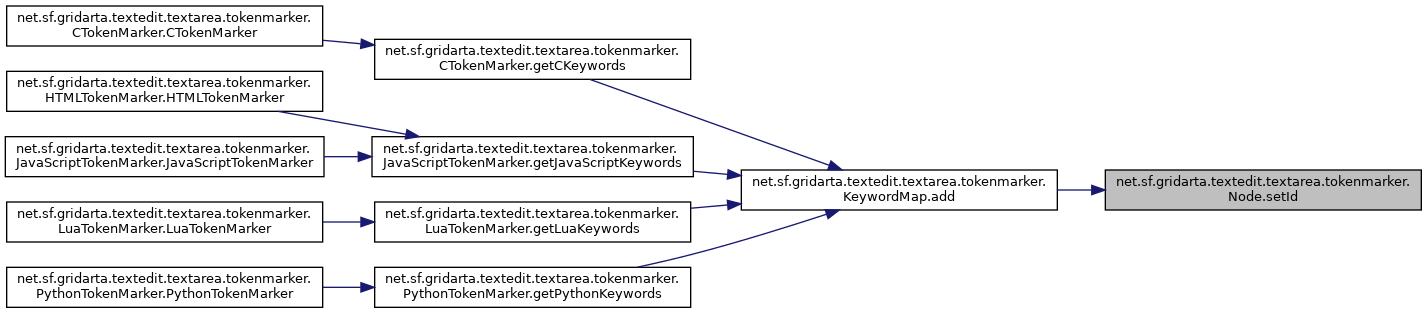

Here is the caller graph for this function:

Member Data Documentation

id

byte net.sf.gridarta.textedit.textarea.tokenmarker.Node.id = Token.NULL

private

The id for the key matching the path between the root node and this node.

Definition at line 46 of file Node.java.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.Node.getId(), and net.sf.gridarta.textedit.textarea.tokenmarker.Node.setId().

MAX

final char net.sf.gridarta.textedit.textarea.tokenmarker.Node.MAX = 'z'

staticprivate

The maximal character code usable in keys.

Definition at line 40 of file Node.java.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.Node.lookup().

MIN

final char net.sf.gridarta.textedit.textarea.tokenmarker.Node.MIN = 'A'

staticprivate

The minimal character code usable in keys.

Definition at line 35 of file Node.java.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.Node.define(), and net.sf.gridarta.textedit.textarea.tokenmarker.Node.lookup().

nodes

final Node [] net.sf.gridarta.textedit.textarea.tokenmarker.Node.nodes = new Node[MAX - MIN + 1]

private

The next nodes, or

null

if no next node exists. The index is

0

for MIN.

Definition at line 53 of file Node.java.

Referenced by net.sf.gridarta.textedit.textarea.tokenmarker.Node.define(), and net.sf.gridarta.textedit.textarea.tokenmarker.Node.lookup().

---

The documentation for this class was generated from the following file:

• src/textedit/src/main/java/net/sf/gridarta/textedit/textarea/tokenmarker/Node.java
