Dialog used to ask the user the properties for the new level. More...

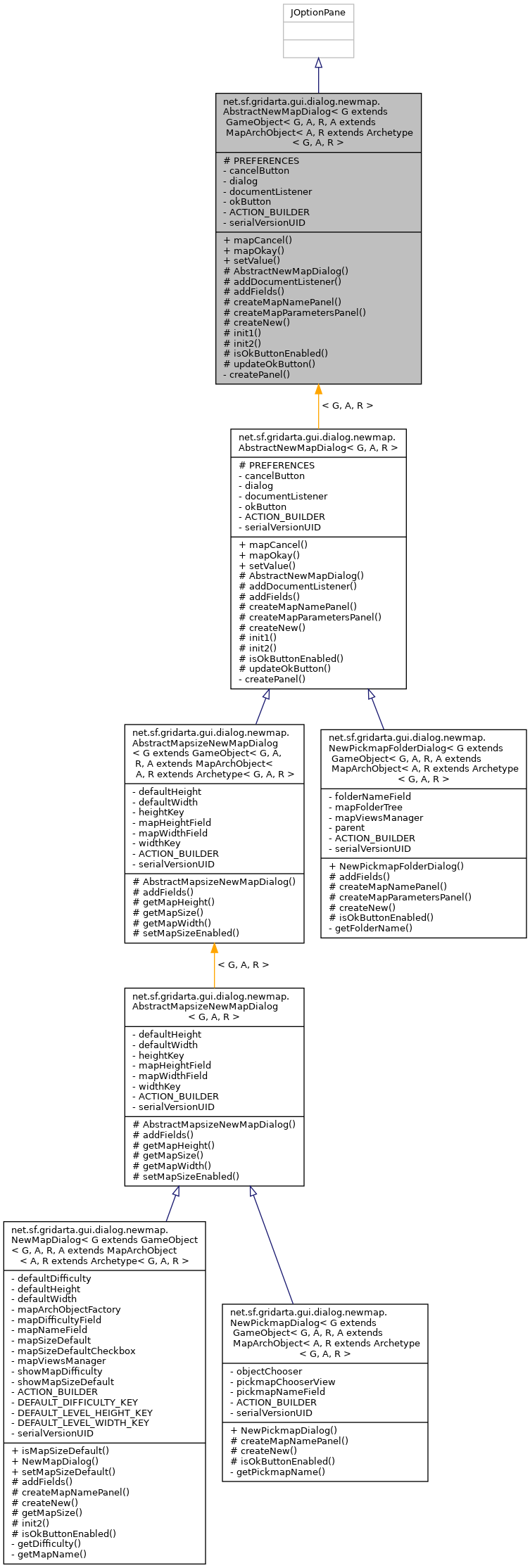

Inheritance diagram for net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

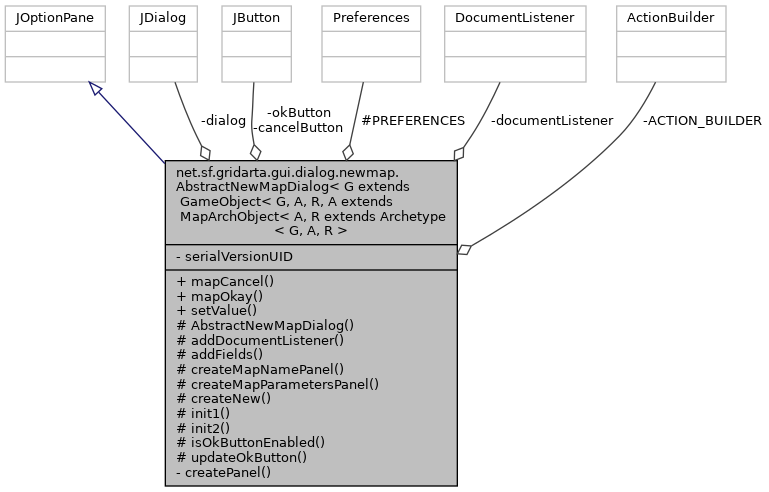

Collaboration diagram for net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
void	mapCancel ()
	Action method for cancel. More...

void	mapOkay ()
	Action method for okay. More...

void	setValue (@Nullable final Object newValue)

Protected Member Functions
	AbstractNewMapDialog ()
	Constructs a new map dialog. More...

void	addDocumentListener (@NotNull final JTextComponent textComponent)
	Watches for text changes in a text component and enables the "OK" button accordingly. More...

abstract void	addFields (@NotNull JPanel panel, @NotNull GridBagConstraints gbcLabel, @NotNull GridBagConstraints gbcField)
	Adds additional fields to the dialog. More...

abstract JPanel	createMapNamePanel ()

JPanel	createMapParametersPanel ()

abstract boolean	createNew ()
	Checks the given values and creates a new map. More...

void	init1 (@NotNull final Component parentComponent, @NotNull final String dialogTitle)
	Initializes the dialog. More...

void	init2 ()
	Initializes the dialog. More...

boolean	isOkButtonEnabled ()
	Returns whether the "OK" button is enabled depending on the dialog's contents. More...

void	updateOkButton ()
	Updates the enabled state of the "OK" button depending on the dialog's contents. More...

Static Protected Attributes
static final Preferences	PREFERENCES = Preferences.userNodeForPackage(MainControl.class)
	Preferences. More...

Private Member Functions
JPanel	createPanel ()

Private Attributes
final JButton	cancelButton = new JButton(ACTION_BUILDER.createAction(false, "mapCancel", this))
	JButton for cancel. More...

JDialog	dialog

final DocumentListener	documentListener
	The DocumentListener attached to input fields for detecting changes. More...

final JButton	okButton = new JButton(ACTION_BUILDER.createAction(false, "mapOkay", this))
	JButton for ok. More...

Static Private Attributes
static final ActionBuilder	ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")
	Action Builder. More...

static final long	serialVersionUID = 1L
	Serial Version UID. More...

Detailed Description

Dialog used to ask the user the properties for the new level.

Contains a tabbed pane for creating a level either based on a template or from a scratch.

Author: Michael Toennies; Andreas Vogl; Christian Hujer @noinspection AbstractClassExtendsConcreteClass

Definition at line 62 of file AbstractNewMapDialog.java.

Constructor & Destructor Documentation

◆ AbstractNewMapDialog()

net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.AbstractNewMapDialog ( )

protected

Constructs a new map dialog.

Builds the dialog UI.

Definition at line 123 of file AbstractNewMapDialog.java.

Member Function Documentation

◆ addDocumentListener()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addDocumentListener ( @NotNull final JTextComponent textComponent )

protected

Watches for text changes in a text component and enables the "OK" button accordingly.

Parameters

textComponent the text component to watch

Definition at line 250 of file AbstractNewMapDialog.java.

◆ addFields()

abstract void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addFields	(	@NotNull JPanel	panel,
		@NotNull GridBagConstraints	gbcLabel,
		@NotNull GridBagConstraints	gbcField
	)

abstractprotected

Adds additional fields to the dialog.

Will be called once when the dialog is created.

Parameters

panel	the panel to add the fields to
gbcLabel	the grid bag constraints for the label part
gbcField	the grid bag constraints for the input field

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.createMapParametersPanel().

Here is the caller graph for this function:

◆ createMapNamePanel()

abstract JPanel net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createMapNamePanel ( )

abstractprotected

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.createPanel().

Here is the caller graph for this function:

◆ createMapParametersPanel()

JPanel net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createMapParametersPanel ( )

protected

Definition at line 170 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.createPanel().

Here is the caller graph for this function:

◆ createNew()

abstract boolean net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createNew ( )

abstractprotected

Checks the given values and creates a new map.

Returns: true

if the map was created,
false

if the parameters were wrong

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.mapOkay().

Here is the caller graph for this function:

◆ createPanel()

JPanel net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.createPanel ( )

private

Definition at line 154 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.init1().

Here is the caller graph for this function:

◆ init1()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.init1	(	@NotNull final Component	parentComponent,
		@NotNull final String	dialogTitle
	)

protected

Initializes the dialog.

Parameters

parentComponent	the parent component of this dialog
dialogTitle	the dialog's title

Definition at line 131 of file AbstractNewMapDialog.java.

◆ init2()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.init2 ( )

protected

Initializes the dialog.

Definition at line 148 of file AbstractNewMapDialog.java.

◆ isOkButtonEnabled()

boolean net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.isOkButtonEnabled ( )

protected

Returns whether the "OK" button is enabled depending on the dialog's contents.

Returns: whether the "OK" button is enabled

Definition at line 241 of file AbstractNewMapDialog.java.

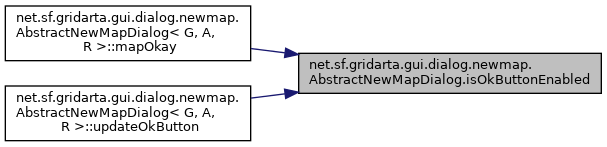

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.mapOkay(), and net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.updateOkButton().

Here is the caller graph for this function:

◆ mapCancel()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapCancel ( )

Action method for cancel.

Definition at line 209 of file AbstractNewMapDialog.java.

◆ mapOkay()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapOkay ( )

Action method for okay.

Definition at line 199 of file AbstractNewMapDialog.java.

◆ setValue()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.setValue ( @Nullable final Object newValue )

Definition at line 214 of file AbstractNewMapDialog.java.

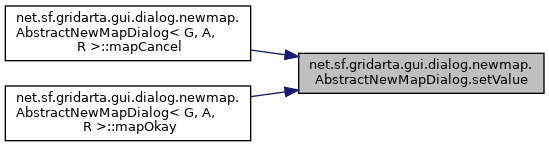

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.mapCancel(), and net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.mapOkay().

Here is the caller graph for this function:

◆ updateOkButton()

void net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.updateOkButton ( )

protected

Updates the enabled state of the "OK" button depending on the dialog's contents.

Definition at line 232 of file AbstractNewMapDialog.java.

Member Data Documentation

◆ ACTION_BUILDER

final ActionBuilder net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")

staticprivate

Action Builder.

Definition at line 73 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.createMapParametersPanel().

◆ cancelButton

final JButton net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.cancelButton = new JButton(ACTION_BUILDER.createAction(false, "mapCancel", this))

private

JButton for cancel.

Definition at line 91 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.init1(), and net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.mapCancel().

◆ dialog

JDialog net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.dialog

private

Definition at line 94 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.init1(), net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.init2(), and net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.setValue().

◆ documentListener

final DocumentListener net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.documentListener

private

Initial value:

= new DocumentListener() {

        @Override
        public void insertUpdate(@NotNull final DocumentEvent e) {
            updateOkButton();
        }

        @Override
        public void removeUpdate(@NotNull final DocumentEvent e) {
            updateOkButton();
        }

        @Override
        public void changedUpdate(@NotNull final DocumentEvent e) {
            updateOkButton();
        }

    }

The DocumentListener attached to input fields for detecting changes.

Definition at line 101 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.addDocumentListener().

◆ okButton

final JButton net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.okButton = new JButton(ACTION_BUILDER.createAction(false, "mapOkay", this))

private

JButton for ok.

Definition at line 85 of file AbstractNewMapDialog.java.

Referenced by net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.init1(), net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.mapOkay(), and net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G, A, R >.updateOkButton().

◆ PREFERENCES

final Preferences net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.PREFERENCES = Preferences.userNodeForPackage(MainControl.class)

staticprotected

Preferences.

Definition at line 79 of file AbstractNewMapDialog.java.

◆ serialVersionUID

final long net.sf.gridarta.gui.dialog.newmap.AbstractNewMapDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.serialVersionUID = 1L

staticprivate

Serial Version UID.

Definition at line 67 of file AbstractNewMapDialog.java.

The documentation for this class was generated from the following file:

src/gridarta/src/main/java/net/sf/gridarta/gui/dialog/newmap/AbstractNewMapDialog.java
