net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D > Class Template Reference

Maintains (dialog) instance associated to map view instances. More...

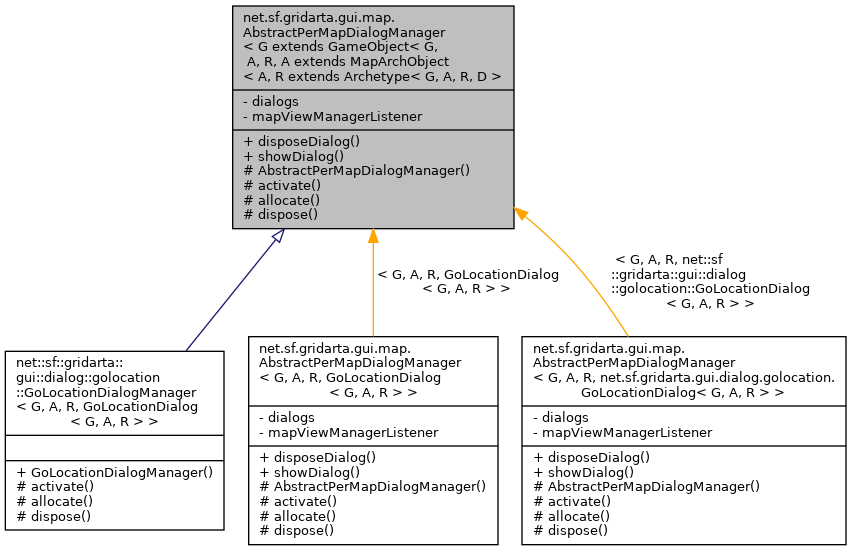

Inheritance diagram for net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >:

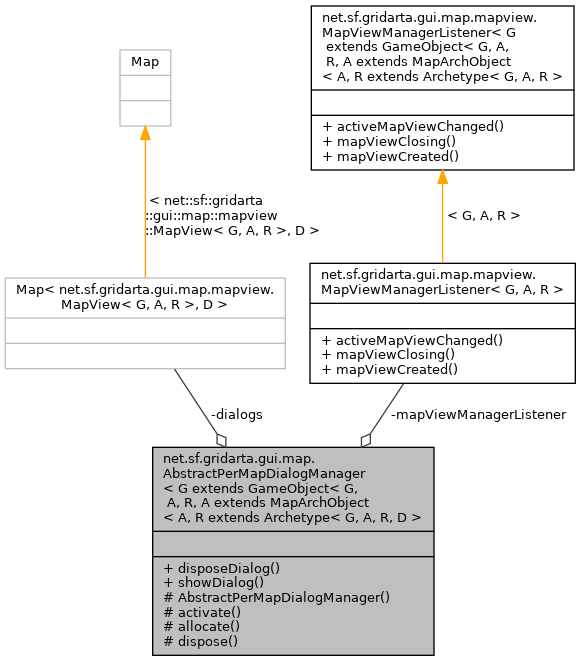

Collaboration diagram for net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >:

Public Member Functions
void	disposeDialog (final MapView< G, A, R > mapView)
	Dispose a dialog. More...
void	showDialog (final MapView< G, A, R > mapView)
	Show a dialog for positioning the cursor of a map. More...

Protected Member Functions
	AbstractPerMapDialogManager (@NotNull final MapViewManager< G, A, R > mapViewManager)
	Creates a new instance. More...
abstract void	activate (@NotNull D dialog)
	Activates an existing instance. More...
abstract D	allocate (@NotNull MapView< G, A, R > mapView)
	Creates a new instance. More...
abstract void	dispose (@NotNull D dialog)
	Destroys an instance. More...

Private Attributes
final Map< MapView< G, A, R >, D >	dialogs = new HashMap<>()
	Dialog for each map view. More...
final MapViewManagerListener< G, A, R >	mapViewManagerListener
	The map view manager listener to detect closed map views. More...

Detailed Description

Maintains (dialog) instance associated to map view instances.

This class makes sure that for each map view no more than one go location dialog exists.

Author

Andreas Kirschbaum

Definition at line 39 of file AbstractPerMapDialogManager.java.

Constructor & Destructor Documentation

AbstractPerMapDialogManager()

net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.AbstractPerMapDialogManager ( @NotNull final MapViewManager< G, A, R >  mapViewManager )

protected

Creates a new instance.

Parameters

mapViewManager

the view map manager

Definition at line 72 of file AbstractPerMapDialogManager.java.

Member Function Documentation

activate()

abstract void net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.activate ( @NotNull D  dialog )

abstractprotected

Activates an existing instance.

Parameters

dialog

the instance

Referenced by net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G, A, R, net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G, A, R > >.showDialog().

Here is the caller graph for this function:

allocate()

abstract D net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.allocate ( @NotNull MapView< G, A, R >  mapView )

abstractprotected

Creates a new instance.

Parameters

mapView

the map view for the new instance

Returns

the new instance

Reimplemented in net.sf.gridarta.gui.dialog.golocation.GoLocationDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.

Referenced by net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G, A, R, net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G, A, R > >.showDialog().

Here is the caller graph for this function:

dispose()

abstract void net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.dispose ( @NotNull D  dialog )

abstractprotected

Destroys an instance.

Parameters

dialog

the instance

Referenced by net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G, A, R, net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G, A, R > >.disposeDialog().

Here is the caller graph for this function:

disposeDialog()

void net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.disposeDialog

(

final MapView< G, A, R >

mapView

)

Dispose a dialog.

Parameters

mapView

the map view to dispose the dialog of; do nothing if no dialog exists

Definition at line 98 of file AbstractPerMapDialogManager.java.

Referenced by net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.setValue().

Here is the caller graph for this function:

showDialog()

void net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.showDialog

(

final MapView< G, A, R >

mapView

)

Show a dialog for positioning the cursor of a map.

Parameters

mapView

the view map for cursor positioning

Definition at line 80 of file AbstractPerMapDialogManager.java.

Referenced by net.sf.gridarta.action.GoLocationAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doGoLocation().

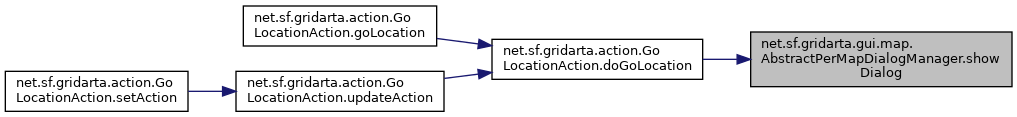

Here is the caller graph for this function:

Member Data Documentation

dialogs

final Map<MapView<G, A, R>, D> net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.dialogs = new HashMap<>()

private

Dialog for each map view.

Definition at line 44 of file AbstractPerMapDialogManager.java.

Referenced by net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G, A, R, net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G, A, R > >.disposeDialog(), and net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G, A, R, net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G, A, R > >.showDialog().

mapViewManagerListener

final MapViewManagerListener<G, A, R> net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, D >.mapViewManagerListener

private

Initial value:

= new MapViewManagerListener<G, A, R>() {

        @Override
        public void activeMapViewChanged(@Nullable final MapView<G, A, R> mapView) {

        }

        @Override
        public void mapViewCreated(@NotNull final MapView<G, A, R> mapView) {

        }

        @Override
        public void mapViewClosing(@NotNull final MapView<G, A, R> mapView) {
            disposeDialog(mapView);
        }

    }

The map view manager listener to detect closed map views.

Definition at line 49 of file AbstractPerMapDialogManager.java.

Referenced by net.sf.gridarta.gui.map.AbstractPerMapDialogManager< G, A, R, net.sf.gridarta.gui.dialog.golocation.GoLocationDialog< G, A, R > >.AbstractPerMapDialogManager().

---

The documentation for this class was generated from the following file:

• src/gridarta/src/main/java/net/sf/gridarta/gui/map/AbstractPerMapDialogManager.java
