Handles the parsing of arches. More...

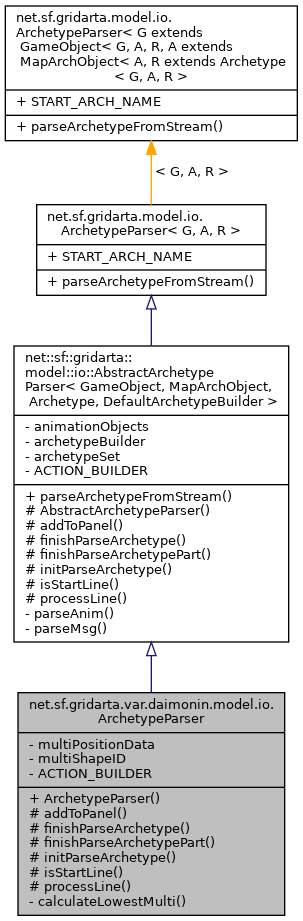

Inheritance diagram for net.sf.gridarta.var.daimonin.model.io.ArchetypeParser:

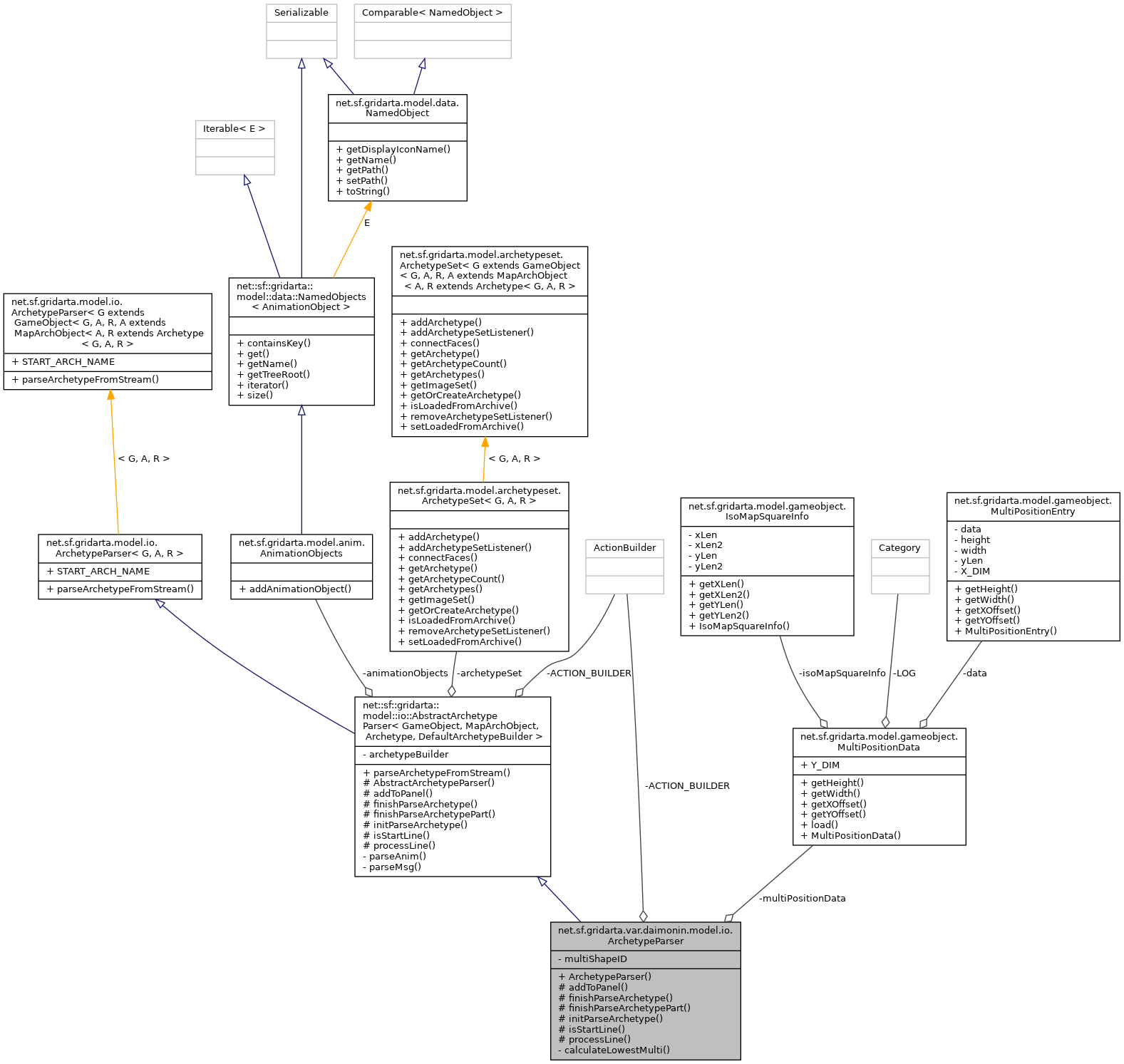

Collaboration diagram for net.sf.gridarta.var.daimonin.model.io.ArchetypeParser:

Public Member Functions
	ArchetypeParser (@NotNull final AnimationObjects animationObjects, @NotNull final ArchetypeSet< GameObject, MapArchObject, Archetype > archetypeSet, @NotNull final GameObjectFactory< GameObject, MapArchObject, Archetype > gameObjectFactory, @NotNull final MultiPositionData multiPositionData)
	Creates an ArchetypeParser. More...

Public Member Functions inherited from net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >
void	parseArchetypeFromStream (@NotNull final BufferedReader in, @Nullable final R prototype, @Nullable final String line, @Nullable final String archName, @NotNull final String panelName, @NotNull final String folderName, @NotNull final String archPath, @NotNull final List< G > invObjects, @NotNull final ErrorViewCollector errorViewCollector) throws IOException

Public Member Functions inherited from net.sf.gridarta.model.io.ArchetypeParser< G, A, R >
void	parseArchetypeFromStream ( @NotNull BufferedReader in, @Nullable R prototype, @Nullable String line, @Nullable String archName, @NotNull String panelName, @NotNull String folderName, @NotNull String archPath, @NotNull List< G > invObjects, @NotNull ErrorViewCollector errorViewCollector) throws IOException
	Here we read an Archetype from a BufferedReader, parse the data and put the result in the ArchetypeSet in CMainControl. More...

Protected Member Functions
boolean	addToPanel (final boolean isInternPath, @NotNull final String editorFolder, @NotNull final Archetype archetype)

void	finishParseArchetype (@NotNull final Archetype archetype)

void	finishParseArchetypePart (@Nullable final Archetype firstArch, @NotNull final Archetype archetype, @NotNull final ErrorViewCollector errorViewCollector)

void	initParseArchetype ()
	Called when a new archetype starts. More...

boolean	isStartLine (@NotNull final String line)
	Returns whether a give input line denotes the start of a new archetype. More...

boolean	processLine (@NotNull final BufferedReader in, @NotNull final String line, @NotNull final String line2, @NotNull final DefaultArchetypeBuilder archetypeBuilder, @NotNull final ErrorViewCollector errorViewCollector, @NotNull final List< GameObject > invObjects)

Protected Member Functions inherited from net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >
	AbstractArchetypeParser (@NotNull final B archetypeBuilder, @NotNull final AnimationObjects animationObjects, @NotNull final ArchetypeSet< G, A, R > archetypeSet)
	Creates an ArchetypeParser. More...

abstract boolean	addToPanel (boolean isInternPath, @NotNull String editorFolder, @NotNull R archetype)
	Returns whether an archetype should be added to the archetype chooser. More...

abstract void	finishParseArchetype (@NotNull R archetype)
	Called after all parts of an archetype have been processed. More...

abstract void	finishParseArchetypePart (@Nullable R firstArch, @NotNull R archetype, @NotNull ErrorViewCollector errorViewCollector)
	Called after the "end" line of a part has been read. More...

abstract boolean	processLine (@NotNull BufferedReader in, @NotNull String line, @NotNull String line2, @NotNull B archetypeBuilder, @NotNull ErrorViewCollector errorViewCollector, @NotNull List< G > invObjects) throws IOException
	Called for each processed line. More...

Private Member Functions
void	calculateLowestMulti (final net.sf.gridarta.model.archetype.Archetype< GameObject, MapArchObject, Archetype > arch)
	Calculate the lowest part of this multi-arch. More...

Private Attributes
final MultiPositionData	multiPositionData
	The MultiPositionData instance to query for multi-part objects. More...

int	multiShapeID
	The multi-shape ID of the currently parsed archetype. More...

Static Private Attributes
static final ActionBuilder	ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")
	Action Builder. More...

Additional Inherited Members
Public Attributes inherited from net.sf.gridarta.model.io.ArchetypeParser< G, A, R >
String	START_ARCH_NAME
	Name of the system-archetype containing path of starting map. More...

Detailed Description

Handles the parsing of arches.

It is a class separated from ArchetypeSet because it is also involved in loading arches in map files.

Author: Michael Toennies; Andreas Vogl; Christian Hujer

Definition at line 47 of file ArchetypeParser.java.

Constructor & Destructor Documentation

◆ ArchetypeParser()

net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.ArchetypeParser	(	@NotNull final AnimationObjects	animationObjects,
		@NotNull final ArchetypeSet< GameObject, MapArchObject, Archetype >	archetypeSet,
		@NotNull final GameObjectFactory< GameObject, MapArchObject, Archetype >	gameObjectFactory,
		@NotNull final MultiPositionData	multiPositionData
	)

Creates an ArchetypeParser.

Parameters

animationObjects	the animation objects instance to use
archetypeSet	the archetype set
gameObjectFactory	the factory for creating game objects
multiPositionData	the multi position data to query for multi-part objects

Definition at line 74 of file ArchetypeParser.java.

References net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >.animationObjects, net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >.archetypeSet, and net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiPositionData.

Member Function Documentation

◆ addToPanel()

boolean net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.addToPanel	(	final boolean	isInternPath,
		@NotNull final String	editorFolder,
		@NotNull final Archetype	archetype
	)

protected

Definition at line 138 of file ArchetypeParser.java.

References net.sf.gridarta.model.gameobject.GameObject< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.EDITOR_FOLDER_INTERN.

◆ calculateLowestMulti()

void net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.calculateLowestMulti ( final net.sf.gridarta.model.archetype.Archetype< GameObject, MapArchObject, Archetype > arch )

private

Calculate the lowest part of this multi-arch.

This lowest part is needed because in ISO view, the big image is drawn for it's lowest part, in order to get the overlapping correct.

Parameters

arch	last tail part of this multi

Definition at line 151 of file ArchetypeParser.java.

References arch, net.sf.gridarta.model.archetype.Archetype< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMultiPartNr(), net.sf.gridarta.model.archetype.Archetype< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMultiShapeID(), net.sf.gridarta.model.gameobject.MultiPositionData.getYOffset(), and net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiPositionData.

Referenced by net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.finishParseArchetype().

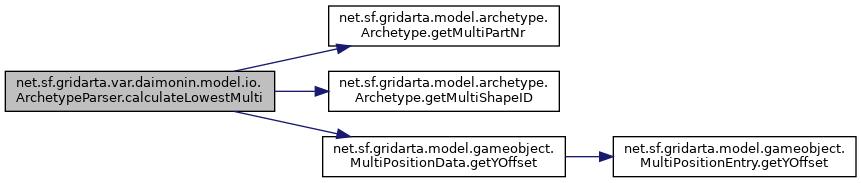

Here is the call graph for this function:

Here is the caller graph for this function:

◆ finishParseArchetype()

void net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.finishParseArchetype ( @NotNull final Archetype archetype )

protected

Definition at line 131 of file ArchetypeParser.java.

References net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.calculateLowestMulti().

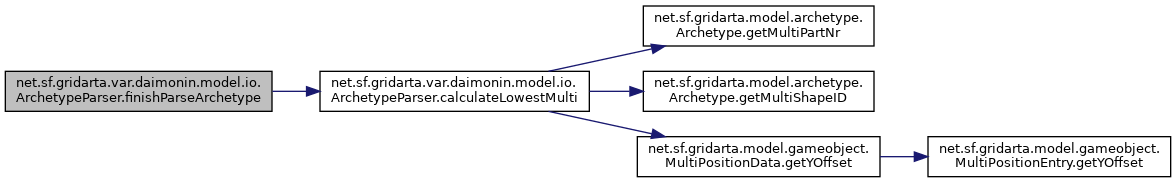

Here is the call graph for this function:

◆ finishParseArchetypePart()

void net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.finishParseArchetypePart	(	@Nullable final Archetype	firstArch,
		@NotNull final Archetype	archetype,
		@NotNull final ErrorViewCollector	errorViewCollector
	)

protected

Definition at line 122 of file ArchetypeParser.java.

References net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.ACTION_BUILDER, net.sf.gridarta.model.errorview.ErrorViewCategory.ARCHETYPE_INVALID, and net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiShapeID.

◆ initParseArchetype()

void net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.initParseArchetype ( )

protected

Called when a new archetype starts.

Reimplemented from net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >.

Definition at line 80 of file ArchetypeParser.java.

References net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiShapeID.

◆ isStartLine()

boolean net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.isStartLine ( @NotNull final String line )

protected

Returns whether a give input line denotes the start of a new archetype.

Parameters

line	the input line

Returns: whether the line is a start line

Reimplemented from net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >.

Definition at line 85 of file ArchetypeParser.java.

◆ processLine()

boolean net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.processLine	(	@NotNull final BufferedReader	in,
		@NotNull final String	line,
		@NotNull final String	line2,
		@NotNull final DefaultArchetypeBuilder	archetypeBuilder,
		@NotNull final ErrorViewCollector	errorViewCollector,
		@NotNull final List< GameObject >	invObjects
	)

protected

Definition at line 90 of file ArchetypeParser.java.

References net.sf.gridarta.model.errorview.ErrorViewCategory.ARCHETYPE_INVALID, net.sf.gridarta.model.io.AbstractArchetypeParser< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, B extends AbstractArchetypeBuilder< G, A, R >.archetypeBuilder, net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiShapeID, and net.sf.gridarta.model.gameobject.MultiPositionData.Y_DIM.

Member Data Documentation

◆ ACTION_BUILDER

final ActionBuilder net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")

staticprivate

Action Builder.

Definition at line 53 of file ArchetypeParser.java.

Referenced by net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.finishParseArchetypePart().

◆ multiPositionData

final MultiPositionData net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiPositionData

private

The MultiPositionData instance to query for multi-part objects.

Definition at line 59 of file ArchetypeParser.java.

Referenced by net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.ArchetypeParser(), and net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.calculateLowestMulti().

◆ multiShapeID

int net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.multiShapeID

private

The multi-shape ID of the currently parsed archetype.

Definition at line 64 of file ArchetypeParser.java.

Referenced by net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.finishParseArchetypePart(), net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.initParseArchetype(), and net.sf.gridarta.var.daimonin.model.io.ArchetypeParser.processLine().

The documentation for this class was generated from the following file:

src/daimonin/src/main/java/net/sf/gridarta/var/daimonin/model/io/ArchetypeParser.java
