net.sf.gridarta.gui.utils.tristate.TristateCheckBox Class Reference

A JCheckBox that supports three states: deselected, indeterminate, selected. More...

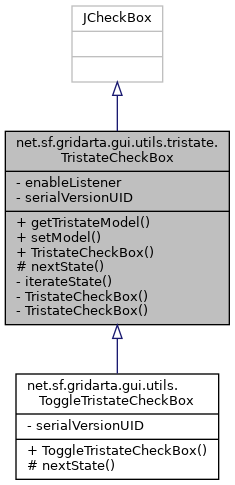

Inheritance diagram for net.sf.gridarta.gui.utils.tristate.TristateCheckBox:

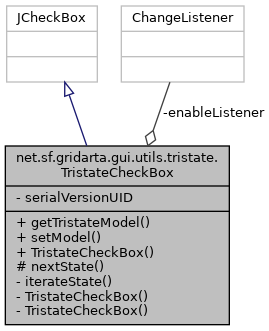

Collaboration diagram for net.sf.gridarta.gui.utils.tristate.TristateCheckBox:

Public Member Functions
TristateButtonModel	getTristateModel ()
	Returns the model as a TristateButtonModel. More...
final void	setModel (@NotNull final ButtonModel newModel)
	TristateCheckBox (@NotNull final String text)
	Creates a new instance without icon which is initially {}. More...

Protected Member Functions
TristateState	nextState (@NotNull final TristateState state)
	Returns the next state. More...

Private Member Functions
void	iterateState (final int modifiers)
	Increments the state. More...
	TristateCheckBox (@NotNull final String text, @Nullable final Icon icon, @NotNull final ButtonModel buttonModel)
	Creates a new instance. More...
	TristateCheckBox (@NotNull final String text, @Nullable final Icon icon, @NotNull final TristateState initialState)
	Creates a new instance. More...

Private Attributes
final ChangeListener	enableListener = e -> setFocusable(getModel().isEnabled())
	The ChangeListener on model changes to maintain correct focusability. More...

Static Private Attributes
static final long	serialVersionUID = 1L
	The serial version UID. More...

Detailed Description

A JCheckBox that supports three states: deselected, indeterminate, selected.

Author

Andreas Kirschbaum

Definition at line 43 of file TristateCheckBox.java.

Constructor & Destructor Documentation

TristateCheckBox() [1/3]

net.sf.gridarta.gui.utils.tristate.TristateCheckBox.TristateCheckBox

(

@NotNull final String

text

)

Creates a new instance without icon which is initially {}.

Parameters

text	the text of the check box

Definition at line 62 of file TristateCheckBox.java.

TristateCheckBox() [2/3]

net.sf.gridarta.gui.utils.tristate.TristateCheckBox.TristateCheckBox ( @NotNull final String  text, @Nullable final Icon  icon, @NotNull final TristateState  initialState  )

private

Creates a new instance.

Parameters

text	the text of the check box
icon	the icon to display
initialState	the initial state

Definition at line 72 of file TristateCheckBox.java.

TristateCheckBox() [3/3]

net.sf.gridarta.gui.utils.tristate.TristateCheckBox.TristateCheckBox ( @NotNull final String  text, @Nullable final Icon  icon, @NotNull final ButtonModel  buttonModel  )

private

Creates a new instance.

Parameters

text	the text of the check box
icon	the icon to display
buttonModel	the button model to use

The serial version UID.

Definition at line 82 of file TristateCheckBox.java.

References net.sf.gridarta.gui.utils.tristate.TristateCheckBox.iterateState(), net.sf.gridarta.gui.utils.tristate.TristateCheckBox.serialVersionUID, and net.sf.gridarta.gui.utils.tristate.TristateCheckBox.setModel().

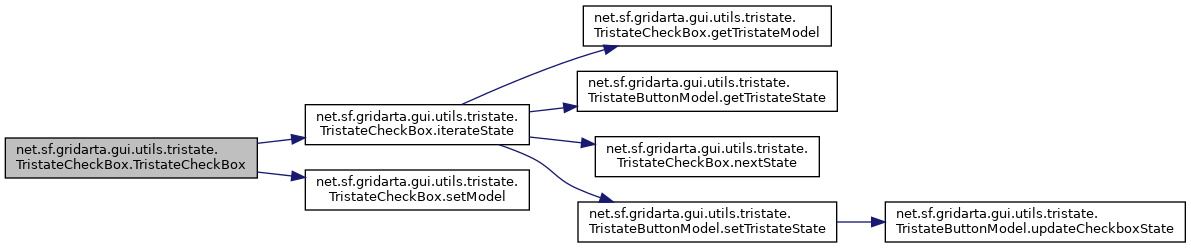

Here is the call graph for this function:

Member Function Documentation

getTristateModel()

TristateButtonModel net.sf.gridarta.gui.utils.tristate.TristateCheckBox.getTristateModel

(

)

Returns the model as a TristateButtonModel.

Returns

the model

Definition at line 171 of file TristateCheckBox.java.

Referenced by net.sf.gridarta.gui.utils.tristate.TristateCheckBox.iterateState().

Here is the caller graph for this function:

iterateState()

void net.sf.gridarta.gui.utils.tristate.TristateCheckBox.iterateState ( final int  modifiers )

private

Increments the state.

Parameters

modifiers

the modifiers of this action

Definition at line 143 of file TristateCheckBox.java.

References net.sf.gridarta.gui.utils.tristate.TristateCheckBox.getTristateModel(), net.sf.gridarta.gui.utils.tristate.TristateButtonModel.getTristateState(), net.sf.gridarta.gui.utils.tristate.TristateCheckBox.nextState(), and net.sf.gridarta.gui.utils.tristate.TristateButtonModel.setTristateState().

Referenced by net.sf.gridarta.gui.utils.tristate.TristateCheckBox.TristateCheckBox().

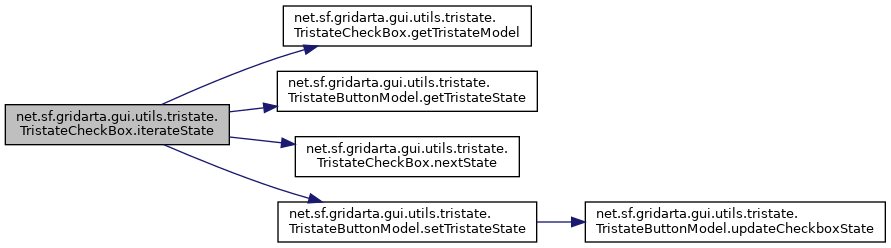

Here is the call graph for this function:

Here is the caller graph for this function:

nextState()

TristateState net.sf.gridarta.gui.utils.tristate.TristateCheckBox.nextState ( @NotNull final TristateState  state )

protected

Returns the next state.

Parameters

state

the current state

Returns

the next state

Reimplemented in net.sf.gridarta.gui.utils.ToggleTristateCheckBox.

Definition at line 162 of file TristateCheckBox.java.

References net.sf.gridarta.gui.utils.tristate.TristateState.nextTristateState.

Referenced by net.sf.gridarta.gui.utils.tristate.TristateCheckBox.iterateState().

Here is the caller graph for this function:

setModel()

final void net.sf.gridarta.gui.utils.tristate.TristateCheckBox.setModel

(

@NotNull final ButtonModel

newModel

)

Definition at line 126 of file TristateCheckBox.java.

References net.sf.gridarta.gui.utils.tristate.TristateCheckBox.enableListener.

Referenced by net.sf.gridarta.gui.utils.tristate.TristateCheckBox.TristateCheckBox().

Here is the caller graph for this function:

Member Data Documentation

enableListener

final ChangeListener net.sf.gridarta.gui.utils.tristate.TristateCheckBox.enableListener = e -> setFocusable(getModel().isEnabled())

private

The ChangeListener on model changes to maintain correct focusability.

Definition at line 55 of file TristateCheckBox.java.

Referenced by net.sf.gridarta.gui.utils.tristate.TristateCheckBox.setModel().

serialVersionUID

final long net.sf.gridarta.gui.utils.tristate.TristateCheckBox.serialVersionUID = 1L

staticprivate

The serial version UID.

Definition at line 48 of file TristateCheckBox.java.

Referenced by net.sf.gridarta.gui.utils.tristate.TristateCheckBox.TristateCheckBox().

---

The documentation for this class was generated from the following file:

• src/gridarta/src/main/java/net/sf/gridarta/gui/utils/tristate/TristateCheckBox.java
