com.realtime.crossfire.jxclient.gui.gui.Gui Class Reference

Inherits javax::swing::JComponent.

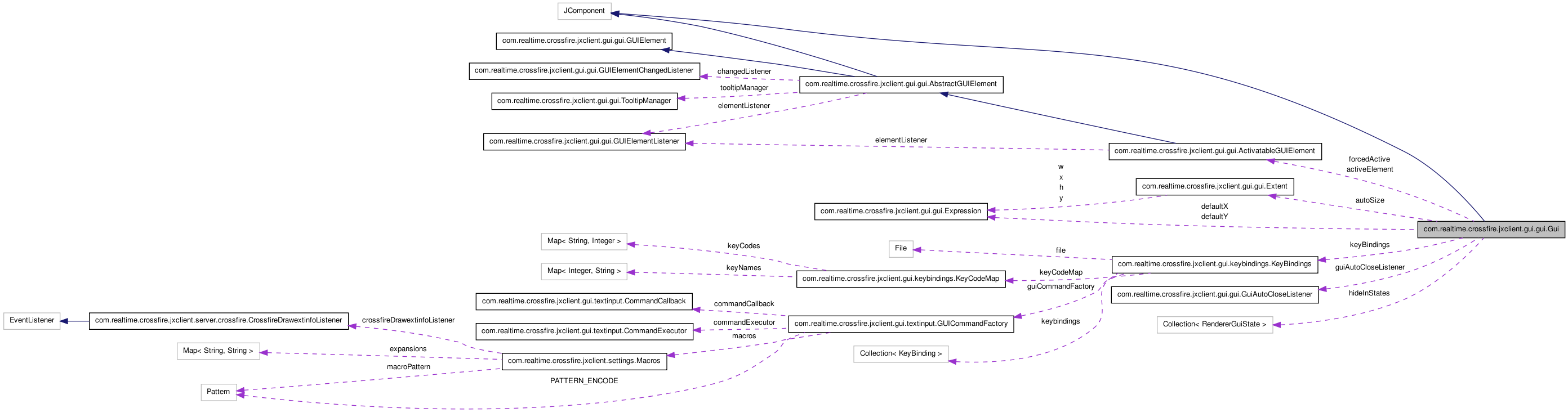

Collaboration diagram for com.realtime.crossfire.jxclient.gui.gui.Gui:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Gui (@NotNull final KeyBindings keyBindings)
void setPosition (final int x, final int y)
void setAutoSize (@Nullable final Extent autoSize)
boolean isAutoSize ()
void setModal (final boolean modal)
boolean isModal ()
void activateDefaultElement ()
AbstractGUIElement getElementFromPoint (final int x, final int y)
void setActiveElement (@NotNull final ActivatableGUIElement activeElement, final boolean active)
boolean isActiveElement (@Nullable final ActivatableGUIElement activeElement)
void setActiveElementActive (final boolean active)
boolean handleKeyPress (@NotNull final KeyEvent e)
boolean deactivateCommandInput ()
KeyBindings getKeyBindings ()
void hideInState (@NotNull final RendererGuiState state)
boolean isHidden (@NotNull final RendererGuiState state)
void setGuiAutoCloseListener (@Nullable final GuiAutoCloseListener guiAutoCloseListener)
boolean isWithinDrawingArea (final int x, final int y)
void setForcedActive (@Nullable final ActivatableGUIElement forcedActive)
String toString ()
void autoSize (final int screenWidth, final int screenHeight)
void setDefaultPosition (@NotNull final Expression defaultX,@NotNull final Expression defaultY)
boolean isSaveDialog ()
void setSaveDialog ()
void showDialog (final int x, final int y, final int windowWidth, final int windowHeight)

Package Functions

public< T extends GUIElement > T getFirstElementEndingWith (@NotNull final Class< T > class_,@NotNull final String ending)
public< T extends GUIElement > T getFirstElementNotEndingWith (@NotNull final Class< T > class_,@NotNull final String ending)
public< T extends GUIElement > T getFirstElement (@NotNull final Class< T > class_)
public< T extends GUIElement > T getFirstElement (@NotNull final Class< T > class_,@NotNull final String name)

Detailed Description

Combines a list of GUIElements to for a gui.

A dialog can be modal. Such dialogs do not propagate key or mouse events to lower dialogs.

Author:
Andreas Kirschbaum

Definition at line 41 of file Gui.java.

Constructor & Destructor Documentation

com.realtime.crossfire.jxclient.gui.gui.Gui.Gui ( @NotNull final KeyBindings  keyBindings  )

Creates a new instance.

Parameters:
keyBindings the keybindings to use

Definition at line 121 of file Gui.java.

Member Function Documentation

void com.realtime.crossfire.jxclient.gui.gui.Gui.activateDefaultElement (  )

Activates the first default gui element of this gui.

Definition at line 200 of file Gui.java.

Here is the call graph for this function:

void com.realtime.crossfire.jxclient.gui.gui.Gui.autoSize ( final int  screenWidth,
final int  screenHeight
)

Auto-resizes the dialog. Does nothing if this dialog is not auto-sizing.

Parameters:
screenWidth the screen width
screenHeight the screen height

Definition at line 500 of file Gui.java.

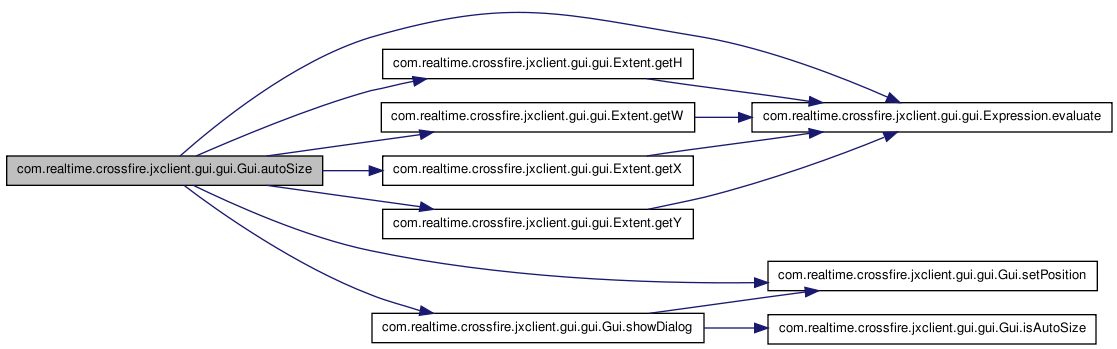

Here is the call graph for this function:

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.deactivateCommandInput (  )

Deactivates the command text input field of this dialog. Does nothing if the command text input field is not active or if this dialog has no command text input field.

Returns:
whether the command text input field has been deactivated

Definition at line 393 of file Gui.java.

Here is the call graph for this function:

Here is the caller graph for this function:

AbstractGUIElement com.realtime.crossfire.jxclient.gui.gui.Gui.getElementFromPoint ( final int  x,
final int  y
)

Determines the GUIElement for a given coordinate.

Parameters:
x the x-coordinate to check
y the y-coordinate to check
Returns:
the GUIElement at the given coordinate or null if none was found

Definition at line 283 of file Gui.java.

public<T extends GUIElement> T com.realtime.crossfire.jxclient.gui.gui.Gui.getFirstElement ( @NotNull final Class< T >  class_,
@NotNull final String  name
) [package]

Returns the first gui element of this gui belonging to the given class and having the given name.

Parameters:
class_ the class to search for
name the button's name
Returns:
the button or null if no button matches

Definition at line 416 of file Gui.java.

Here is the call graph for this function:

public<T extends GUIElement> T com.realtime.crossfire.jxclient.gui.gui.Gui.getFirstElement ( @NotNull final Class< T >  class_  )  [package]

Returns the first gui element of this gui belonging to the given class.

Parameters:
class_ the class to search for
Returns:
the gui element or null if not found

Definition at line 260 of file Gui.java.

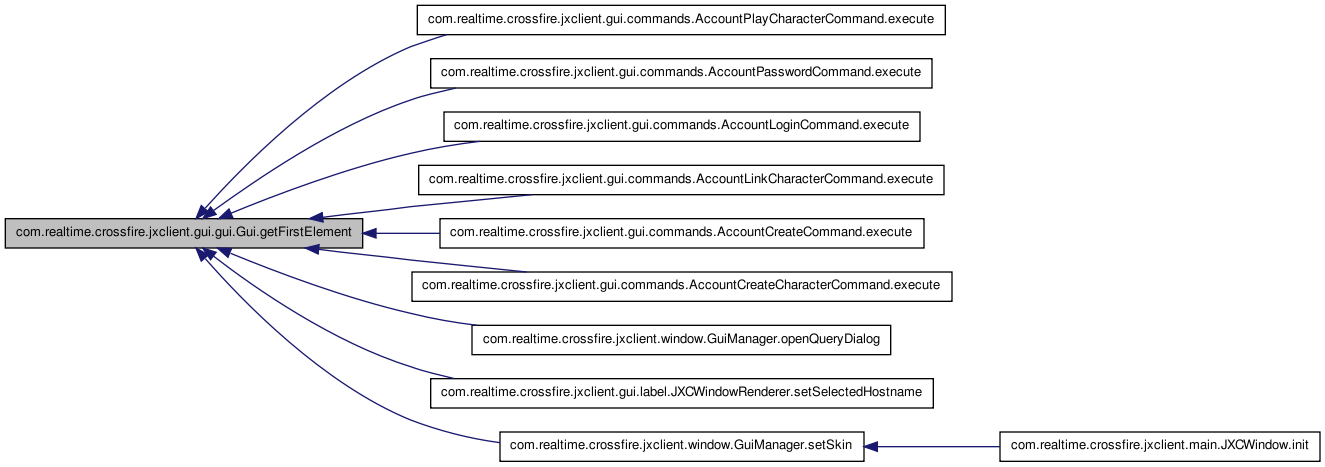

Here is the caller graph for this function:

public<T extends GUIElement> T com.realtime.crossfire.jxclient.gui.gui.Gui.getFirstElementEndingWith ( @NotNull final Class< T >  class_,
@NotNull final String  ending
) [package]

Returns the first gui element of this gui which belongs to the given class and that's name ends with the given ending.

Parameters:
class_ the class to search for
ending the ending to search for
Returns:
the gui element or null if not found

Definition at line 216 of file Gui.java.

Here is the call graph for this function:

public<T extends GUIElement> T com.realtime.crossfire.jxclient.gui.gui.Gui.getFirstElementNotEndingWith ( @NotNull final Class< T >  class_,
@NotNull final String  ending
) [package]

Returns the first gui element of this gui which belongs to the given class and that's name does not end with the given ending.

Parameters:
class_ the class to search for
ending the ending to search for
Returns:
the gui element or null if not found

Definition at line 239 of file Gui.java.

Here is the call graph for this function:

KeyBindings com.realtime.crossfire.jxclient.gui.gui.Gui.getKeyBindings (  )

Returns the key bindings instance for this gui.

Returns:
the key bindings

Definition at line 435 of file Gui.java.

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.handleKeyPress ( @NotNull final KeyEvent  e  )

Dispatches a key press KeyEvent.

Parameters:
e the event to dispatch
Returns:
whether a gui element did handle the event

Definition at line 361 of file Gui.java.

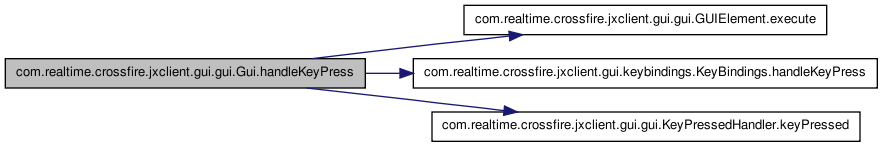

Here is the call graph for this function:

Here is the caller graph for this function:

void com.realtime.crossfire.jxclient.gui.gui.Gui.hideInState ( @NotNull final RendererGuiState  state  )

Hides the dialog in a state.

Parameters:
state the state

Definition at line 443 of file Gui.java.

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.isActiveElement ( @Nullable final ActivatableGUIElement  activeElement  )

Returns whether a given gui element is the active element of this dialog.

Parameters:
activeElement the gui element
Returns:
whether the given gui element is active

Definition at line 341 of file Gui.java.

Here is the caller graph for this function:

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.isAutoSize (  )

Returns whether this dialog is an auto-size dialog. Auto-size dialogs cannot be moved or resized manually.

Returns:
whether this dialog is auto-size

Definition at line 157 of file Gui.java.

Here is the caller graph for this function:

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.isHidden ( @NotNull final RendererGuiState  state  )

Returns whether this gui is visible in a state.

Parameters:
state the state
Returns:
whether this gui is hidden

Definition at line 452 of file Gui.java.

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.isModal (  )

Returns the modal state.

Returns:
the modal state

Definition at line 173 of file Gui.java.

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.isSaveDialog (  )

Returns whether this dialog retains its position across restarts.

Returns:
whether this dialog retains its position across restarts

Definition at line 542 of file Gui.java.

Here is the caller graph for this function:

boolean com.realtime.crossfire.jxclient.gui.gui.Gui.isWithinDrawingArea ( final int  x,
final int  y
)

Returns whether a given point is within this dialog's drawing area.

Parameters:
x the x-coordinate of the the point
y the y-coordinate of the the point
Returns:
whether the coordinate is within the drawing area

Definition at line 472 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.setActiveElement ( @NotNull final ActivatableGUIElement  activeElement,
final boolean  active
)

Sets the gui element owning the focus.

Parameters:
activeElement the gui element
active the new active state

Definition at line 299 of file Gui.java.

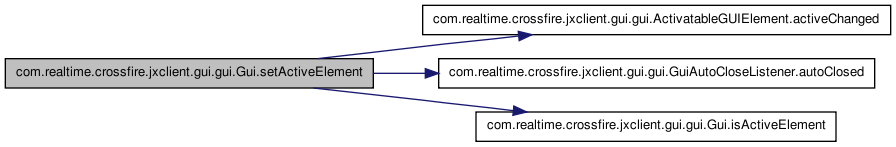

Here is the call graph for this function:

Here is the caller graph for this function:

void com.realtime.crossfire.jxclient.gui.gui.Gui.setActiveElementActive ( final boolean  active  )

Activates or deactivates the GUI element owning the focus. Does nothing if no focus owner exists.

Parameters:
active whether to activate the GUI element

Definition at line 350 of file Gui.java.

Here is the call graph for this function:

void com.realtime.crossfire.jxclient.gui.gui.Gui.setAutoSize ( @Nullable final Extent  autoSize  )

Sets the auto-size state. Auto-size dialogs cannot be moved or resized manually.

Parameters:
autoSize the new auto-size or null

Definition at line 148 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.setDefaultPosition ( @NotNull final Expression  defaultX,
@NotNull final Expression  defaultY
)

Sets the default position for this dialog.

Parameters:
defaultX the default x-coordinate
defaultY the default y-coordinate

Definition at line 533 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.setForcedActive ( @Nullable final ActivatableGUIElement  forcedActive  )

Sets an ActivatableGUIElement that is always active. It prevents any other element from getting active.

Parameters:
forcedActive the element to set or null to unset

Definition at line 481 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.setGuiAutoCloseListener ( @Nullable final GuiAutoCloseListener  guiAutoCloseListener  )

Sets the GuiAutoCloseListener to be notified when this dialog becomes inactive.

Parameters:
guiAutoCloseListener the listener to be notified or null

Definition at line 462 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.setModal ( final boolean  modal  )

Sets the modal state.

Parameters:
modal the new modal state

Definition at line 165 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.setPosition ( final int  x,
final int  y
)

Sets the position of this dialog.

Parameters:
x the x-coordinate
y the y-coordinate

Definition at line 130 of file Gui.java.

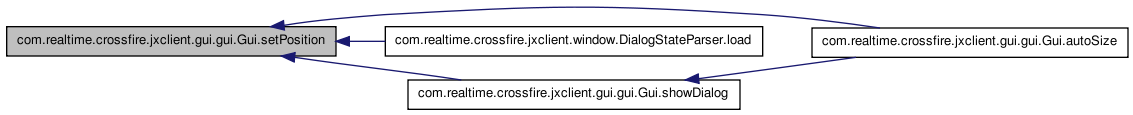

Here is the caller graph for this function:

void com.realtime.crossfire.jxclient.gui.gui.Gui.setSaveDialog (  )

Makes this dialog retain its position across restarts.

Definition at line 549 of file Gui.java.

void com.realtime.crossfire.jxclient.gui.gui.Gui.showDialog ( final int  x,
final int  y,
final int  windowWidth,
final int  windowHeight
)

Sets the position of a dialog but makes sure the dialog is fully visible.

Parameters:
x the dialog's x coordinate
y the dialog's y coordinate
windowWidth the main window's width
windowHeight the main window's height

Definition at line 561 of file Gui.java.

Here is the call graph for this function:

Here is the caller graph for this function:

String com.realtime.crossfire.jxclient.gui.gui.Gui.toString (  )

Definition at line 490 of file Gui.java.

The documentation for this class was generated from the following file:
