com.realtime.crossfire.jxclient.faces.FileCache Class Reference

A disk based cache for image files. More...

Inheritance diagram for com.realtime.crossfire.jxclient.faces.FileCache:

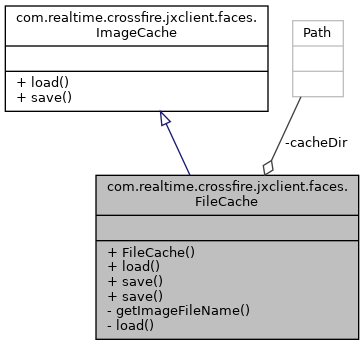

Collaboration diagram for com.realtime.crossfire.jxclient.faces.FileCache:

Public Member Functions
	FileCache (@NotNull final Path cacheDir)
	Creates a new instance. More...
ImageIcon	load (@NotNull final Face face)
	Retrieves an image from the cache. More...
void	save (@NotNull final Face face, @NotNull final ImageIcon imageIcon)
	Stores an ImageIcon into the cache. More...
void	save (@NotNull final String faceName, final int faceChecksum, @NotNull final Icon imageIcon)
	Stores an ImageIcon into the cache. More...

Private Member Functions
Path	getImageFileName (@NotNull final String faceName, final int faceChecksum)
	Calculates a hashed image name to be used as a file name. More...
ImageIcon	load (@NotNull final String faceName, final int faceChecksum)
	Retrieves an image from the cache. More...

Private Attributes
final Path	cacheDir
	The directory where the images are saved. More...

Detailed Description

A disk based cache for image files.

Author

Andreas Kirschbaum

Definition at line 40 of file FileCache.java.

Constructor & Destructor Documentation

FileCache()

com.realtime.crossfire.jxclient.faces.FileCache.FileCache

(

@NotNull final Path

cacheDir

)

Creates a new instance.

Parameters

cacheDir

the directory where the images are saved

Definition at line 52 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.cacheDir.

Member Function Documentation

getImageFileName()

Path com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName ( @NotNull final String  faceName, final int  faceChecksum  )

private

Calculates a hashed image name to be used as a file name.

Parameters

faceName	the image name to hash
faceChecksum	the checksum to hash

Returns

the hashed image name

Definition at line 122 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.cacheDir, and com.realtime.crossfire.jxclient.util.FilenameUtils.quoteName().

Referenced by com.realtime.crossfire.jxclient.faces.FileCache.load(), and com.realtime.crossfire.jxclient.faces.FileCache.save().

Here is the call graph for this function:

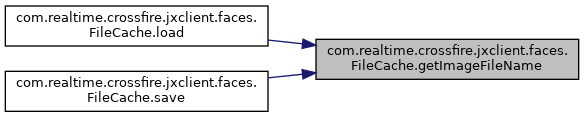

Here is the caller graph for this function:

load() [1/2]

ImageIcon com.realtime.crossfire.jxclient.faces.FileCache.load

(

@NotNull final Face

face

)

Retrieves an image from the cache.

Parameters

face	the face to retrieve

Returns

the image icon, or

null

if the cache does not contain the image

Implements com.realtime.crossfire.jxclient.faces.ImageCache.

Definition at line 63 of file FileCache.java.

load() [2/2]

ImageIcon com.realtime.crossfire.jxclient.faces.FileCache.load ( @NotNull final String  faceName, final int  faceChecksum  )

private

Retrieves an image from the cache.

Parameters

faceName	the image name to retrieve
faceChecksum	the checksum to retrieve

Returns

the image icon, or

null

if the cache does not contain the image

Definition at line 75 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName().

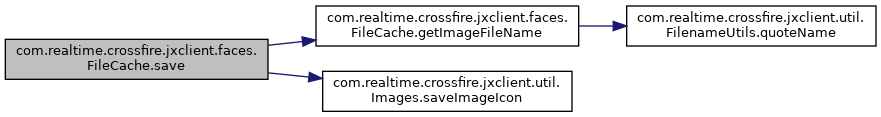

Here is the call graph for this function:

save() [1/2]

void com.realtime.crossfire.jxclient.faces.FileCache.save	(	@NotNull final Face	face,
		@NotNull final ImageIcon	imageIcon
	)

Stores an ImageIcon into the cache.

Parameters

face	the face to save
imageIcon	the image icon to store

Implements com.realtime.crossfire.jxclient.faces.ImageCache.

Definition at line 101 of file FileCache.java.

save() [2/2]

void com.realtime.crossfire.jxclient.faces.FileCache.save	(	@NotNull final String	faceName,
		final int	faceChecksum,
		@NotNull final Icon	imageIcon
	)

Stores an ImageIcon into the cache.

Parameters

faceName	the image name to save
faceChecksum	the checksum to save
imageIcon	the image icon to store

Definition at line 111 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName(), and com.realtime.crossfire.jxclient.util.Images.saveImageIcon().

Here is the call graph for this function:

Member Data Documentation

cacheDir

final Path com.realtime.crossfire.jxclient.faces.FileCache.cacheDir

private

The directory where the images are saved.

Definition at line 46 of file FileCache.java.

Referenced by com.realtime.crossfire.jxclient.faces.FileCache.FileCache(), and com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName().

---

The documentation for this class was generated from the following file:

• src/model/src/main/java/com/realtime/crossfire/jxclient/faces/FileCache.java
