An image cache entry for one ImageType. More...

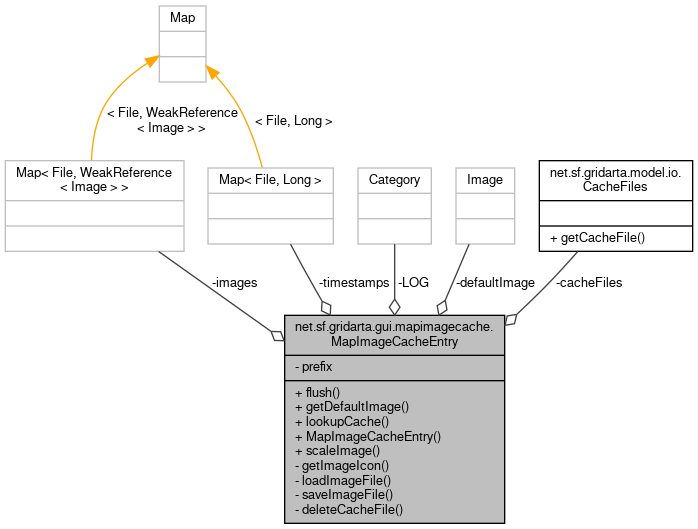

Collaboration diagram for net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry:

Public Member Functions
void	flush (@NotNull final File mapFile)
	Removes the cached image for a map file. More...

Image	getDefaultImage ()
	Returns the default image. More...

Image	lookupCache (@NotNull final File mapFile)
	Looks up an image from the cache. More...

	MapImageCacheEntry (@NotNull final CacheFiles cacheFiles, @NotNull final Image defaultImage, @NotNull final String prefix)
	Creates a new instance. More...

Image	scaleImage (@Nullable final File mapFile, @NotNull final Image image, final int width, final int height)
	Scales an Image to the given size and updates the cache. More...

Private Member Functions
Image	getImageIcon (@NotNull final File mapFile)
	Returns the Image for a given map file. More...

Image	loadImageFile (@NotNull final File mapFile)
	Loads an image file from disk. More...

void	saveImageFile (@NotNull final File mapFile, @NotNull final Image image)
	Saves an PNG image file for a map file. More...

Static Private Member Functions
static void	deleteCacheFile (@NotNull final File cacheFile)
	Deletes a cache file if it exists. More...

Private Attributes
final CacheFiles	cacheFiles
	The CacheFiles for generating files for cached icons and previews. More...

final Image	defaultImage
	The default image. More...

final Map< File, WeakReference< Image > >	images = new HashMap<>()
	The cached icons. More...

final String	prefix
	The directory prefix name for the cache directory. More...

final Map< File, Long >	timestamps = new HashMap<>()
	The timestamps of the cached icons. More...

Static Private Attributes
static final Category	LOG = Logger.getLogger(MapImageCacheEntry.class)
	The logger for printing log messages. More...

Detailed Description

An image cache entry for one ImageType.

Author: Andreas Kirschbaum

Definition at line 42 of file MapImageCacheEntry.java.

Constructor & Destructor Documentation

◆ MapImageCacheEntry()

net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.MapImageCacheEntry	(	@NotNull final CacheFiles	cacheFiles,
		@NotNull final Image	defaultImage,
		@NotNull final String	prefix
	)

Creates a new instance.

Parameters

cacheFiles	the cache files for generating files for caching icons and previews
defaultImage	the default image
prefix	the directory prefix for the cache directory

Definition at line 87 of file MapImageCacheEntry.java.

References net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.cacheFiles, net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.defaultImage, and net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.prefix.

Member Function Documentation

◆ deleteCacheFile()

static void net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.deleteCacheFile ( @NotNull final File cacheFile )

staticprivate

Deletes a cache file if it exists.

Logs a warning message if the file cannot be deleted.

Parameters

cacheFile the cache file to delete

Definition at line 109 of file MapImageCacheEntry.java.

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.flush(), and net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.loadImageFile().

Here is the caller graph for this function:

◆ flush()

void net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.flush ( @NotNull final File mapFile )

Removes the cached image for a map file.

Both in-memory and on-disk cache are purged.

Parameters

mapFile the map file to flush

Definition at line 98 of file MapImageCacheEntry.java.

References net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.deleteCacheFile(), and net.sf.gridarta.model.io.CacheFiles.getCacheFile().

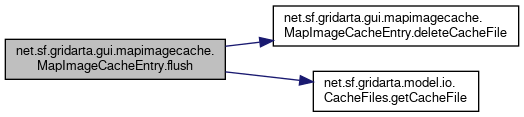

Here is the call graph for this function:

◆ getDefaultImage()

Image net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.getDefaultImage ( )

Returns the default image.

Returns: the default image

Definition at line 250 of file MapImageCacheEntry.java.

References net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.defaultImage.

◆ getImageIcon()

Image net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.getImageIcon ( @NotNull final File mapFile )

private

Returns the Image for a given map file.

Parameters

mapFile the map file

Returns: the image icon or
null
if no image is available

Definition at line 121 of file MapImageCacheEntry.java.

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.lookupCache().

Here is the caller graph for this function:

◆ loadImageFile()

Image net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.loadImageFile ( @NotNull final File mapFile )

private

Loads an image file from disk.

If the file does not exists, cannot be loaded, or is outdated, return

null

.

Parameters

mapFile the map file name

Returns: the image file, or
null

Definition at line 179 of file MapImageCacheEntry.java.

References net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.deleteCacheFile(), and net.sf.gridarta.model.io.CacheFiles.getCacheFile().

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.lookupCache().

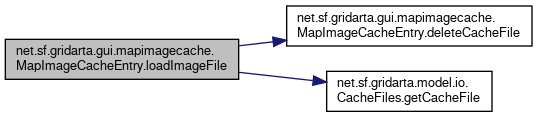

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lookupCache()

Image net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.lookupCache ( @NotNull final File mapFile )

Looks up an image from the cache.

Parameters

mapFile the map file to look up

Returns: the image, or
null
if the cache does not contain an entry for
mapFile
or if the entry is outdated

Definition at line 223 of file MapImageCacheEntry.java.

References net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.getImageIcon(), and net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.loadImageFile().

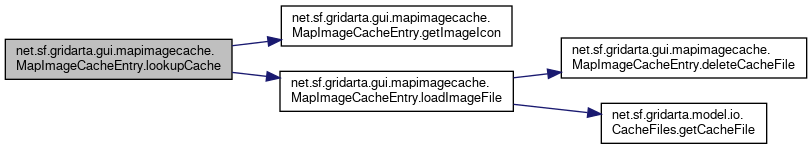

Here is the call graph for this function:

◆ saveImageFile()

void net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.saveImageFile	(	@NotNull final File	mapFile,
		@NotNull final Image	image
	)

private

Saves an PNG image file for a map file.

Parameters

mapFile	the map file to save the image of
image	the image to save

Definition at line 140 of file MapImageCacheEntry.java.

References net.sf.gridarta.model.io.CacheFiles.getCacheFile().

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.scaleImage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scaleImage()

Image net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.scaleImage	(	@Nullable final File	mapFile,
		@NotNull final Image	image,
		final int	width,
		final int	height
	)

Scales an Image to the given size and updates the cache.

If an out of memory error occurs the default image is returned.

Parameters

mapFile	the map file for the image
image	the image to scale
width	the scaled width
height	the scaled height

Returns: the scaled image

Definition at line 264 of file MapImageCacheEntry.java.

References net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.defaultImage, net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.saveImageFile(), and net.sf.gridarta.utils.ImageUtils.scaleImage().

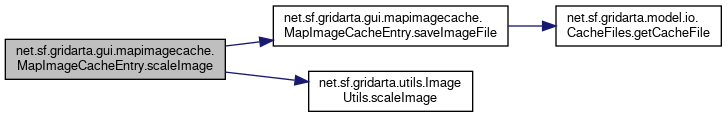

Here is the call graph for this function:

Member Data Documentation

◆ cacheFiles

final CacheFiles net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.cacheFiles

private

The CacheFiles for generating files for cached icons and previews.

Definition at line 55 of file MapImageCacheEntry.java.

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.MapImageCacheEntry().

◆ defaultImage

final Image net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.defaultImage

private

The default image.

Definition at line 61 of file MapImageCacheEntry.java.

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.getDefaultImage(), net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.MapImageCacheEntry(), and net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.scaleImage().

◆ images

final Map<File, WeakReference<Image> > net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.images = new HashMap<>()

private

The cached icons.

Maps map file to Image.

Definition at line 72 of file MapImageCacheEntry.java.

◆ LOG

final Category net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.LOG = Logger.getLogger(MapImageCacheEntry.class)

staticprivate

The logger for printing log messages.

Definition at line 48 of file MapImageCacheEntry.java.

◆ prefix

final String net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.prefix

private

The directory prefix name for the cache directory.

Definition at line 66 of file MapImageCacheEntry.java.

Referenced by net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.MapImageCacheEntry().

◆ timestamps

final Map<File, Long> net.sf.gridarta.gui.mapimagecache.MapImageCacheEntry.timestamps = new HashMap<>()

private

The timestamps of the cached icons.

Maps map file to timestamp.

Definition at line 78 of file MapImageCacheEntry.java.

The documentation for this class was generated from the following file:

gridarta-gridarta/src/gridarta/src/main/java/net/sf/gridarta/gui/mapimagecache/MapImageCacheEntry.java
