net.sf.gridarta.gui.utils.FaceComponent Class Reference

A JPanel that allows the user to select a face name. More...

Inheritance diagram for net.sf.gridarta.gui.utils.FaceComponent:

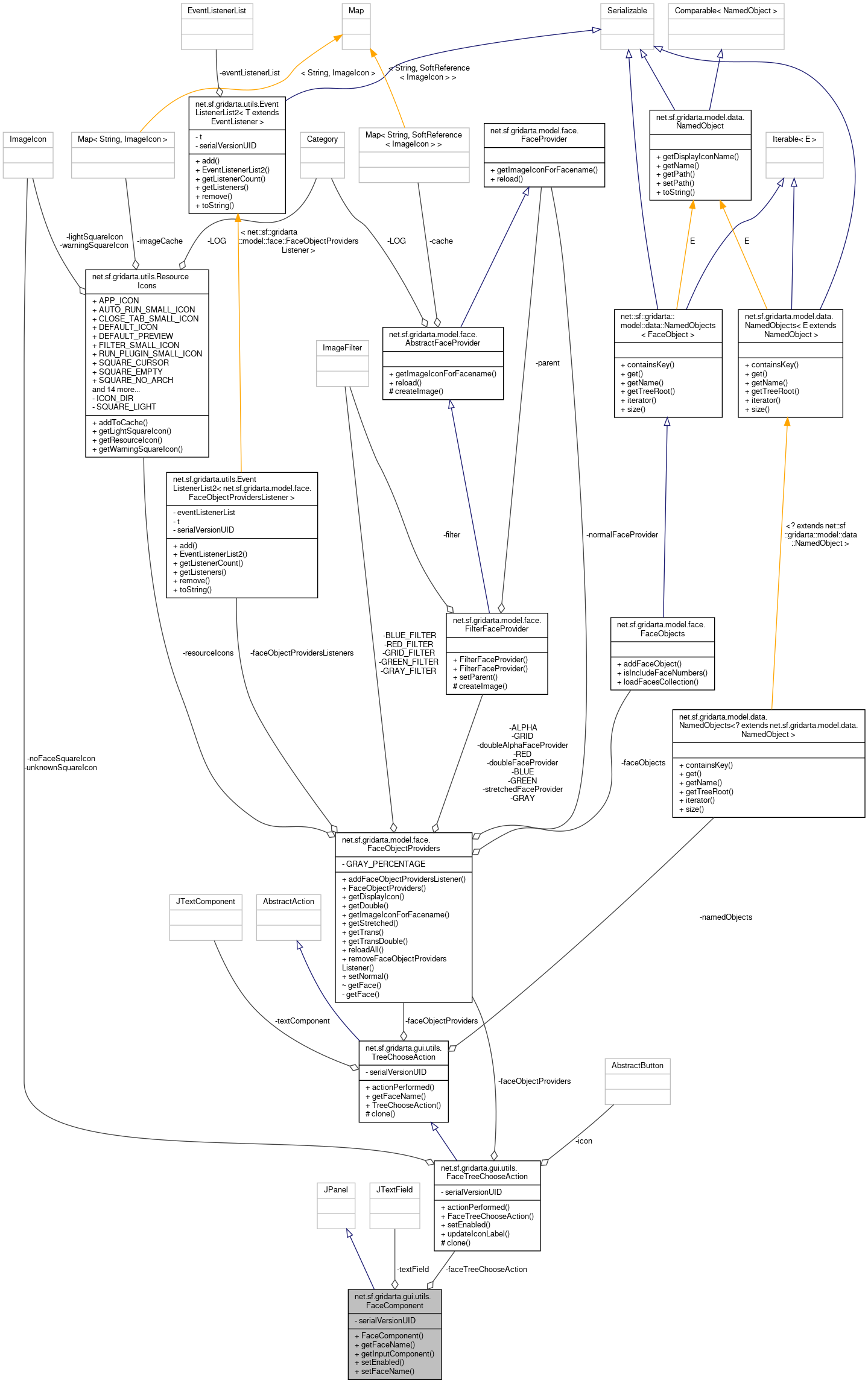

Collaboration diagram for net.sf.gridarta.gui.utils.FaceComponent:

Public Member Functions
	FaceComponent (@NotNull final String faceName, @NotNull final FaceObjects faceObjects, @NotNull final FaceObjectProviders faceObjectProviders, @NotNull final ImageIcon noFaceSquareIcon, @NotNull final ImageIcon unknownSquareIcon, @NotNull final String tooltip)
	Creates a new instance. More...
String	getFaceName ()
	Returns the current face name. More...
Component	getInputComponent ()
	Returns the input field component. More...
void	setEnabled (final boolean enabled)
void	setFaceName (@NotNull final String faceName)
	Sets the current face name. More...

Private Attributes
final FaceTreeChooseAction	faceTreeChooseAction
	The associated FaceTreeChooseAction. More...
final JTextField	textField = new JTextField()
	The JTextField that displays the face name. More...

Static Private Attributes
static final long	serialVersionUID = 1L
	The serial version UID. More...

Detailed Description

A JPanel that allows the user to select a face name.

Author

Andreas Kirschbaum

Definition at line 41 of file FaceComponent.java.

Constructor & Destructor Documentation

FaceComponent()

net.sf.gridarta.gui.utils.FaceComponent.FaceComponent	(	@NotNull final String	faceName,
		@NotNull final FaceObjects	faceObjects,
		@NotNull final FaceObjectProviders	faceObjectProviders,
		@NotNull final ImageIcon	noFaceSquareIcon,
		@NotNull final ImageIcon	unknownSquareIcon,
		@NotNull final String	tooltip
	)

Creates a new instance.

Parameters

faceName	the initial face name
faceObjects	the face objects to use
faceObjectProviders	the face object providers for looking up faces
noFaceSquareIcon	the image icon for no animations
unknownSquareIcon	the image icon for undefined animations
tooltip	tooltip to display on the fields.

Definition at line 70 of file FaceComponent.java.

References net.sf.gridarta.gui.utils.FaceTreeChooseAction.updateIconLabel().

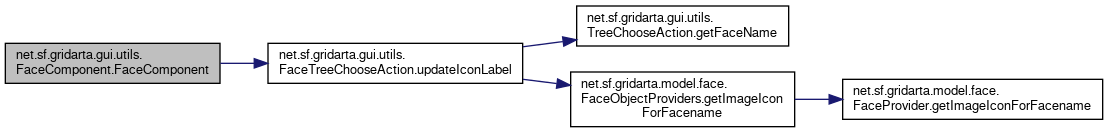

Here is the call graph for this function:

Member Function Documentation

getFaceName()

String net.sf.gridarta.gui.utils.FaceComponent.getFaceName

(

)

Returns the current face name.

Returns

the current face name

Definition at line 123 of file FaceComponent.java.

Referenced by net.sf.gridarta.gui.dialog.gameobjectattributes.DialogAttributeFaceName< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.appendSummary(), net.sf.gridarta.gui.panel.gameobjectattributes.FaceTab< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.apply(), net.sf.gridarta.gui.panel.gameobjectattributes.FaceTab< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.canApply(), and net.sf.gridarta.gui.dialog.gameobjectattributes.DialogAttributeFaceName< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getObjectText().

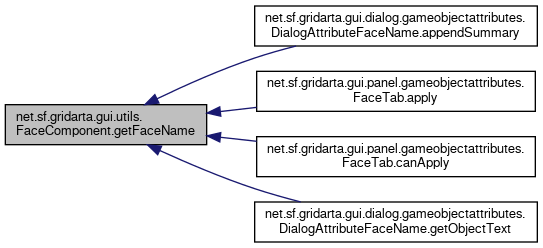

Here is the caller graph for this function:

getInputComponent()

Component net.sf.gridarta.gui.utils.FaceComponent.getInputComponent

(

)

Returns the input field component.

Returns

the input field component

Definition at line 148 of file FaceComponent.java.

References net.sf.gridarta.gui.utils.FaceComponent.textField.

Referenced by net.sf.gridarta.gui.panel.gameobjectattributes.FaceTab< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.FaceTab().

Here is the caller graph for this function:

setEnabled()

void net.sf.gridarta.gui.utils.FaceComponent.setEnabled

(

final boolean

enabled

)

Definition at line 137 of file FaceComponent.java.

References net.sf.gridarta.gui.utils.FaceTreeChooseAction.setEnabled().

Referenced by net.sf.gridarta.gui.panel.gameobjectattributes.FaceTab< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.refresh().

Here is the call graph for this function:

Here is the caller graph for this function:

setFaceName()

void net.sf.gridarta.gui.utils.FaceComponent.setFaceName

(

@NotNull final String

faceName

)

Sets the current face name.

Parameters

faceName

the face name

Definition at line 131 of file FaceComponent.java.

References net.sf.gridarta.gui.utils.FaceTreeChooseAction.updateIconLabel().

Referenced by net.sf.gridarta.gui.panel.gameobjectattributes.FaceTab< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.refresh().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

faceTreeChooseAction

final FaceTreeChooseAction net.sf.gridarta.gui.utils.FaceComponent.faceTreeChooseAction

private

The associated FaceTreeChooseAction.

Definition at line 58 of file FaceComponent.java.

serialVersionUID

final long net.sf.gridarta.gui.utils.FaceComponent.serialVersionUID = 1L

staticprivate

The serial version UID.

Definition at line 46 of file FaceComponent.java.

textField

final JTextField net.sf.gridarta.gui.utils.FaceComponent.textField = new JTextField()

private

The JTextField that displays the face name.

Definition at line 52 of file FaceComponent.java.

Referenced by net.sf.gridarta.gui.utils.FaceComponent.getInputComponent().

---

The documentation for this class was generated from the following file:

• gridarta-gridarta/src/gridarta/src/main/java/net/sf/gridarta/gui/utils/FaceComponent.java
