a Collectable that creates the "animations" file. More...

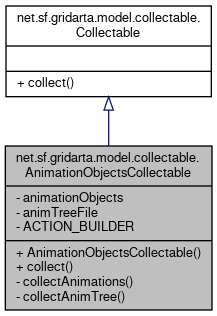

Inheritance diagram for net.sf.gridarta.model.collectable.AnimationObjectsCollectable:

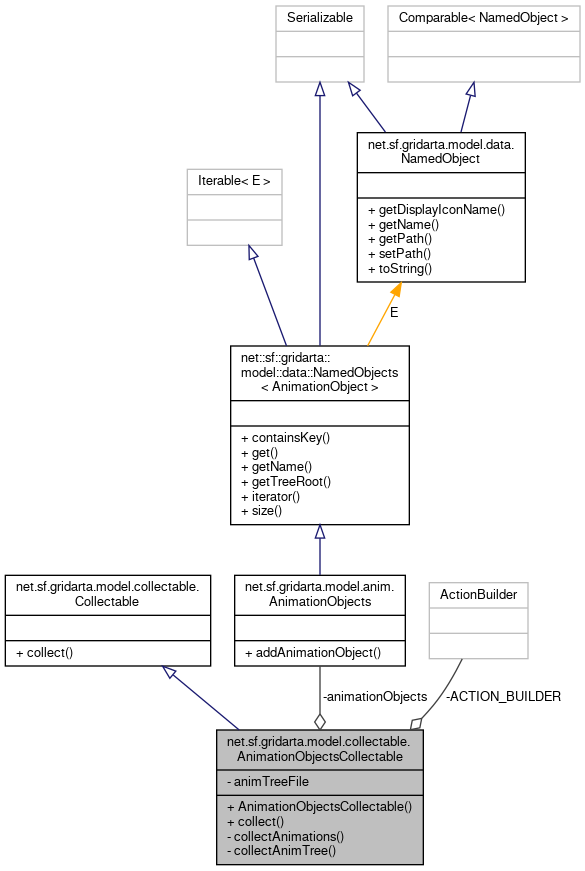

Collaboration diagram for net.sf.gridarta.model.collectable.AnimationObjectsCollectable:

Public Member Functions

AnimationObjectsCollectable (@NotNull final AnimationObjects animationObjects, @NotNull final String animTreeFile)

Creates a new instance. More...

void collect (@NotNull final Progress progress, @NotNull final File collectedDirectory) throws IOException

Collects information.

Parameters

progress	the progress to report progress to
collectedDirectory	the destination directory to collect data to

Exceptions

IOException in case of I/O problems during collection

Collects the Animations. More...

Private Member Functions
void	collectAnimations (@NotNull final Progress progress, @NotNull final File collectedDirectory) throws IOException
	Collects the animation data into the file "animations". More...

void	collectAnimTree (@NotNull final Progress progress, @NotNull final File collectedDirectory) throws IOException
	Collects the animation data into the file "animations". More...

Private Attributes
final AnimationObjects	animationObjects
	The AnimationObjects being collected. More...

final String	animTreeFile
	The collected animation tree file. More...

Static Private Attributes
static final ActionBuilder	ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")
	The ActionBuilder instance. More...

Detailed Description

a Collectable that creates the "animations" file.

It also creates the editor helper file "animtree".

Author: Christian Hujer; Andreas Kirschbaum

Definition at line 44 of file AnimationObjectsCollectable.java.

Constructor & Destructor Documentation

◆ AnimationObjectsCollectable()

net.sf.gridarta.model.collectable.AnimationObjectsCollectable.AnimationObjectsCollectable	(	@NotNull final AnimationObjects	animationObjects,
		@NotNull final String	animTreeFile
	)

Creates a new instance.

Parameters

animationObjects	the animation objects to be collected
animTreeFile	the collected animation tree file

Definition at line 69 of file AnimationObjectsCollectable.java.

References net.sf.gridarta.model.collectable.AnimationObjectsCollectable.animationObjects, and net.sf.gridarta.model.collectable.AnimationObjectsCollectable.animTreeFile.

Member Function Documentation

◆ collect()

void net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collect	(	@NotNull final Progress	progress,
		@NotNull final File	collectedDirectory
	)		throws IOException

Collects information.

Parameters

progress	the progress to report progress to
collectedDirectory	the destination directory to collect data to

Exceptions

IOException in case of I/O problems during collection

Collects the Animations.

The animation data is written to "animations". The tree information for the editor is written to "animtree".

Implements net.sf.gridarta.model.collectable.Collectable.

Definition at line 80 of file AnimationObjectsCollectable.java.

References net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collectAnimations(), and net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collectAnimTree().

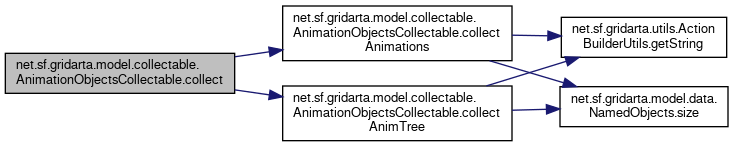

Here is the call graph for this function:

◆ collectAnimations()

void net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collectAnimations	(	@NotNull final Progress	progress,
		@NotNull final File	collectedDirectory
	)		throws IOException

private

Collects the animation data into the file "animations".

Parameters

progress	the progress to report progress to
collectedDirectory	the destination directory to collect data to

Exceptions

IOException in case of I/O problems during collection

Definition at line 91 of file AnimationObjectsCollectable.java.

References net.sf.gridarta.utils.ActionBuilderUtils.getString(), net.sf.gridarta.utils.IOUtils.MAP_ENCODING, and net.sf.gridarta.model.data.NamedObjects< E extends NamedObject >.size().

Referenced by net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collect().

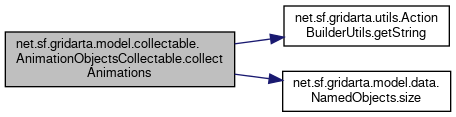

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collectAnimTree()

void net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collectAnimTree	(	@NotNull final Progress	progress,
		@NotNull final File	collectedDirectory
	)		throws IOException

private

Collects the animation data into the file "animations".

Parameters

progress	the progress to report progress to
collectedDirectory	the destination directory to collect data to

Exceptions

IOException in case of I/O problems during collection

Definition at line 111 of file AnimationObjectsCollectable.java.

References net.sf.gridarta.utils.ActionBuilderUtils.getString(), net.sf.gridarta.utils.IOUtils.MAP_ENCODING, and net.sf.gridarta.model.data.NamedObjects< E extends NamedObject >.size().

Referenced by net.sf.gridarta.model.collectable.AnimationObjectsCollectable.collect().

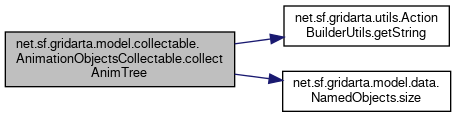

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ ACTION_BUILDER

final ActionBuilder net.sf.gridarta.model.collectable.AnimationObjectsCollectable.ACTION_BUILDER = ActionBuilderFactory.getInstance().getActionBuilder("net.sf.gridarta")

staticprivate

The ActionBuilder instance.

Definition at line 50 of file AnimationObjectsCollectable.java.
