TreeNode implementation for Named Objects (like arches, faces, animations, artifacts etc.), used for displaying faces in a javax.swing.JTree. More...

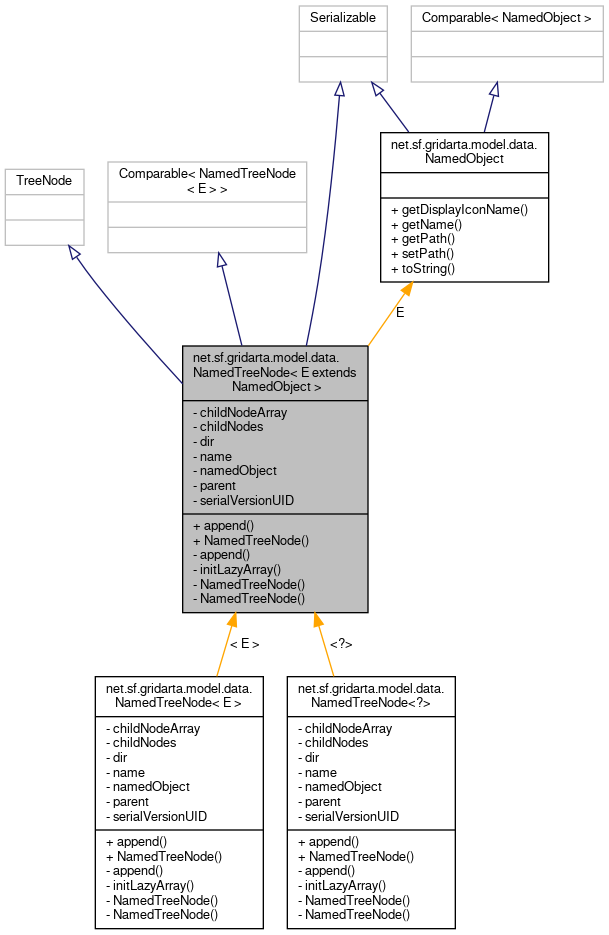

Inheritance diagram for net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >:

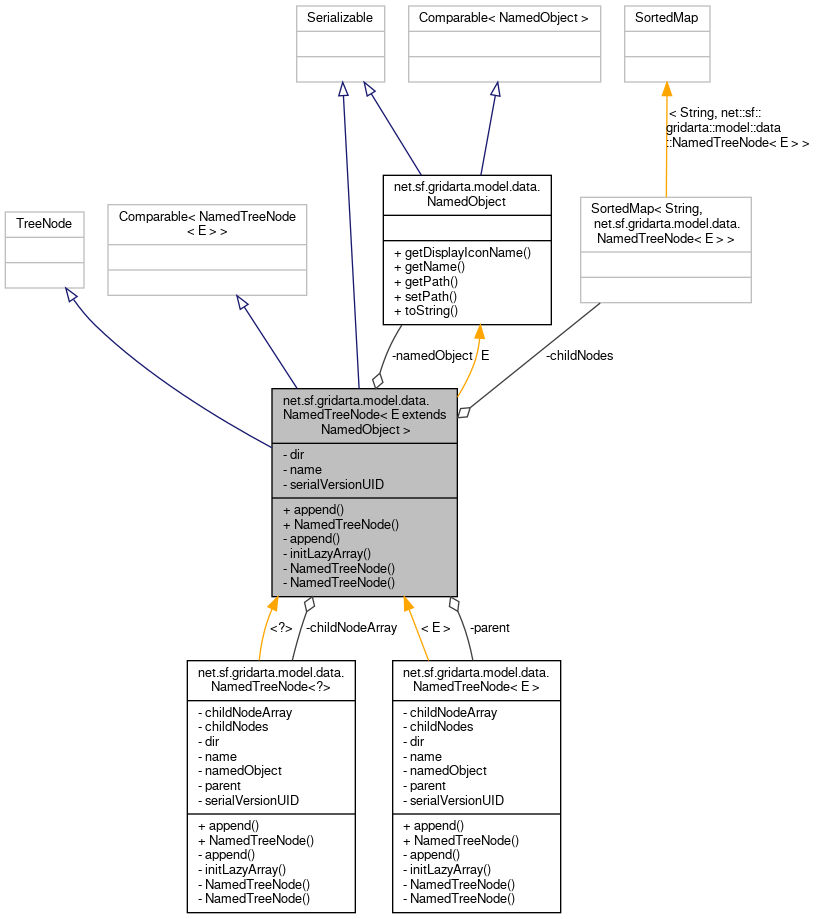

Collaboration diagram for net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >:

Public Member Functions
void	append (@NotNull final NamedObject namedObject) throws IllegalNamedObjectException
	Append a node. More...

	NamedTreeNode ()
	Create a root node. More...

Private Member Functions
void	append (@NotNull final String path, @NotNull final NamedObject namedObject) throws IllegalNamedObjectException
	Appends a node. More...

void	initLazyArray ()
	Makes sure that the variable childNodeArray points to a valid array. More...

	NamedTreeNode (final boolean dir, @Nullable final NamedTreeNode< E > parent, @NotNull final String name)
	Create a NamedTreeNode. More...

	NamedTreeNode (final boolean dir, @Nullable final NamedTreeNode< E > parent, @NotNull final NamedObject namedObject)
	Create a NamedTreeNode. More...

Private Attributes
NamedTreeNode<?> []	childNodeArray
	The node array. More...

final SortedMap< String, NamedTreeNode< E > >	childNodes = new TreeMap<>()
	The children. More...

final boolean	dir
	Directory state,. More...

final String	name
	The node name. More...

final NamedObject	namedObject
	The node object. More...

final NamedTreeNode< E >	parent
	The parent node, which may be. More...

Static Private Attributes
static final long	serialVersionUID = 1L
	The serial version UID. More...

Detailed Description

TreeNode implementation for Named Objects (like arches, faces, animations, artifacts etc.), used for displaying faces in a javax.swing.JTree.

Author: Christian Hujer

Definition at line 40 of file NamedTreeNode.java.

Constructor & Destructor Documentation

◆ NamedTreeNode() [1/3]

net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.NamedTreeNode ( )

Create a root node.

All other nodes must be created via append(NamedObject).

Definition at line 95 of file NamedTreeNode.java.

◆ NamedTreeNode() [2/3]

net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.NamedTreeNode	(	final boolean	dir,
		@Nullable final NamedTreeNode< E >	parent,
		@NotNull final String	name
	)

private

Create a NamedTreeNode.

The constructor has been made private to force users on factory methods

Parameters

dir	set this to true for directory nodes, false for face nodes
parent	the parent node or null for root node
name	the name, which is the directory name for directory nodes and the face name for face nodes

Definition at line 108 of file NamedTreeNode.java.

◆ NamedTreeNode() [3/3]

net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.NamedTreeNode	(	final boolean	dir,
		@Nullable final NamedTreeNode< E >	parent,
		@NotNull final NamedObject	namedObject
	)

private

Create a NamedTreeNode.

The constructor has been made private to force users on factory methods

Parameters

dir	set this to true for directory nodes, false for face nodes
parent	the parent node or null for root node
namedObject	the abstract named object to show as this tree node

Definition at line 123 of file NamedTreeNode.java.

Member Function Documentation

◆ append() [1/2]

void net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.append ( @NotNull final NamedObject namedObject ) throws IllegalNamedObjectException

Append a node.

Parameters

namedObject the node to append

Exceptions

IllegalNamedObjectException if the named object cannot be added

Definition at line 135 of file NamedTreeNode.java.

Referenced by net.sf.gridarta.model.data.NamedTreeNode<?>.append(), and net.sf.gridarta.model.data.AbstractNamedObjects< FaceObject >.put().

Here is the caller graph for this function:

◆ append() [2/2]

void net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.append	(	@NotNull final String	path,
		@NotNull final NamedObject	namedObject
	)		throws IllegalNamedObjectException

private

Appends a node.

Direct invocation should only occur on the root node.

Parameters

path	the path of node to append (parent path eventually removed)
namedObject	the abstract named object to show as this tree node

Exceptions

IllegalNamedObjectException if the named object cannot be added

Definition at line 148 of file NamedTreeNode.java.

◆ initLazyArray()

void net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.initLazyArray ( )

private

Makes sure that the variable childNodeArray points to a valid array.

Definition at line 176 of file NamedTreeNode.java.

Referenced by net.sf.gridarta.model.data.NamedTreeNode<?>.initLazyArray().

Here is the caller graph for this function:

Member Data Documentation

◆ childNodeArray

NamedTreeNode<?> [] net.sf.gridarta.model.data.NamedTreeNode< E extends NamedObject >.childNodeArray

private

The node array.

It is required for implementing the TreeNode interface with index methods since the TreeMap does not allow indexed access despite the fact that it is ordered. Basically it is redundant.

Definition at line 61 of file NamedTreeNode.java.
