Implementation of FaceProvider which reads images from the arch directory. More...

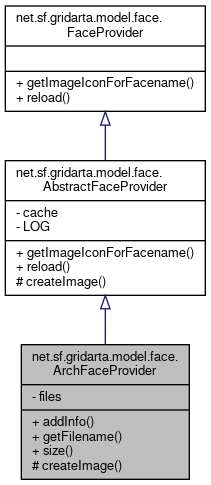

Inheritance diagram for net.sf.gridarta.model.face.ArchFaceProvider:

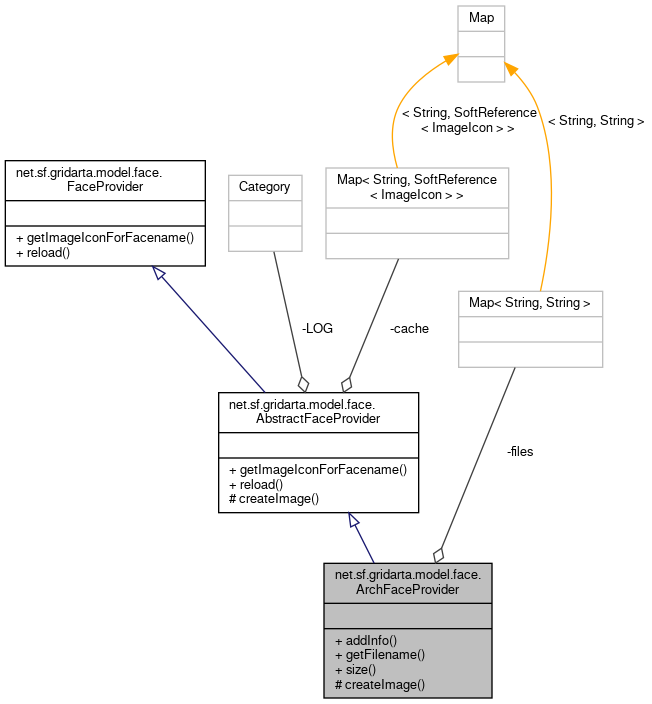

Collaboration diagram for net.sf.gridarta.model.face.ArchFaceProvider:

Public Member Functions
void	addInfo (@NotNull final String faceName, @NotNull final String fileName)
	Report position of a face for loading it later. More...

String	getFilename (@NotNull final String faceName)
	Get the filename for a face. More...

int	size ()
	Returns the number of faces. More...

Public Member Functions inherited from net.sf.gridarta.model.face.AbstractFaceProvider
ImageIcon	getImageIconForFacename (@NotNull final String faceName, final long stretch)
	Get an image from this FaceProvider. More...

void	reload ()
	Reload faces. More...

Protected Member Functions
ImageIcon	createImage (@NotNull final String faceName, final long stretch)

Protected Member Functions inherited from net.sf.gridarta.model.face.AbstractFaceProvider
abstract ImageIcon	createImage (@NotNull String faceName, long stretch)
	Create an image not found in the cache. More...

Private Attributes
final Map< String, String >	files = new HashMap<>()
	The icon filename. More...

Detailed Description

Implementation of FaceProvider which reads images from the arch directory.

Author: Christian Hujer

Todo:: Move scanning for face files to this class, so the faces can be easily reloaded while the application is running.

Definition at line 38 of file ArchFaceProvider.java.

Member Function Documentation

◆ addInfo()

void net.sf.gridarta.model.face.ArchFaceProvider.addInfo	(	@NotNull final String	faceName,
		@NotNull final String	fileName
	)

Report position of a face for loading it later.

Parameters

faceName	face name to get image for, excluding path and ending
fileName	filename with full reachable path of the png file (maybe relative but must be loadable).

Definition at line 60 of file ArchFaceProvider.java.

◆ createImage()

ImageIcon net.sf.gridarta.model.face.ArchFaceProvider.createImage	(	@NotNull final String	faceName,
		final long	stretch
	)

protected

Definition at line 76 of file ArchFaceProvider.java.

◆ getFilename()

String net.sf.gridarta.model.face.ArchFaceProvider.getFilename ( @NotNull final String faceName )

Get the filename for a face.

Parameters

faceName face name to get filename for

Returns: filename for
faceName
or
null
if no face

Definition at line 70 of file ArchFaceProvider.java.

Referenced by net.sf.gridarta.model.collectable.FaceObjectsCollectable.collectImageFile().

Here is the caller graph for this function:

◆ size()

int net.sf.gridarta.model.face.ArchFaceProvider.size ( )

Returns the number of faces.

Returns: the number of faces

Definition at line 50 of file ArchFaceProvider.java.

Referenced by net.sf.gridarta.model.resource.AbstractFilesResourcesReader< TestGameObject, TestMapArchObject, TestArchetype >.read().

Here is the caller graph for this function:

Member Data Documentation

◆ files

final Map<String, String> net.sf.gridarta.model.face.ArchFaceProvider.files = new HashMap<>()

private

The icon filename.

The value is a String with the full reachable path of the png file.

Definition at line 44 of file ArchFaceProvider.java.

The documentation for this class was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/face/ArchFaceProvider.java
