2D-Grid containing flags for selection, pre-selection, cursor, warnings and errors. More...

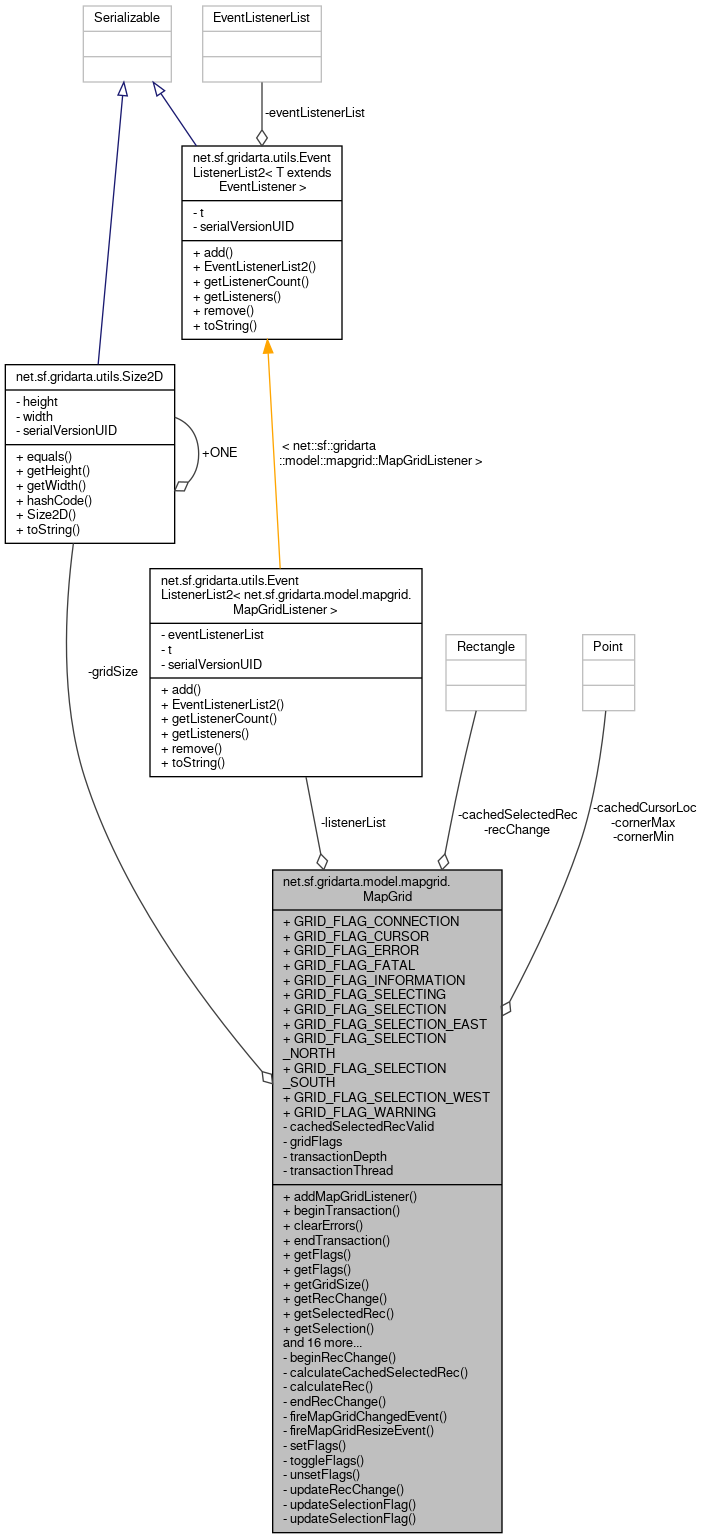

Collaboration diagram for net.sf.gridarta.model.mapgrid.MapGrid:

Public Member Functions
void	addMapGridListener (@NotNull final MapGridListener listener)
	Registers a MapGridListener. More...

void	beginTransaction ()
	Starts a new transaction. More...

void	clearErrors ()
	Clears all error flags. More...

void	endTransaction ()
	Ends a transaction. More...

int	getFlags (final int x, final int y)
	Returns the flags of a square. More...

int	getFlags (@NotNull final Point p)
	Returns the flags of a square. More...

Size2D	getGridSize ()
	Returns a Size2D with the dimension of this grid. More...

Rectangle	getRecChange ()
	Returns a rectangle where the grid was changed. More...

Rectangle	getSelectedRec ()
	Returns the smallest rectangle containing selection. More...

Point []	getSelection ()
	Returns the selection. More...

Size2D	getSize ()
	Returns size of grid. More...

boolean	hasError (@NotNull final Point p)
	Checks if a square has the error flag set. More...

void	invertSelection ()
	Inverts all selected squares. More...

	MapGrid (@NotNull final Size2D gridSize)
	Creates a new instance. More...

void	preSelect (@NotNull final Point start, @NotNull final Point end)
	Rectangle defined by two points gets preselected. More...

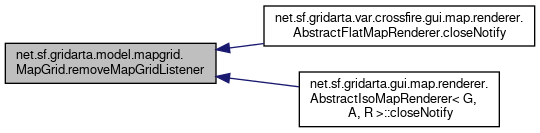

void	removeMapGridListener (@NotNull final MapGridListener listener)
	Removes a MapGridListener. More...

void	resize (@NotNull final Size2D newSize)
	Resizes the MapGrid. More...

void	select (@NotNull final Point pos, @NotNull final SelectionMode selectionMode)
	Selects or deselects a single square. More...

void	selectAll ()
	Marks all squares as selected. More...

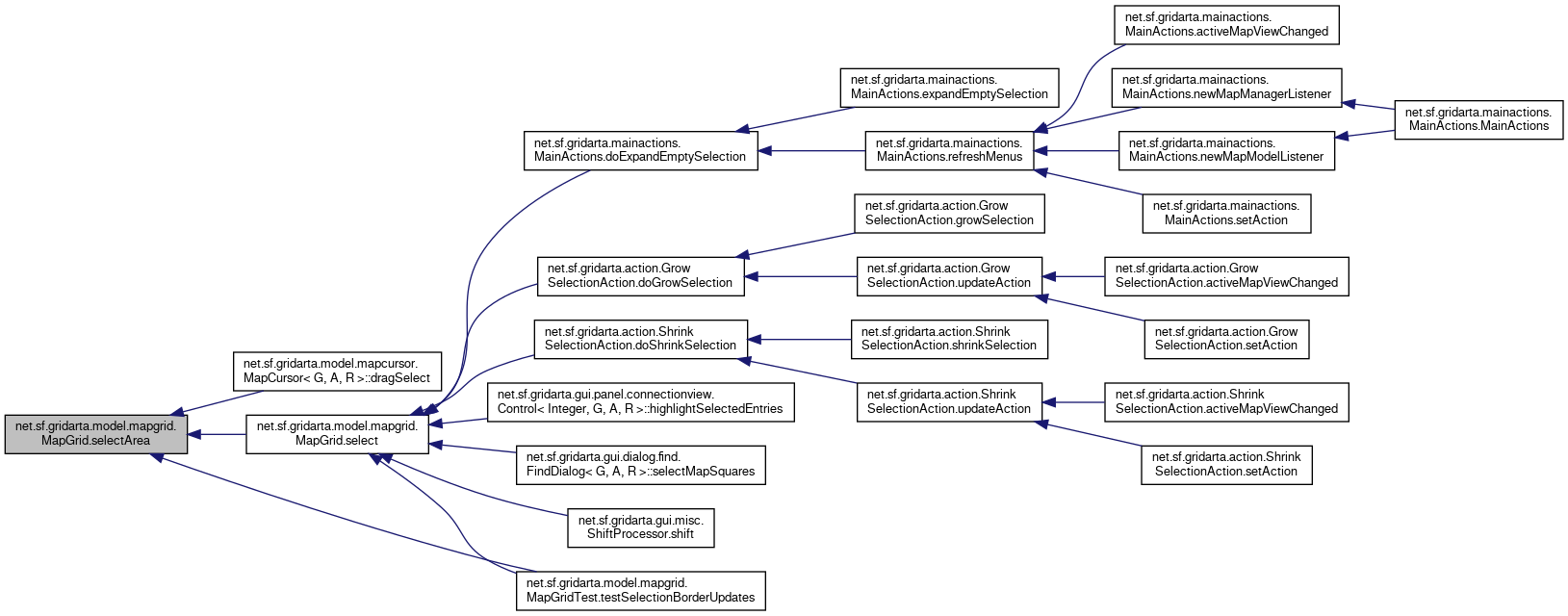

void	selectArea (@NotNull final Point pos1, @NotNull final Point pos2, @NotNull final SelectionMode selectionMode)
	Selects or deselects all squares in an area. More...

void	setCursor (@NotNull final Point pos)
	Highlights the given cursor position. More...

void	setError (final int x, final int y)
	Sets the error flag at given coordinates. More...

void	unPreSelect (@NotNull final Point start, @NotNull final Point end)
	Pre-selection of rectangle defined by points gets deleted. More...

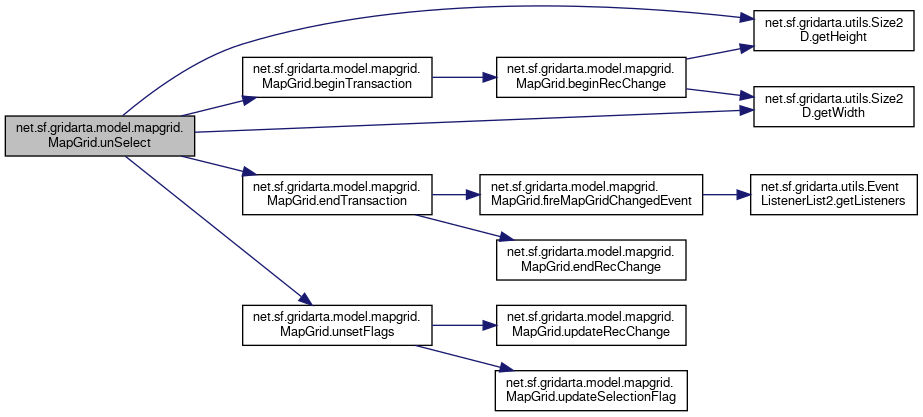

void	unSelect ()
	Clears all selection and pre-selection flags from the grid. More...

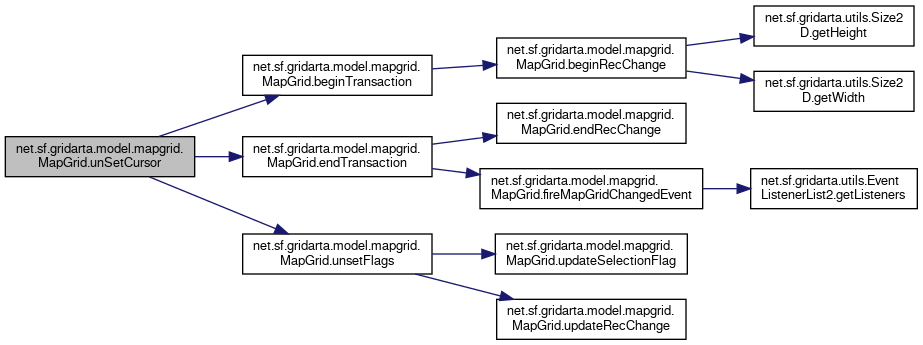

void	unSetCursor (@NotNull final Point pos)
	Un-highlights the given cursor position. More...

void	updatePreSelect (@NotNull final Point start, @NotNull final Point oldEnd, @NotNull final Point newEnd)
	Update the pre-selection rectangle. More...

Static Public Attributes
static final int	GRID_FLAG_CONNECTION = 1 << 6
	Flag to highlight as part of a connection group. More...

static final int	GRID_FLAG_CURSOR = 1 << 7
	Flag to highlight cursor position. More...

static final int	GRID_FLAG_ERROR = 1 << 4
	Flag to highlight as error. More...

static final int	GRID_FLAG_FATAL = 1 << 5
	Flag to highlight as fatal. More...

static final int	GRID_FLAG_INFORMATION = 1 << 2
	Flag to highlight as information. More...

static final int	GRID_FLAG_SELECTING = 1 << 1
	Pre-selection - used to preselect squares. More...

static final int	GRID_FLAG_SELECTION = 1
	Selection - marks all selected squares. More...

static final int	GRID_FLAG_SELECTION_EAST = 1 << 9
	Selection - is set for squares at the east edge of the selected area. More...

static final int	GRID_FLAG_SELECTION_NORTH = 1 << 8
	Selection - is set for squares at the north edge of the selected area. More...

static final int	GRID_FLAG_SELECTION_SOUTH = 1 << 10
	Selection - is set for squares at the south edge of the selected area. More...

static final int	GRID_FLAG_SELECTION_WEST = 1 << 11
	Selection - is set for squares at the west edge of the selected area. More...

static final int	GRID_FLAG_WARNING = 1 << 3
	Flag to highlight as warning. More...

Private Member Functions
void	beginRecChange ()
	Begins a set of changes. More...

void	calculateCachedSelectedRec ()
	Makes sure the value of cachedSelectedRec if up-to-date. More...

void	calculateRec (@NotNull final Point p1, @NotNull final Point p2)

boolean	endRecChange ()
	Ends the set of changes and store the bounding box for all recorded changes in recChange. More...

void	fireMapGridChangedEvent ()
	Inform all registered listeners that the flags on MapGrid have changed. More...

void	fireMapGridResizeEvent ()
	Informs all registered listeners that the size of MapGrid has changed. More...

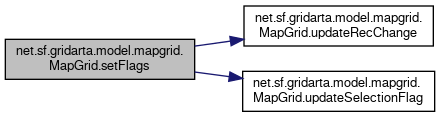

void	setFlags (final int minX, final int minY, final int maxX, final int maxY, final int flags)
	Sets flags in a rectangle and generate a grid change event. More...

void	toggleFlags (final int minX, final int minY, final int maxX, final int maxY, final int flags)
	Flips flags in a rectangle and generate a grid change event. More...

void	unsetFlags (final int minX, final int minY, final int maxX, final int maxY, final int flags)
	Resets flags in a rectangle and generate a grid change event. More...

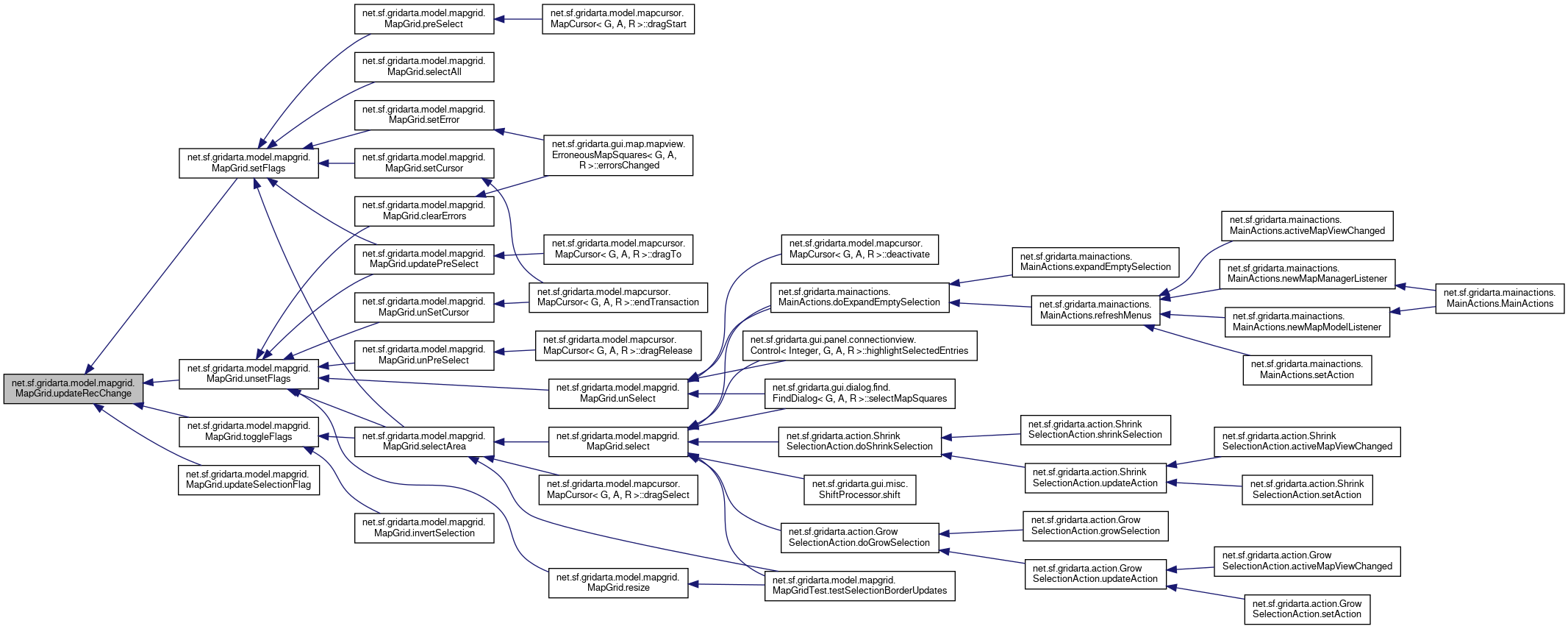

void	updateRecChange (final int x, final int y)
	Adds a point to the set of changes. More...

void	updateSelectionFlag (final int x, final int y, final boolean newState)
	Updates the border selection flags of a square and its adjacent squares. More...

void	updateSelectionFlag (final int x, final int y, final boolean newState, final int dx, final int dy, final int flag, final int dFlag)
	Updates the border selection flags of a square and one adjacent square. More...

Private Attributes
Point	cachedCursorLoc
	Cached location of the cursor. More...

Rectangle	cachedSelectedRec
	The return value for getSelectedRec(). More...

boolean	cachedSelectedRecValid
	If set, cachedSelectedRec is up-to-date. More...

final Point	cornerMax = new Point()
	Right lower coordinates of rectangle that is being processed. More...

final Point	cornerMin = new Point()
	Left upper coordinates of rectangle that is being processed. More...

int [][]	gridFlags
	2D-array to store grid flags. More...

Size2D	gridSize
	Size of. More...

final EventListenerList2< MapGridListener >	listenerList = new EventListenerList2<>(MapGridListener.class)
	The MapGridListeners to inform of changes. More...

final Rectangle	recChange = new Rectangle()
	Rectangle to store location of last grid change. More...

int	transactionDepth
	The transaction depth. More...

Thread	transactionThread
	The thread that performs the current transaction. More...

Detailed Description

2D-Grid containing flags for selection, pre-selection, cursor, warnings and errors.

This class provides methods to modify these flags. Normally a map cursor is used to access them. Selection flags are not changed directly. First pre-selection flags have to be set with Point), then selectArea(Point, Point, SelectionMode) will change the selection flags according to SelectionMode. This allows visualisation of the dragging process when selecting an area.

Every change of the grid size or flags fires a MapGridEvent and informs all registered MapGridListeners.

Author: Daniel Viegas; Andreas Kirschbaum

Definition at line 45 of file MapGrid.java.

Constructor & Destructor Documentation

◆ MapGrid()

net.sf.gridarta.model.mapgrid.MapGrid.MapGrid ( @NotNull final Size2D gridSize )

Creates a new instance.

Parameters

gridSize the size of the grid

Definition at line 181 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.gridSize.

Member Function Documentation

◆ addMapGridListener()

void net.sf.gridarta.model.mapgrid.MapGrid.addMapGridListener ( @NotNull final MapGridListener listener )

Registers a MapGridListener.

Parameters

listener the listener to register

Definition at line 190 of file MapGrid.java.

References net.sf.gridarta.utils.EventListenerList2< T extends EventListener >.add().

Referenced by net.sf.gridarta.var.crossfire.gui.map.renderer.AbstractFlatMapRenderer.init().

Here is the call graph for this function:

Here is the caller graph for this function:

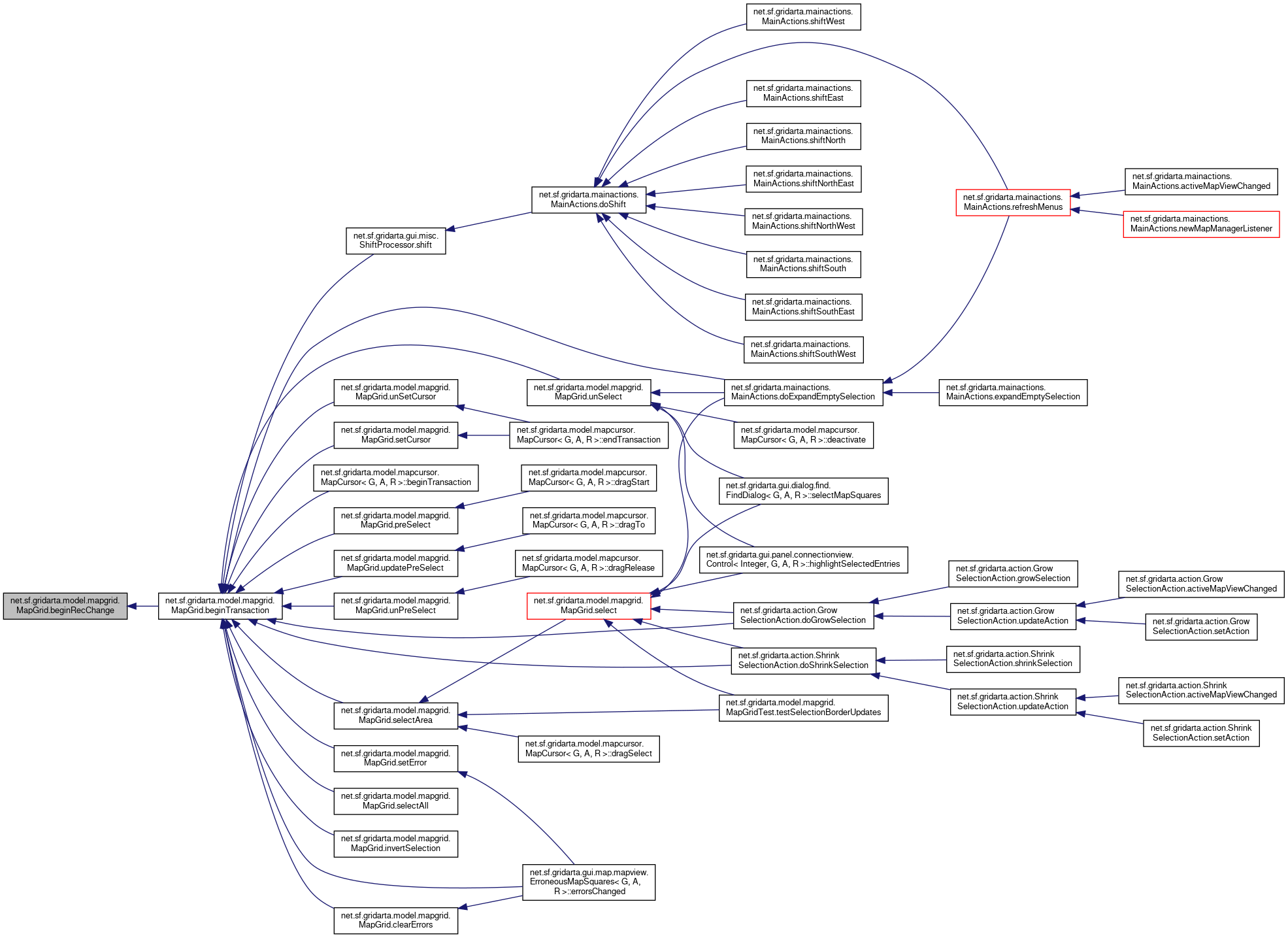

◆ beginRecChange()

void net.sf.gridarta.model.mapgrid.MapGrid.beginRecChange ( )

private

Begins a set of changes.

Note: Until endRecChange() is called, recChange does not contain a valid rectangle:
width
and
height
is used as coordinates.

Definition at line 646 of file MapGrid.java.

References net.sf.gridarta.utils.Size2D.getHeight(), and net.sf.gridarta.utils.Size2D.getWidth().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction().

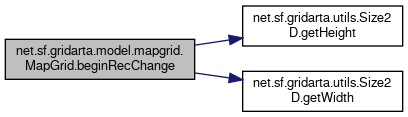

Here is the call graph for this function:

Here is the caller graph for this function:

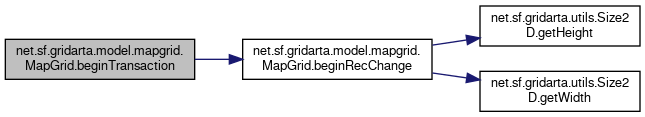

◆ beginTransaction()

void net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction ( )

Starts a new transaction.

Transactions may be nested. Transactions serve the purpose of firing events to the views when more changes are known to come before the view is really required to update. Each invocation of this function requires its own invocation of endTransaction().

Definition at line 756 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginRecChange().

Here is the call graph for this function:

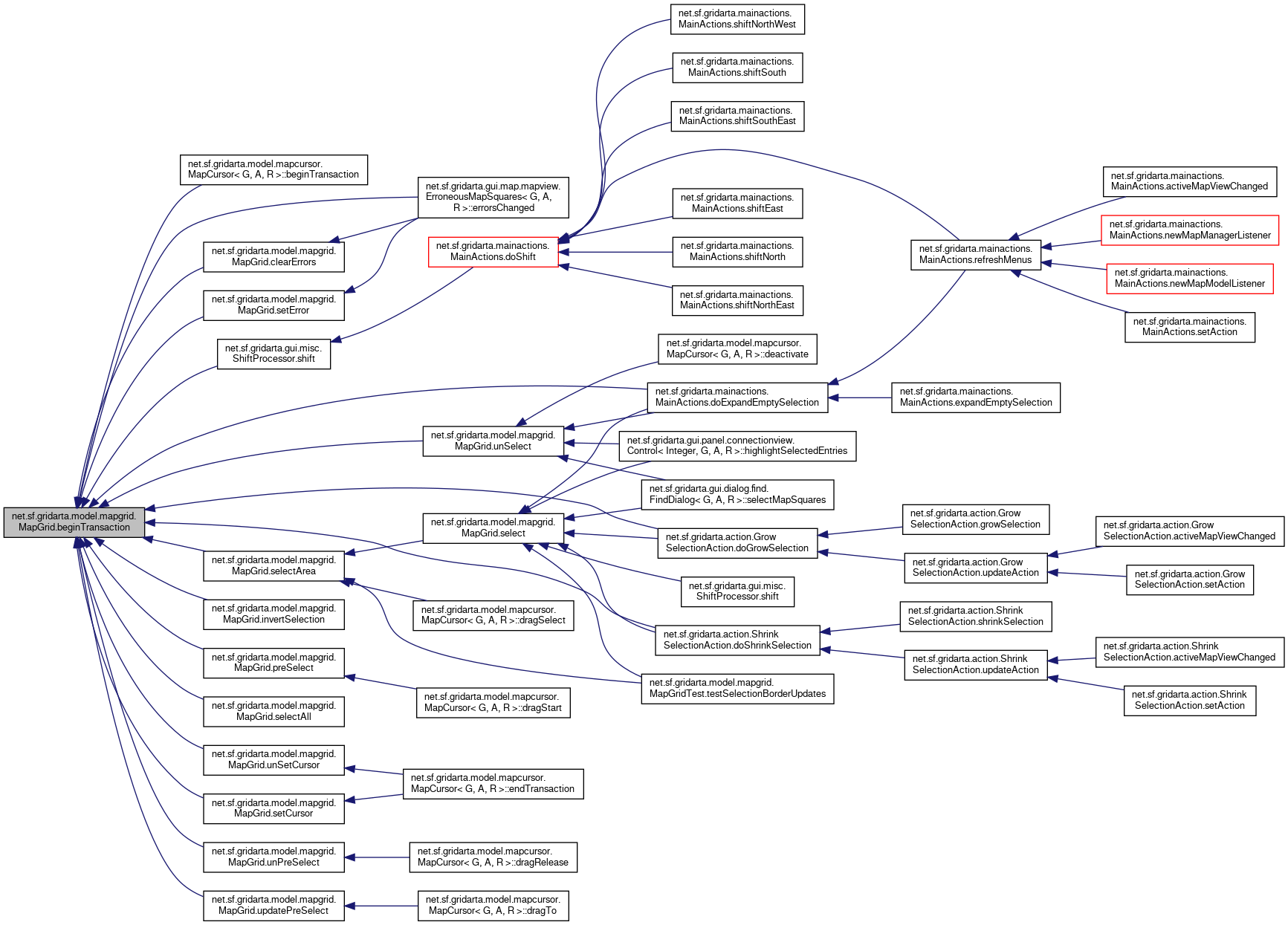

Here is the caller graph for this function:

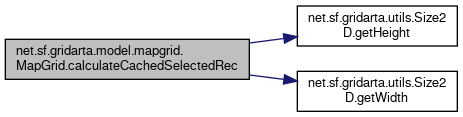

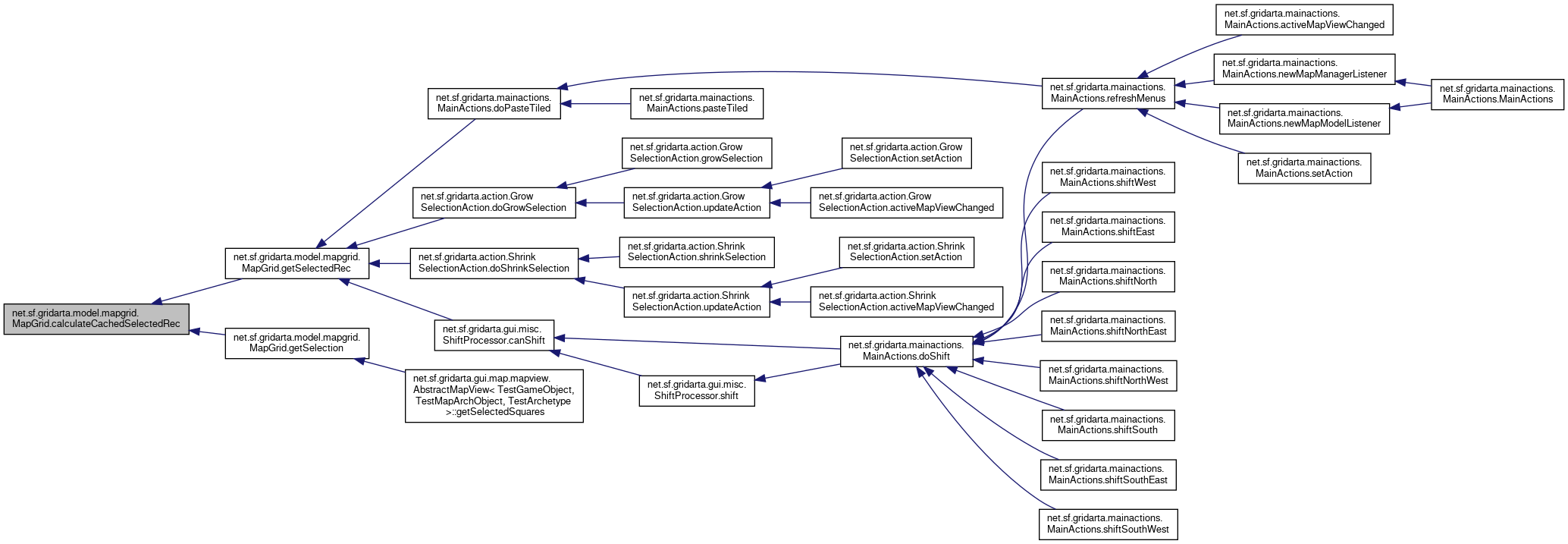

◆ calculateCachedSelectedRec()

void net.sf.gridarta.model.mapgrid.MapGrid.calculateCachedSelectedRec ( )

private

Makes sure the value of cachedSelectedRec if up-to-date.

Definition at line 528 of file MapGrid.java.

References net.sf.gridarta.utils.Size2D.getHeight(), and net.sf.gridarta.utils.Size2D.getWidth().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.getSelectedRec(), and net.sf.gridarta.model.mapgrid.MapGrid.getSelection().

Here is the call graph for this function:

Here is the caller graph for this function:

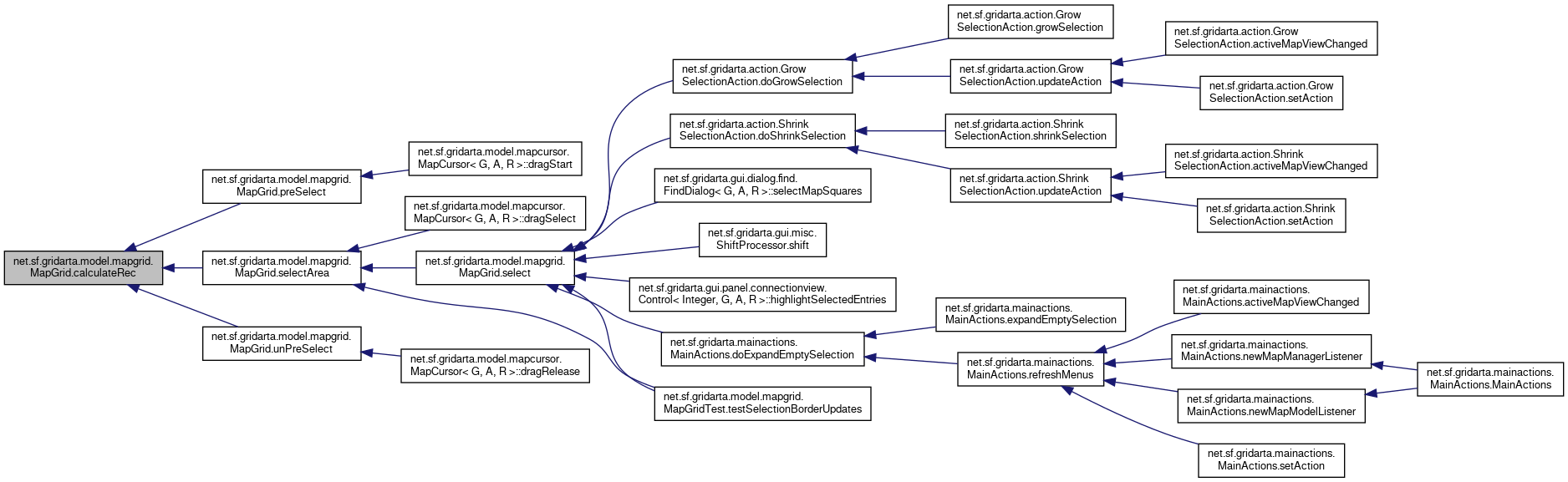

◆ calculateRec()

void net.sf.gridarta.model.mapgrid.MapGrid.calculateRec	(	@NotNull final Point	p1,
		@NotNull final Point	p2
	)

private

minX, maxX, minY, maxY

are set according to the the points

p1

and

p2

.

Parameters

p1	the coordinates of one corner of a rectangle
p2	the coordinates of the opposite corner

Definition at line 444 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.preSelect(), net.sf.gridarta.model.mapgrid.MapGrid.selectArea(), and net.sf.gridarta.model.mapgrid.MapGrid.unPreSelect().

Here is the caller graph for this function:

◆ clearErrors()

void net.sf.gridarta.model.mapgrid.MapGrid.clearErrors ( )

Clears all error flags.

Definition at line 631 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), net.sf.gridarta.utils.Size2D.getHeight(), net.sf.gridarta.utils.Size2D.getWidth(), net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_ERROR, and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.gui.map.mapview.ErroneousMapSquares< G, A, R >.errorsChanged().

Here is the call graph for this function:

Here is the caller graph for this function:

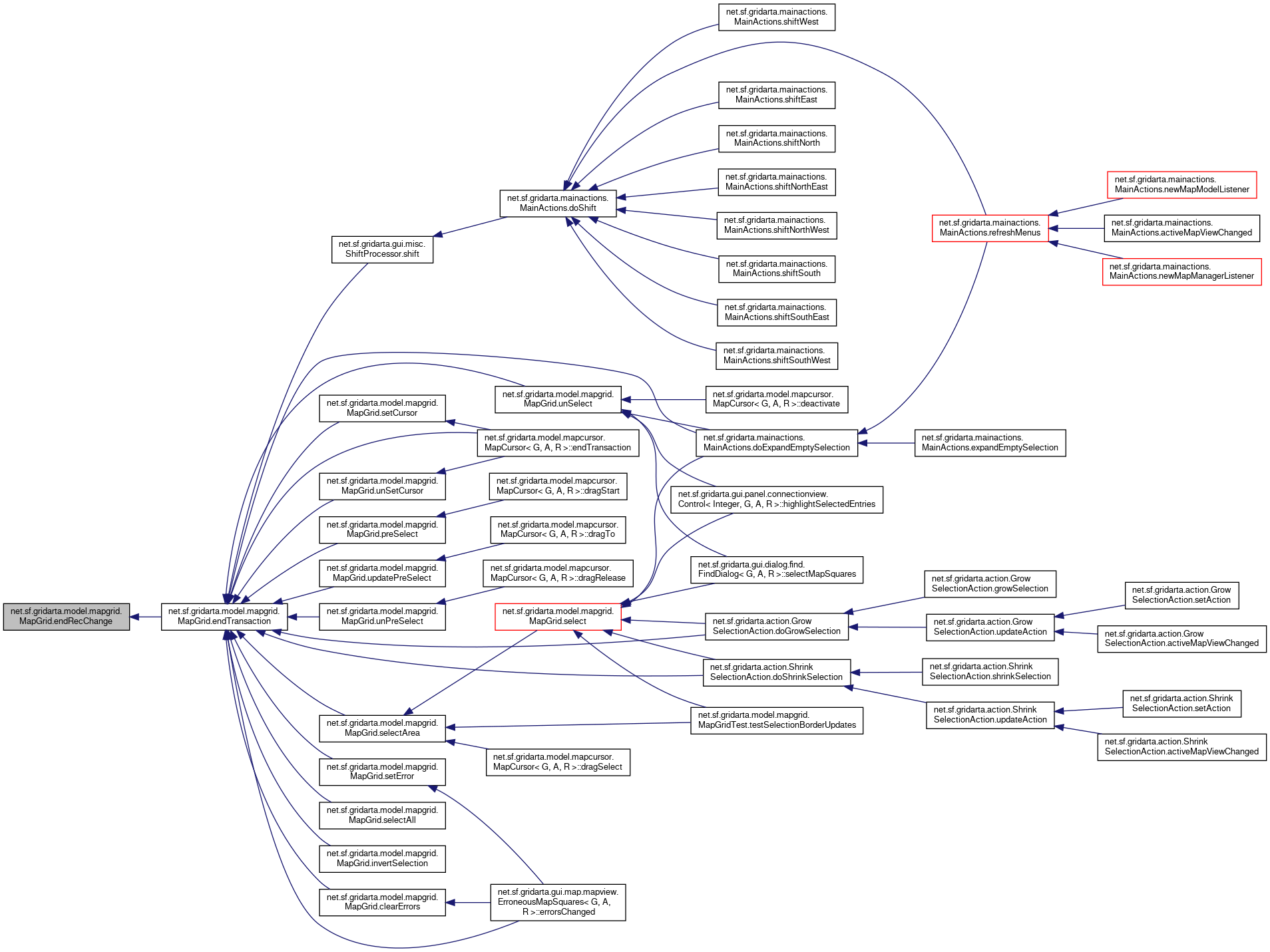

◆ endRecChange()

boolean net.sf.gridarta.model.mapgrid.MapGrid.endRecChange ( )

private

Ends the set of changes and store the bounding box for all recorded changes in recChange.

Returns: true
if the set of changes is not empty

Definition at line 678 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.endTransaction().

Here is the caller graph for this function:

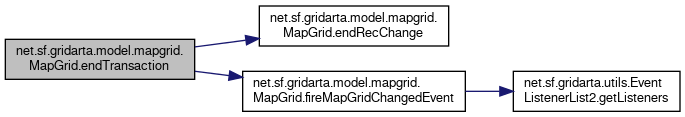

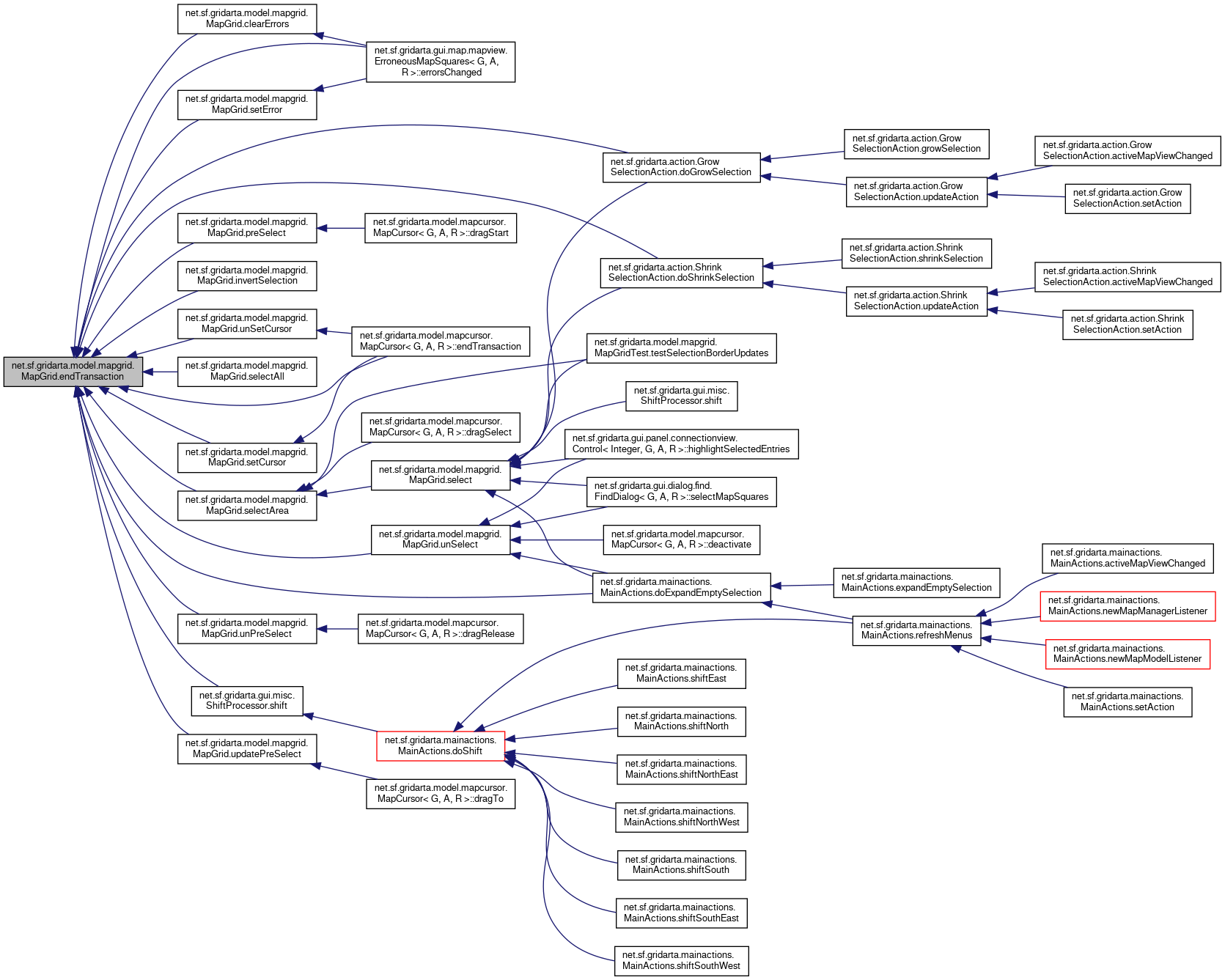

◆ endTransaction()

void net.sf.gridarta.model.mapgrid.MapGrid.endTransaction ( )

Ends a transaction.

Invoking this method will reduce the transaction depth by 1.

If the last transaction is ended, the changes are committed.

Definition at line 776 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.endRecChange(), and net.sf.gridarta.model.mapgrid.MapGrid.fireMapGridChangedEvent().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.clearErrors(), net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExpandEmptySelection(), net.sf.gridarta.action.GrowSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doGrowSelection(), net.sf.gridarta.action.ShrinkSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doShrinkSelection(), net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.endTransaction(), net.sf.gridarta.gui.map.mapview.ErroneousMapSquares< G, A, R >.errorsChanged(), net.sf.gridarta.model.mapgrid.MapGrid.invertSelection(), net.sf.gridarta.model.mapgrid.MapGrid.preSelect(), net.sf.gridarta.model.mapgrid.MapGrid.selectAll(), net.sf.gridarta.model.mapgrid.MapGrid.selectArea(), net.sf.gridarta.model.mapgrid.MapGrid.setCursor(), net.sf.gridarta.model.mapgrid.MapGrid.setError(), net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.shift(), net.sf.gridarta.model.mapgrid.MapGrid.unPreSelect(), net.sf.gridarta.model.mapgrid.MapGrid.unSelect(), net.sf.gridarta.model.mapgrid.MapGrid.unSetCursor(), and net.sf.gridarta.model.mapgrid.MapGrid.updatePreSelect().

Here is the call graph for this function:

Here is the caller graph for this function:

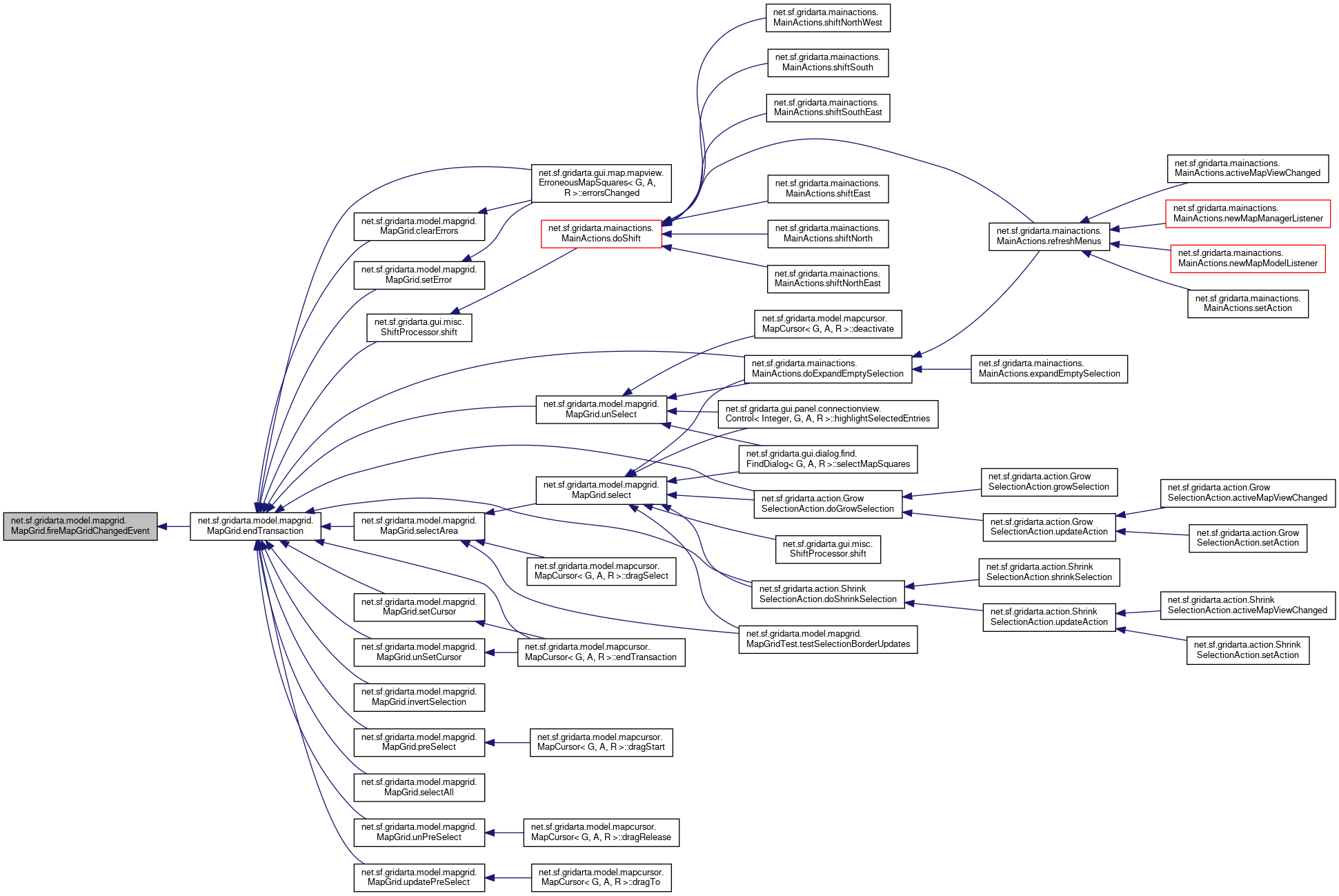

◆ fireMapGridChangedEvent()

void net.sf.gridarta.model.mapgrid.MapGrid.fireMapGridChangedEvent ( )

private

Inform all registered listeners that the flags on MapGrid have changed.

Definition at line 243 of file MapGrid.java.

References net.sf.gridarta.utils.EventListenerList2< T extends EventListener >.getListeners().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.endTransaction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fireMapGridResizeEvent()

void net.sf.gridarta.model.mapgrid.MapGrid.fireMapGridResizeEvent ( )

private

Informs all registered listeners that the size of MapGrid has changed.

Definition at line 253 of file MapGrid.java.

References net.sf.gridarta.utils.EventListenerList2< T extends EventListener >.getListeners().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.resize().

Here is the call graph for this function:

Here is the caller graph for this function:

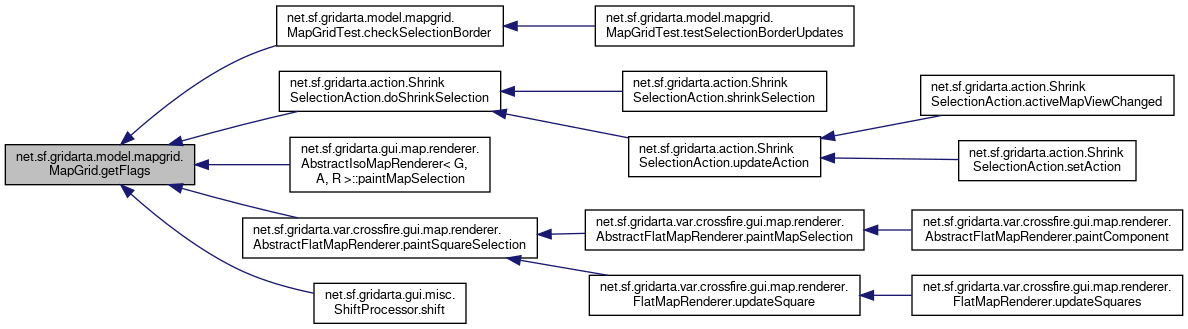

◆ getFlags() [1/2]

int net.sf.gridarta.model.mapgrid.MapGrid.getFlags	(	final int	x,
		final int	y
	)

Returns the flags of a square.

Parameters

x	the x-coordinate of the square
y	the y-coordinate of the square

Returns: the grid flags

Definition at line 476 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGridTest.checkSelectionBorder(), net.sf.gridarta.action.ShrinkSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doShrinkSelection(), net.sf.gridarta.gui.map.renderer.AbstractIsoMapRenderer< G, A, R >.paintMapSelection(), net.sf.gridarta.var.crossfire.gui.map.renderer.AbstractFlatMapRenderer.paintSquareSelection(), and net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.shift().

Here is the caller graph for this function:

◆ getFlags() [2/2]

int net.sf.gridarta.model.mapgrid.MapGrid.getFlags ( @NotNull final Point p )

Returns the flags of a square.

Parameters

p	the coordinates of the square

Returns: the grid flags

Definition at line 485 of file MapGrid.java.

◆ getGridSize()

Size2D net.sf.gridarta.model.mapgrid.MapGrid.getGridSize ( )

Returns a Size2D with the dimension of this grid.

Returns: a size 2D with the dimension of this grid

Definition at line 207 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.gridSize.

◆ getRecChange()

Rectangle net.sf.gridarta.model.mapgrid.MapGrid.getRecChange ( )

Returns a rectangle where the grid was changed.

Width and height is 0 for single squares.

Returns: the changed rectangle

Definition at line 495 of file MapGrid.java.

◆ getSelectedRec()

Rectangle net.sf.gridarta.model.mapgrid.MapGrid.getSelectedRec ( )

Returns the smallest rectangle containing selection.

Returns: the rectangle containing selection or
null
if nothing is selected

Definition at line 514 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.calculateCachedSelectedRec().

Referenced by net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.canShift(), net.sf.gridarta.action.GrowSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doGrowSelection(), net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doPasteTiled(), and net.sf.gridarta.action.ShrinkSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doShrinkSelection().

Here is the call graph for this function:

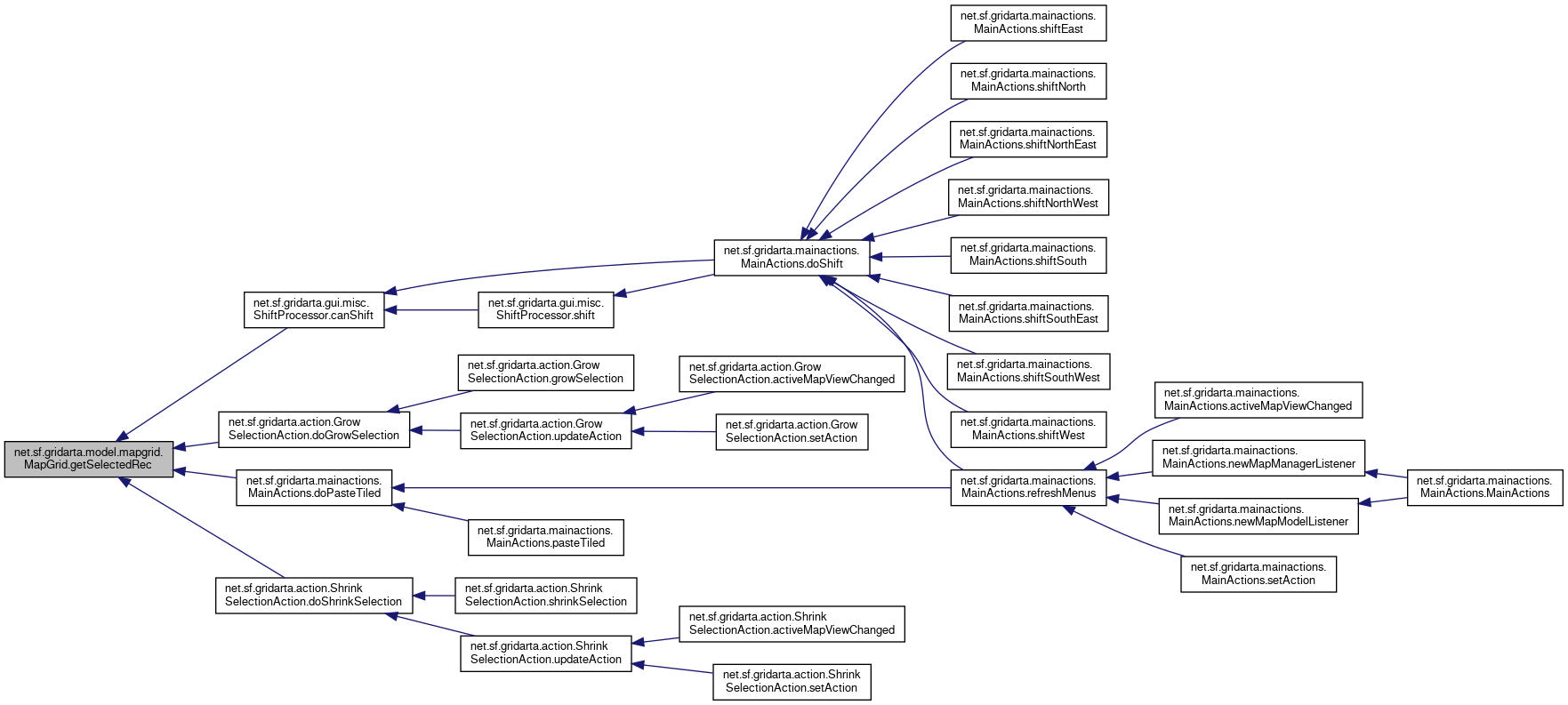

Here is the caller graph for this function:

◆ getSelection()

Point [] net.sf.gridarta.model.mapgrid.MapGrid.getSelection ( )

Returns the selection.

Returns: the selection

Definition at line 842 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.cachedSelectedRec, and net.sf.gridarta.model.mapgrid.MapGrid.calculateCachedSelectedRec().

Referenced by net.sf.gridarta.gui.map.mapview.AbstractMapView< TestGameObject, TestMapArchObject, TestArchetype >.getSelectedSquares().

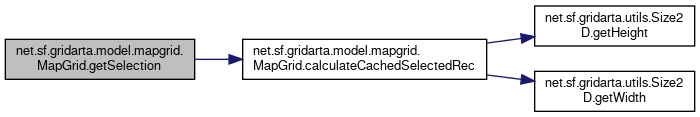

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSize()

Size2D net.sf.gridarta.model.mapgrid.MapGrid.getSize ( )

Returns size of grid.

Returns: the size of gri

Definition at line 504 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.gridSize.

Referenced by net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.canShift(), net.sf.gridarta.model.mapgrid.MapGridTest.checkSelectionBorder(), net.sf.gridarta.var.crossfire.gui.map.renderer.AbstractFlatMapRenderer.paintMap(), net.sf.gridarta.var.crossfire.gui.map.renderer.AbstractFlatMapRenderer.paintMapGrid(), and net.sf.gridarta.var.crossfire.gui.map.renderer.AbstractFlatMapRenderer.resizeMapGrid().

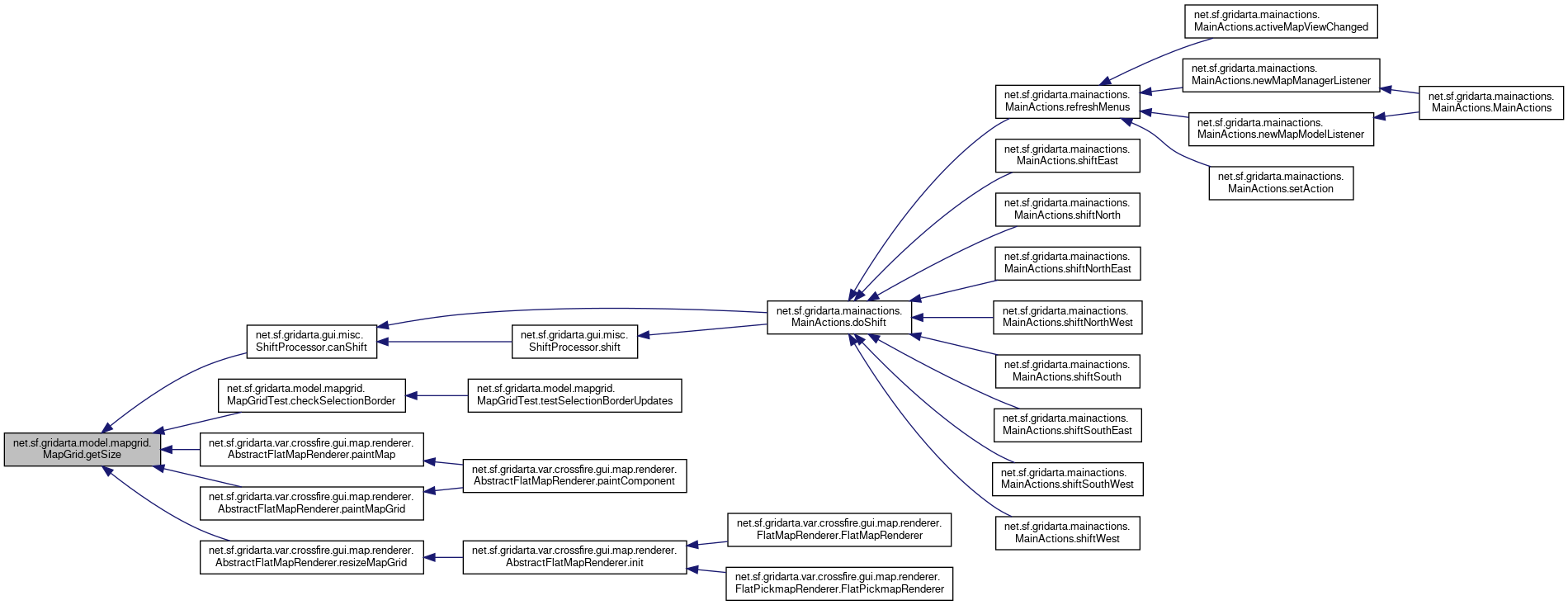

Here is the caller graph for this function:

◆ hasError()

boolean net.sf.gridarta.model.mapgrid.MapGrid.hasError ( @NotNull final Point p )

Checks if a square has the error flag set.

Parameters

p	the point to check

Returns: true
if GRID_FLAG_ERROR is set

Definition at line 466 of file MapGrid.java.

◆ invertSelection()

void net.sf.gridarta.model.mapgrid.MapGrid.invertSelection ( )

Inverts all selected squares.

Definition at line 605 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), net.sf.gridarta.utils.Size2D.getHeight(), net.sf.gridarta.utils.Size2D.getWidth(), net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION, and net.sf.gridarta.model.mapgrid.MapGrid.toggleFlags().

Here is the call graph for this function:

◆ preSelect()

void net.sf.gridarta.model.mapgrid.MapGrid.preSelect	(	@NotNull final Point	start,
		@NotNull final Point	end
	)

Rectangle defined by two points gets preselected.

The points can be on any corner as long as they are opposite to each other.

Parameters

start	any point on a corner of the rectangle
end	the point on the opposite corner

See also: MapGrid::unPreSelect(Point, Point)

Definition at line 313 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.calculateRec(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), and net.sf.gridarta.model.mapgrid.MapGrid.setFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.dragStart().

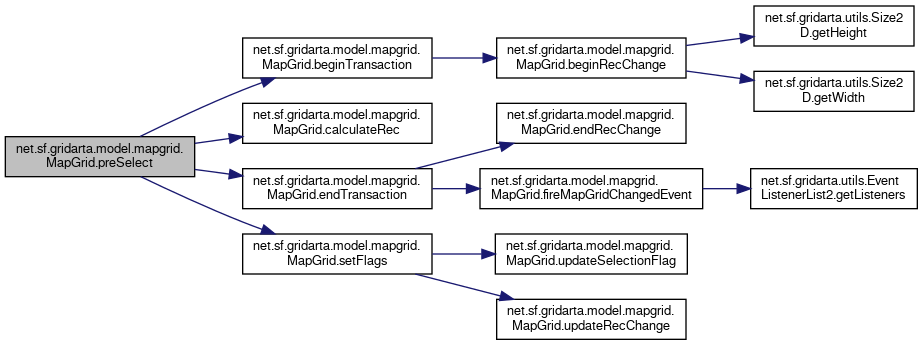

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeMapGridListener()

void net.sf.gridarta.model.mapgrid.MapGrid.removeMapGridListener ( @NotNull final MapGridListener listener )

Removes a MapGridListener.

Parameters

listener the listener to remove

Definition at line 198 of file MapGrid.java.

References net.sf.gridarta.utils.EventListenerList2< T extends EventListener >.remove().

Referenced by net.sf.gridarta.var.crossfire.gui.map.renderer.AbstractFlatMapRenderer.closeNotify(), and net.sf.gridarta.gui.map.renderer.AbstractIsoMapRenderer< G, A, R >.closeNotify().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resize()

void net.sf.gridarta.model.mapgrid.MapGrid.resize ( @NotNull final Size2D newSize )

Resizes the MapGrid.

Old flags will be copied to the new grid.

Parameters

newSize the new grid size

Definition at line 215 of file MapGrid.java.

References net.sf.gridarta.utils.Size2D.equals(), net.sf.gridarta.model.mapgrid.MapGrid.fireMapGridResizeEvent(), net.sf.gridarta.utils.Size2D.getHeight(), net.sf.gridarta.utils.Size2D.getWidth(), net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION, and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.model.mapgrid.MapGridTest.testSelectionBorderUpdates().

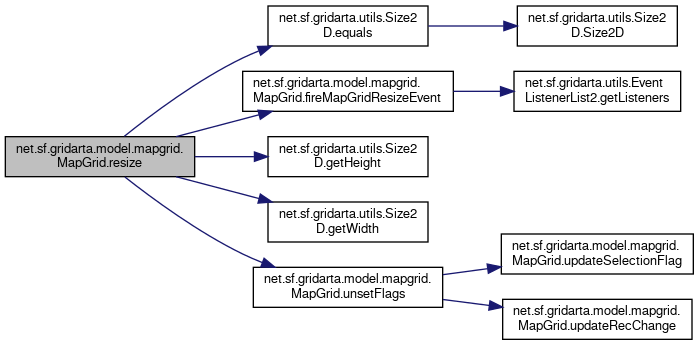

Here is the call graph for this function:

Here is the caller graph for this function:

◆ select()

void net.sf.gridarta.model.mapgrid.MapGrid.select	(	@NotNull final Point	pos,
		@NotNull final SelectionMode	selectionMode
	)

Selects or deselects a single square.

Parameters

pos	the square
selectionMode	the selection mode

Definition at line 408 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.selectArea().

Referenced by net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExpandEmptySelection(), net.sf.gridarta.action.GrowSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doGrowSelection(), net.sf.gridarta.action.ShrinkSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doShrinkSelection(), net.sf.gridarta.gui.panel.connectionview.Control< Integer, G, A, R >.highlightSelectedEntries(), net.sf.gridarta.gui.dialog.find.FindDialog< G, A, R >.selectMapSquares(), net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.shift(), and net.sf.gridarta.model.mapgrid.MapGridTest.testSelectionBorderUpdates().

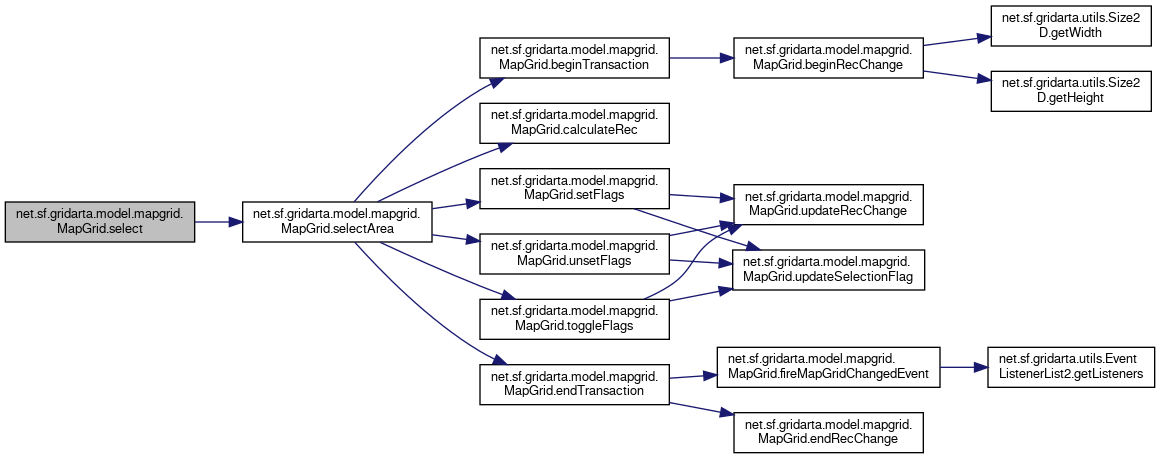

Here is the call graph for this function:

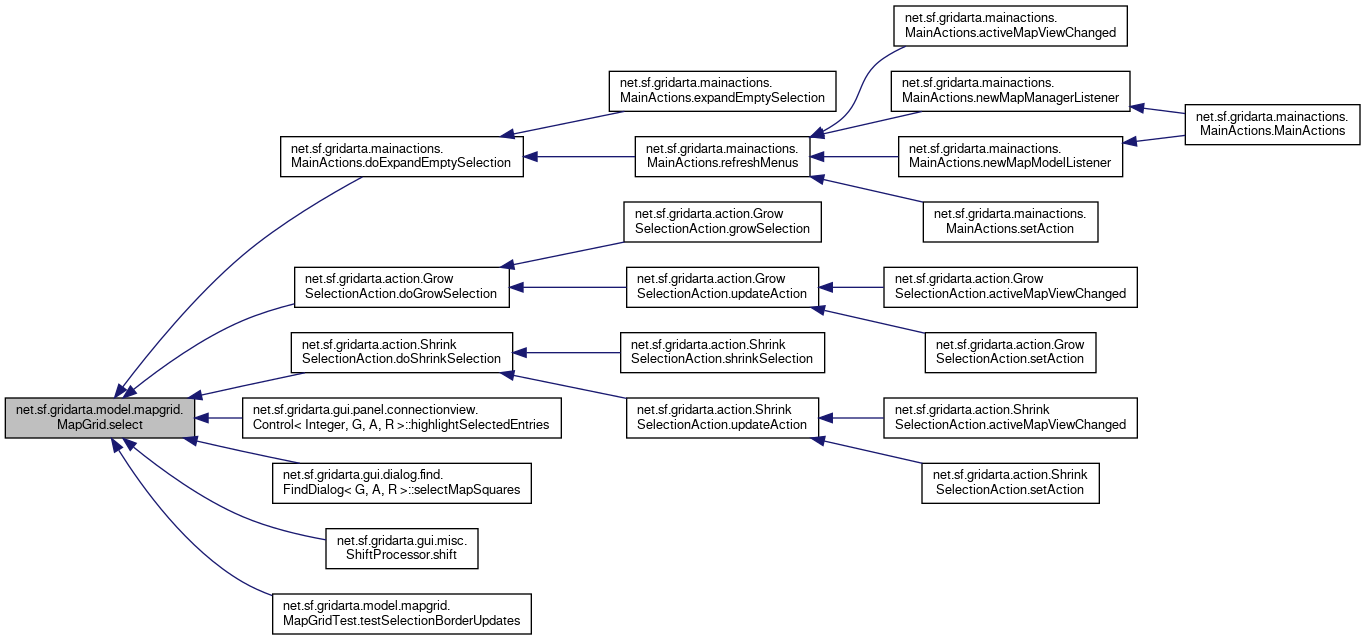

Here is the caller graph for this function:

◆ selectAll()

void net.sf.gridarta.model.mapgrid.MapGrid.selectAll ( )

Marks all squares as selected.

Definition at line 593 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), net.sf.gridarta.utils.Size2D.getHeight(), net.sf.gridarta.utils.Size2D.getWidth(), net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION, and net.sf.gridarta.model.mapgrid.MapGrid.setFlags().

Here is the call graph for this function:

◆ selectArea()

void net.sf.gridarta.model.mapgrid.MapGrid.selectArea	(	@NotNull final Point	pos1,
		@NotNull final Point	pos2,
		@NotNull final SelectionMode	selectionMode
	)

Selects or deselects all squares in an area.

Parameters

pos1	the first corner of rectangle
pos2	the opposite corner of rectangle
selectionMode	the selection mode

Definition at line 418 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.calculateRec(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.setFlags(), net.sf.gridarta.model.mapgrid.MapGrid.toggleFlags(), and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.dragSelect(), net.sf.gridarta.model.mapgrid.MapGrid.select(), and net.sf.gridarta.model.mapgrid.MapGridTest.testSelectionBorderUpdates().

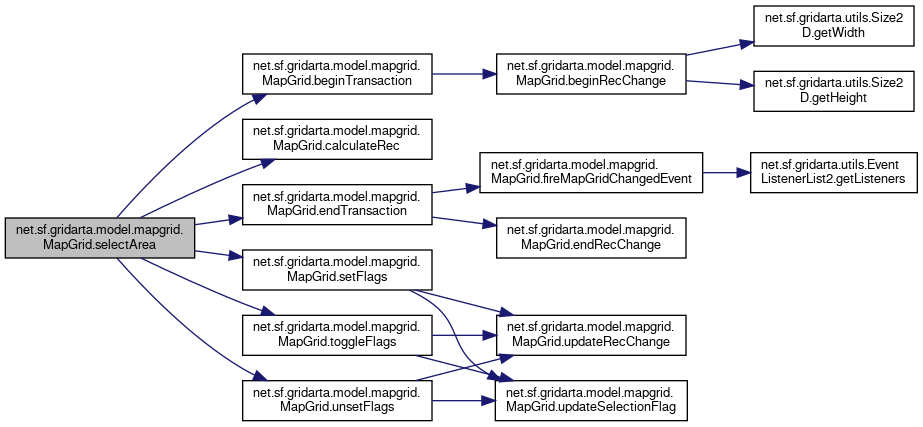

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCursor()

void net.sf.gridarta.model.mapgrid.MapGrid.setCursor ( @NotNull final Point pos )

Highlights the given cursor position.

Parameters

pos	the map coordinates of square to highlight

Definition at line 296 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), and net.sf.gridarta.model.mapgrid.MapGrid.setFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.endTransaction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setError()

void net.sf.gridarta.model.mapgrid.MapGrid.setError	(	final int	x,
		final int	y
	)

Sets the error flag at given coordinates.

Parameters

x	the x coordinate
y	the y coordinate

Definition at line 619 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), and net.sf.gridarta.model.mapgrid.MapGrid.setFlags().

Referenced by net.sf.gridarta.gui.map.mapview.ErroneousMapSquares< G, A, R >.errorsChanged().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFlags()

void net.sf.gridarta.model.mapgrid.MapGrid.setFlags	(	final int	minX,
		final int	minY,
		final int	maxX,
		final int	maxY,
		final int	flags
	)

private

Sets flags in a rectangle and generate a grid change event.

Parameters

minX	the left x-coordinate
minY	the left y-coordinate
maxX	the right x-coordinate
maxY	the right y-coordinate
flags	the flags to set

Definition at line 692 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.updateRecChange(), and net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.preSelect(), net.sf.gridarta.model.mapgrid.MapGrid.selectAll(), net.sf.gridarta.model.mapgrid.MapGrid.selectArea(), net.sf.gridarta.model.mapgrid.MapGrid.setCursor(), net.sf.gridarta.model.mapgrid.MapGrid.setError(), and net.sf.gridarta.model.mapgrid.MapGrid.updatePreSelect().

Here is the call graph for this function:

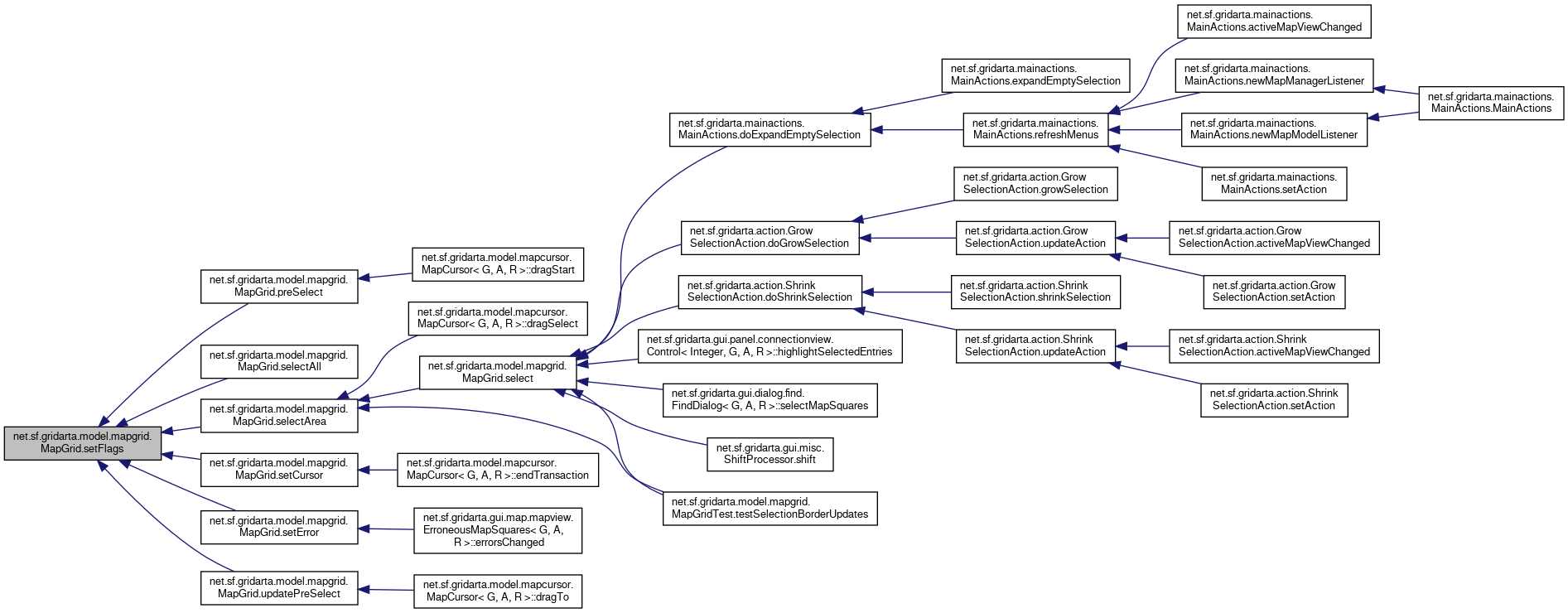

Here is the caller graph for this function:

◆ toggleFlags()

void net.sf.gridarta.model.mapgrid.MapGrid.toggleFlags	(	final int	minX,
		final int	minY,
		final int	maxX,
		final int	maxY,
		final int	flags
	)

private

Flips flags in a rectangle and generate a grid change event.

Parameters

minX	the left x-coordinate
minY	the left y-coordinate
maxX	the right x-coordinate
maxY	the right y-coordinate
flags	the flags to reset

Definition at line 738 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.updateRecChange(), and net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.invertSelection(), and net.sf.gridarta.model.mapgrid.MapGrid.selectArea().

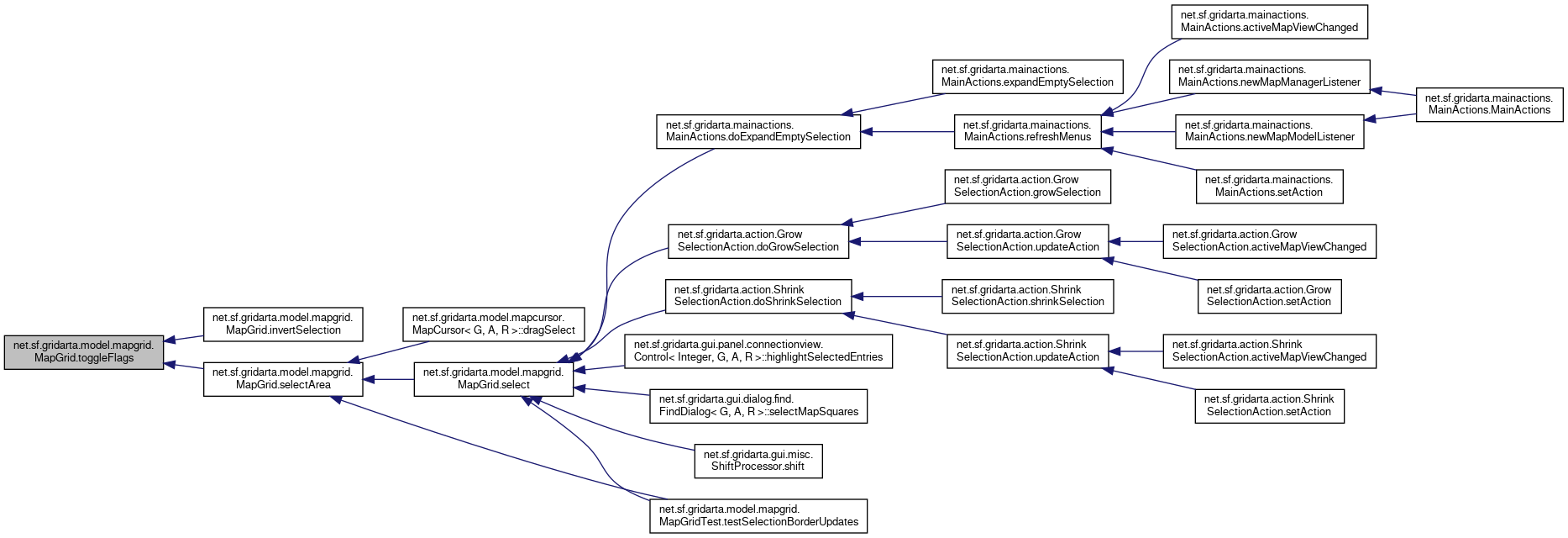

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unPreSelect()

void net.sf.gridarta.model.mapgrid.MapGrid.unPreSelect	(	@NotNull final Point	start,
		@NotNull final Point	end
	)

Pre-selection of rectangle defined by points gets deleted.

Parameters

start	the coordinates of the first corner
end	the coordinates of the opposite corner

See also: MapGrid::preSelect(Point, Point)

Definition at line 393 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.calculateRec(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.dragRelease().

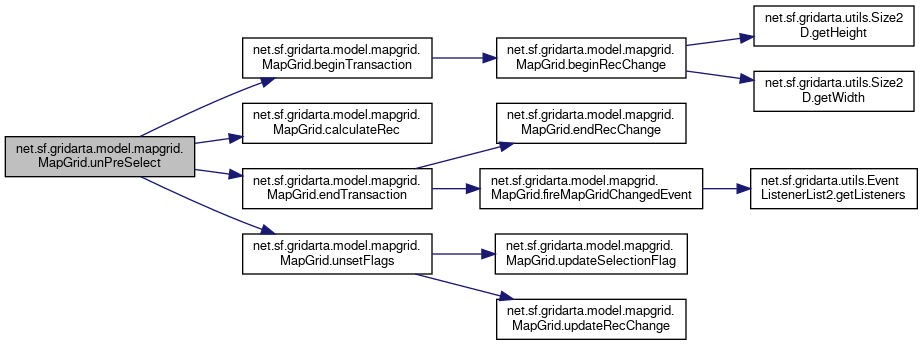

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unSelect()

void net.sf.gridarta.model.mapgrid.MapGrid.unSelect ( )

Clears all selection and pre-selection flags from the grid.

Definition at line 263 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), net.sf.gridarta.utils.Size2D.getHeight(), net.sf.gridarta.utils.Size2D.getWidth(), net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTING, and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.deactivate(), net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExpandEmptySelection(), net.sf.gridarta.gui.panel.connectionview.Control< Integer, G, A, R >.highlightSelectedEntries(), and net.sf.gridarta.gui.dialog.find.FindDialog< G, A, R >.selectMapSquares().

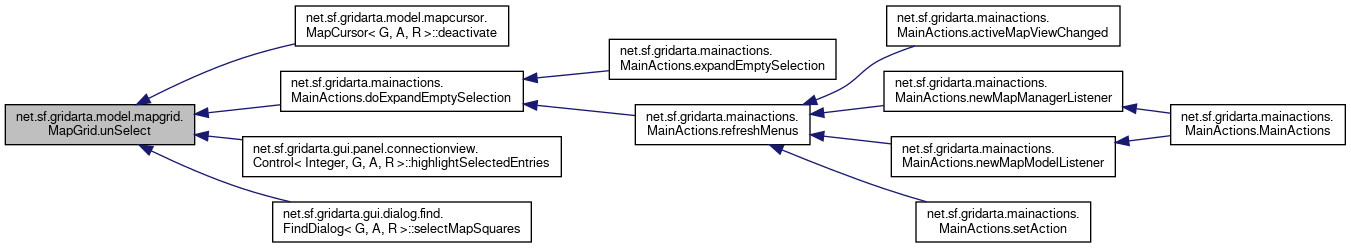

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unSetCursor()

void net.sf.gridarta.model.mapgrid.MapGrid.unSetCursor ( @NotNull final Point pos )

Un-highlights the given cursor position.

Parameters

pos	the map coordinates of square to un-highlight

Definition at line 276 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.endTransaction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unsetFlags()

void net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags	(	final int	minX,
		final int	minY,
		final int	maxX,
		final int	maxY,
		final int	flags
	)

private

Resets flags in a rectangle and generate a grid change event.

Parameters

minX	the left x-coordinate
minY	the left y-coordinate
maxX	the right x-coordinate
maxY	the right y-coordinate
flags	the flags to reset

Definition at line 715 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.updateRecChange(), and net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag().

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.clearErrors(), net.sf.gridarta.model.mapgrid.MapGrid.resize(), net.sf.gridarta.model.mapgrid.MapGrid.selectArea(), net.sf.gridarta.model.mapgrid.MapGrid.unPreSelect(), net.sf.gridarta.model.mapgrid.MapGrid.unSelect(), net.sf.gridarta.model.mapgrid.MapGrid.unSetCursor(), and net.sf.gridarta.model.mapgrid.MapGrid.updatePreSelect().

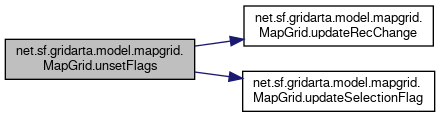

Here is the call graph for this function:

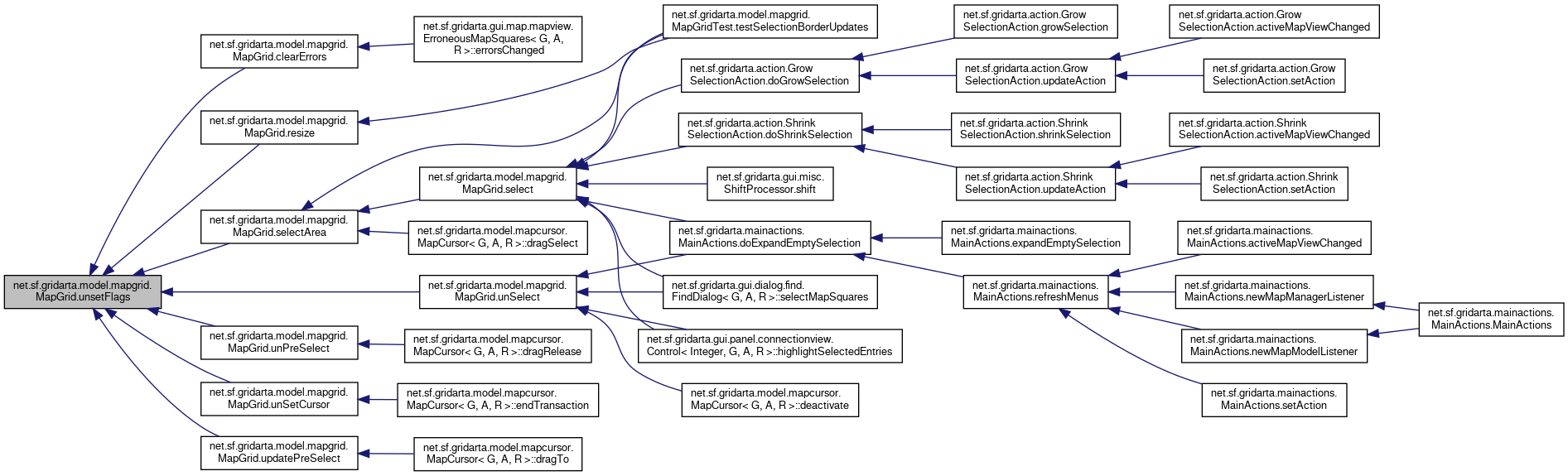

Here is the caller graph for this function:

◆ updatePreSelect()

void net.sf.gridarta.model.mapgrid.MapGrid.updatePreSelect	(	@NotNull final Point	start,
		@NotNull final Point	oldEnd,
		@NotNull final Point	newEnd
	)

Update the pre-selection rectangle.

The effect is identical to calling

unPreSelect(start, oldEnd); preSelect(start, newEnd);

except that smaller change events are generated.

Parameters

start	the coordinate of the common first point
oldEnd	the coordinate of the end point for selection deletion
newEnd	the coordinate of the end point for selection addition

Note: This function assumes that all of (start-oldEnd) has set GRID_FLAG_SELECTING but no other square has set GRID_FLAG_SELECTING; if this precondition does not hold, it does not correctly update the flags

Definition at line 334 of file MapGrid.java.

References net.sf.gridarta.model.mapgrid.MapGrid.beginTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.endTransaction(), net.sf.gridarta.model.mapgrid.MapGrid.setFlags(), and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

Referenced by net.sf.gridarta.model.mapcursor.MapCursor< G, A, R >.dragTo().

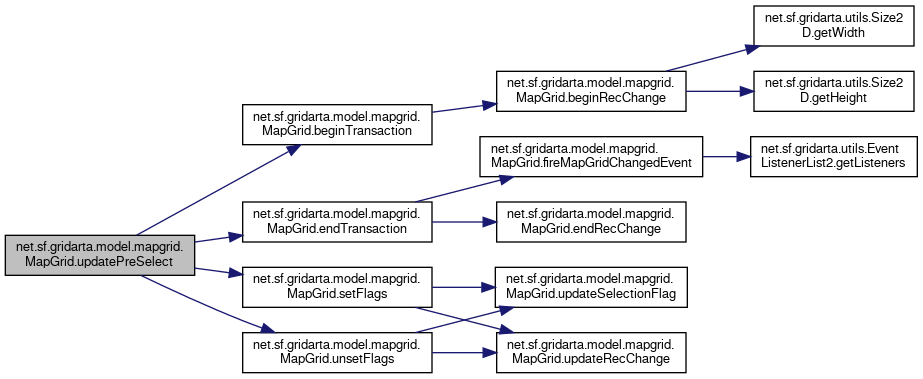

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateRecChange()

void net.sf.gridarta.model.mapgrid.MapGrid.updateRecChange	(	final int	x,
		final int	y
	)

private

Adds a point to the set of changes.

Parameters

x	the x-coordinate
y	the y-coordinate

Definition at line 658 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.setFlags(), net.sf.gridarta.model.mapgrid.MapGrid.toggleFlags(), net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags(), and net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag().

Here is the caller graph for this function:

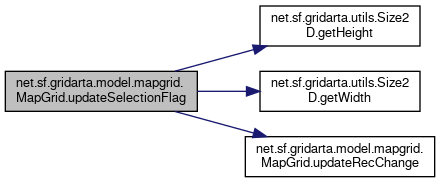

◆ updateSelectionFlag() [1/2]

void net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag	(	final int	x,
		final int	y,
		final boolean	newState
	)

private

Updates the border selection flags of a square and its adjacent squares.

This function assumes the the square's selection state has changed.

Parameters

x	the x-coordinate of the square
y	the y-coordinate of the square
newState	the new square's selection state

Definition at line 798 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.setFlags(), net.sf.gridarta.model.mapgrid.MapGrid.toggleFlags(), and net.sf.gridarta.model.mapgrid.MapGrid.unsetFlags().

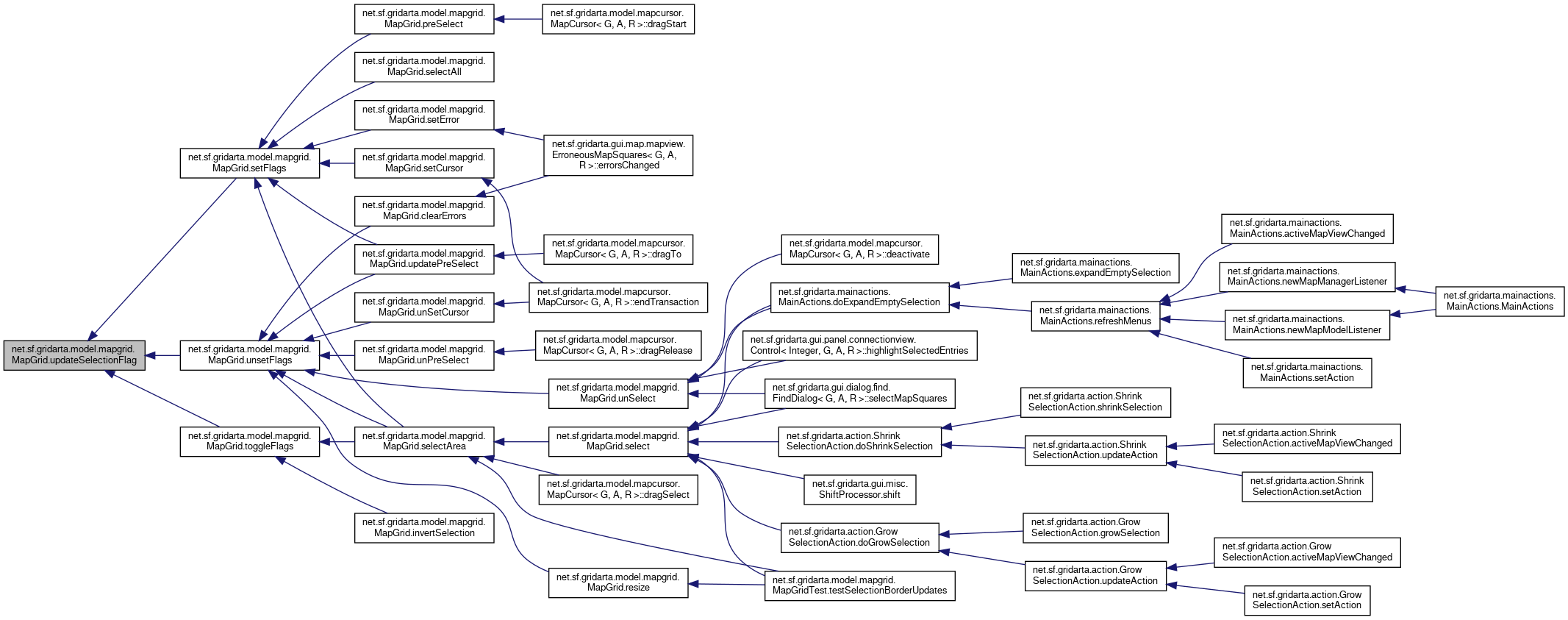

Here is the caller graph for this function:

◆ updateSelectionFlag() [2/2]

void net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag	(	final int	x,
		final int	y,
		final boolean	newState,
		final int	dx,
		final int	dy,
		final int	flag,
		final int	dFlag
	)

private

Updates the border selection flags of a square and one adjacent square.

This function assumes the the square's selection state has changed.

Parameters

x	the x-coordinate of the square
y	the y-coordinate of the square
newState	the new square's selection state
dx	the x-coordinate of the adjacent square
dy	the y-coordinate of the adjacent square
flag	the border selection flag for the square
dFlag	the border selection flag for the adjacent square

Definition at line 816 of file MapGrid.java.

References net.sf.gridarta.utils.Size2D.getHeight(), net.sf.gridarta.utils.Size2D.getWidth(), net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION, and net.sf.gridarta.model.mapgrid.MapGrid.updateRecChange().

Here is the call graph for this function:

Member Data Documentation

◆ cachedCursorLoc

Point net.sf.gridarta.model.mapgrid.MapGrid.cachedCursorLoc

private

Cached location of the cursor.

Definition at line 93 of file MapGrid.java.

◆ cachedSelectedRec

Rectangle net.sf.gridarta.model.mapgrid.MapGrid.cachedSelectedRec

private

The return value for getSelectedRec().

Only valid if cachedSelectedRecValid is set.

Definition at line 87 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.getSelection().

◆ cachedSelectedRecValid

boolean net.sf.gridarta.model.mapgrid.MapGrid.cachedSelectedRecValid

private

If set, cachedSelectedRec is up-to-date.

Definition at line 80 of file MapGrid.java.

◆ cornerMax

final Point net.sf.gridarta.model.mapgrid.MapGrid.cornerMax = new Point()

private

Right lower coordinates of rectangle that is being processed.

Definition at line 63 of file MapGrid.java.

◆ cornerMin

final Point net.sf.gridarta.model.mapgrid.MapGrid.cornerMin = new Point()

private

Left upper coordinates of rectangle that is being processed.

Definition at line 57 of file MapGrid.java.

◆ GRID_FLAG_CONNECTION

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_CONNECTION = 1 << 6

static

Flag to highlight as part of a connection group.

RFU.

Definition at line 128 of file MapGrid.java.

◆ GRID_FLAG_CURSOR

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_CURSOR = 1 << 7

static

Flag to highlight cursor position.

Normally there will only be up to one square that has this flag set.

Definition at line 134 of file MapGrid.java.

Referenced by net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint().

◆ GRID_FLAG_ERROR

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_ERROR = 1 << 4

static

Flag to highlight as error.

Definition at line 118 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.clearErrors(), and net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint().

◆ GRID_FLAG_FATAL

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_FATAL = 1 << 5

static

Flag to highlight as fatal.

RFU.

Definition at line 123 of file MapGrid.java.

◆ GRID_FLAG_INFORMATION

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_INFORMATION = 1 << 2

static

Flag to highlight as information.

RFU.

Definition at line 108 of file MapGrid.java.

◆ GRID_FLAG_SELECTING

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTING = 1 << 1

static

Pre-selection - used to preselect squares.

Definition at line 103 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapcursor.MapCursorTest.assertPreSelection(), net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint(), and net.sf.gridarta.model.mapgrid.MapGrid.unSelect().

◆ GRID_FLAG_SELECTION

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION = 1

static

Selection - marks all selected squares.

Definition at line 98 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapcursor.MapCursorTest.assertSelection(), net.sf.gridarta.action.ShrinkSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doShrinkSelection(), net.sf.gridarta.model.mapgrid.MapGrid.invertSelection(), net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint(), net.sf.gridarta.model.mapgrid.MapGrid.resize(), net.sf.gridarta.model.mapgrid.MapGrid.selectAll(), net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.shift(), and net.sf.gridarta.model.mapgrid.MapGrid.updateSelectionFlag().

◆ GRID_FLAG_SELECTION_EAST

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION_EAST = 1 << 9

static

Selection - is set for squares at the east edge of the selected area.

Definition at line 144 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGridTest.checkSelectionBorder(), and net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint().

◆ GRID_FLAG_SELECTION_NORTH

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION_NORTH = 1 << 8

static

Selection - is set for squares at the north edge of the selected area.

Definition at line 139 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGridTest.checkSelectionBorder(), and net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint().

◆ GRID_FLAG_SELECTION_SOUTH

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION_SOUTH = 1 << 10

static

Selection - is set for squares at the south edge of the selected area.

Definition at line 149 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGridTest.checkSelectionBorder(), and net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint().

◆ GRID_FLAG_SELECTION_WEST

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_SELECTION_WEST = 1 << 11

static

Selection - is set for squares at the west edge of the selected area.

Definition at line 154 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGridTest.checkSelectionBorder(), and net.sf.gridarta.gui.map.renderer.GridMapSquarePainter.paint().

◆ GRID_FLAG_WARNING

final int net.sf.gridarta.model.mapgrid.MapGrid.GRID_FLAG_WARNING = 1 << 3

static

Flag to highlight as warning.

RFU.

Definition at line 113 of file MapGrid.java.

◆ gridFlags

int [][] net.sf.gridarta.model.mapgrid.MapGrid.gridFlags

private

2D-array to store grid flags.

Definition at line 51 of file MapGrid.java.

◆ gridSize

Size2D net.sf.gridarta.model.mapgrid.MapGrid.gridSize

private

Size of.

gridFlags[][]

.

Definition at line 69 of file MapGrid.java.

Referenced by net.sf.gridarta.model.mapgrid.MapGrid.getGridSize(), net.sf.gridarta.model.mapgrid.MapGrid.getSize(), and net.sf.gridarta.model.mapgrid.MapGrid.MapGrid().

◆ listenerList

final EventListenerList2<MapGridListener> net.sf.gridarta.model.mapgrid.MapGrid.listenerList = new EventListenerList2<>(MapGridListener.class)

private

The MapGridListeners to inform of changes.

Definition at line 160 of file MapGrid.java.

◆ recChange

final Rectangle net.sf.gridarta.model.mapgrid.MapGrid.recChange = new Rectangle()

private

Rectangle to store location of last grid change.

Definition at line 75 of file MapGrid.java.

◆ transactionDepth

int net.sf.gridarta.model.mapgrid.MapGrid.transactionDepth

private

The transaction depth.

A value of 0 means there's no transaction going on. A value > 0 means there's a transaction going on and denotes the nesting level.

Invariant: transactionDepth >= 0

Definition at line 168 of file MapGrid.java.

◆ transactionThread

Thread net.sf.gridarta.model.mapgrid.MapGrid.transactionThread

private

The thread that performs the current transaction.

Invariant: transactionDepth > 0 || transactionThread == null

Definition at line 175 of file MapGrid.java.

The documentation for this class was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/mapgrid/MapGrid.java

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MapGrid()

Member Function Documentation

◆ addMapGridListener()

◆ beginRecChange()

◆ beginTransaction()

◆ calculateCachedSelectedRec()

◆ calculateRec()

◆ clearErrors()

◆ endRecChange()

◆ endTransaction()

◆ fireMapGridChangedEvent()

◆ fireMapGridResizeEvent()

◆ getFlags() [1/2]

◆ getFlags() [2/2]

◆ getGridSize()

◆ getRecChange()

◆ getSelectedRec()

◆ getSelection()

◆ getSize()

◆ hasError()

◆ invertSelection()

◆ preSelect()

◆ removeMapGridListener()

◆ resize()

◆ select()

◆ selectAll()

◆ selectArea()

◆ setCursor()

◆ setError()

◆ setFlags()

◆ toggleFlags()

◆ unPreSelect()

◆ unSelect()

◆ unSetCursor()

◆ unsetFlags()

◆ updatePreSelect()

◆ updateRecChange()

◆ updateSelectionFlag() [1/2]

◆ updateSelectionFlag() [2/2]

Member Data Documentation

◆ cachedCursorLoc

◆ cachedSelectedRec

◆ cachedSelectedRecValid

◆ cornerMax

◆ cornerMin

◆ GRID_FLAG_CONNECTION

◆ GRID_FLAG_CURSOR

◆ GRID_FLAG_ERROR

◆ GRID_FLAG_FATAL

◆ GRID_FLAG_INFORMATION

◆ GRID_FLAG_SELECTING

◆ GRID_FLAG_SELECTION

◆ GRID_FLAG_SELECTION_EAST

◆ GRID_FLAG_SELECTION_NORTH

◆ GRID_FLAG_SELECTION_SOUTH

◆ GRID_FLAG_SELECTION_WEST

◆ GRID_FLAG_WARNING

◆ gridFlags

◆ gridSize

◆ listenerList

◆ recChange

◆ transactionDepth

◆ transactionThread
