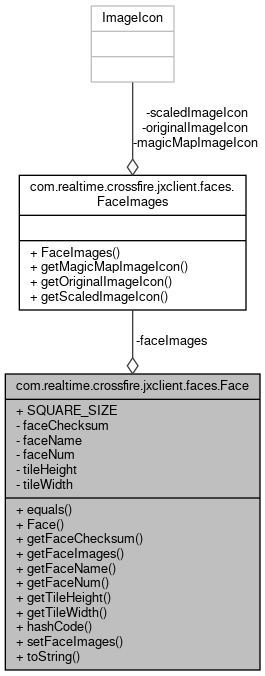

Collaboration diagram for com.realtime.crossfire.jxclient.faces.Face:

Public Member Functions
boolean	equals (@Nullable final Object obj)

	Face (final int faceNum, @NotNull final String faceName, final int faceChecksum)
	Creates a new instance. More...

int	getFaceChecksum ()
	Returns the face checksum. More...

FaceImages	getFaceImages ()
	Returns the images. More...

String	getFaceName ()
	Returns the face name. More...

int	getFaceNum ()
	Returns the unique face id. More...

int	getTileHeight ()
	Returns the face height in tiles. More...

int	getTileWidth ()
	Returns the face width in tiles. More...

int	hashCode ()

void	setFaceImages (@NotNull final FaceImages faceImages)
	Sets the images. More...

String	toString ()

Static Public Attributes
static final int	SQUARE_SIZE = 32
	The size of one square in pixels. More...

Private Attributes
final int	faceChecksum
	The image checksum as sent by the server. More...

FaceImages	faceImages
	The images for this face. More...

final String	faceName
	The face name as sent by the server. More...

final int	faceNum
	The face id as sent by the server. More...

int	tileHeight = 1
	The face height in tiles. More...

int	tileWidth = 1
	The face width in tiles. More...

Detailed Description

A.

Face

represents one image received from a Crossfire server. The face is uniquely identified by a face id; it has a face name and three images (original as sent by the server, scaled for use in map view, scaled for use in magic map view) attached.

Author: Lauwenmark; Andreas Kirschbaum

Definition at line 36 of file Face.java.

Constructor & Destructor Documentation

◆ Face()

com.realtime.crossfire.jxclient.faces.Face.Face	(	final int	faceNum,
		@NotNull final String	faceName,
		final int	faceChecksum
	)

Creates a new instance.

Parameters

faceNum	the unique face id
faceName	the face name
faceChecksum	the image checksum as sent by the server

Definition at line 81 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceChecksum, com.realtime.crossfire.jxclient.faces.Face.faceName, and com.realtime.crossfire.jxclient.faces.Face.faceNum.

Referenced by com.realtime.crossfire.jxclient.faces.Face.equals().

Here is the caller graph for this function:

Member Function Documentation

◆ equals()

boolean com.realtime.crossfire.jxclient.faces.Face.equals ( @Nullable final Object obj )

Definition at line 173 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.Face(), and com.realtime.crossfire.jxclient.faces.Face.faceNum.

Here is the call graph for this function:

◆ getFaceChecksum()

int com.realtime.crossfire.jxclient.faces.Face.getFaceChecksum ( )

Returns the face checksum.

Returns: the face checksum

Definition at line 132 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceChecksum.

◆ getFaceImages()

FaceImages com.realtime.crossfire.jxclient.faces.Face.getFaceImages ( )

Returns the images.

May return

null

if the images are not yet known, or if they have been dropped from the cache.

Returns: the images or
null

Definition at line 115 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceImages.

Referenced by com.realtime.crossfire.jxclient.faces.TestFacesManager.getFaceImages(), and com.realtime.crossfire.jxclient.faces.DefaultFacesManager.getFaceImages().

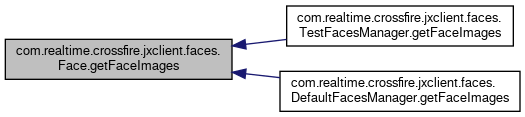

Here is the caller graph for this function:

◆ getFaceName()

String com.realtime.crossfire.jxclient.faces.Face.getFaceName ( )

Returns the face name.

Returns: the face name

Definition at line 124 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceName.

Referenced by com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.LoadTask.run(), com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.SaveTask.run(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.toString().

Here is the caller graph for this function:

◆ getFaceNum()

int com.realtime.crossfire.jxclient.faces.Face.getFaceNum ( )

Returns the unique face id.

Returns: the face id

Definition at line 105 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceNum.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.commandSentMap(), com.realtime.crossfire.jxclient.shortcuts.ShortcutSpell.displaysFace(), com.realtime.crossfire.jxclient.gui.map.SmoothingRenderer.paintSmooth(), and com.realtime.crossfire.jxclient.map.CfMap.updateFace().

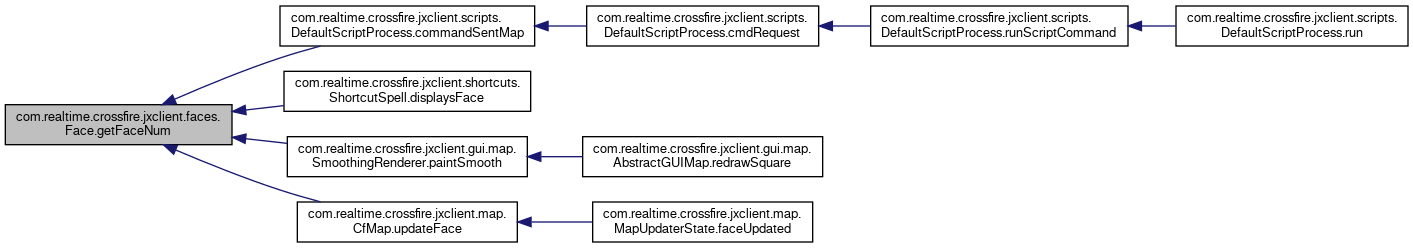

Here is the caller graph for this function:

◆ getTileHeight()

int com.realtime.crossfire.jxclient.faces.Face.getTileHeight ( )

Returns the face height in tiles.

Returns: the tile height

Definition at line 157 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.tileHeight.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapFace().

Here is the caller graph for this function:

◆ getTileWidth()

int com.realtime.crossfire.jxclient.faces.Face.getTileWidth ( )

Returns the face width in tiles.

Returns: the tile width

Definition at line 149 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.tileWidth.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapFace().

Here is the caller graph for this function:

◆ hashCode()

int com.realtime.crossfire.jxclient.faces.Face.hashCode ( )

Definition at line 165 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceChecksum.

◆ setFaceImages()

void com.realtime.crossfire.jxclient.faces.Face.setFaceImages ( @NotNull final FaceImages faceImages )

Sets the images.

Parameters

faceImages the images

Definition at line 92 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceImages, and com.realtime.crossfire.jxclient.faces.FaceImages.getOriginalImageIcon().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.defineFace(), and com.realtime.crossfire.jxclient.faces.TestFacesManager.getFaceImages().

Here is the call graph for this function:

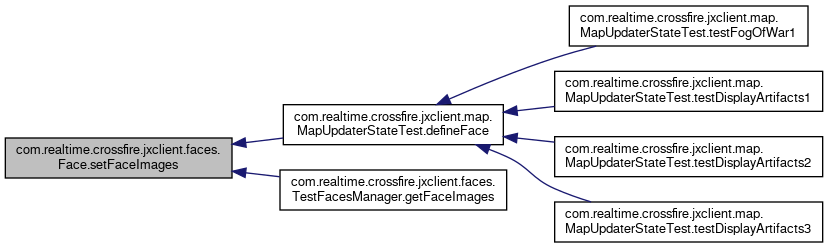

Here is the caller graph for this function:

◆ toString()

String com.realtime.crossfire.jxclient.faces.Face.toString ( )

Definition at line 141 of file Face.java.

References com.realtime.crossfire.jxclient.faces.Face.faceName.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.toString().

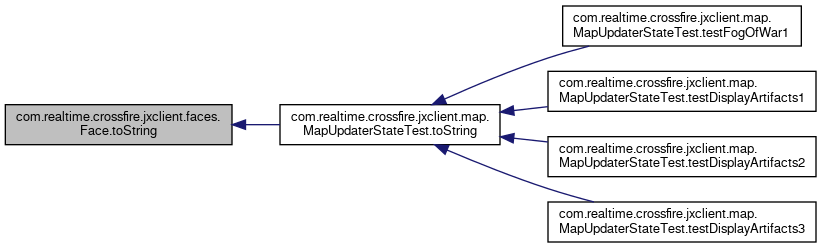

Here is the caller graph for this function:

Member Data Documentation

◆ faceChecksum

final int com.realtime.crossfire.jxclient.faces.Face.faceChecksum

private

The image checksum as sent by the server.

Definition at line 57 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.Face.Face(), com.realtime.crossfire.jxclient.faces.Face.getFaceChecksum(), and com.realtime.crossfire.jxclient.faces.Face.hashCode().

◆ faceImages

FaceImages com.realtime.crossfire.jxclient.faces.Face.faceImages

private

The images for this face.

Set to

null

if unknown.

Definition at line 73 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.Face.getFaceImages(), and com.realtime.crossfire.jxclient.faces.Face.setFaceImages().

◆ faceName

final String com.realtime.crossfire.jxclient.faces.Face.faceName

private

The face name as sent by the server.

Definition at line 52 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.Face.Face(), com.realtime.crossfire.jxclient.faces.Face.getFaceName(), and com.realtime.crossfire.jxclient.faces.Face.toString().

◆ faceNum

final int com.realtime.crossfire.jxclient.faces.Face.faceNum

private

The face id as sent by the server.

Definition at line 46 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.Face.equals(), com.realtime.crossfire.jxclient.faces.Face.Face(), and com.realtime.crossfire.jxclient.faces.Face.getFaceNum().

◆ SQUARE_SIZE

final int com.realtime.crossfire.jxclient.faces.Face.SQUARE_SIZE = 32

static

The size of one square in pixels.

Definition at line 41 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.FaceImagesUtils.newEmptyFaceImages().

◆ tileHeight

int com.realtime.crossfire.jxclient.faces.Face.tileHeight = 1

private

The face height in tiles.

Definition at line 67 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.Face.getTileHeight().

◆ tileWidth

int com.realtime.crossfire.jxclient.faces.Face.tileWidth = 1

private

The face width in tiles.

Definition at line 62 of file Face.java.

Referenced by com.realtime.crossfire.jxclient.faces.Face.getTileWidth().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/faces/Face.java
