A simple implementation of the Scale2x algorithm for scaling raw image data. More...
Collaboration diagram for com.realtime.crossfire.jxclient.faces.RawScale2x:
Public Member Functions | |
| int [] | getScaledData () |
| Gets the scale image data. More... | |
| RawScale2x (@NotNull final int[] imageData, final int dataWidth, final int dataHeight) | |
| Creates a new scaler based on some raw data. More... | |
Private Member Functions | |
| int | getSourcePixel (final int x, final int y) |
| Gets a pixel from the source image. More... | |
| void | process (final int x, final int y) |
| Processes a specific pixel. More... | |
| void | setDestPixel (final int x, final int y, final int p) |
| Sets a pixel in the destination image data. More... | |
Static Private Member Functions | |
| static boolean | different (final int a, final int b) |
| Checks if two pixels are different. More... | |
Private Attributes | |
| final int [] | dstImage |
| The destination image data. More... | |
| final int | height |
| The height of the source image. More... | |
| final int [] | srcImage |
| The source image data. More... | |
| final int | width |
| The width of the source image. More... | |
Detailed Description
A simple implementation of the Scale2x algorithm for scaling raw image data.
Definition at line 30 of file RawScale2x.java.
Constructor & Destructor Documentation
◆ RawScale2x()
| com.realtime.crossfire.jxclient.faces.RawScale2x.RawScale2x | ( | @NotNull final int [] | imageData, |
| final int | dataWidth, | ||
| final int | dataHeight | ||
| ) |
Creates a new scaler based on some raw data.
Right now it doesn't matter what order the channels in, just that its an int per pixel
- Parameters
-
imageData the source image data dataWidth the width of the source image dataHeight the height of the source image
Definition at line 61 of file RawScale2x.java.
Member Function Documentation
◆ different()
|
staticprivate |
Checks if two pixels are different.
Place holder for maybe some clever code about tolerance checking.
- Parameters
-
a the first pixel value b the second pixel value
- Returns
- if the pixels are differenttrue
Definition at line 76 of file RawScale2x.java.
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.process().

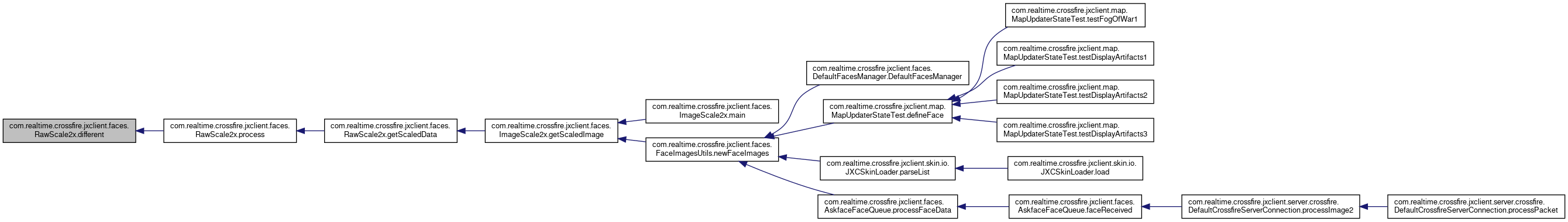

Here is the caller graph for this function:
◆ getScaledData()
| int [] com.realtime.crossfire.jxclient.faces.RawScale2x.getScaledData | ( | ) |
Gets the scale image data.
Note this is the method that does the work so it might take some time to process.
- Returns
- an array of pixels 4 times the size of the input array containing the smoothly scaled image
Definition at line 148 of file RawScale2x.java.
References com.realtime.crossfire.jxclient.faces.RawScale2x.dstImage, com.realtime.crossfire.jxclient.faces.RawScale2x.height, com.realtime.crossfire.jxclient.faces.RawScale2x.process(), and com.realtime.crossfire.jxclient.faces.RawScale2x.width.
Referenced by com.realtime.crossfire.jxclient.faces.ImageScale2x.getScaledImage().

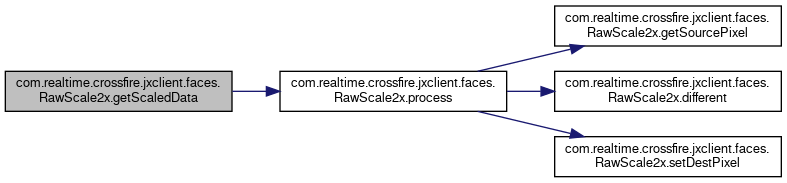

Here is the call graph for this function:

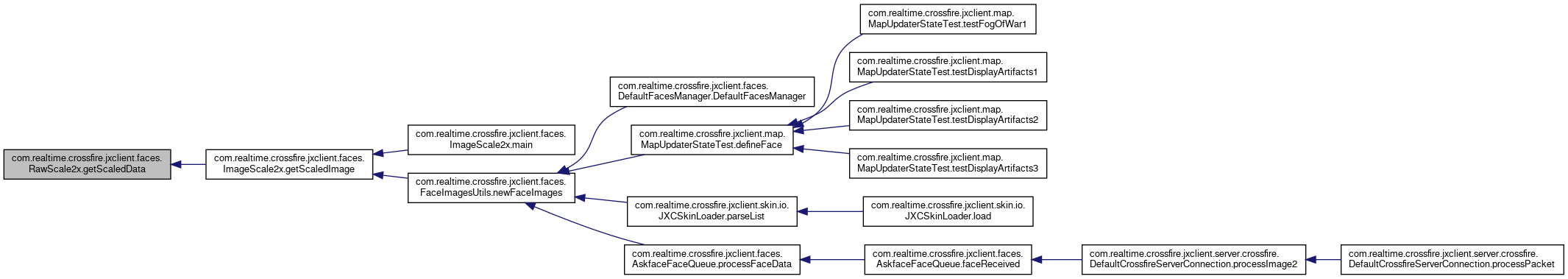

Here is the caller graph for this function:
◆ getSourcePixel()
|
private |
Gets a pixel from the source image.
This handles bonds checks and resolves to edge pixels.
- Parameters
-
x the x location of the pixel to retrieve y the y location of the pixel to retrieve
- Returns
- the pixel value at the specified location
Definition at line 97 of file RawScale2x.java.
References com.realtime.crossfire.jxclient.faces.RawScale2x.width.
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.process().

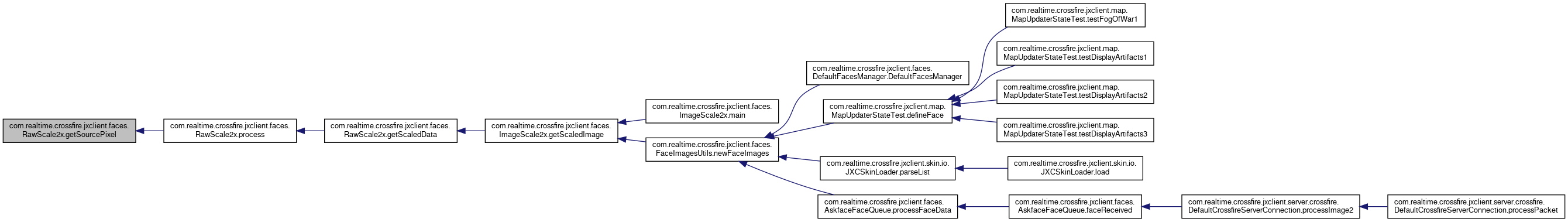

Here is the caller graph for this function:
◆ process()
|
private |
Processes a specific pixel.
This will generate 4 pixels in the destination image based on the scale2x algorithm.
- Parameters
-
x the x location in the source image of the pixel to process y the y location in the source image of the pixel to process
Definition at line 109 of file RawScale2x.java.
References com.realtime.crossfire.jxclient.faces.RawScale2x.different(), com.realtime.crossfire.jxclient.faces.RawScale2x.getSourcePixel(), and com.realtime.crossfire.jxclient.faces.RawScale2x.setDestPixel().
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.getScaledData().
Here is the call graph for this function:

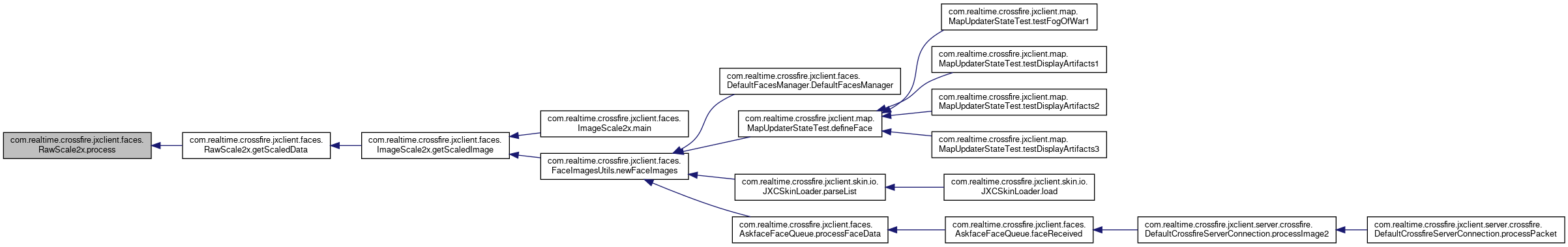

Here is the caller graph for this function:
◆ setDestPixel()
|
private |
Sets a pixel in the destination image data.
- Parameters
-
x the x location of the pixel to set y the y location of the pixel to set p the value of the pixel to set
Definition at line 86 of file RawScale2x.java.
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.process().

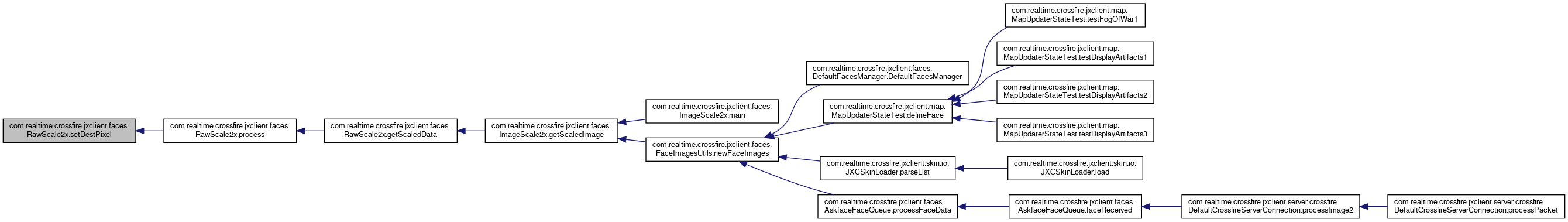

Here is the caller graph for this function:
Member Data Documentation
◆ dstImage
|
private |
The destination image data.
Definition at line 42 of file RawScale2x.java.
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.getScaledData().
◆ height
|
private |
The height of the source image.
Definition at line 52 of file RawScale2x.java.
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.getScaledData().
◆ srcImage
|
private |
The source image data.
Definition at line 36 of file RawScale2x.java.
◆ width
|
private |
The width of the source image.
Definition at line 47 of file RawScale2x.java.
Referenced by com.realtime.crossfire.jxclient.faces.RawScale2x.getScaledData(), and com.realtime.crossfire.jxclient.faces.RawScale2x.getSourcePixel().
The documentation for this class was generated from the following file:
- crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/faces/RawScale2x.java
