Maintains the current GuiState. More...

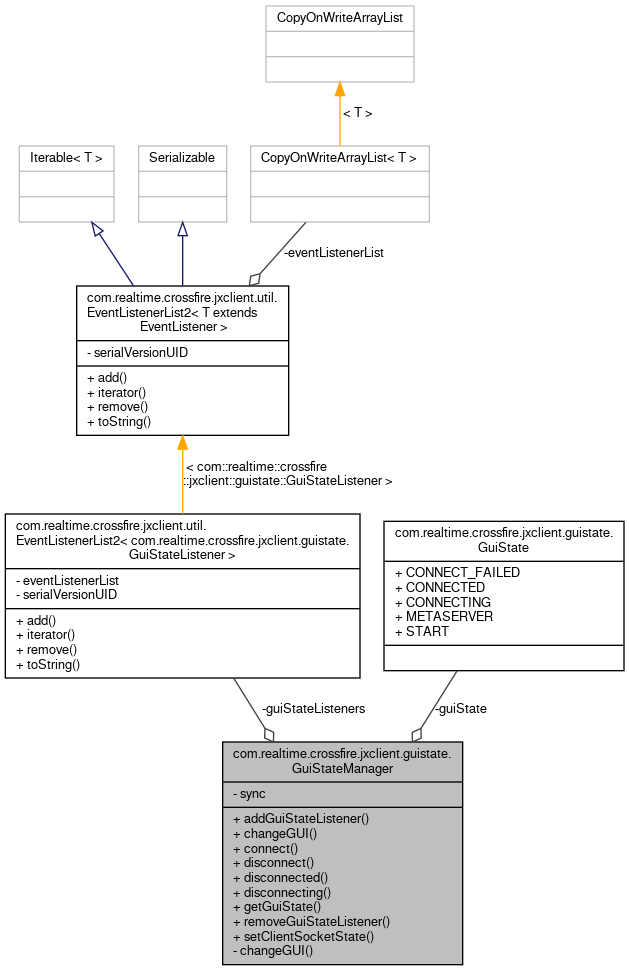

Collaboration diagram for com.realtime.crossfire.jxclient.guistate.GuiStateManager:

Public Member Functions
void	addGuiStateListener (@NotNull final GuiStateListener listener)
	Adds a gui state listener. More...

void	changeGUI (@NotNull final GuiState guiState)
	Sets a new GuiState. More...

void	connect (@NotNull final String serverInfo)
	Connects to a Crossfire server. More...

void	disconnect ()
	Disconnects from the Crossfire server. More...

void	disconnected ()
	Called after the connection has been closed. More...

void	disconnecting (@NotNull final String reason, final boolean isError)
	Called when the connection is being teared down. More...

GuiState	getGuiState ()
	Returns the current GuiState. More...

void	removeGuiStateListener (@NotNull final GuiStateListener listener)
	Removes a gui state listener. More...

void	setClientSocketState (@NotNull final ClientSocketState clientSocketState)
	Sets the new ClientSocketState. More...

Private Member Functions
void	changeGUI (@NotNull final GuiState guiState, @NotNull final String param)
	Sets a new GuiState. More...

Private Attributes
GuiState	guiState
	The current GUI state. More...

final EventListenerList2< GuiStateListener >	guiStateListeners = new EventListenerList2<>()
	The connection state listeners to notify. More...

final Object	sync = new Object()
	The synchronization object for accessing guiState. More...

Detailed Description

Maintains the current GuiState.

Notifies registered listeners about changes.

Author: Andreas Kirschbaum

Definition at line 34 of file GuiStateManager.java.

Member Function Documentation

◆ addGuiStateListener()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.addGuiStateListener ( @NotNull final GuiStateListener listener )

Adds a gui state listener.

Parameters

listener the listener to add

Definition at line 152 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.add().

Referenced by com.realtime.crossfire.jxclient.skin.events.ConnectionStateSkinEvent.ConnectionStateSkinEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

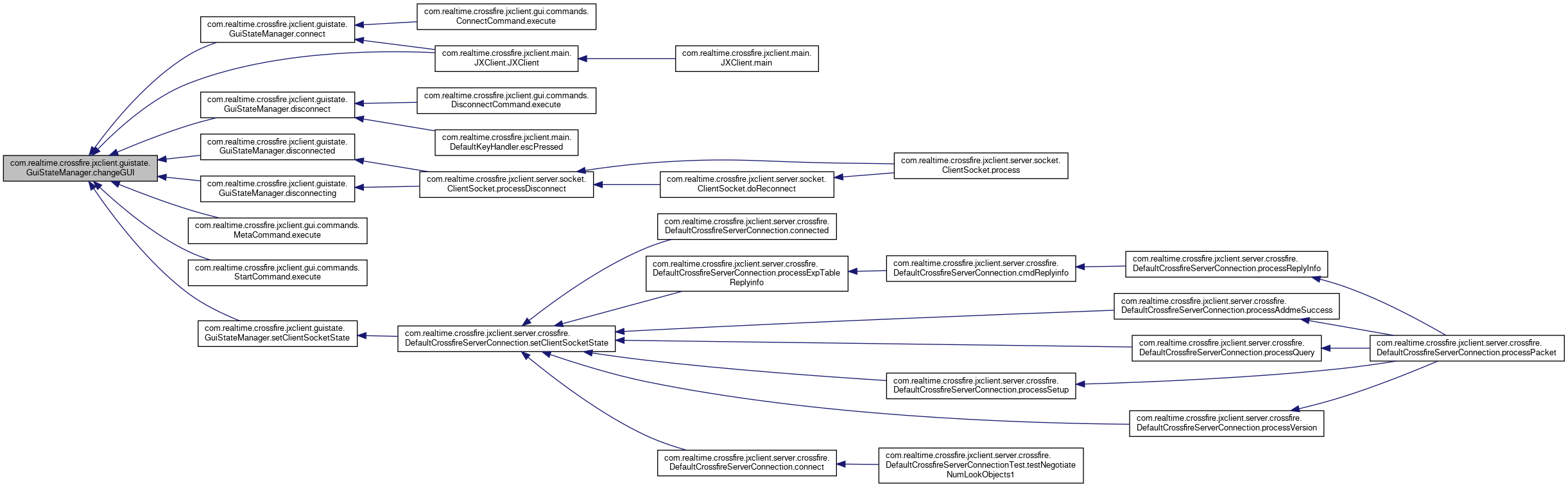

◆ changeGUI() [1/2]

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI ( @NotNull final GuiState guiState )

Sets a new GuiState.

Parameters

guiState the new gui state

Definition at line 58 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.guiState, com.realtime.crossfire.jxclient.util.SwingUtilities2.invokeAndWait(), and com.realtime.crossfire.jxclient.guistate.GuiStateManager.sync.

Referenced by com.realtime.crossfire.jxclient.guistate.GuiStateManager.connect(), com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnect(), com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnected(), com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnecting(), com.realtime.crossfire.jxclient.gui.commands.MetaCommand.execute(), com.realtime.crossfire.jxclient.gui.commands.StartCommand.execute(), com.realtime.crossfire.jxclient.main.JXClient.JXClient(), and com.realtime.crossfire.jxclient.guistate.GuiStateManager.setClientSocketState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ changeGUI() [2/2]

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI	(	@NotNull final GuiState	guiState,
		@NotNull final String	param
	)

private

Sets a new GuiState.

Parameters

guiState	the new gui state
param	a parameter for the new gui state

Definition at line 101 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.guiState, and com.realtime.crossfire.jxclient.guistate.GuiStateManager.sync.

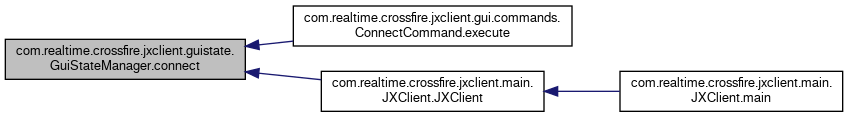

◆ connect()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.connect ( @NotNull final String serverInfo )

Connects to a Crossfire server.

Parameters

serverInfo the server to connect to

Definition at line 168 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), and com.realtime.crossfire.jxclient.guistate.GuiState.CONNECTING.

Referenced by com.realtime.crossfire.jxclient.gui.commands.ConnectCommand.execute(), and com.realtime.crossfire.jxclient.main.JXClient.JXClient().

Here is the call graph for this function:

Here is the caller graph for this function:

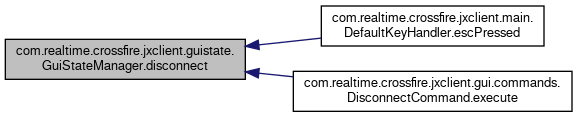

◆ disconnect()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnect ( )

Disconnects from the Crossfire server.

Definition at line 175 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), and com.realtime.crossfire.jxclient.guistate.GuiState.METASERVER.

Referenced by com.realtime.crossfire.jxclient.main.DefaultKeyHandler.escPressed(), and com.realtime.crossfire.jxclient.gui.commands.DisconnectCommand.execute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ disconnected()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnected ( )

Called after the connection has been closed.

Definition at line 208 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), com.realtime.crossfire.jxclient.guistate.GuiState.CONNECT_FAILED, com.realtime.crossfire.jxclient.guistate.GuiState.METASERVER, and com.realtime.crossfire.jxclient.guistate.GuiStateManager.sync.

Referenced by com.realtime.crossfire.jxclient.server.socket.ClientSocket.processDisconnect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ disconnecting()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnecting	(	@NotNull final String	reason,
		final boolean	isError
	)

Called when the connection is being teared down.

Parameters

reason	the disconnect reason
isError	whether the disconnect is unexpected

Definition at line 197 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), com.realtime.crossfire.jxclient.guistate.GuiState.CONNECT_FAILED, com.realtime.crossfire.jxclient.guistate.GuiState.CONNECTED, com.realtime.crossfire.jxclient.guistate.GuiState.CONNECTING, and com.realtime.crossfire.jxclient.guistate.GuiStateManager.sync.

Referenced by com.realtime.crossfire.jxclient.server.socket.ClientSocket.processDisconnect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getGuiState()

GuiState com.realtime.crossfire.jxclient.guistate.GuiStateManager.getGuiState ( )

Returns the current GuiState.

Returns: the gui state

Definition at line 142 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.guiState, and com.realtime.crossfire.jxclient.guistate.GuiStateManager.sync.

Referenced by com.realtime.crossfire.jxclient.main.DefaultKeyHandler.escPressed().

Here is the caller graph for this function:

◆ removeGuiStateListener()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.removeGuiStateListener ( @NotNull final GuiStateListener listener )

Removes a gui state listener.

Parameters

listener the listener to remove

Definition at line 160 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.remove().

Referenced by com.realtime.crossfire.jxclient.skin.events.ConnectionStateSkinEvent.dispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setClientSocketState()

void com.realtime.crossfire.jxclient.guistate.GuiStateManager.setClientSocketState ( @NotNull final ClientSocketState clientSocketState )

Sets the new ClientSocketState.

Parameters

clientSocketState the new state

Definition at line 183 of file GuiStateManager.java.

References com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), com.realtime.crossfire.jxclient.guistate.GuiState.CONNECTED, and com.realtime.crossfire.jxclient.guistate.ClientSocketState.CONNECTED.

Referenced by com.realtime.crossfire.jxclient.server.crossfire.DefaultCrossfireServerConnection.setClientSocketState().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ guiState

GuiState com.realtime.crossfire.jxclient.guistate.GuiStateManager.guiState

private

The current GUI state.

Definition at line 40 of file GuiStateManager.java.

Referenced by com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), and com.realtime.crossfire.jxclient.guistate.GuiStateManager.getGuiState().

◆ guiStateListeners

final EventListenerList2<GuiStateListener> com.realtime.crossfire.jxclient.guistate.GuiStateManager.guiStateListeners = new EventListenerList2<>()

private

The connection state listeners to notify.

Definition at line 52 of file GuiStateManager.java.

◆ sync

final Object com.realtime.crossfire.jxclient.guistate.GuiStateManager.sync = new Object()

private

The synchronization object for accessing guiState.

Definition at line 46 of file GuiStateManager.java.

Referenced by com.realtime.crossfire.jxclient.guistate.GuiStateManager.changeGUI(), com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnected(), com.realtime.crossfire.jxclient.guistate.GuiStateManager.disconnecting(), and com.realtime.crossfire.jxclient.guistate.GuiStateManager.getGuiState().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/guistate/GuiStateManager.java
