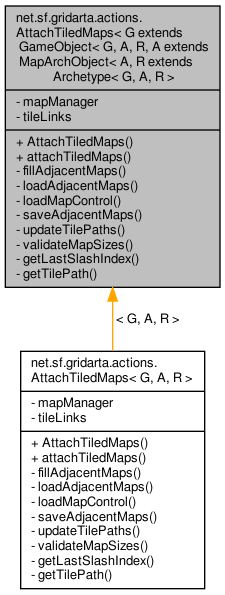

Inheritance diagram for net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

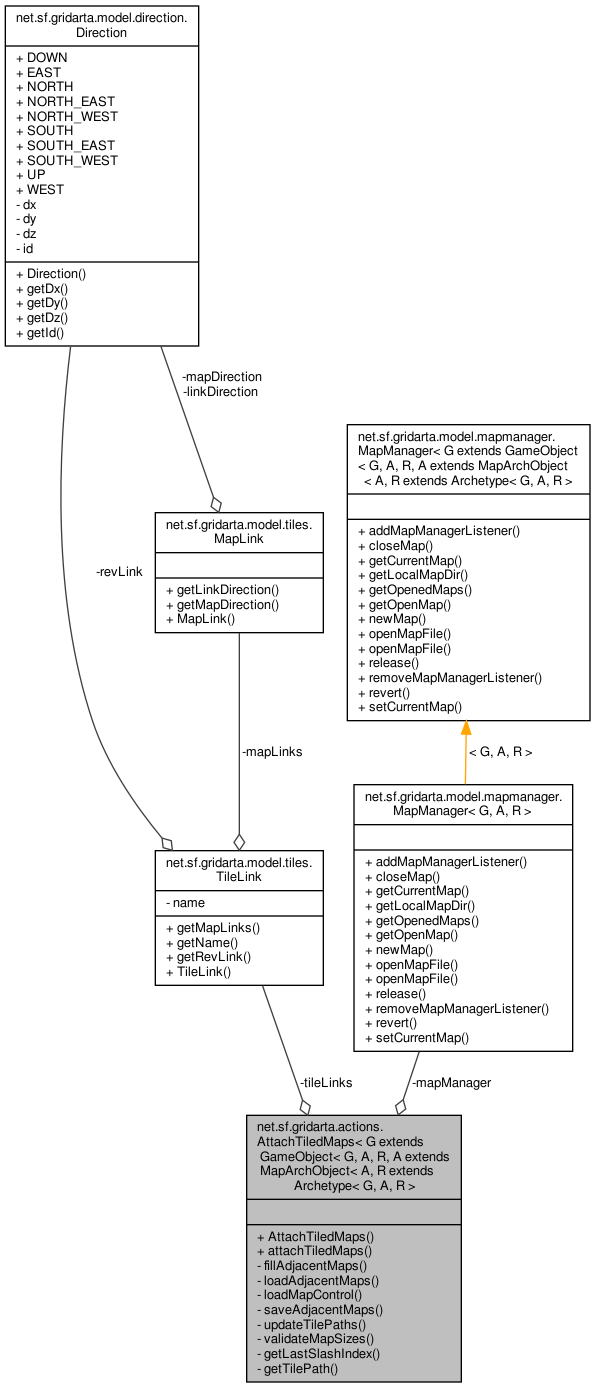

Collaboration diagram for net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
	AttachTiledMaps (@NotNull final MapManager< G, A, R > mapManager, @NotNull final TileLink @NotNull[] tileLinks)

void	attachTiledMaps (@NotNull final MapModel< G, A, R > mapModel, @NotNull final String @NotNull[] tilePaths, @NotNull final File mapsDirectory, final boolean performAction) throws CannotLoadMapFileException, CannotSaveMapFileException, MapSizeMismatchException, UnsavedMapException

Private Member Functions
void	fillAdjacentMaps (@NotNull final List< MapControl< G, A, R >> mapControls) throws CannotLoadMapFileException

void	loadAdjacentMaps (@NotNull final MapModel< G, A, R > mapModel, @NotNull final Collection< MapControl< G, A, R >> mapControls, @NotNull final String @NotNull[] tilePaths) throws CannotLoadMapFileException

MapControl< G, A, R >	loadMapControl (@NotNull final MapModel< G, A, R > mapModel, @NotNull final String path) throws IOException

void	saveAdjacentMaps (@NotNull final Iterable< MapControl< G, A, R >> mapControls) throws CannotSaveMapFileException

void	updateTilePaths (@NotNull final MapModel< G, A, R > mapModel, @NotNull final List< MapControl< G, A, R >> mapControls, @NotNull final String @NotNull[] tilePaths, @NotNull final File mapsDirectory) throws CannotSaveMapFileException

void	validateMapSizes (@NotNull final MapModel< G, A, R > mapModel, @NotNull final Iterable< MapControl< G, A, R >> mapControls) throws MapSizeMismatchException

Static Private Member Functions
static int	getLastSlashIndex (@NotNull final String base)

static String	getTilePath (@NotNull final String base, @NotNull final String link, @NotNull final File mapsDirectory) throws CannotSaveMapFileException

Private Attributes
final MapManager< G, A, R >	mapManager

final TileLink[]	tileLinks

Detailed Description

Attaches maps to adjacent tiled maps.

Author: Michael Toennies; Christian Hujer; Andreas Kirschbaum

Definition at line 50 of file AttachTiledMaps.java.

Constructor & Destructor Documentation

◆ AttachTiledMaps()

net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.AttachTiledMaps	(	@NotNull final MapManager< G, A, R >	mapManager,
		@NotNull final TileLink @NotNull[]	tileLinks
	)

Creates a new instance.

Parameters

mapManager	the map manager to use
tileLinks	the tile links to use

Definition at line 69 of file AttachTiledMaps.java.

Member Function Documentation

◆ attachTiledMaps()

void net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.attachTiledMaps	(	@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final String @NotNull[]	tilePaths,
		@NotNull final File	mapsDirectory,
		final boolean	performAction
	)		throws CannotLoadMapFileException, CannotSaveMapFileException, MapSizeMismatchException, UnsavedMapException

Updates tile paths of a map.

Parameters

mapModel	the map model to update
tilePaths	the new tile paths; empty slots will be filled in
mapsDirectory	the maps directory
performAction	whether the action should be performed

Exceptions

CannotLoadMapFileException	if a map file cannot be loaded
CannotSaveMapFileException	if a map file cannot be saved
MapSizeMismatchException	if adjacent map sizes do not match
UnsavedMapException	if a map file is not saved

Definition at line 85 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.gui.map.maptilepane.AbstractMapTilePane< net.sf.gridarta.var.daimonin.model.gameobject.GameObject, net.sf.gridarta.var.daimonin.model.maparchobject.MapArchObject, net.sf.gridarta.var.daimonin.model.archetype.Archetype >.mapTilesAttach().

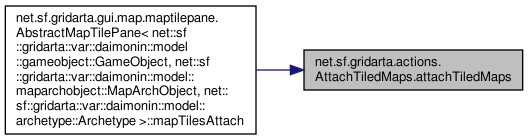

Here is the caller graph for this function:

◆ fillAdjacentMaps()

void net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.fillAdjacentMaps ( @NotNull final List< MapControl< G, A, R >> mapControls ) throws CannotLoadMapFileException

private

Fills missing adjacent map slots.

Parameters

mapControls the loaded maps; will be updated

Exceptions

CannotLoadMapFileException if a map file cannot be loaded

Definition at line 168 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.attachTiledMaps().

Here is the caller graph for this function:

◆ getLastSlashIndex()

static int net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getLastSlashIndex ( @NotNull final String base )

staticprivate

Returns the index of the last '/' or File#separator within a string.

Parameters

base	the string

Returns: the index or
-1

if not found

Definition at line 320 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.getTilePath().

Here is the caller graph for this function:

◆ getTilePath()

static String net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getTilePath	(	@NotNull final String	base,
		@NotNull final String	link,
		@NotNull final File	mapsDirectory
	)		throws CannotSaveMapFileException

staticprivate

Returns the map path for a tile of a map and a tile path.

Parameters

base	the map path of the map
link	the tile path of the map; may be relative to base
mapsDirectory	the maps directory

Returns: the map path

Exceptions

CannotSaveMapFileException if an I/O error occurs

Definition at line 284 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.updateTilePaths().

Here is the caller graph for this function:

◆ loadAdjacentMaps()

void net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.loadAdjacentMaps	(	@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final Collection< MapControl< G, A, R >>	mapControls,
		@NotNull final String @NotNull[]	tilePaths
	)		throws CannotLoadMapFileException

private

Loads adjacent map files by "filling" them by checking the "side" path links of the loaded ones.

Parameters

mapModel	the map model
mapControls	the return value
tilePaths	the new tile paths

Exceptions

CannotLoadMapFileException if a map file cannot be loaded

Definition at line 125 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.attachTiledMaps().

Here is the caller graph for this function:

◆ loadMapControl()

MapControl<G, A, R> net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.loadMapControl	(	@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final String	path
	)		throws IOException

private

Loads an adjacent MapControl, ignoring any (I/O-)errors.

Parameters

mapModel	the map model for relative map paths
path	the map path

Returns: the map control or
null

if the map cannot be loaded

Exceptions

IOException if an I/O error occurs

Definition at line 266 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.fillAdjacentMaps(), and net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.loadAdjacentMaps().

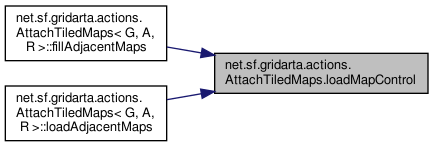

Here is the caller graph for this function:

◆ saveAdjacentMaps()

void net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.saveAdjacentMaps ( @NotNull final Iterable< MapControl< G, A, R >> mapControls ) throws CannotSaveMapFileException

private

Saves adjacent maps. I/O errors are reported to the user but otherwise ignored.

Parameters

mapControls the adjacent maps to save

Exceptions

CannotSaveMapFileException if the map cannot be saved

Definition at line 147 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.attachTiledMaps().

Here is the caller graph for this function:

◆ updateTilePaths()

void net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.updateTilePaths	(	@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final List< MapControl< G, A, R >>	mapControls,
		@NotNull final String @NotNull[]	tilePaths,
		@NotNull final File	mapsDirectory
	)		throws CannotSaveMapFileException

private

Updates map tile paths to match the loaded maps.

Parameters

mapModel	the map model
mapControls	the loaded maps
tilePaths	the tile paths to update
mapsDirectory	the maps directory

Exceptions

CannotSaveMapFileException if a map file cannot be saved

Definition at line 229 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.attachTiledMaps().

Here is the caller graph for this function:

◆ validateMapSizes()

void net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.validateMapSizes	(	@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final Iterable< MapControl< G, A, R >>	mapControls
	)		throws MapSizeMismatchException

private

Validates all links to check that attached maps have matching width/height. Reports an error to the user if a non-matching size is detected.

Parameters

mapModel	the map model
mapControls	the attached maps to check

Exceptions

MapSizeMismatchException if a mismatched map size was detected

Definition at line 204 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.attachTiledMaps().

Here is the caller graph for this function:

Member Data Documentation

◆ mapManager

final MapManager<G, A, R> net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapManager

private

The mainControl to use.

Definition at line 56 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.AttachTiledMaps(), net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.attachTiledMaps(), and net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.loadMapControl().

◆ tileLinks

final TileLink [] net.sf.gridarta.actions.AttachTiledMaps< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.tileLinks

private

The tile links for the attach map algorithm.

Definition at line 62 of file AttachTiledMaps.java.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.AttachTiledMaps(), net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.fillAdjacentMaps(), and net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.updateTilePaths().

The documentation for this class was generated from the following file:

src/gridarta/src/main/java/net/sf/gridarta/actions/AttachTiledMaps.java
