net.sf.gridarta.model.mapmodel.AutoInsertionMode Class Reference

Automatically guess the insertion position. More...

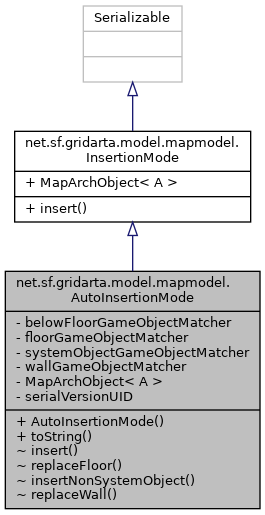

Inheritance diagram for net.sf.gridarta.model.mapmodel.AutoInsertionMode:

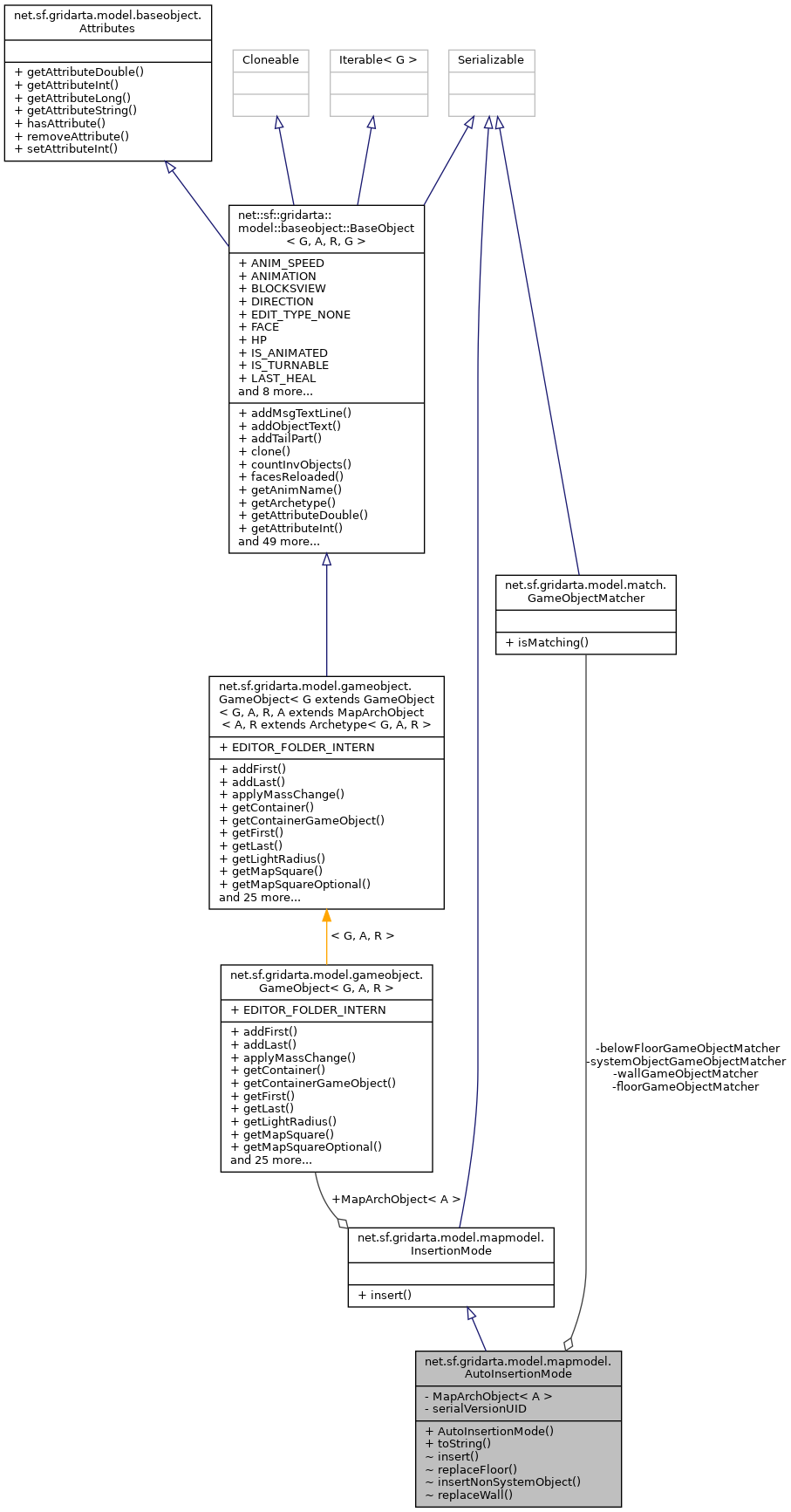

Collaboration diagram for net.sf.gridarta.model.mapmodel.AutoInsertionMode:

Public Member Functions
	AutoInsertionMode (@Nullable final GameObjectMatcher floorGameObjectMatcher, @Nullable final GameObjectMatcher wallGameObjectMatcher, @Nullable final GameObjectMatcher belowFloorGameObjectMatcher, @Nullable final GameObjectMatcher systemObjectGameObjectMatcher)
	Initializes the class. More...
String	toString ()

Package Functions
public< G extends GameObject< G, A, R >, A extends MapArchObject< A >, R extends Archetype< G, A, R > > void	insert (@NotNull final G gameObject, @NotNull final MapSquare< G, A, R > mapSquare)
private< G extends GameObject< G, A, R >, A extends MapArchObject< A >, R extends Archetype< G, A, R > > void	replaceFloor (@NotNull final G gameObject, @NotNull final MapSquare< G, A, R > mapSquare, @Nullable final G lastFloor)
	Replace a floor game object. More...

Static Package Functions
static< G extends GameObject< G, A, R > A extends R extends Archetype< G, A, R > void	insertNonSystemObject (@NotNull final G gameObject, @NotNull final GameObjectContainer< G, A, R > mapSquare, @Nullable final G firstSystemObject)
static< G extends GameObject< G, A, R > A extends R extends Archetype< G, A, R > boolean	replaceWall (@NotNull final G gameObject, @NotNull final GameObjectContainer< G, A, R > mapSquare, @Nullable final G lastWall)

Private Attributes
final GameObjectMatcher	belowFloorGameObjectMatcher
	A GameObjectMatcher matching monster game objects. More...
final GameObjectMatcher	floorGameObjectMatcher
	A GameObjectMatcher matching floor game objects. More...
final GameObjectMatcher	systemObjectGameObjectMatcher
	A GameObjectMatcher matching system objects that should stay on top. More...
final GameObjectMatcher	wallGameObjectMatcher
	A GameObjectMatcher matching wall game objects. More...

Static Private Attributes
static< G extends GameObject< G, A, R > A extends	MapArchObject< A >
static final long	serialVersionUID = 1L
	The serial version UID. More...

Additional Inherited Members
Public Attributes inherited from net.sf.gridarta.model.mapmodel.InsertionMode
< G extends GameObject< G, A, R > A extends	MapArchObject< A >

Detailed Description

Automatically guess the insertion position.

May replace rather than insert the object.

Author

Andreas Kirschbaum

Definition at line 35 of file AutoInsertionMode.java.

Constructor & Destructor Documentation

AutoInsertionMode()

net.sf.gridarta.model.mapmodel.AutoInsertionMode.AutoInsertionMode	(	@Nullable final GameObjectMatcher	floorGameObjectMatcher,
		@Nullable final GameObjectMatcher	wallGameObjectMatcher,
		@Nullable final GameObjectMatcher	belowFloorGameObjectMatcher,
		@Nullable final GameObjectMatcher	systemObjectGameObjectMatcher
	)

Initializes the class.

Parameters

floorGameObjectMatcher	the floor matcher to use
wallGameObjectMatcher	the wall matcher to use
belowFloorGameObjectMatcher	the game object to insert below the floor
systemObjectGameObjectMatcher	matches system objects that should stay on top

Definition at line 80 of file AutoInsertionMode.java.

References net.sf.gridarta.model.mapmodel.AutoInsertionMode.belowFloorGameObjectMatcher, net.sf.gridarta.model.mapmodel.AutoInsertionMode.floorGameObjectMatcher, net.sf.gridarta.model.mapmodel.AutoInsertionMode.systemObjectGameObjectMatcher, and net.sf.gridarta.model.mapmodel.AutoInsertionMode.wallGameObjectMatcher.

Member Function Documentation

insert()

public<G extends GameObject<G, A, R>, A extends MapArchObject<A>, R extends Archetype<G, A, R> > void net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert ( @NotNull final G  gameObject, @NotNull final MapSquare< G, A, R >  mapSquare  )

package

Implements net.sf.gridarta.model.mapmodel.InsertionMode.

Definition at line 88 of file AutoInsertionMode.java.

References net.sf.gridarta.model.mapmodel.AutoInsertionMode.belowFloorGameObjectMatcher, net.sf.gridarta.model.mapmodel.AutoInsertionMode.floorGameObjectMatcher, net.sf.gridarta.model.mapmodel.AutoInsertionMode.insertNonSystemObject(), net.sf.gridarta.model.match.GameObjectMatcher.isMatching(), net.sf.gridarta.model.mapmodel.AutoInsertionMode.replaceFloor(), net.sf.gridarta.model.mapmodel.AutoInsertionMode.replaceWall(), net.sf.gridarta.model.mapmodel.AutoInsertionMode.systemObjectGameObjectMatcher, and net.sf.gridarta.model.mapmodel.AutoInsertionMode.wallGameObjectMatcher.

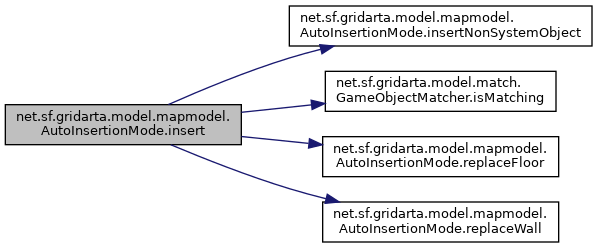

Here is the call graph for this function:

insertNonSystemObject()

static <G extends GameObject<G, A, R> A extends R extends Archetype<G, A, R> void net.sf.gridarta.model.mapmodel.AutoInsertionMode.insertNonSystemObject ( @NotNull final G  gameObject, @NotNull final GameObjectContainer< G, A, R >  mapSquare, @Nullable final G  firstSystemObject  )

staticpackage

Definition at line 164 of file AutoInsertionMode.java.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert().

Here is the caller graph for this function:

replaceFloor()

private<G extends GameObject<G, A, R>, A extends MapArchObject<A>, R extends Archetype<G, A, R> > void net.sf.gridarta.model.mapmodel.AutoInsertionMode.replaceFloor ( @NotNull final G  gameObject, @NotNull final MapSquare< G, A, R >  mapSquare, @Nullable final G  lastFloor  )

package

Replace a floor game object.

Parameters

gameObject	the game object to insert with
mapSquare	the map square to modify
lastFloor	the last floor game object within mapSquare
<G>	the game object type of the object
<A>	the map arch object type of the object
<R>	the archetype type of the object

Definition at line 115 of file AutoInsertionMode.java.

References net.sf.gridarta.model.mapmodel.AutoInsertionMode.belowFloorGameObjectMatcher.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert().

Here is the caller graph for this function:

replaceWall()

static <G extends GameObject<G, A, R> A extends R extends Archetype<G, A, R> boolean net.sf.gridarta.model.mapmodel.AutoInsertionMode.replaceWall ( @NotNull final G  gameObject, @NotNull final GameObjectContainer< G, A, R >  mapSquare, @Nullable final G  lastWall  )

staticpackage

Definition at line 145 of file AutoInsertionMode.java.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert().

Here is the caller graph for this function:

toString()

String net.sf.gridarta.model.mapmodel.AutoInsertionMode.toString

(

)

Definition at line 102 of file AutoInsertionMode.java.

Member Data Documentation

belowFloorGameObjectMatcher

final GameObjectMatcher net.sf.gridarta.model.mapmodel.AutoInsertionMode.belowFloorGameObjectMatcher

private

A GameObjectMatcher matching monster game objects.

@serial

Definition at line 61 of file AutoInsertionMode.java.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.AutoInsertionMode(), net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert(), and net.sf.gridarta.model.mapmodel.AutoInsertionMode.replaceFloor().

floorGameObjectMatcher

final GameObjectMatcher net.sf.gridarta.model.mapmodel.AutoInsertionMode.floorGameObjectMatcher

private

A GameObjectMatcher matching floor game objects.

@serial

Definition at line 47 of file AutoInsertionMode.java.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.AutoInsertionMode(), and net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert().

MapArchObject< A >

<G extends GameObject<G, A, R> A extends net.sf.gridarta.model.mapmodel.AutoInsertionMode.MapArchObject< A >

staticprivate

Definition at line 145 of file AutoInsertionMode.java.

serialVersionUID

final long net.sf.gridarta.model.mapmodel.AutoInsertionMode.serialVersionUID = 1L

staticprivate

The serial version UID.

Definition at line 40 of file AutoInsertionMode.java.

systemObjectGameObjectMatcher

final GameObjectMatcher net.sf.gridarta.model.mapmodel.AutoInsertionMode.systemObjectGameObjectMatcher

private

A GameObjectMatcher matching system objects that should stay on top.

@serial

Definition at line 69 of file AutoInsertionMode.java.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.AutoInsertionMode(), and net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert().

wallGameObjectMatcher

final GameObjectMatcher net.sf.gridarta.model.mapmodel.AutoInsertionMode.wallGameObjectMatcher

private

A GameObjectMatcher matching wall game objects.

@serial

Definition at line 54 of file AutoInsertionMode.java.

Referenced by net.sf.gridarta.model.mapmodel.AutoInsertionMode.AutoInsertionMode(), and net.sf.gridarta.model.mapmodel.AutoInsertionMode.insert().

---

The documentation for this class was generated from the following file:

• src/model/src/main/java/net/sf/gridarta/model/mapmodel/AutoInsertionMode.java
