Abstract base class for FaceObjects implementations. More...

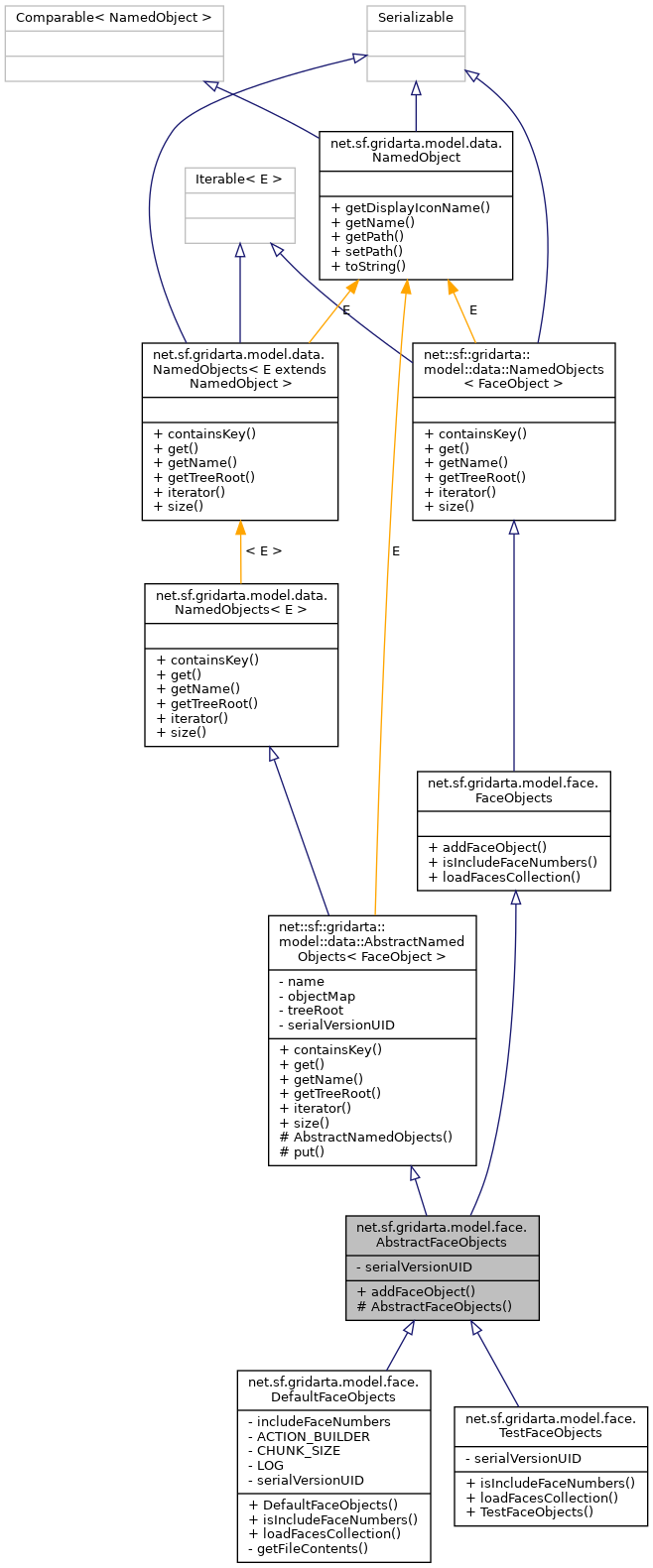

Inheritance diagram for net.sf.gridarta.model.face.AbstractFaceObjects:

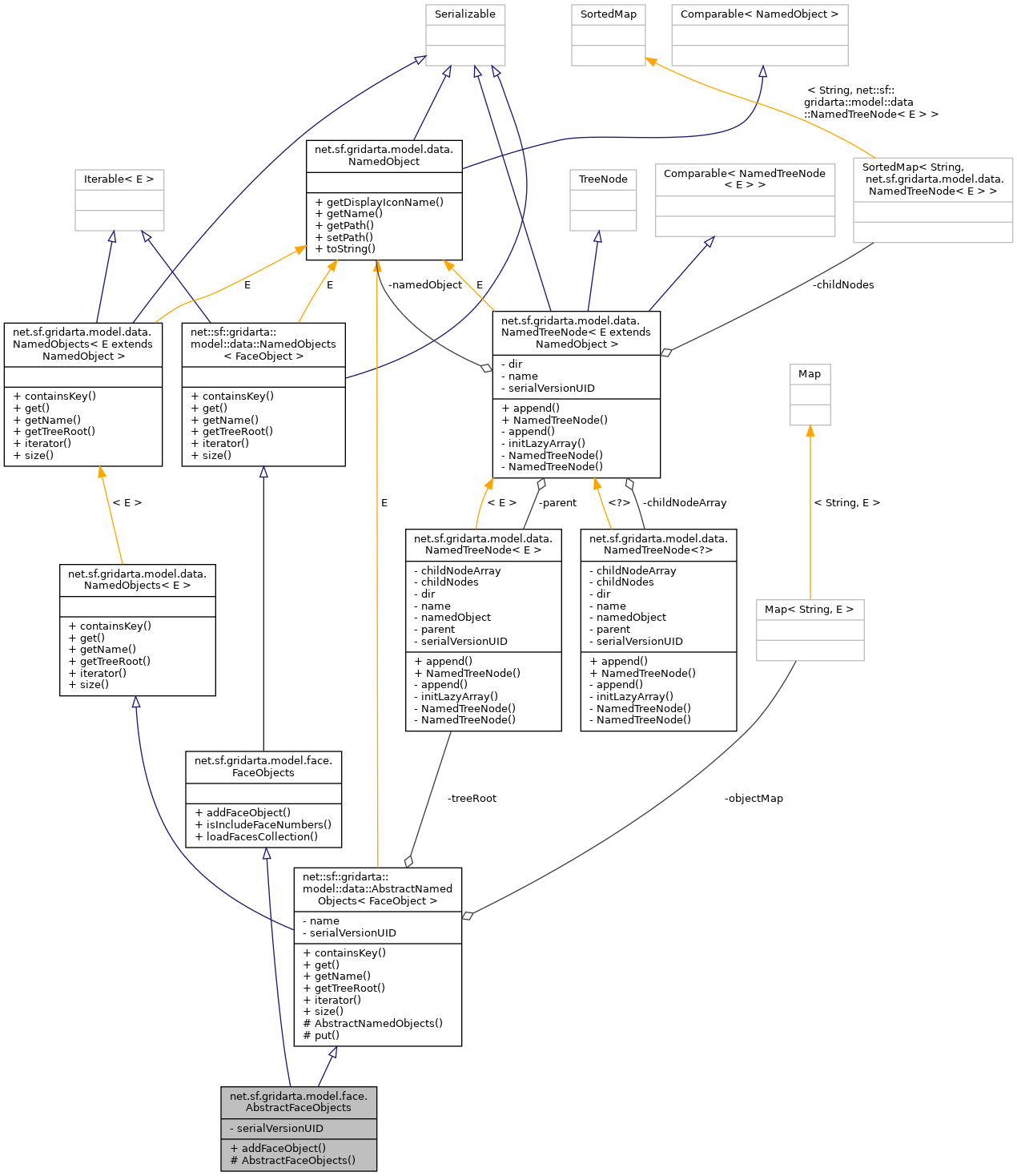

Collaboration diagram for net.sf.gridarta.model.face.AbstractFaceObjects:

Public Member Functions
void	addFaceObject (@NotNull final String faceName, @NotNull final String originalFilename, final int offset, final int size) throws DuplicateFaceException, IllegalFaceException
	Adds a new face object. More...

Public Member Functions inherited from net.sf.gridarta.model.data.AbstractNamedObjects< E extends NamedObject >
boolean	containsKey (@NotNull final String name)

E	get (@NotNull final String objectName)

String	getName ()

NamedTreeNode< E >	getTreeRoot ()

Iterator< E >	iterator ()

int	size ()

Public Member Functions inherited from net.sf.gridarta.model.data.NamedObjects< E >
boolean	containsKey ( @NotNull String name)
	Check whether an object is defined. More...

E	get ( @NotNull String objectName)
	Gets a AbstractNamedObject. More...

String	getName ()
	Returns the tree name. More...

NamedTreeNode< E >	getTreeRoot ()
	Get the object tree root. More...

Iterator< E >	iterator ()
	NamedObjects are iterated in Unicode (=case sensitive ASCII) order. More...

int	size ()
	Get the number of objects. More...

Public Member Functions inherited from net.sf.gridarta.model.face.FaceObjects
boolean	isIncludeFaceNumbers ()
	Returns whether the images file contains face numbers. More...

FaceProvider	loadFacesCollection (@NotNull ErrorView errorView, @NotNull File collectedDirectory)
	Loads all faces from a png collection file. More...

Public Member Functions inherited from net.sf.gridarta.model.data.NamedObjects< E extends NamedObject >
boolean	containsKey (@NotNull String name)
	Check whether an object is defined. More...

E	get (@NotNull String objectName)
	Gets a AbstractNamedObject. More...

String	getName ()
	Returns the tree name. More...

NamedTreeNode< E >	getTreeRoot ()
	Get the object tree root. More...

Iterator< E >	iterator ()
	NamedObjects are iterated in Unicode (=case sensitive ASCII) order. More...

int	size ()
	Get the number of objects. More...

Protected Member Functions
	AbstractFaceObjects (@NotNull final String name)
	Creates a new instance. More...

Protected Member Functions inherited from net.sf.gridarta.model.data.AbstractNamedObjects< E extends NamedObject >
	AbstractNamedObjects (final String name)
	Creates a new instance. More...

void	put (@NotNull final E object) throws IllegalNamedObjectException
	Stores an AbstractNamedObject. More...

Static Private Attributes
static final long	serialVersionUID = 1L
	The serial version UID. More...

Detailed Description

Abstract base class for FaceObjects implementations.

Author: Christian Hujer; Andreas Kirschbaum

Definition at line 31 of file AbstractFaceObjects.java.

Constructor & Destructor Documentation

◆ AbstractFaceObjects()

net.sf.gridarta.model.face.AbstractFaceObjects.AbstractFaceObjects ( @NotNull final String name )

protected

Creates a new instance.

Parameters

name	localized name of the object type, e.g. used in dialogs

Definition at line 42 of file AbstractFaceObjects.java.

References net.sf.gridarta.model.data.AbstractNamedObjects< E extends NamedObject >.name.

Member Function Documentation

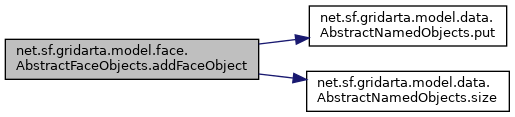

◆ addFaceObject()

void net.sf.gridarta.model.face.AbstractFaceObjects.addFaceObject	(	@NotNull final String	faceName,
		@NotNull final String	originalFilename,
		final int	offset,
		final int	size
	)		throws DuplicateFaceException, IllegalFaceException

Adds a new face object.

Parameters

faceName	the name of the face, e.g. <samp>"robe.101"</samp>
originalFilename	the original filename, e.g. <samp>"arch/objects/misc/robe.101.png"</samp>
offset	the offset in the file denoted by actualFilename , e.g. <samp>148676</samp>
size	the size in the file denoted by actualFilename , e.g. <samp>567</samp>,
