Maintains a MapsIndex for the maps directory. More...

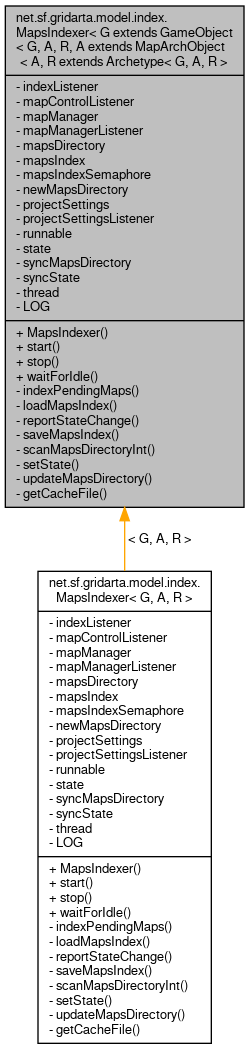

Inheritance diagram for net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

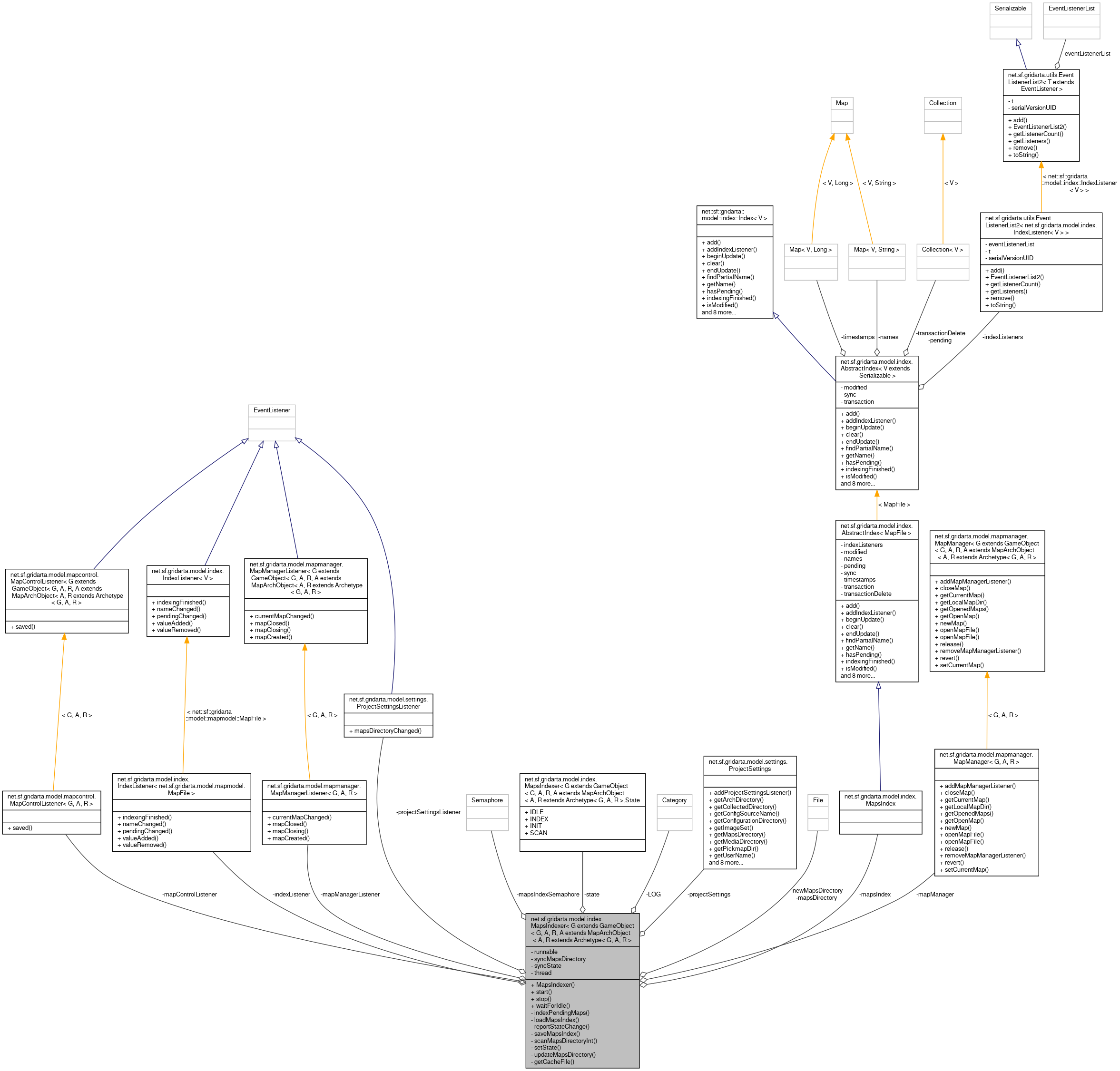

Collaboration diagram for net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Classes
enum	State
	Indexer states. More...

Public Member Functions
	MapsIndexer (@NotNull final MapsIndex mapsIndex, @NotNull final MapManager< G, A, R > mapManager, @NotNull final ProjectSettings projectSettings)
	Creates a new instance. More...

void	start ()
	Starts indexing. More...

void	stop () throws InterruptedException
	Stops indexing. More...

void	waitForIdle () throws InterruptedException
	Blocks the calling thread until all pending maps have been indexed. More...

Private Member Functions
void	indexPendingMaps ()
	Indexes one pending map from mapsIndex. More...

void	loadMapsIndex ()
	Loads mapsIndex from its cache file. More...

void	reportStateChange ()
	Logs a changed value of state. More...

void	saveMapsIndex ()
	Saves mapsIndex to its cache file if modified. More...

void	scanMapsDirectoryInt (@NotNull final MapFile dir, @NotNull final String mapPath)
	Scans a directory for files. More...

void	setState (@NotNull final State state)
	Sets a new value to state. More...

void	updateMapsDirectory ()
	Checks whether newMapsDirectory has been set and updates mapsDirectory accordingly. More...

Static Private Member Functions
static File	getCacheFile (@NotNull final File mapsDirectory)
	Returns the cache file for a given maps directory. More...

Private Attributes
final IndexListener< MapFile >	indexListener
	The IndexListener attached to mapsIndex to detect newly added pending maps. More...

final MapControlListener< G, A, R >	mapControlListener
	The MapControlListener attached to all opened maps. More...

final MapManager< G, A, R >	mapManager
	The MapManager for loading map files. More...

final MapManagerListener< G, A, R >	mapManagerListener
	The MapManagerListener attached to mapManager to detect current map changes. More...

File	mapsDirectory
	The currently indexed maps directory. More...

final MapsIndex	mapsIndex
	The MapsIndex being updated. More...

final Semaphore	mapsIndexSemaphore = new Semaphore(1)
	A pending map may exist in mapsIndex if a permit is available. More...

File	newMapsDirectory
	The maps directory to index. More...

final ProjectSettings	projectSettings
	The ProjectSettings instance. More...

final ProjectSettingsListener	projectSettingsListener
	The ProjectSettingsListener attached to projectSettings for tracking changed maps directories. More...

final Runnable	runnable
	The Runnable scanning the maps directory and updating the index. More...

State	state = State.INIT
	The indexer state. More...

final Object	syncMapsDirectory = new Object()
	The object for synchronizing access to mapsDirectory and newMapsDirectory. More...

final Object	syncState = new Object()
	The object for synchronizing access to state. More...

final Thread	thread = new Thread(runnable, "indexer")
	The Thread executing runnable. More...

Static Private Attributes
static final Category	LOG = Logger.getLogger(MapsIndexer.class)
	The Logger for printing log messages. More...

Detailed Description

Maintains a MapsIndex for the maps directory.

Changed maps are tracked and the index is updated.

Author: Andreas Kirschbaum

Definition at line 57 of file MapsIndexer.java.

Constructor & Destructor Documentation

◆ MapsIndexer()

net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.MapsIndexer	(	@NotNull final MapsIndex	mapsIndex,
		@NotNull final MapManager< G, A, R >	mapManager,
		@NotNull final ProjectSettings	projectSettings
	)

Creates a new instance.

Parameters

mapsIndex	the maps index to update
mapManager	the map manager for loading map files
projectSettings	the project settings instance; defines the indexed maps directory

Definition at line 285 of file MapsIndexer.java.

Member Function Documentation

◆ getCacheFile()

static File net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getCacheFile ( @NotNull final File mapsDirectory )

staticprivate

Returns the cache file for a given maps directory.

Parameters

mapsDirectory the maps directory

Returns: the cache file

Definition at line 490 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.loadMapsIndex(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.saveMapsIndex().

Here is the caller graph for this function:

◆ indexPendingMaps()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.indexPendingMaps ( )

private

Indexes one pending map from mapsIndex.

Does nothing if no pending map exists.

Definition at line 455 of file MapsIndexer.java.

◆ loadMapsIndex()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.loadMapsIndex ( )

private

Loads mapsIndex from its cache file.

Definition at line 406 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.updateMapsDirectory().

Here is the caller graph for this function:

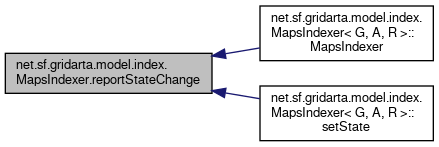

◆ reportStateChange()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.reportStateChange ( )

private

Logs a changed value of state.

Definition at line 547 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.MapsIndexer(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.setState().

Here is the caller graph for this function:

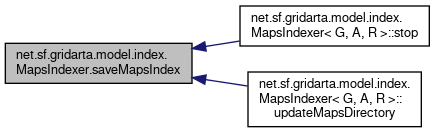

◆ saveMapsIndex()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.saveMapsIndex ( )

private

Saves mapsIndex to its cache file if modified.

Definition at line 373 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.stop(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.updateMapsDirectory().

Here is the caller graph for this function:

◆ scanMapsDirectoryInt()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.scanMapsDirectoryInt	(	@NotNull final MapFile	dir,
		@NotNull final String	mapPath
	)

private

Scans a directory for files.

Adds all files found to mapsIndex.

Parameters

dir	the directory to scan
mapPath	the map path corresponding to dir

Definition at line 435 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.scanMapsDirectoryInt(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.updateMapsDirectory().

Here is the caller graph for this function:

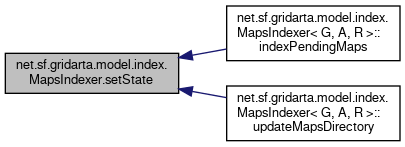

◆ setState()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.setState ( @NotNull final State state )

private

Sets a new value to state.

Logs changed values.

Parameters

state the new state

Definition at line 532 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.indexPendingMaps(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.updateMapsDirectory().

Here is the caller graph for this function:

◆ start()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.start ( )

Starts indexing.

Must not be called more than once.

Definition at line 295 of file MapsIndexer.java.

Referenced by net.sf.gridarta.gui.dialog.gomap.GoMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.GoMapDialogManager(), net.sf.gridarta.model.index.MapsIndexerTest.test1(), and net.sf.gridarta.model.index.MapsIndexerTest.test2().

Here is the caller graph for this function:

◆ stop()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.stop ( ) throws InterruptedException

Stops indexing.

Must not be called more than once or before start() has been called.

Exceptions

InterruptedException if the current thread was interrupted

Definition at line 310 of file MapsIndexer.java.

Referenced by net.sf.gridarta.gui.dialog.gomap.GoMapDialogManager< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.GoMapDialogManager(), and net.sf.gridarta.model.index.MapsIndexerTest.test1().

Here is the caller graph for this function:

◆ updateMapsDirectory()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.updateMapsDirectory ( )

private

Checks whether newMapsDirectory has been set and updates mapsDirectory accordingly.

Definition at line 347 of file MapsIndexer.java.

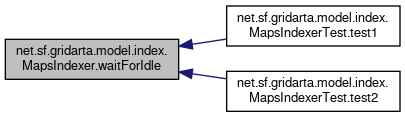

◆ waitForIdle()

void net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.waitForIdle ( ) throws InterruptedException

Blocks the calling thread until all pending maps have been indexed.

Exceptions

InterruptedException if the current thread was interrupted during wait

Definition at line 335 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexerTest.test1(), and net.sf.gridarta.model.index.MapsIndexerTest.test2().

Here is the caller graph for this function:

Member Data Documentation

◆ indexListener

final IndexListener<MapFile> net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.indexListener

private

Initial value:

= new IndexListener<MapFile>() {
        @Override
        public void valueAdded(@NotNull final MapFile value) {

        }
        @Override
        public void valueRemoved(@NotNull final MapFile value) {

        }
        @Override
        public void nameChanged() {

        }
        @Override
        public void pendingChanged() {
            mapsIndexSemaphore.release();
        }
        @Override
        public void indexingFinished() {

        }
    }

The IndexListener attached to mapsIndex to detect newly added pending maps.

Definition at line 219 of file MapsIndexer.java.

◆ LOG

final Category net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.LOG = Logger.getLogger(MapsIndexer.class)

staticprivate

The Logger for printing log messages.

Definition at line 63 of file MapsIndexer.java.

◆ mapControlListener

final MapControlListener<G, A, R> net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapControlListener

private

Initial value:

= new MapControlListener<G, A, R>() {
        @Override
        public void saved(@NotNull final DefaultMapControl<G, A, R> mapControl) {
            final MapFile mapFile = mapControl.getMapModel().getMapFile();
            if (mapFile != null) {
                mapsIndex.setPending(mapFile);
            }
        }
    }

The MapControlListener attached to all opened maps.

Definition at line 186 of file MapsIndexer.java.

◆ mapManager

final MapManager<G, A, R> net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapManager

private

The MapManager for loading map files.

Definition at line 81 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.MapsIndexer().

◆ mapManagerListener

final MapManagerListener<G, A, R> net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapManagerListener

private

Initial value:

= new MapManagerListener<G, A, R>() {
        @Override
        public void currentMapChanged(@Nullable final MapControl<G, A, R> mapControl) {

        }
        @Override
        public void mapCreated(@NotNull final MapControl<G, A, R> mapControl, final boolean interactive) {
            if (!mapControl.isPickmap()) {
                mapControl.addMapControlListener(mapControlListener);
            }
        }
        @Override
        public void mapClosing(@NotNull final MapControl<G, A, R> mapControl) {

        }
        @Override
        public void mapClosed(@NotNull final MapControl<G, A, R> mapControl) {
            if (!mapControl.isPickmap()) {
                mapControl.removeMapControlListener(mapControlListener);
            }
        }
    }

The MapManagerListener attached to mapManager to detect current map changes.

Definition at line 154 of file MapsIndexer.java.

◆ mapsDirectory

File net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapsDirectory

private

The currently indexed maps directory.

Definition at line 100 of file MapsIndexer.java.

◆ mapsIndex

final MapsIndex net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapsIndex

private

The MapsIndex being updated.

Definition at line 75 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.MapsIndexer().

◆ mapsIndexSemaphore

final Semaphore net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapsIndexSemaphore = new Semaphore(1)

private

A pending map may exist in mapsIndex if a permit is available.

Definition at line 69 of file MapsIndexer.java.

◆ newMapsDirectory

File net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.newMapsDirectory

private

The maps directory to index.

If

null

, mapsDirectory is valid.

Definition at line 107 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.updateMapsDirectory().

◆ projectSettings

final ProjectSettings net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.projectSettings

private

The ProjectSettings instance.

Definition at line 87 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.MapsIndexer().

◆ projectSettingsListener

final ProjectSettingsListener net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.projectSettingsListener

private

Initial value:

= new ProjectSettingsListener() {
        @Override
        public void mapsDirectoryChanged(@NotNull final File mapsDirectory) {
            synchronized (syncMapsDirectory) {
                newMapsDirectory = projectSettings.getMapsDirectory();
            }
        }
    }

The ProjectSettingsListener attached to projectSettings for tracking changed maps directories.

Definition at line 203 of file MapsIndexer.java.

◆ runnable

final Runnable net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.runnable

private

Initial value:

= new Runnable() {
        @Override
        public void run() {
            while (!Thread.currentThread().isInterrupted()) {
                updateMapsDirectory();
                indexPendingMaps();
                if (state == State.IDLE) {
                    try {
                        mapsIndexSemaphore.acquire();
                    } catch (final InterruptedException ignored) {
                        Thread.currentThread().interrupt();
                        break;
                    }
                }
            }
        }
    }

The Runnable scanning the maps directory and updating the index.

Definition at line 252 of file MapsIndexer.java.

◆ state

State net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.state = State.INIT

private

The indexer state.

Definition at line 119 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.setState().

◆ syncMapsDirectory

final Object net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.syncMapsDirectory = new Object()

private

The object for synchronizing access to mapsDirectory and newMapsDirectory.

Definition at line 94 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.start(), net.sf.gridarta.model.index.MapsIndexer< G, A, R >.stop(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.updateMapsDirectory().

◆ syncState

final Object net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.syncState = new Object()

private

The object for synchronizing access to state.

Definition at line 113 of file MapsIndexer.java.

Referenced by net.sf.gridarta.model.index.MapsIndexer< G, A, R >.setState(), and net.sf.gridarta.model.index.MapsIndexer< G, A, R >.waitForIdle().

◆ thread

final Thread net.sf.gridarta.model.index.MapsIndexer< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.thread = new Thread(runnable, "indexer")

private

The Thread executing runnable.

Definition at line 276 of file MapsIndexer.java.

The documentation for this class was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/index/MapsIndexer.java

Classes

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MapsIndexer()

Member Function Documentation

◆ getCacheFile()

◆ indexPendingMaps()

◆ loadMapsIndex()

◆ reportStateChange()

◆ saveMapsIndex()

◆ scanMapsDirectoryInt()

◆ setState()

◆ start()

◆ stop()

◆ updateMapsDirectory()

◆ waitForIdle()

Member Data Documentation

◆ indexListener

◆ LOG

◆ mapControlListener

◆ mapManager

◆ mapManagerListener

◆ mapsDirectory

◆ mapsIndex

◆ mapsIndexSemaphore

◆ newMapsDirectory

◆ projectSettings

◆ projectSettingsListener

◆ runnable

◆ state

◆ syncMapsDirectory

◆ syncState

◆ thread
