Interface for MapArchObjects. More...

Inheritance diagram for net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >:

Collaboration diagram for net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >:

Public Member Functions
void	addMapArchObjectListener (@NotNull MapArchObjectListener listener)
	Registers an event listener. More...

void	addText (@NotNull String text)
	Appends 'text' to the map text. More...

void	beginTransaction ()
	Starts a new transaction. More...

String	calculateTilePath (@NotNull Direction direction, @Nullable MapFile mapFile)
	Calculate a single tile path in a particular direction. More...

void	calculateTilePaths (@Nullable MapFile mapFile, @NotNull File mapsDirectory)
	Calculates tiled paths for the map automatically. More...

A	createClone ()
	Creates a copy of this object. More...

void	endTransaction ()
	Ends a transaction. More...

void	endTransaction (boolean fireEvent)
	Ends a transaction. More...

int	getDarkness ()
	Returns the light / darkness of this map. More...

int	getDifficulty ()
	Returns the map's difficulty. More...

Point	getEnter ()
	Returns the enter coordinates. More...

int	getEnterX ()
	Returns the enter x coordinate. More...

int	getEnterY ()
	Returns the enter y coordinate. More...

String	getMapName ()
	Returns the map name. More...

Size2D	getMapSize ()
	Returns the map size. More...

int	getResetTimeout ()
	Returns the reset timeout (in seconds). More...

int	getSwapTime ()
	Returns the swap time (in ticks). More...

String	getText ()
	Returns the message text. More...

String	getTilePath (@NotNull Direction direction)
	Returns a tile path. More...

int	getTilePaths ()
	Returns the number of tile paths. More...

boolean	isFixedReset ()
	Returns whether this map uses a fixed reset. More...

boolean	isOutdoor ()
	Returns whether the map is an "outdoor" map. More...

boolean	isPointValid (@Nullable Point pos)
	Checks whether the given coordinate is within map bounds. More...

boolean	isTilePathAuto (@NotNull Direction direction, @Nullable MapFile mapFile)
	Determines whether a tiled map in the specified direction is automatic tiled path or not. More...

void	removeMapArchObjectListener (@NotNull MapArchObjectListener listener)
	Unregisters an event listener. More...

void	setDarkness (int darkness)
	Sets the light / darkness of this map. More...

void	setDifficulty (int difficulty)
	Sets the map's difficulty. More...

void	setEnterX (int enterX)
	Sets the enter x coordinate. More...

void	setEnterY (int enterY)
	Sets the enter y coordinate. More...

void	setFixedReset (boolean fixedReset)
	Sets whether this map uses a fixed reset. More...

void	setMapName (@NotNull String name)
	Sets the map name. More...

void	setMapSize (@NotNull Size2D mapSize)
	Sets the map size. More...

void	setOutdoor (boolean outdoor)
	Sets whether the map is an "outdoor" map. More...

void	setResetTimeout (int resetTimeout)
	Sets the reset timeout (in seconds). More...

void	setState (@NotNull A mapArchObject)
	Resets the state of this object to the state of the given map arch object. More...

void	setSwapTime (int swapTime)
	Sets the swap time (in ticks). More...

void	setText (String text)
	Sets the map text. More...

void	setTilePath (@NotNull Direction direction, @NotNull String tilePath)
	Sets a tile path. More...

void	updateModifiedAttribute (@NotNull String userName)
	Updates the "Modified:" attribute in the message text. More...

Detailed Description

Interface for MapArchObjects.

Enter coordinates

Enter coordinates (getEnterX(), setEnterX(int), getEnterY(), setEnterY(int)) determines where a player enters this map from another map when using an exit.

Author: Christian Hujer; Andreas Kirschbaum

Definition at line 40 of file MapArchObject.java.

Member Function Documentation

◆ addMapArchObjectListener()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.addMapArchObjectListener ( @NotNull MapArchObjectListener listener )

Registers an event listener.

Parameters

listener the listener to register

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ addText()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.addText ( @NotNull String text )

Appends 'text' to the map text.

Parameters

text	the string to add

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ beginTransaction()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.beginTransaction ( )

Starts a new transaction.

Transactions may be nested. Transactions serve the purpose of firing events to the views when more changes are known to come before the view is really required to update. Each invocation of this function requires its own invocation of endTransaction().

Beginning a nested transaction is a cheap operation.

See also: endTransaction(); endTransaction(boolean)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.updateTilePaths().

Here is the caller graph for this function:

◆ calculateTilePath()

String net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.calculateTilePath	(	@NotNull Direction	direction,
		@Nullable MapFile	mapFile
	)

Calculate a single tile path in a particular direction.

Parameters

direction	the direction
mapFile	map file

Returns: Calculated tile path, empty string on failure.

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ calculateTilePaths()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.calculateTilePaths	(	@Nullable MapFile	mapFile,
		@NotNull File	mapsDirectory
	)

Calculates tiled paths for the map automatically.

Parameters

mapFile	map file
mapsDirectory	maps directory

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ createClone()

A net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.createClone ( )

Creates a copy of this object.

Returns: the newly created clone of this object

Implemented in net.sf.gridarta.var.crossfire.model.maparchobject.MapArchObject, net.sf.gridarta.var.atrinik.model.maparchobject.MapArchObject, and net.sf.gridarta.var.daimonin.model.maparchobject.MapArchObject.

◆ endTransaction() [1/2]

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.endTransaction ( )

Ends a transaction.

Invoking this method will reduce the transaction depth by only 1.

Ending a nested operation is a cheap operation. Ending a transaction without changes also is a cheap operation.

If the last transaction is ended, the changes are committed.

Same as endTransaction(false).

See also: beginTransaction(); endTransaction(boolean)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.updateTilePaths().

Here is the caller graph for this function:

◆ endTransaction() [2/2]

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.endTransaction ( boolean fireEvent )

Ends a transaction.

Invoking this method will reduce the transaction depth by only 1.

Ending a nested operation is a cheap operation. Ending a transaction without changes also is a cheap operation.

If the last transaction is ended, the changes are committed.

An example where setting

fireEvent

to

true

is useful even though the outermost transaction is not ended is when during painting the UI should be updated though painting is not finished.

Parameters

fireEvent

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getDarkness()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getDarkness ( )

Returns the light / darkness of this map.

(0 means fully bright)

Returns: the light / darkness of this map

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getDifficulty()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getDifficulty ( )

Returns the map's difficulty.

Returns: the map's difficulty

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.model.validation.checks.MapDifficultyChecker< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.validateMap().

Here is the caller graph for this function:

◆ getEnter()

Point net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getEnter ( )

Returns the enter coordinates.

Returns: the enter coordinates

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getEnterX()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getEnterX ( )

Returns the enter x coordinate.

Returns: the enter x coordinate

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getEnterY()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getEnterY ( )

Returns the enter y coordinate.

Returns: the enter y coordinate

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getMapName()

String net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getMapName ( )

Returns the map name.

Returns: the map name

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getMapSize()

Size2D net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getMapSize ( )

Returns the map size.

Returns: size of the map reflected by this MapArchObject

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.model.floodfill.FloodFill< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.floodFill(), and net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.validateMapSizes().

Here is the caller graph for this function:

◆ getResetTimeout()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getResetTimeout ( )

Returns the reset timeout (in seconds).

Returns: the reset timeout (in seconds)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getSwapTime()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getSwapTime ( )

Returns the swap time (in ticks).

Returns: the swap time (in ticks)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getText()

String net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getText ( )

Returns the message text.

Returns: the message text

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ getTilePath()

String net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getTilePath ( @NotNull Direction direction )

Returns a tile path.

Parameters

direction the tile path direction

Returns: the tile path

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.gui.map.maptilepane.AbstractMapTilePane< net.sf.gridarta.var.daimonin.model.gameobject.GameObject, net.sf.gridarta.var.daimonin.model.maparchobject.MapArchObject, net.sf.gridarta.var.daimonin.model.archetype.Archetype >.createTilePanels(), net.sf.gridarta.gui.dialog.shrinkmapsize.ShrinkMapSizeDialog< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.updateWarnings(), and net.sf.gridarta.model.validation.checks.TilePathsChecker< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.validateMap().

Here is the caller graph for this function:

◆ getTilePaths()

int net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.getTilePaths ( )

Returns the number of tile paths.

Returns: the number of tile paths

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ isFixedReset()

boolean net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.isFixedReset ( )

Returns whether this map uses a fixed reset.

Returns: whether this map uses a fixed reset

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ isOutdoor()

boolean net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.isOutdoor ( )

Returns whether the map is an "outdoor" map.

Returns: whether the map is an "outdoor" map

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ isPointValid()

boolean net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.isPointValid ( @Nullable Point pos )

Checks whether the given coordinate is within map bounds.

Parameters

pos	the coordinates to check

Returns: true
if the given coordinates are on the map, otherwise
false
(also returns
false
if
pos == null
)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExpandEmptySelection(), net.sf.gridarta.action.GrowSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doGrowSelection(), net.sf.gridarta.gui.panel.tools.InsertionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doInsert(), net.sf.gridarta.action.ShrinkSelectionAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doShrinkSelection(), net.sf.gridarta.model.floodfill.FloodFill< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.floodFill(), and net.sf.gridarta.gui.copybuffer.CopyBuffer< G, A, R >.paste().

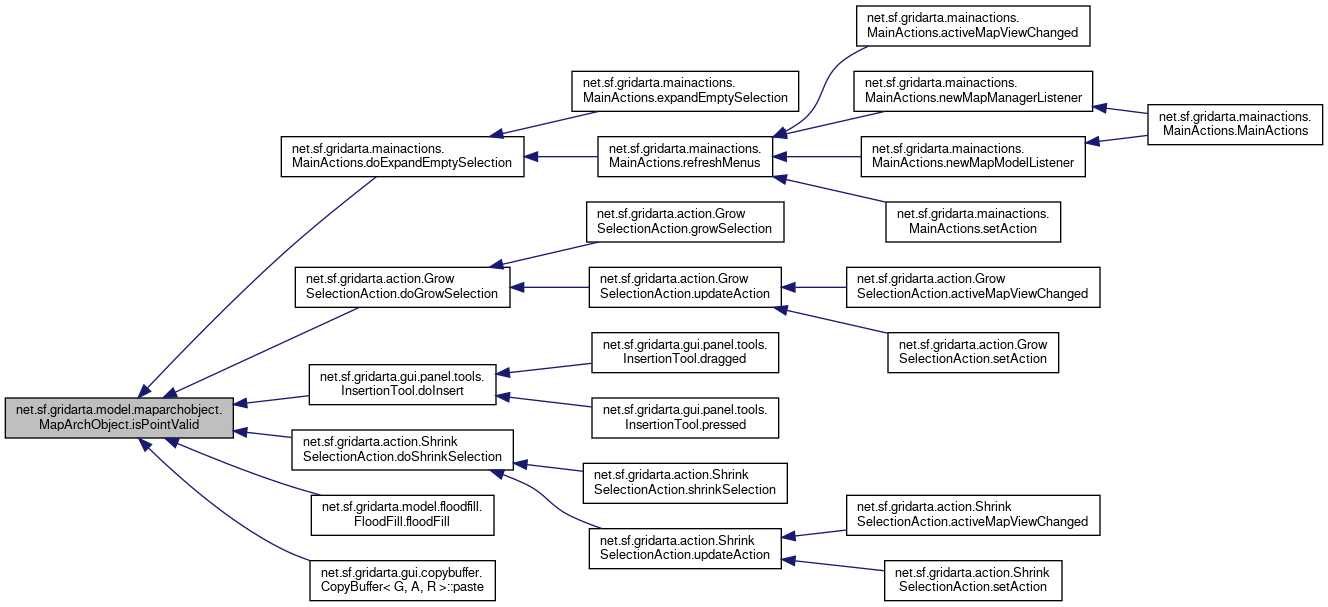

Here is the caller graph for this function:

◆ isTilePathAuto()

boolean net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.isTilePathAuto	(	@NotNull Direction	direction,
		@Nullable MapFile	mapFile
	)

Determines whether a tiled map in the specified direction is automatic tiled path or not.

Parameters

direction	direction of the tiled map
mapFile	map file

Returns: Whether the tile is automatic.

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ removeMapArchObjectListener()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.removeMapArchObjectListener ( @NotNull MapArchObjectListener listener )

Unregisters an event listener.

Parameters

listener the listener to unregister

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setDarkness()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setDarkness ( int darkness )

Sets the light / darkness of this map.

Parameters

darkness the new light / darkness of this map

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setDifficulty()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setDifficulty ( int difficulty )

Sets the map's difficulty.

Parameters

difficulty the new difficulty for this map

Implemented in net.sf.gridarta.var.crossfire.model.maparchobject.MapArchObject, net.sf.gridarta.var.atrinik.model.maparchobject.MapArchObject, net.sf.gridarta.var.daimonin.model.maparchobject.MapArchObject, and net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setEnterX()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setEnterX ( int enterX )

Sets the enter x coordinate.

Parameters

enterX the new enter x coordinate

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setEnterY()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setEnterY ( int enterY )

Sets the enter y coordinate.

Parameters

enterY the new enter y coordinate

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setFixedReset()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setFixedReset ( boolean fixedReset )

Sets whether this map uses a fixed reset.

Parameters

fixedReset whether this map should use a fixed reset

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setMapName()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setMapName ( @NotNull String name )

Sets the map name.

Parameters

name	the new map name

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setMapSize()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setMapSize ( @NotNull Size2D mapSize )

Sets the map size.

Parameters

mapSize the new map size this does not change the size of the underlying MapModel. We eventually should change that so a map size isn't stored twice.

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setOutdoor()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setOutdoor ( boolean outdoor )

Sets whether the map is an "outdoor" map.

Parameters

outdoor whether the map is an "outdoor" map

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setResetTimeout()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setResetTimeout ( int resetTimeout )

Sets the reset timeout (in seconds).

Parameters

resetTimeout the new reset timeout (in seconds)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setState()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setState ( @NotNull A mapArchObject )

Resets the state of this object to the state of the given map arch object.

Parameters

mapArchObject the map arch object to copy the state from

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setSwapTime()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setSwapTime ( int swapTime )

Sets the swap time (in ticks).

Parameters

swapTime the swap time (in ticks)

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setText()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setText ( String text )

Sets the map text.

Parameters

text	the new map text

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

◆ setTilePath()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.setTilePath	(	@NotNull Direction	direction,
		@NotNull String	tilePath
	)

Sets a tile path.

Parameters

direction	the tile path direction
tilePath	the new tile path

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

Referenced by net.sf.gridarta.gui.map.maptilepane.AbstractMapTilePane< net.sf.gridarta.var.daimonin.model.gameobject.GameObject, net.sf.gridarta.var.daimonin.model.maparchobject.MapArchObject, net.sf.gridarta.var.daimonin.model.archetype.Archetype >.modifyMapProperties(), and net.sf.gridarta.actions.AttachTiledMaps< G, A, R >.updateTilePaths().

Here is the caller graph for this function:

◆ updateModifiedAttribute()

void net.sf.gridarta.model.maparchobject.MapArchObject< A extends MapArchObject< A >.updateModifiedAttribute ( @NotNull String userName )

Updates the "Modified:" attribute in the message text.

Parameters

userName the user name to include

Implemented in net.sf.gridarta.model.maparchobject.AbstractMapArchObject< A extends MapArchObject< A >.

The documentation for this interface was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/maparchobject/MapArchObject.java

Public Member Functions

Detailed Description

Enter coordinates

Member Function Documentation

◆ addMapArchObjectListener()

◆ addText()

◆ beginTransaction()

◆ calculateTilePath()

◆ calculateTilePaths()

◆ createClone()

◆ endTransaction() [1/2]

◆ endTransaction() [2/2]

◆ getDarkness()

◆ getDifficulty()

◆ getEnter()

◆ getEnterX()

◆ getEnterY()

◆ getMapName()

◆ getMapSize()

◆ getResetTimeout()

◆ getSwapTime()

◆ getText()

◆ getTilePath()

◆ getTilePaths()

◆ isFixedReset()

◆ isOutdoor()

◆ isPointValid()

◆ isTilePathAuto()

◆ removeMapArchObjectListener()

◆ setDarkness()

◆ setDifficulty()

◆ setEnterX()

◆ setEnterY()

◆ setFixedReset()

◆ setMapName()

◆ setMapSize()

◆ setOutdoor()

◆ setResetTimeout()

◆ setState()

◆ setSwapTime()

◆ setText()

◆ setTilePath()

◆ updateModifiedAttribute()
