A FaceQueue requesting faces by "askface" commands sent to the Crossfire server. More...

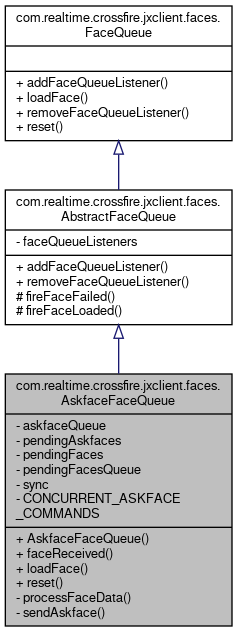

Inheritance diagram for com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue:

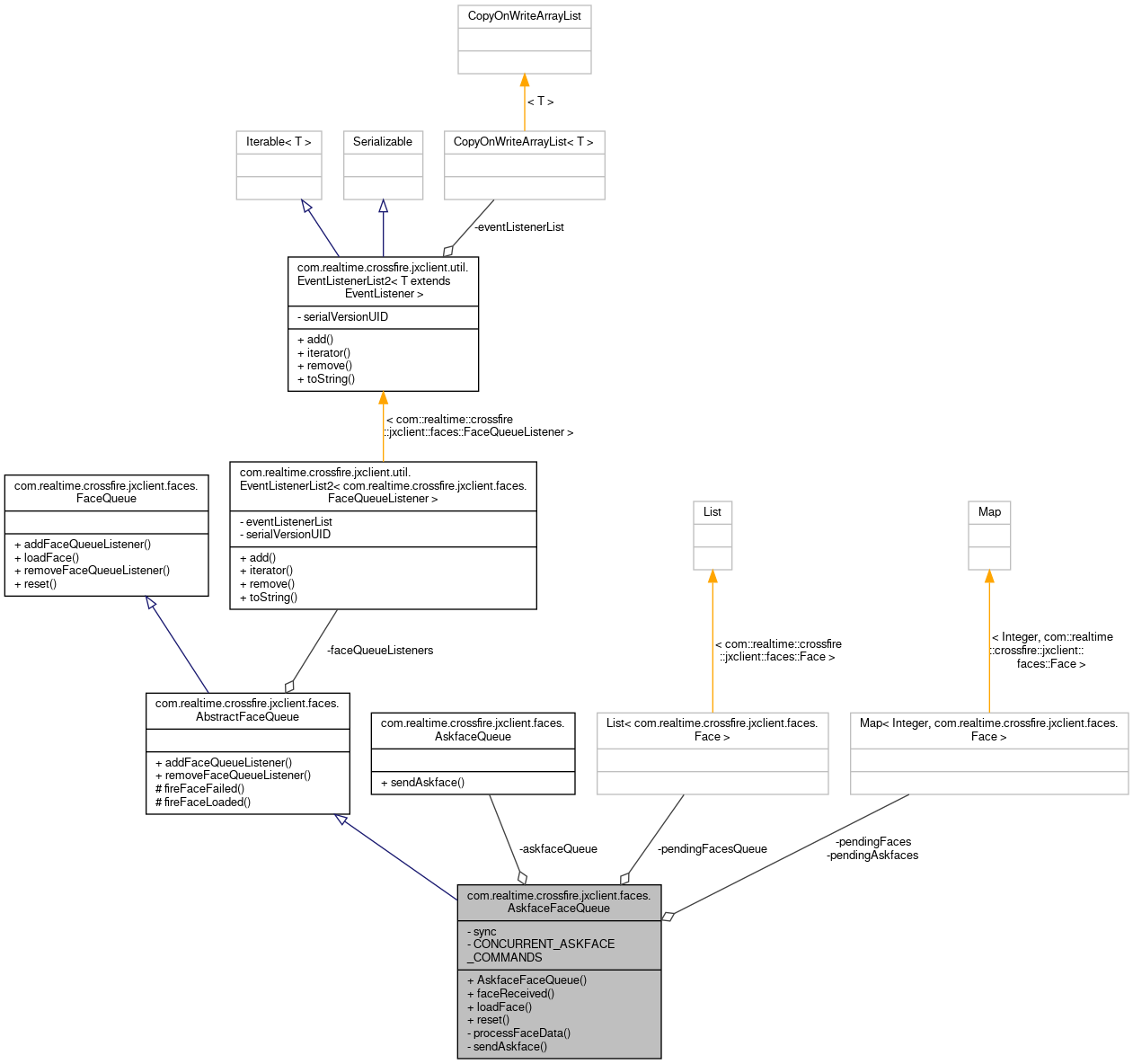

Collaboration diagram for com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue:

Public Member Functions

AskfaceFaceQueue (@NotNull final AskfaceQueue askfaceQueue)

Creates a new instance. More...

void faceReceived (final int faceNum, final int faceSetNum, @NotNull final ByteBuffer packet)

Notifies the askface manager that image information have been received from the server. More...

void loadFace (@NotNull final Face face)

Request a face.Must eventually call either FaceQueueListener#faceLoaded(Face, FaceImages) or FaceQueueListener#faceFailed(Face) for the face. Faces re-requested while still processing may be notified only once.

Parameters

face	the requested face

More...

void reset ()

Reset the processing: forget about pending faces.This function is called whenever the server socket breaks, or when a new connection has been established. More...

Public Member Functions inherited from com.realtime.crossfire.jxclient.faces.AbstractFaceQueue

void addFaceQueueListener (@NotNull final FaceQueueListener faceQueueListener)

Adds a FaceQueueListener to be notified about processed faces.

Parameters

faceQueueListener the listener to add

More...

void removeFaceQueueListener (@NotNull final FaceQueueListener faceQueueListener)

Removes a FaceQueueListener to be notified about processed faces.

Parameters

faceQueueListener the listener to remove

More...

Private Member Functions
void	processFaceData (@NotNull final Face face, @NotNull final byte[] data)
	Processes face information received from the server. More...

void	sendAskface ()
	Sends some pending "askface" commands. More...

Private Attributes
final AskfaceQueue	askfaceQueue
	The connection to use. More...

final Map< Integer, Face >	pendingAskfaces = new HashMap<>()
	Face numbers for which "askface" commands have been sent without having received a response from the server. More...

final Map< Integer, Face >	pendingFaces = new HashMap<>()
	Face numbers for which an "askface" command should be sent. More...

final List< Face >	pendingFacesQueue = new LinkedList<>()
	The same elements as pendingFaces in query order. More...

final Object	sync = new Object()
	The object use for synchronization. More...

Static Private Attributes
static final int	CONCURRENT_ASKFACE_COMMANDS = 8
	The maximum number of concurrently sent "askface" commands. More...

Additional Inherited Members
Protected Member Functions inherited from com.realtime.crossfire.jxclient.faces.AbstractFaceQueue
void	fireFaceFailed (@NotNull final Face face)
	Notify all listener with FaceQueueListener#faceFailed(Face). More...

void	fireFaceLoaded (@NotNull final Face face, @NotNull final FaceImages faceImages)
	Notify all listener with FaceImages). More...

Detailed Description

A FaceQueue requesting faces by "askface" commands sent to the Crossfire server.

Author: Andreas Kirschbaum

Definition at line 37 of file AskfaceFaceQueue.java.

Constructor & Destructor Documentation

◆ AskfaceFaceQueue()

com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.AskfaceFaceQueue ( @NotNull final AskfaceQueue askfaceQueue )

Creates a new instance.

Parameters

askfaceQueue the connection instance for sending askface commands

Definition at line 83 of file AskfaceFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.askfaceQueue.

Member Function Documentation

◆ faceReceived()

void com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.faceReceived	(	final int	faceNum,
		final int	faceSetNum,
		@NotNull final ByteBuffer	packet
	)

Notifies the askface manager that image information have been received from the server.

Parameters

faceNum	the face ID
faceSetNum	the face set
packet	the face data

Definition at line 147 of file AskfaceFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.processFaceData(), com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sendAskface(), and com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sync.

Referenced by com.realtime.crossfire.jxclient.server.crossfire.DefaultCrossfireServerConnection.processImage2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadFace()

void com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.loadFace ( @NotNull final Face face )

Request a face.Must eventually call either FaceQueueListener#faceLoaded(Face, FaceImages) or FaceQueueListener#faceFailed(Face) for the face. Faces re-requested while still processing may be notified only once.

Parameters

face	the requested face

Implements com.realtime.crossfire.jxclient.faces.FaceQueue.

Definition at line 103 of file AskfaceFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.AbstractFaceQueue.fireFaceFailed(), com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sendAskface(), and com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sync.

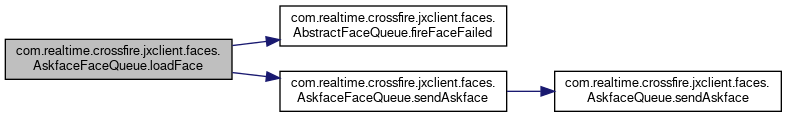

Here is the call graph for this function:

◆ processFaceData()

void com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.processFaceData	(	@NotNull final Face	face,
		@NotNull final byte []	data
	)

private

Processes face information received from the server.

Parameters

face	the face
data	the face information; it is supposed to be a .png file

Definition at line 174 of file AskfaceFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.AbstractFaceQueue.fireFaceFailed(), com.realtime.crossfire.jxclient.faces.AbstractFaceQueue.fireFaceLoaded(), and com.realtime.crossfire.jxclient.faces.FaceImagesUtils.newFaceImages().

Referenced by com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.faceReceived().

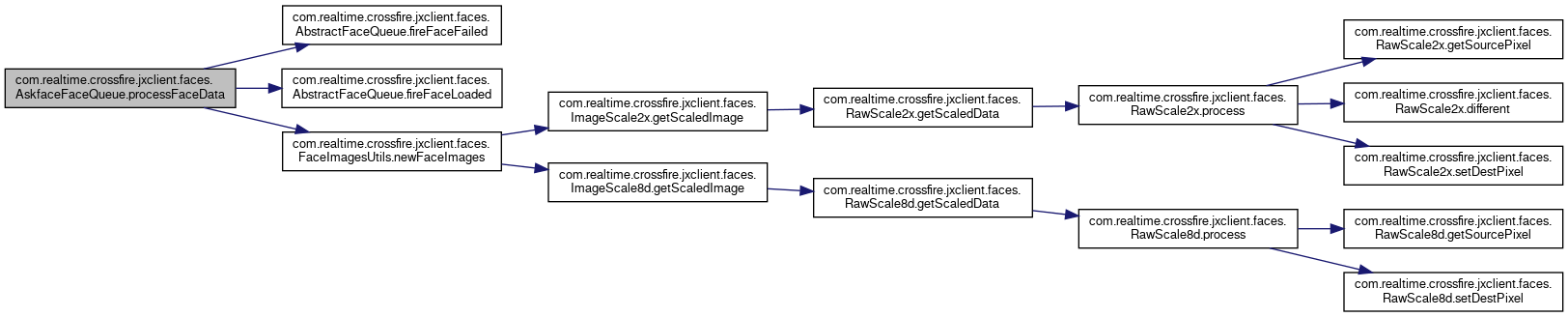

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

void com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.reset ( )

Reset the processing: forget about pending faces.This function is called whenever the server socket breaks, or when a new connection has been established.

Implements com.realtime.crossfire.jxclient.faces.FaceQueue.

Definition at line 91 of file AskfaceFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sync.

◆ sendAskface()

void com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sendAskface ( )

private

Sends some pending "askface" commands.

Definition at line 127 of file AskfaceFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.CONCURRENT_ASKFACE_COMMANDS, and com.realtime.crossfire.jxclient.faces.AskfaceQueue.sendAskface().

Referenced by com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.faceReceived(), and com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.loadFace().

Here is the call graph for this function:

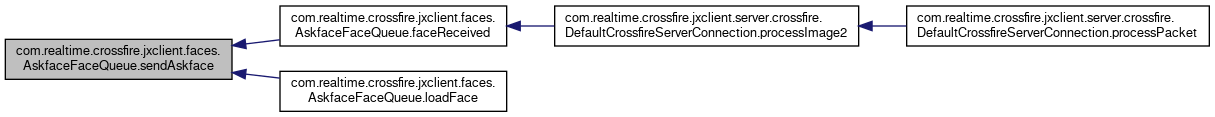

Here is the caller graph for this function:

Member Data Documentation

◆ askfaceQueue

final AskfaceQueue com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.askfaceQueue

private

The connection to use.

Definition at line 56 of file AskfaceFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.AskfaceFaceQueue().

◆ CONCURRENT_ASKFACE_COMMANDS

final int com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.CONCURRENT_ASKFACE_COMMANDS = 8

staticprivate

The maximum number of concurrently sent "askface" commands.

If more are requested, the excess ones are put on hold until some face information is received.

Definition at line 44 of file AskfaceFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sendAskface().

◆ pendingAskfaces

final Map<Integer, Face> com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.pendingAskfaces = new HashMap<>()

private

Face numbers for which "askface" commands have been sent without having received a response from the server.

Maps face ID to Face instance.

Definition at line 64 of file AskfaceFaceQueue.java.

◆ pendingFaces

final Map<Integer, Face> com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.pendingFaces = new HashMap<>()

private

Face numbers for which an "askface" command should be sent.

It includes all elements of pendingAskfaces.

Definition at line 71 of file AskfaceFaceQueue.java.

◆ pendingFacesQueue

final List<Face> com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.pendingFacesQueue = new LinkedList<>()

private

The same elements as pendingFaces in query order.

Definition at line 77 of file AskfaceFaceQueue.java.

◆ sync

final Object com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.sync = new Object()

private

The object use for synchronization.

Definition at line 50 of file AskfaceFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.faceReceived(), com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.loadFace(), and com.realtime.crossfire.jxclient.faces.AskfaceFaceQueue.reset().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/faces/AskfaceFaceQueue.java
