Crossfire JXClient, Trunk: com.realtime.crossfire.jxclient.faces.FileCache Class Reference

Crossfire JXClient, Trunk R20561

A disk based cache for image files. More...

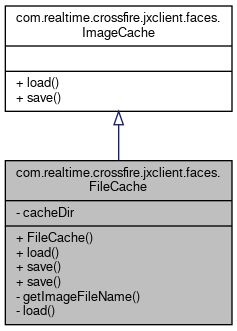

Inheritance diagram for com.realtime.crossfire.jxclient.faces.FileCache:

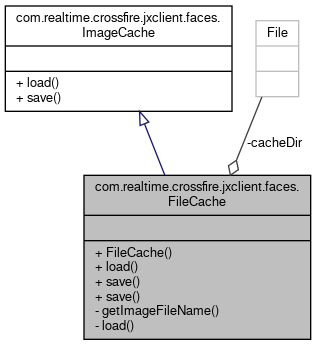

Collaboration diagram for com.realtime.crossfire.jxclient.faces.FileCache:

Public Member Functions

FileCache (@NotNull final File cacheDir)

Creates a new instance. More...

ImageIcon load (@NotNull final Face face)

Retrieves an image from the cache.

Parameters

face	the face to retrieve

Returns: the image icon, or
null
if the cache does not contain the image

void save (@NotNull final Face face, @NotNull final ImageIcon imageIcon)

Stores an ImageIcon into the cache.

Parameters

face	the face to save
imageIcon	the image icon to store

void save (@NotNull final String faceName, final int faceChecksum, @NotNull final Icon imageIcon)

Stores an ImageIcon into the cache. More...

Private Member Functions
File	getImageFileName (@NotNull final String faceName, final int faceChecksum)
	Calculates a hashed image name to be used as a file name. More...

ImageIcon	load (@NotNull final String faceName, final int faceChecksum)
	Retrieves an image from the cache. More...

Private Attributes
final File	cacheDir
	The directory where the images are saved. More...

Detailed Description

A disk based cache for image files.

Author: Andreas Kirschbaum

Definition at line 38 of file FileCache.java.

Constructor & Destructor Documentation

◆ FileCache()

com.realtime.crossfire.jxclient.faces.FileCache.FileCache ( @NotNull final File cacheDir )

Creates a new instance.

Parameters

cacheDir the directory where the images are saved

Definition at line 50 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.cacheDir.

Member Function Documentation

◆ getImageFileName()

File com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName	(	@NotNull final String	faceName,
		final int	faceChecksum
	)

private

Calculates a hashed image name to be used as a file name.

Parameters

faceName	the image name to hash
faceChecksum	the checksum to hash

Returns: the hashed image name

Definition at line 119 of file FileCache.java.

References com.realtime.crossfire.jxclient.util.FilenameUtils.quoteName().

Referenced by com.realtime.crossfire.jxclient.faces.FileCache.load(), and com.realtime.crossfire.jxclient.faces.FileCache.save().

Here is the call graph for this function:

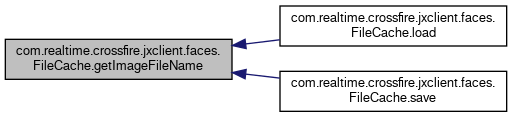

Here is the caller graph for this function:

◆ load() [1/2]

ImageIcon com.realtime.crossfire.jxclient.faces.FileCache.load ( @NotNull final Face face )

Retrieves an image from the cache.

Parameters

face	the face to retrieve

Returns: the image icon, or
null
if the cache does not contain the image

Implements com.realtime.crossfire.jxclient.faces.ImageCache.

Definition at line 62 of file FileCache.java.

◆ load() [2/2]

ImageIcon com.realtime.crossfire.jxclient.faces.FileCache.load	(	@NotNull final String	faceName,
		final int	faceChecksum
	)

private

Retrieves an image from the cache.

Parameters

faceName	the image name to retrieve
faceChecksum	the checksum to retrieve

Returns: the image icon, or
null
if the cache does not contain the image

Definition at line 74 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName().

Here is the call graph for this function:

◆ save() [1/2]

void com.realtime.crossfire.jxclient.faces.FileCache.save	(	@NotNull final Face	face,
		@NotNull final ImageIcon	imageIcon
	)

Stores an ImageIcon into the cache.

Parameters

face	the face to save
imageIcon	the image icon to store

Implements com.realtime.crossfire.jxclient.faces.ImageCache.

Definition at line 98 of file FileCache.java.

Referenced by com.realtime.crossfire.jxclient.faces.ImageScale2x.main().

Here is the caller graph for this function:

◆ save() [2/2]

void com.realtime.crossfire.jxclient.faces.FileCache.save	(	@NotNull final String	faceName,
		final int	faceChecksum,
		@NotNull final Icon	imageIcon
	)

Stores an ImageIcon into the cache.

Parameters

faceName	the image name to save
faceChecksum	the checksum to save
imageIcon	the image icon to store

Definition at line 108 of file FileCache.java.

References com.realtime.crossfire.jxclient.faces.FileCache.getImageFileName(), and com.realtime.crossfire.jxclient.util.Images.saveImageIcon().

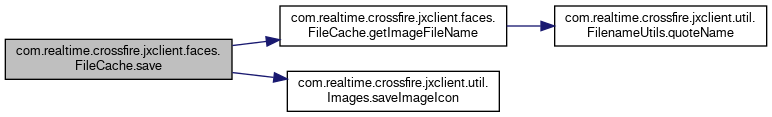

Here is the call graph for this function:

Member Data Documentation

◆ cacheDir

final File com.realtime.crossfire.jxclient.faces.FileCache.cacheDir

private

The directory where the images are saved.

Definition at line 44 of file FileCache.java.

Referenced by com.realtime.crossfire.jxclient.faces.FileCache.FileCache().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/faces/FileCache.java
