A FaceQueue loading faces from ImageCache instances. More...

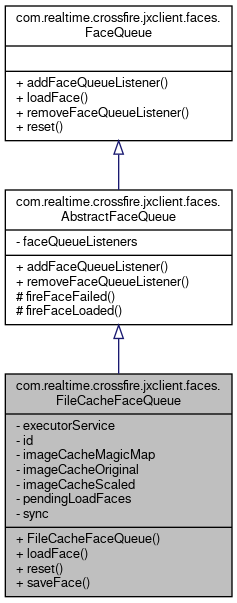

Inheritance diagram for com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue:

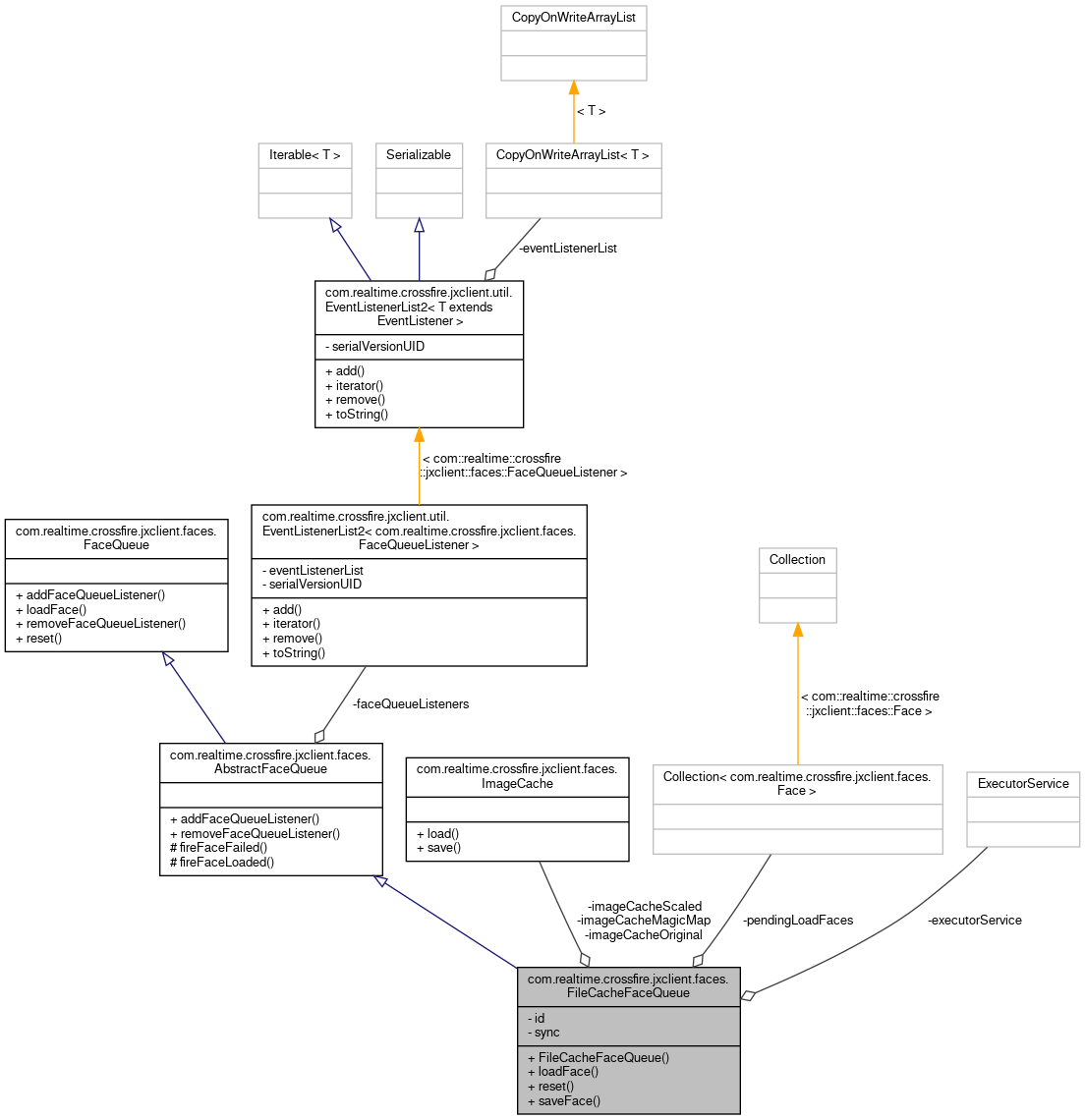

Collaboration diagram for com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue:

Classes
class	LoadTask
	A thread which loads one face from the caches. More...

class	SaveTask
	A thread which saves one face to the caches. More...

Public Member Functions

FileCacheFaceQueue (@NotNull final ImageCache imageCacheOriginal, @NotNull final ImageCache imageCacheScaled, @NotNull final ImageCache imageCacheMagicMap)

Creates a new instance. More...

void loadFace (@NotNull final Face face)

Request a face.Must eventually call either FaceQueueListener#faceLoaded(Face, FaceImages) or FaceQueueListener#faceFailed(Face) for the face. Faces re-requested while still processing may be notified only once.

Parameters

face	the requested face

More...

void reset ()

Reset the processing: forget about pending faces.This function is called whenever the server socket breaks, or when a new connection has been established. More...

void saveFace (@NotNull final Face face, @NotNull final FaceImages faceImages)

Saves a face to the caches. More...

Public Member Functions inherited from com.realtime.crossfire.jxclient.faces.AbstractFaceQueue

void addFaceQueueListener (@NotNull final FaceQueueListener faceQueueListener)

Adds a FaceQueueListener to be notified about processed faces.

Parameters

faceQueueListener the listener to add

More...

void removeFaceQueueListener (@NotNull final FaceQueueListener faceQueueListener)

Removes a FaceQueueListener to be notified about processed faces.

Parameters

faceQueueListener the listener to remove

More...

Private Attributes
final ExecutorService	executorService = Executors.newFixedThreadPool(1)
	The ExecutorService used to execute face loading. More...

int	id
	Counts the number of calls to reset(). More...

final ImageCache	imageCacheMagicMap
	The image cache used for loading magic map images. More...

final ImageCache	imageCacheOriginal
	The image cache used for loading original images. More...

final ImageCache	imageCacheScaled
	The image cache used for loading scaled images. More...

final Collection< Face >	pendingLoadFaces = new HashSet<>()
	The faces for which loadFace(Face) has been called but that are not yet processed. More...

final Object	sync = new Object()
	The object used for synchronization. More...

Additional Inherited Members
Protected Member Functions inherited from com.realtime.crossfire.jxclient.faces.AbstractFaceQueue
void	fireFaceFailed (@NotNull final Face face)
	Notify all listener with FaceQueueListener#faceFailed(Face). More...

void	fireFaceLoaded (@NotNull final Face face, @NotNull final FaceImages faceImages)
	Notify all listener with FaceImages). More...

Detailed Description

A FaceQueue loading faces from ImageCache instances.

Author: Andreas Kirschbaum

Definition at line 35 of file FileCacheFaceQueue.java.

Constructor & Destructor Documentation

◆ FileCacheFaceQueue()

com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.FileCacheFaceQueue	(	@NotNull final ImageCache	imageCacheOriginal,
		@NotNull final ImageCache	imageCacheScaled,
		@NotNull final ImageCache	imageCacheMagicMap
	)

Creates a new instance.

Parameters

imageCacheOriginal	the image cache used for loading original image files
imageCacheScaled	the image cache used for loading scaled image files
imageCacheMagicMap	the image cache used for loading magic map image files

Definition at line 92 of file FileCacheFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.imageCacheMagicMap, com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.imageCacheOriginal, and com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.imageCacheScaled.

Member Function Documentation

◆ loadFace()

void com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.loadFace ( @NotNull final Face face )

Request a face.Must eventually call either FaceQueueListener#faceLoaded(Face, FaceImages) or FaceQueueListener#faceFailed(Face) for the face. Faces re-requested while still processing may be notified only once.

Parameters

face	the requested face

Implements com.realtime.crossfire.jxclient.faces.FaceQueue.

Definition at line 113 of file FileCacheFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.sync.

Referenced by com.realtime.crossfire.jxclient.faces.FacesQueue.loadFace().

Here is the caller graph for this function:

◆ reset()

void com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.reset ( )

Reset the processing: forget about pending faces.This function is called whenever the server socket breaks, or when a new connection has been established.

Implements com.realtime.crossfire.jxclient.faces.FaceQueue.

Definition at line 102 of file FileCacheFaceQueue.java.

References com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.sync.

Referenced by com.realtime.crossfire.jxclient.faces.FacesQueue.reset().

Here is the caller graph for this function:

◆ saveFace()

void com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.saveFace	(	@NotNull final Face	face,
		@NotNull final FaceImages	faceImages
	)

Saves a face to the caches.

This function returns immediately; the faces are written asynchronously.

Parameters

face	the face to write
faceImages	the image information to write

Definition at line 129 of file FileCacheFaceQueue.java.

Member Data Documentation

◆ executorService

final ExecutorService com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.executorService = Executors.newFixedThreadPool(1)

private

The ExecutorService used to execute face loading.

The pool consists of one thread; this means all requests are serialized.

Definition at line 66 of file FileCacheFaceQueue.java.

◆ id

int com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.id

private

Counts the number of calls to reset().

An ExecutorService does not allow to cancel scheduled but still pending requests. Therefore the thread checks if this ID matches the ID value at creation time. If the IDs do not match it exits.

Definition at line 81 of file FileCacheFaceQueue.java.

◆ imageCacheMagicMap

final ImageCache com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.imageCacheMagicMap

private

The image cache used for loading magic map images.

Definition at line 59 of file FileCacheFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.FileCacheFaceQueue().

◆ imageCacheOriginal

final ImageCache com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.imageCacheOriginal

private

The image cache used for loading original images.

Definition at line 47 of file FileCacheFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.FileCacheFaceQueue().

◆ imageCacheScaled

final ImageCache com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.imageCacheScaled

private

The image cache used for loading scaled images.

Definition at line 53 of file FileCacheFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.FileCacheFaceQueue().

◆ pendingLoadFaces

final Collection<Face> com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.pendingLoadFaces = new HashSet<>()

private

The faces for which loadFace(Face) has been called but that are not yet processed.

Definition at line 73 of file FileCacheFaceQueue.java.

◆ sync

final Object com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.sync = new Object()

private

The object used for synchronization.

Definition at line 41 of file FileCacheFaceQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.loadFace(), com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.reset(), and com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.LoadTask.run().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/faces/FileCacheFaceQueue.java
