The state of an Animation on a map. More...

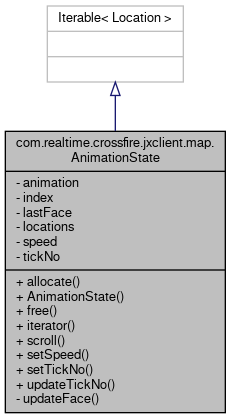

Inheritance diagram for com.realtime.crossfire.jxclient.map.AnimationState:

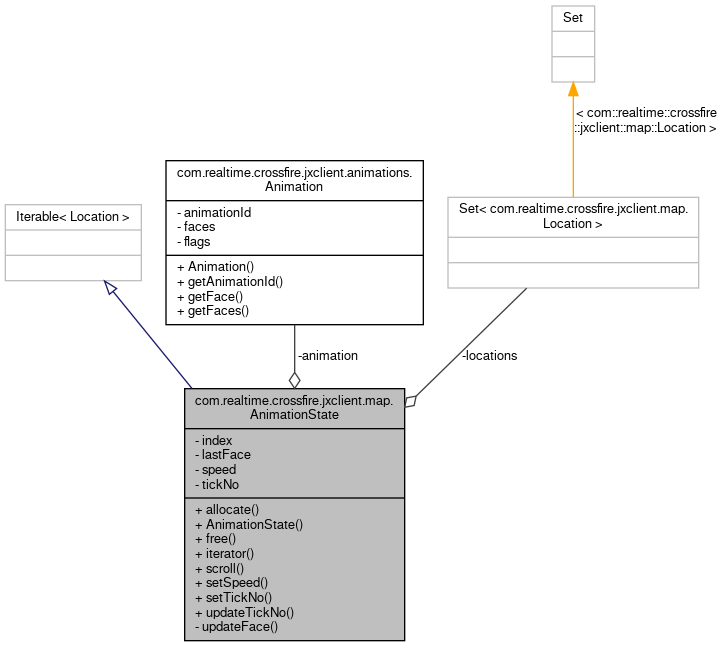

Collaboration diagram for com.realtime.crossfire.jxclient.map.AnimationState:

Public Member Functions
void	allocate (@NotNull final MapUpdaterState mapUpdaterState, @NotNull final Location location)
	Adds this animation state to a map Location. More...

	AnimationState (@NotNull final Animation animation, final int index)
	Creates a new instance. More...

void	free (@NotNull final Location location)
	Removes this animation state from a map Location. More...

Iterator< Location >	iterator ()

void	scroll (final int dx, final int dy, final int width, final int height)
	Scrolls all map locations. More...

void	setSpeed (@NotNull final MapUpdaterState mapUpdaterState, final int speed)
	Sets the animation speed. More...

void	setTickNo (final int tickNo)
	Sets the tick number. More...

void	updateTickNo (@NotNull final MapUpdaterState mapUpdaterState, final int tickNo)
	Sets the tick number and update affected faces. More...

Private Member Functions
void	updateFace (@NotNull final MapUpdaterState mapUpdaterState)
	Updates the map face from the state. More...

Private Attributes
final Animation	animation
	The Animation to display. More...

int	index
	The face index currently shown. More...

int	lastFace = -1
	Records the last known face. More...

final Set< Location >	locations = new HashSet<>()
	All map locations this animation is displayed at. More...

int	speed = 1
	The animation speed. More...

int	tickNo
	The face was updated last in this tick number. More...

Detailed Description

The state of an Animation on a map.

Author: Andreas Kirschbaum

Definition at line 36 of file AnimationState.java.

Constructor & Destructor Documentation

◆ AnimationState()

com.realtime.crossfire.jxclient.map.AnimationState.AnimationState	(	@NotNull final Animation	animation,
		final int	index
	)

Creates a new instance.

Parameters

animation	the animation to display
index	the initial face index

Definition at line 76 of file AnimationState.java.

References com.realtime.crossfire.jxclient.map.AnimationState.animation, and com.realtime.crossfire.jxclient.animations.Animation.getFaces().

Here is the call graph for this function:

Member Function Documentation

◆ allocate()

void com.realtime.crossfire.jxclient.map.AnimationState.allocate	(	@NotNull final MapUpdaterState	mapUpdaterState,
		@NotNull final Location	location
	)

Adds this animation state to a map Location.

Parameters

mapUpdaterState	the map updater state instance to use
location	the map location

Definition at line 142 of file AnimationState.java.

◆ free()

void com.realtime.crossfire.jxclient.map.AnimationState.free ( @NotNull final Location location )

Removes this animation state from a map Location.

Parameters

location the location to free

Definition at line 155 of file AnimationState.java.

◆ iterator()

Iterator<Location> com.realtime.crossfire.jxclient.map.AnimationState.iterator ( )

Definition at line 166 of file AnimationState.java.

◆ scroll()

void com.realtime.crossfire.jxclient.map.AnimationState.scroll	(	final int	dx,
		final int	dy,
		final int	width,
		final int	height
	)

Scrolls all map locations.

Parameters

dx	the x distance to scroll
dy	the y distance to scroll
width	the map width
height	the map height

Definition at line 177 of file AnimationState.java.

◆ setSpeed()

void com.realtime.crossfire.jxclient.map.AnimationState.setSpeed	(	@NotNull final MapUpdaterState	mapUpdaterState,
		final int	speed
	)

Sets the animation speed.

Parameters

mapUpdaterState	the map updater state instance to use
speed	the new animation speed to set

Definition at line 86 of file AnimationState.java.

References com.realtime.crossfire.jxclient.map.AnimationState.speed, and com.realtime.crossfire.jxclient.map.AnimationState.updateFace().

Referenced by com.realtime.crossfire.jxclient.map.AnimationMap.updateSpeed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTickNo()

void com.realtime.crossfire.jxclient.map.AnimationState.setTickNo ( final int tickNo )

Sets the tick number.

This function does not update the displayed face.

Parameters

tickNo the current tick number

Definition at line 102 of file AnimationState.java.

References com.realtime.crossfire.jxclient.map.AnimationState.tickNo.

◆ updateFace()

void com.realtime.crossfire.jxclient.map.AnimationState.updateFace ( @NotNull final MapUpdaterState mapUpdaterState )

private

Updates the map face from the state.

Parameters

mapUpdaterState the map updater state instance to use

Definition at line 126 of file AnimationState.java.

References com.realtime.crossfire.jxclient.animations.Animation.getFace().

Referenced by com.realtime.crossfire.jxclient.map.AnimationState.setSpeed(), and com.realtime.crossfire.jxclient.map.AnimationState.updateTickNo().

Here is the call graph for this function:

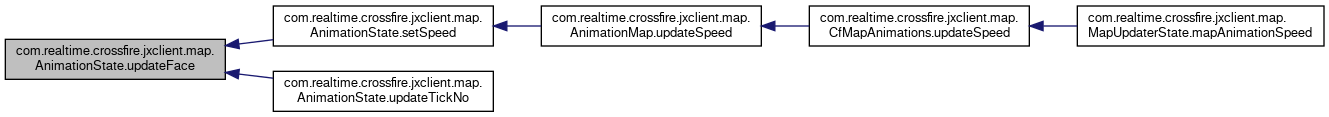

Here is the caller graph for this function:

◆ updateTickNo()

void com.realtime.crossfire.jxclient.map.AnimationState.updateTickNo	(	@NotNull final MapUpdaterState	mapUpdaterState,
		final int	tickNo
	)

Sets the tick number and update affected faces.

Parameters

mapUpdaterState	the map updater state instance to use
tickNo	the tick number

Definition at line 111 of file AnimationState.java.

References com.realtime.crossfire.jxclient.animations.Animation.getFaces(), com.realtime.crossfire.jxclient.map.AnimationState.tickNo, and com.realtime.crossfire.jxclient.map.AnimationState.updateFace().

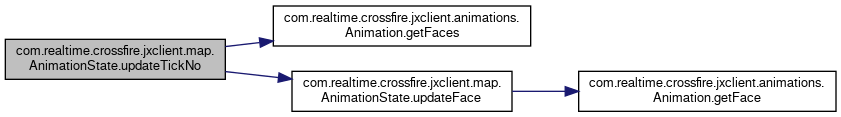

Here is the call graph for this function:

Member Data Documentation

◆ animation

final Animation com.realtime.crossfire.jxclient.map.AnimationState.animation

private

The Animation to display.

Definition at line 42 of file AnimationState.java.

Referenced by com.realtime.crossfire.jxclient.map.AnimationState.AnimationState().

◆ index

int com.realtime.crossfire.jxclient.map.AnimationState.index

private

The face index currently shown.

May contain values between 0 and speed*animation.getFaces() (exclusive).

Definition at line 58 of file AnimationState.java.

◆ lastFace

int com.realtime.crossfire.jxclient.map.AnimationState.lastFace = -1

private

Records the last known face.

Used to suppress redundant map updates.

Definition at line 63 of file AnimationState.java.

◆ locations

final Set<Location> com.realtime.crossfire.jxclient.map.AnimationState.locations = new HashSet<>()

private

All map locations this animation is displayed at.

Definition at line 69 of file AnimationState.java.

◆ speed

int com.realtime.crossfire.jxclient.map.AnimationState.speed = 1

private

The animation speed.

Definition at line 47 of file AnimationState.java.

Referenced by com.realtime.crossfire.jxclient.map.AnimationState.setSpeed().

◆ tickNo

int com.realtime.crossfire.jxclient.map.AnimationState.tickNo

private

The face was updated last in this tick number.

Definition at line 52 of file AnimationState.java.

Referenced by com.realtime.crossfire.jxclient.map.AnimationState.setTickNo(), and com.realtime.crossfire.jxclient.map.AnimationState.updateTickNo().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/network/src/main/java/com/realtime/crossfire/jxclient/map/AnimationState.java
