Update a CfMap model from protocol commands. More...

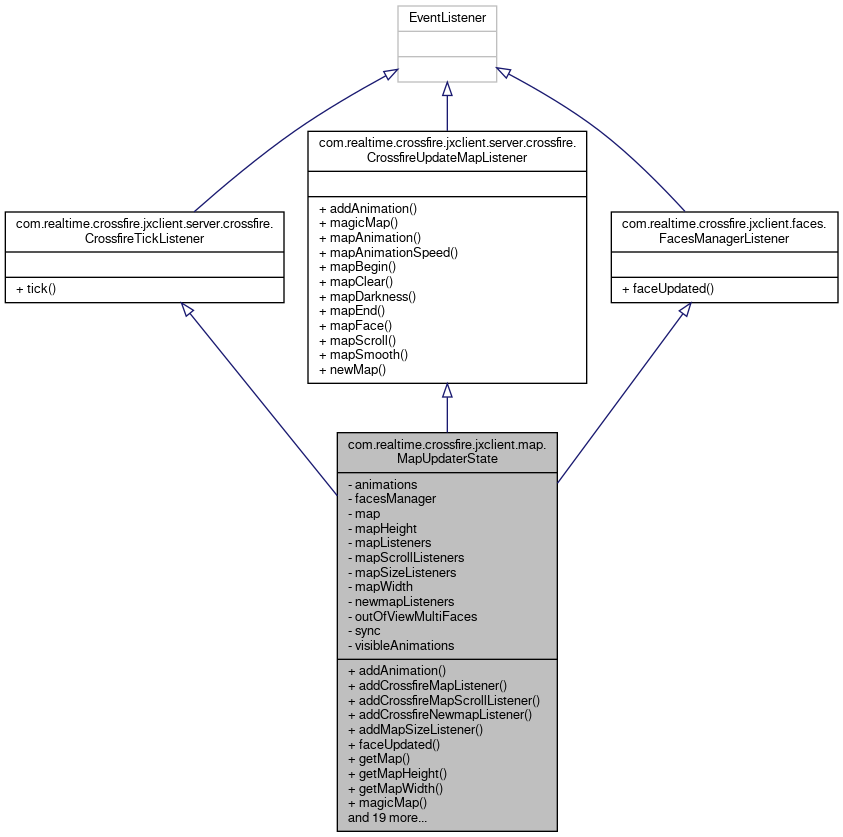

Inheritance diagram for com.realtime.crossfire.jxclient.map.MapUpdaterState:

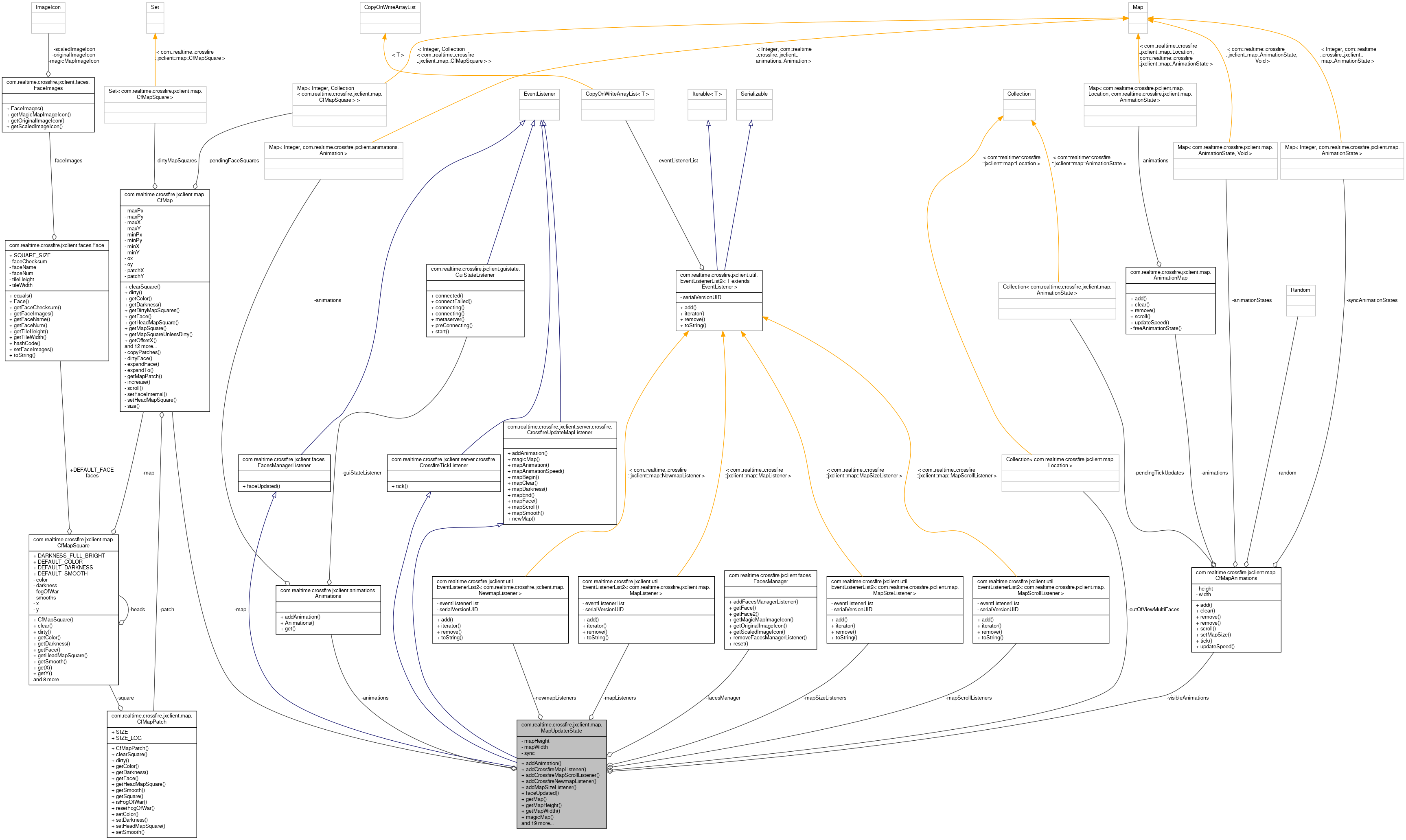

Collaboration diagram for com.realtime.crossfire.jxclient.map.MapUpdaterState:

Public Member Functions

void addAnimation (final int animation, final int flags, @NotNull final int[] faces)

An "addanim" command has been received.

Parameters

animation	the animation ID
flags	the animation flags
faces	the faces list; must not be modified

More...

void addCrossfireMapListener (@NotNull final MapListener listener)

Adds a listener to notify about changed map squares. More...

void addCrossfireMapScrollListener (@NotNull final MapScrollListener listener)

Adds a listener to notify about scrolled maps. More...

void addCrossfireNewmapListener (@NotNull final NewmapListener listener)

Adds a listener to notify about cleared maps. More...

void addMapSizeListener (@NotNull final MapSizeListener listener)

Adds a listener to be notified about map size changes. More...

void faceUpdated (@NotNull final Face face)

Called when a Face has been updated.

Parameters

face the face

More...

CfMap getMap ()

Returns the current map instance. More...

int getMapHeight ()

Returns the height of the visible map area. More...

int getMapWidth ()

Returns the width of the visible map area. More...

void magicMap (final int x, final int y, final byte[][] data)

Part of "magicmap" parsing: set the magic map color.

Parameters

x	the x-coordinate
y	the y-coordinate
data	the magic map data (y, x); must not be changed

More...

void mapAnimation (@NotNull final Location location, final int animationNum, final int animationType)

Part of "map2" parsing: set the animation of a cell.

Parameters

location	the location
animationNum	the animation ID
animationType	the animation type

More...

void mapAnimationSpeed (@NotNull final Location location, final int animationSpeed)

Part of "map2" parsing: set the animation speed.

Parameters

location	the location
animationSpeed	the animation speed

More...

Object mapBegin ()

Parsing of a "map2" command has been started.

Returns: the synchronization object which must be
synchronized
while calling any other function (except
newMap()
)

More...

void mapClear (final int x, final int y)

Part of "map2" parsing: clear a cell.

Parameters

x	the x-coordinate
y	the y-coordinate

More...

void mapDarkness (final int x, final int y, final int darkness)

Part of "map2" parsing: change the darkness of a cell.

Parameters

x	the x-coordinate
y	the y-coordinate
darkness	the darkness value

More...

void mapEnd ()

Parsing of "map2" has been finished. More...

void mapEnd (final boolean alwaysProcess)

Finishes processing of a set of map square changes. More...

void mapFace (@NotNull final Location location, final int faceNum)

Part of "map2" parsing: set the face of a cell.

Parameters

location	the location
faceNum	the face ID

More...

void mapFace (@NotNull final Location location, final int faceNum, final boolean clearAnimation)

Updates a map square by changing a face. More...

void mapScroll (final int dx, final int dy)

Part of "map2" parsing: scroll the map view.

Parameters

dx	the x-distance
dy	the y-distance

More...

void mapSmooth (@NotNull final Location location, final int smooth)

Part of "map2" parsing: set the smooth level.

Parameters

location	the location
smooth	the smooth value

More...

MapUpdaterState (@NotNull final FacesManager facesManager, @Nullable final GuiStateManager guiStateManager)

Creates a new instance. More...

void newMap (final int mapWidth, final int mapHeight)

A "newmap" command has been received.

Parameters

mapWidth	the map width
mapHeight	the map height

More...

void removeCrossfireMapListener (@NotNull final MapListener listener)

Removes a listener to notify about changed map squares. More...

void removeCrossfireMapScrollListener (@NotNull final MapScrollListener listener)

Removes a listener to notify about scrolled maps. More...

void removeCrossfireNewmapListener (@NotNull final NewmapListener listener)

Removes a listener to notify about cleared maps. More...

void removeMapSizeListener (@NotNull final MapSizeListener listener)

Removes a listener to be notified about map size changes. More...

void reset ()

Resets the animation state. More...

void tick (final int tickNo)

A "tick" command has been received.

Parameters

tickNo the current tick

More...

Private Attributes
final Animations	animations
	The defined animations. More...

final FacesManager	facesManager
	The FacesManager to track for updated faces. More...

final CfMap	map = new CfMap()
	The current CfMap instance. More...

int	mapHeight
	The height of the visible map area. More...

final EventListenerList2< MapListener >	mapListeners = new EventListenerList2<>()
	The listeners to notify about changed map squares. More...

final EventListenerList2< MapScrollListener >	mapScrollListeners = new EventListenerList2<>()
	The listeners to notify about scrolled maps. More...

final EventListenerList2< MapSizeListener >	mapSizeListeners = new EventListenerList2<>()
	The MapSizeListeners to be notified. More...

int	mapWidth
	The width of the visible map area. More...

final EventListenerList2< NewmapListener >	newmapListeners = new EventListenerList2<>()
	The listeners to notify about cleared maps. More...

final Collection< Location >	outOfViewMultiFaces = new HashSet<>()
	All multi-tiled faces with heads outside the visible map area. More...

final Object	sync = new Object()
	The object used for synchronization. More...

final CfMapAnimations	visibleAnimations = new CfMapAnimations()
	The animations in the visible map area. More...

Detailed Description

Update a CfMap model from protocol commands.

The map updater is called from two threads: the com.realtime.crossfire.jxclient.server.socket.ClientSocket reading commands received from the Crossfire server, and com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue reading faces from the (file) cache. Synchronization is by sync and applies to the whole map model map.

Author: Andreas Kirschbaum

Definition at line 50 of file MapUpdaterState.java.

Constructor & Destructor Documentation

◆ MapUpdaterState()

com.realtime.crossfire.jxclient.map.MapUpdaterState.MapUpdaterState	(	@NotNull final FacesManager	facesManager,
		@Nullable final GuiStateManager	guiStateManager
	)

Creates a new instance.

Parameters

facesManager	the faces manager to track for updated faces
guiStateManager	the gui state manager to watch or null

Definition at line 127 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.facesManager.

Member Function Documentation

◆ addAnimation()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.addAnimation	(	final int	animation,
		final int	flags,
		@NotNull final int []	faces
	)

An "addanim" command has been received.

Parameters

animation	the animation ID
flags	the animation flags
faces	the faces list; must not be modified

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 445 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.animations.Animations.addAnimation().

Here is the call graph for this function:

◆ addCrossfireMapListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.addCrossfireMapListener ( @NotNull final MapListener listener )

Adds a listener to notify about changed map squares.

Parameters

listener the listener to add

Definition at line 136 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.add().

Here is the call graph for this function:

◆ addCrossfireMapScrollListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.addCrossfireMapScrollListener ( @NotNull final MapScrollListener listener )

Adds a listener to notify about scrolled maps.

Parameters

listener the listener to add

Definition at line 168 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.add().

Referenced by com.realtime.crossfire.jxclient.skin.events.MapScrollSkinEvent.MapScrollSkinEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addCrossfireNewmapListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.addCrossfireNewmapListener ( @NotNull final NewmapListener listener )

Adds a listener to notify about cleared maps.

Parameters

listener the listener to add

Definition at line 152 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.add().

Here is the call graph for this function:

◆ addMapSizeListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.addMapSizeListener ( @NotNull final MapSizeListener listener )

Adds a listener to be notified about map size changes.

Parameters

listener the listener to add

Definition at line 184 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.add().

Here is the call graph for this function:

◆ faceUpdated()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.faceUpdated ( @NotNull final Face face )

Called when a Face has been updated.

Parameters

face the face

Implements com.realtime.crossfire.jxclient.faces.FacesManagerListener.

Definition at line 378 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.map, com.realtime.crossfire.jxclient.map.MapUpdaterState.mapBegin(), com.realtime.crossfire.jxclient.map.MapUpdaterState.mapEnd(), com.realtime.crossfire.jxclient.map.MapUpdaterState.mapHeight, com.realtime.crossfire.jxclient.map.MapUpdaterState.mapWidth, and com.realtime.crossfire.jxclient.map.CfMap.updateFace().

Here is the call graph for this function:

◆ getMap()

CfMap com.realtime.crossfire.jxclient.map.MapUpdaterState.getMap ( )

Returns the current map instance.

Returns: the current map instance

Definition at line 421 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.map.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.cmdRequest(), com.realtime.crossfire.jxclient.gui.map.GUIMiniMap.markPlayer(), com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.redrawAll(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts2(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testFogOfWar1().

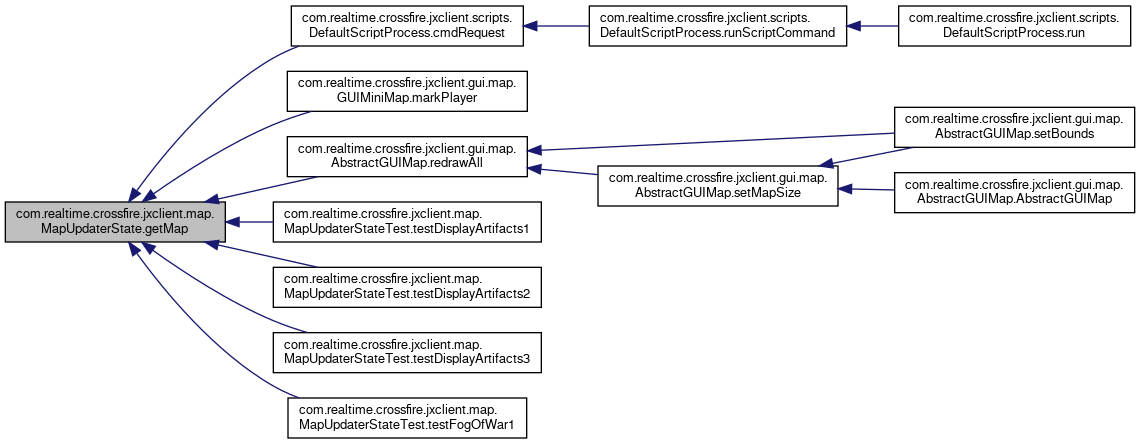

Here is the caller graph for this function:

◆ getMapHeight()

int com.realtime.crossfire.jxclient.map.MapUpdaterState.getMapHeight ( )

Returns the height of the visible map area.

Returns: the height of the visible map area

Definition at line 437 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.mapHeight.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.cmdRequest().

Here is the caller graph for this function:

◆ getMapWidth()

int com.realtime.crossfire.jxclient.map.MapUpdaterState.getMapWidth ( )

Returns the width of the visible map area.

Returns: the width of the visible map area

Definition at line 429 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.mapWidth.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.cmdRequest().

Here is the caller graph for this function:

◆ magicMap()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.magicMap	(	final int	x,
		final int	y,
		final byte	data[][]
	)

Part of "magicmap" parsing: set the magic map color.

Parameters

x	the x-coordinate
y	the y-coordinate
data	the magic map data (y, x); must not be changed

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 314 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.map, and com.realtime.crossfire.jxclient.map.CfMap.setMagicMap().

Here is the call graph for this function:

◆ mapAnimation()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapAnimation	(	@NotNull final Location	location,
		final int	animationNum,
		final int	animationType
	)

Part of "map2" parsing: set the animation of a cell.

Parameters

location	the location
animationNum	the animation ID
animationType	the animation type

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 265 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.CfMapAnimations.add(), com.realtime.crossfire.jxclient.animations.Animations.get(), com.realtime.crossfire.jxclient.map.MapUpdaterState.map, and com.realtime.crossfire.jxclient.map.CfMap.setFace().

Here is the call graph for this function:

◆ mapAnimationSpeed()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapAnimationSpeed	(	@NotNull final Location	location,
		final int	animationSpeed
	)

Part of "map2" parsing: set the animation speed.

Parameters

location	the location
animationSpeed	the animation speed

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 283 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.CfMapAnimations.updateSpeed().

Here is the call graph for this function:

◆ mapBegin()

Object com.realtime.crossfire.jxclient.map.MapUpdaterState.mapBegin ( )

Parsing of a "map2" command has been started.

Returns: the synchronization object which must be
synchronized
while calling any other function (except
newMap()
)

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 210 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.sync.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.faceUpdated(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts2(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testFogOfWar1().

Here is the caller graph for this function:

◆ mapClear()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapClear	(	final int	x,
		final int	y
	)

Part of "map2" parsing: clear a cell.

Parameters

x	the x-coordinate
y	the y-coordinate

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 218 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.CfMap.clearSquare(), com.realtime.crossfire.jxclient.map.MapUpdaterState.map, and com.realtime.crossfire.jxclient.map.CfMapAnimations.remove().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts2(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testFogOfWar1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapDarkness()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapDarkness	(	final int	x,
		final int	y,
		final int	darkness
	)

Part of "map2" parsing: change the darkness of a cell.

Parameters

x	the x-coordinate
y	the y-coordinate
darkness	the darkness value

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 303 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.map, and com.realtime.crossfire.jxclient.map.CfMap.setDarkness().

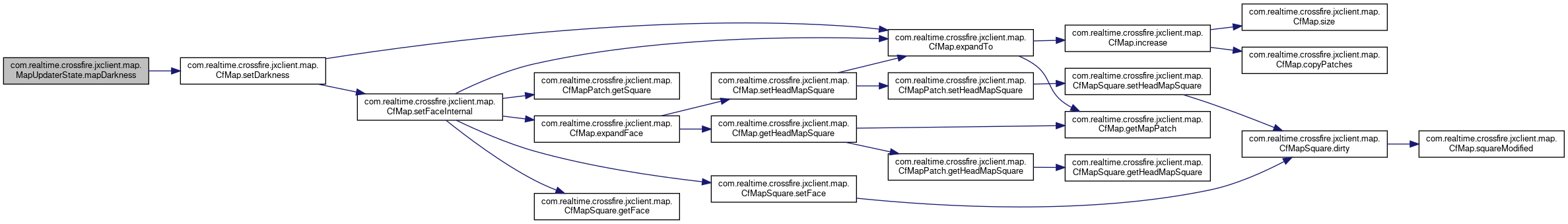

Here is the call graph for this function:

◆ mapEnd() [1/2]

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapEnd ( )

Parsing of "map2" has been finished.

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 325 of file MapUpdaterState.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.faceUpdated(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts2(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testFogOfWar1().

Here is the caller graph for this function:

◆ mapEnd() [2/2]

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapEnd ( final boolean alwaysProcess )

Finishes processing of a set of map square changes.

Notifies listeners about changes.

Parameters

alwaysProcess if set, notify listeners even if no changes are present

Definition at line 335 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.CfMap.getDirtyMapSquares(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.map.

Here is the call graph for this function:

◆ mapFace() [1/2]

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapFace	(	@NotNull final Location	location,
		final int	faceNum
	)

Part of "map2" parsing: set the face of a cell.

Parameters

location	the location
faceNum	the face ID

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 231 of file MapUpdaterState.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts2(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testFogOfWar1().

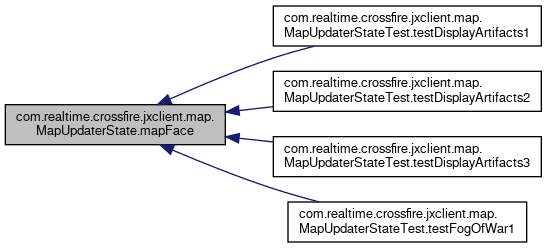

Here is the caller graph for this function:

◆ mapFace() [2/2]

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapFace	(	@NotNull final Location	location,
		final int	faceNum,
		final boolean	clearAnimation
	)

Updates a map square by changing a face.

Parameters

location	the location to update
faceNum	the face to set; 0 clears the square
clearAnimation	whether an animation should be cleared

Definition at line 241 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.faces.FacesManager.getFace2(), com.realtime.crossfire.jxclient.faces.Face.getTileHeight(), com.realtime.crossfire.jxclient.faces.Face.getTileWidth(), com.realtime.crossfire.jxclient.map.MapUpdaterState.map, com.realtime.crossfire.jxclient.map.CfMapAnimations.remove(), and com.realtime.crossfire.jxclient.map.CfMap.setFace().

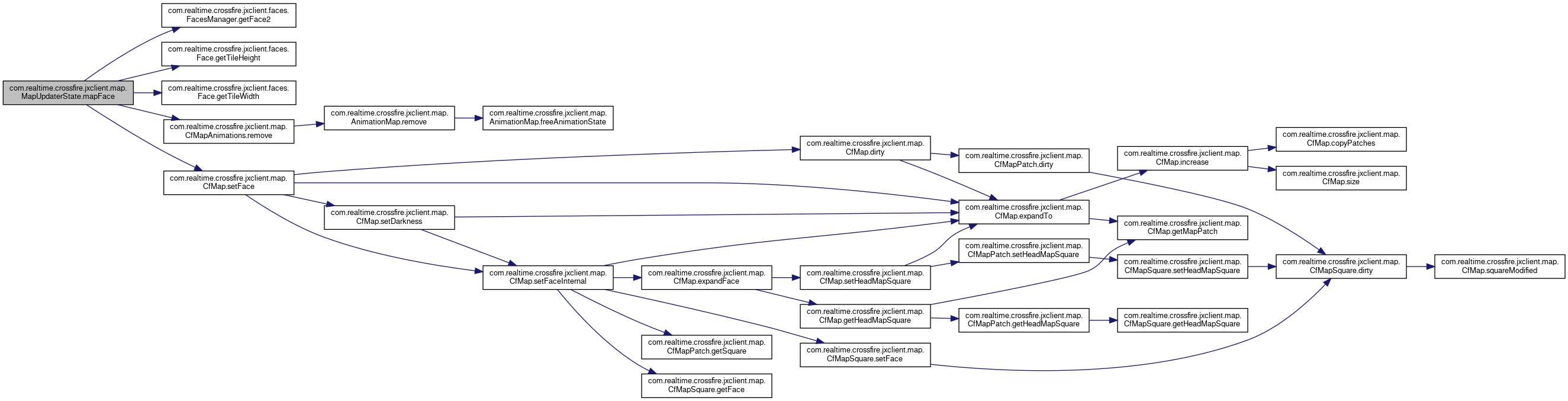

Here is the call graph for this function:

◆ mapScroll()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapScroll	(	final int	dx,
		final int	dy
	)

Part of "map2" parsing: scroll the map view.

Parameters

dx	the x-distance
dy	the y-distance

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 353 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.CfMapAnimations.clear(), com.realtime.crossfire.jxclient.map.MapUpdaterState.map, com.realtime.crossfire.jxclient.map.CfMap.processMapScroll(), com.realtime.crossfire.jxclient.map.CfMapAnimations.remove(), com.realtime.crossfire.jxclient.map.CfMapAnimations.scroll(), and com.realtime.crossfire.jxclient.map.CfMap.setFace().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3().

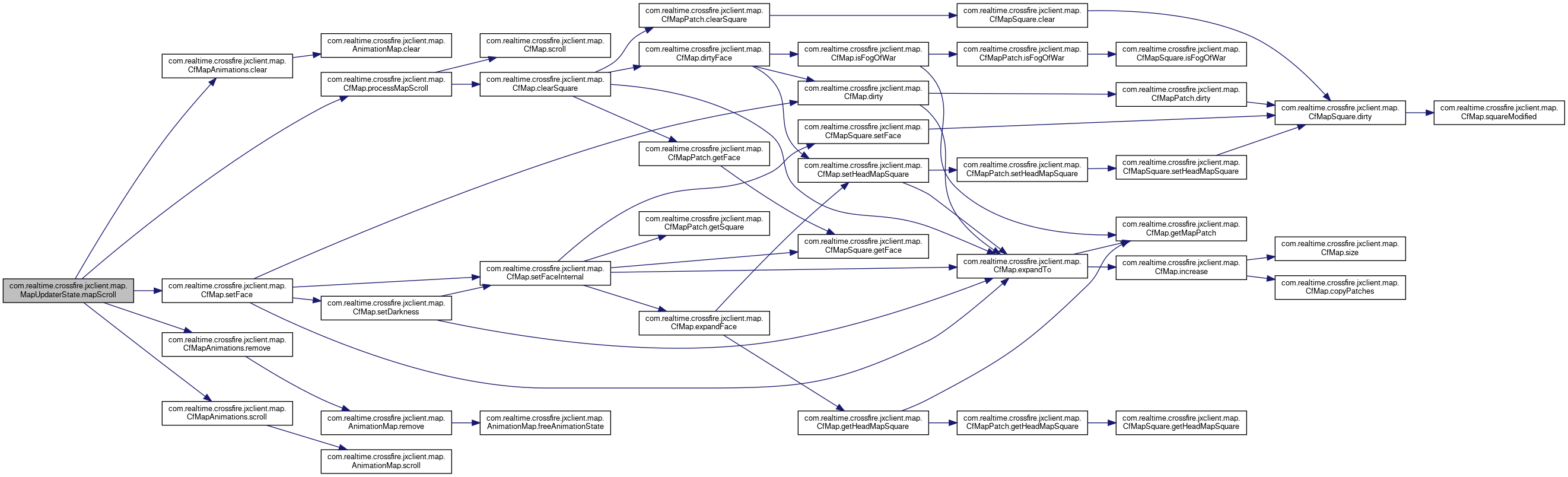

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapSmooth()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.mapSmooth	(	@NotNull final Location	location,
		final int	smooth
	)

Part of "map2" parsing: set the smooth level.

Parameters

location	the location
smooth	the smooth value

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 292 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.map, and com.realtime.crossfire.jxclient.map.CfMap.setSmooth().

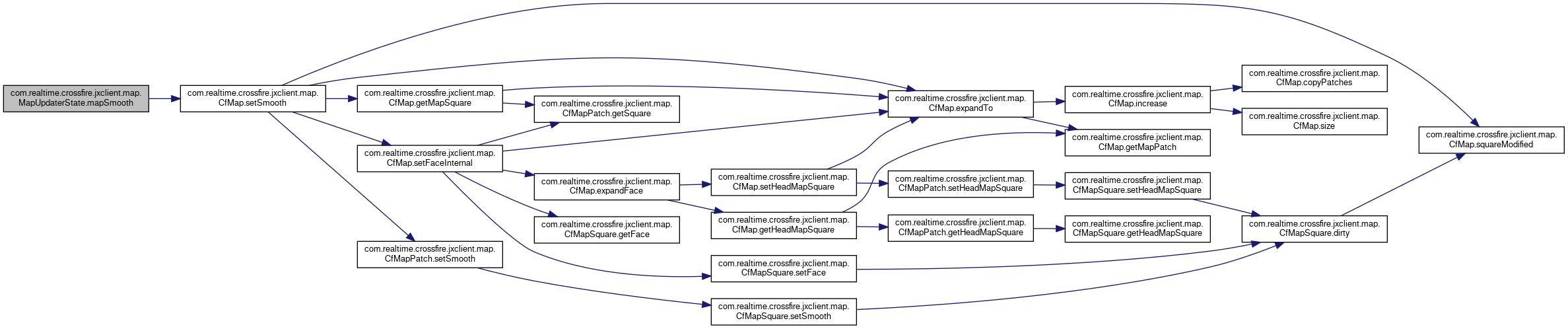

Here is the call graph for this function:

◆ newMap()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.newMap	(	final int	mapWidth,
		final int	mapHeight
	)

A "newmap" command has been received.

Parameters

mapWidth	the map width
mapHeight	the map height

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireUpdateMapListener.

Definition at line 392 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.map, com.realtime.crossfire.jxclient.map.MapUpdaterState.mapHeight, com.realtime.crossfire.jxclient.map.MapUpdaterState.mapWidth, com.realtime.crossfire.jxclient.map.CfMap.reset(), com.realtime.crossfire.jxclient.map.CfMapAnimations.setMapSize(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.sync.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.reset(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts2(), com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts3(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testFogOfWar1().

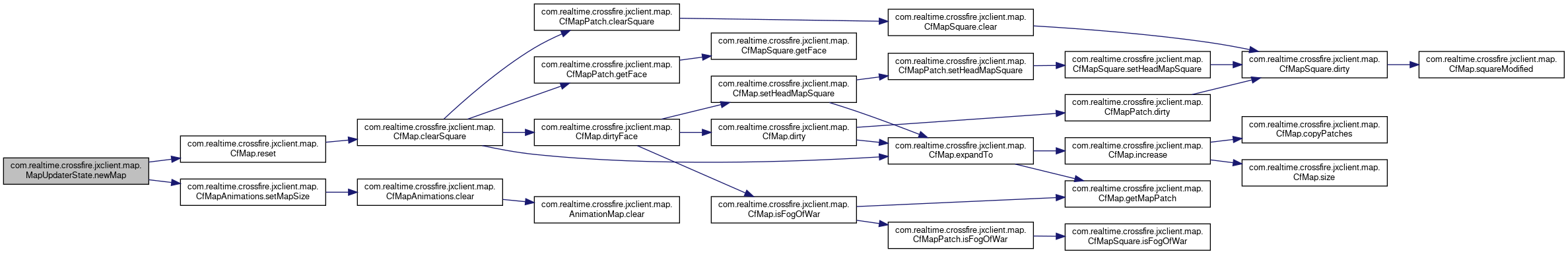

Here is the call graph for this function:

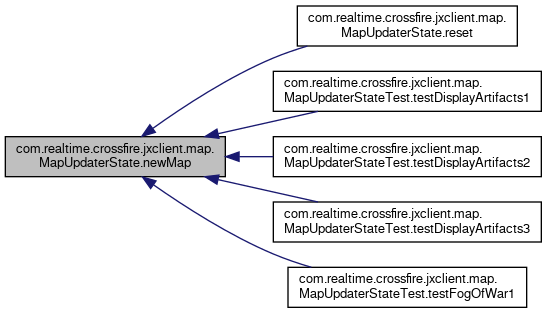

Here is the caller graph for this function:

◆ removeCrossfireMapListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.removeCrossfireMapListener ( @NotNull final MapListener listener )

Removes a listener to notify about changed map squares.

Parameters

listener the listener to remove

Definition at line 144 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.remove().

Referenced by com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.dispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeCrossfireMapScrollListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.removeCrossfireMapScrollListener ( @NotNull final MapScrollListener listener )

Removes a listener to notify about scrolled maps.

Parameters

listener the listener to remove

Definition at line 176 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.remove().

Referenced by com.realtime.crossfire.jxclient.skin.events.MapScrollSkinEvent.dispose(), and com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.dispose().

Here is the call graph for this function:

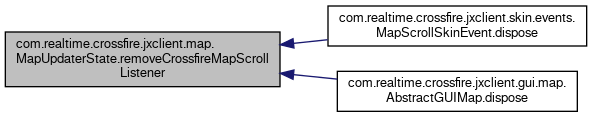

Here is the caller graph for this function:

◆ removeCrossfireNewmapListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.removeCrossfireNewmapListener ( @NotNull final NewmapListener listener )

Removes a listener to notify about cleared maps.

Parameters

listener the listener to remove

Definition at line 160 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.remove().

Referenced by com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.dispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeMapSizeListener()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.removeMapSizeListener ( @NotNull final MapSizeListener listener )

Removes a listener to be notified about map size changes.

Parameters

listener the listener to remove

Definition at line 192 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.util.EventListenerList2< T extends EventListener >.remove().

Referenced by com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.dispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.reset ( )

Resets the animation state.

Definition at line 199 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.newMap(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.sync.

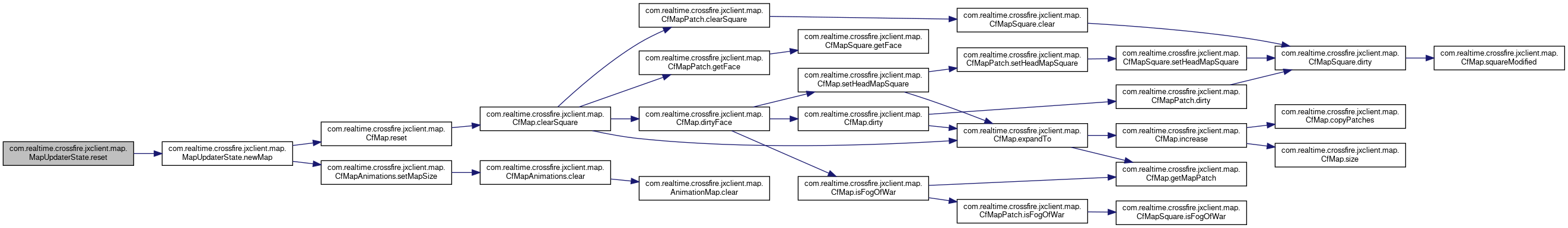

Here is the call graph for this function:

◆ tick()

void com.realtime.crossfire.jxclient.map.MapUpdaterState.tick ( final int tickNo )

A "tick" command has been received.

Parameters

tickNo the current tick

Implements com.realtime.crossfire.jxclient.server.crossfire.CrossfireTickListener.

Definition at line 453 of file MapUpdaterState.java.

References com.realtime.crossfire.jxclient.map.MapUpdaterState.sync, and com.realtime.crossfire.jxclient.map.CfMapAnimations.tick().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.testDisplayArtifacts1().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ animations

final Animations com.realtime.crossfire.jxclient.map.MapUpdaterState.animations

private

The defined animations.

Definition at line 68 of file MapUpdaterState.java.

◆ facesManager

final FacesManager com.realtime.crossfire.jxclient.map.MapUpdaterState.facesManager

private

The FacesManager to track for updated faces.

Definition at line 62 of file MapUpdaterState.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.MapUpdaterState().

◆ map

final CfMap com.realtime.crossfire.jxclient.map.MapUpdaterState.map = new CfMap()

private

The current CfMap instance.

Definition at line 84 of file MapUpdaterState.java.

◆ mapHeight

int com.realtime.crossfire.jxclient.map.MapUpdaterState.mapHeight

private

The height of the visible map area.

Definition at line 78 of file MapUpdaterState.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.faceUpdated(), com.realtime.crossfire.jxclient.map.MapUpdaterState.getMapHeight(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.newMap().

◆ mapListeners

final EventListenerList2<MapListener> com.realtime.crossfire.jxclient.map.MapUpdaterState.mapListeners = new EventListenerList2<>()

private

The listeners to notify about changed map squares.

Definition at line 90 of file MapUpdaterState.java.

◆ mapScrollListeners

final EventListenerList2<MapScrollListener> com.realtime.crossfire.jxclient.map.MapUpdaterState.mapScrollListeners = new EventListenerList2<>()

private

The listeners to notify about scrolled maps.

Definition at line 102 of file MapUpdaterState.java.

◆ mapSizeListeners

final EventListenerList2<MapSizeListener> com.realtime.crossfire.jxclient.map.MapUpdaterState.mapSizeListeners = new EventListenerList2<>()

private

The MapSizeListeners to be notified.

Definition at line 108 of file MapUpdaterState.java.

◆ mapWidth

int com.realtime.crossfire.jxclient.map.MapUpdaterState.mapWidth

private

The width of the visible map area.

Definition at line 73 of file MapUpdaterState.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.faceUpdated(), com.realtime.crossfire.jxclient.map.MapUpdaterState.getMapWidth(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.newMap().

◆ newmapListeners

final EventListenerList2<NewmapListener> com.realtime.crossfire.jxclient.map.MapUpdaterState.newmapListeners = new EventListenerList2<>()

private

The listeners to notify about cleared maps.

Definition at line 96 of file MapUpdaterState.java.

◆ outOfViewMultiFaces

final Collection<Location> com.realtime.crossfire.jxclient.map.MapUpdaterState.outOfViewMultiFaces = new HashSet<>()

private

All multi-tiled faces with heads outside the visible map area.

Definition at line 120 of file MapUpdaterState.java.

◆ sync

final Object com.realtime.crossfire.jxclient.map.MapUpdaterState.sync = new Object()

private

The object used for synchronization.

Definition at line 56 of file MapUpdaterState.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapBegin(), com.realtime.crossfire.jxclient.map.MapUpdaterState.newMap(), com.realtime.crossfire.jxclient.map.MapUpdaterState.reset(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.tick().

◆ visibleAnimations

final CfMapAnimations com.realtime.crossfire.jxclient.map.MapUpdaterState.visibleAnimations = new CfMapAnimations()

private

The animations in the visible map area.

Definition at line 114 of file MapUpdaterState.java.

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/network/src/main/java/com/realtime/crossfire/jxclient/map/MapUpdaterState.java

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MapUpdaterState()

Member Function Documentation

◆ addAnimation()

◆ addCrossfireMapListener()

◆ addCrossfireMapScrollListener()

◆ addCrossfireNewmapListener()

◆ addMapSizeListener()

◆ faceUpdated()

◆ getMap()

◆ getMapHeight()

◆ getMapWidth()

◆ magicMap()

◆ mapAnimation()

◆ mapAnimationSpeed()

◆ mapBegin()

◆ mapClear()

◆ mapDarkness()

◆ mapEnd() [1/2]

◆ mapEnd() [2/2]

◆ mapFace() [1/2]

◆ mapFace() [2/2]

◆ mapScroll()

◆ mapSmooth()

◆ newMap()

◆ removeCrossfireMapListener()

◆ removeCrossfireMapScrollListener()

◆ removeCrossfireNewmapListener()

◆ removeMapSizeListener()

◆ reset()

◆ tick()

Member Data Documentation

◆ animations

◆ facesManager

◆ map

◆ mapHeight

◆ mapListeners

◆ mapScrollListeners

◆ mapSizeListeners

◆ mapWidth

◆ newmapListeners

◆ outOfViewMultiFaces

◆ sync

◆ visibleAnimations
