Represents a square in a CfMap. More...

Collaboration diagram for com.realtime.crossfire.jxclient.map.CfMapSquare:

Public Member Functions
	CfMapSquare (@NotNull final CfMap map, final int x, final int y)
	Creates a new (empty) square. More...

void	clear ()
	Marks this square as 'fog-og-war'. More...

void	dirty ()
	Marks this square as dirty, i.e., needing redraw. More...

int	getColor ()
	Returns the magic map color of this square. More...

int	getDarkness ()
	Returns the darkness value of this square. More...

Face	getFace (final int layer)
	Returns the face of a layer. More...

CfMapSquare	getHeadMapSquare (final int layer)
	Returns the map square of the head of a multi-square object. More...

int	getSmooth (final int layer)
	Returns the smooth value of this square. More...

int	getX ()
	Returns the absolute map x-coordinate of this square. More...

int	getY ()
	Returns the absolute map y-coordinate of this square. More...

boolean	isFogOfWar ()
	Determines if the square is not up-to-date. More...

boolean	resetFogOfWar ()
	Returns and resets the "fog-of-war" flag. More...

boolean	setColor (final int color)
	Sets the magic map color of this square. More...

boolean	setDarkness (final int darkness)
	Sets the darkness value of this square. More...

void	setFace (final int layer, @Nullable final Face face)
	Sets the face of a layer. More...

void	setHeadMapSquare (final int layer, @Nullable final CfMapSquare mapSquare, final boolean setAlways)
	Sets the map square containing the head face for a layer. More...

int	setSmooth (final int layer, final int smooth)
	Sets the smooth value of this square. More...

String	toString ()

Static Public Attributes
static final int	DARKNESS_FULL_BRIGHT = 255
	The darkness value for a full bright square. More...

static final int	DEFAULT_COLOR = -1
	The default magic map color for newly created squares. More...

static final int	DEFAULT_DARKNESS = 255
	The default darkness value for newly created squares. More...

static final Face	DEFAULT_FACE = null
	The default face value for newly creates squares. More...

static final int	DEFAULT_SMOOTH = 0
	The default smooth value for newly created squares. More...

Private Attributes
int	color = DEFAULT_COLOR
	The magic map color of the square. More...

int	darkness = DEFAULT_DARKNESS
	The darkness value of the square in the range [0..255]. More...

final Face []	faces = new Face[Map2.NUM_LAYERS]
	The faces (of head-parts) of all layers as sent by the server. More...

boolean	fogOfWar
	Flag used to defer clearing the values: when a. More...

final CfMapSquare []	heads = new CfMapSquare[Map2.NUM_LAYERS]
	If this square contains a non-head part of a multi-square object this points to the head square. More...

final CfMap	map
	The CfMap this map square is part of. More...

final int []	smooths = new int[Map2.NUM_LAYERS]
	The smooth values of all layers as sent by the server. More...

final int	x
	The absolute x-coordinate of this square in its CfMap. More...

final int	y
	The absolute y-coordinate of this square in its CfMap. More...

Detailed Description

Represents a square in a CfMap.

A square comprises of Map2#NUM_LAYERS faces as well as a darkness value.

This class assumes that the "head" part of a face is the part the server did sent. This is the bottom-right part for multi-square objects. Not that this definition is inconsistent to what the server assumes as the head part of an object.

Author: Andreas Kirschbaum

Definition at line 39 of file CfMapSquare.java.

Constructor & Destructor Documentation

◆ CfMapSquare()

com.realtime.crossfire.jxclient.map.CfMapSquare.CfMapSquare	(	@NotNull final CfMap	map,
		final int	x,
		final int	y
	)

Creates a new (empty) square.

Parameters

map	the map this map square is part of
x	the absolute map x-coordinate of the top left corner of this patch
y	the absolute map y-coordinate of the top left corner of this patch

Definition at line 128 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.map, com.realtime.crossfire.jxclient.map.CfMapSquare.x, and com.realtime.crossfire.jxclient.map.CfMapSquare.y.

Member Function Documentation

◆ clear()

void com.realtime.crossfire.jxclient.map.CfMapSquare.clear ( )

Marks this square as 'fog-og-war'.

The values will be still returned until a new value will be set.

Definition at line 161 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.dirty().

Referenced by com.realtime.crossfire.jxclient.map.CfMapPatch.clearSquare().

Here is the call graph for this function:

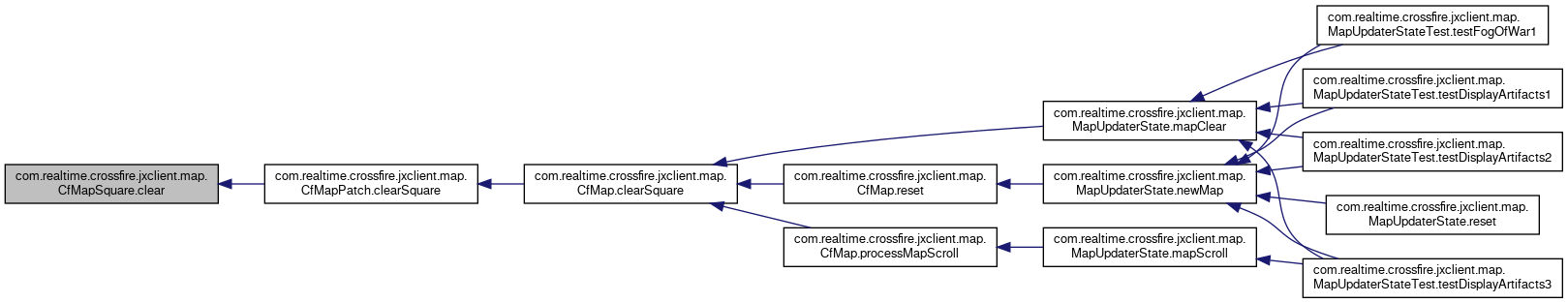

Here is the caller graph for this function:

◆ dirty()

void com.realtime.crossfire.jxclient.map.CfMapSquare.dirty ( )

Marks this square as dirty, i.e., needing redraw.

Definition at line 153 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMap.squareModified().

Referenced by com.realtime.crossfire.jxclient.map.CfMapSquare.clear(), com.realtime.crossfire.jxclient.map.CfMapPatch.dirty(), com.realtime.crossfire.jxclient.map.CfMapSquare.resetFogOfWar(), com.realtime.crossfire.jxclient.map.CfMapSquare.setColor(), com.realtime.crossfire.jxclient.map.CfMapSquare.setDarkness(), com.realtime.crossfire.jxclient.map.CfMapSquare.setFace(), com.realtime.crossfire.jxclient.map.CfMapSquare.setHeadMapSquare(), and com.realtime.crossfire.jxclient.map.CfMapSquare.setSmooth().

Here is the call graph for this function:

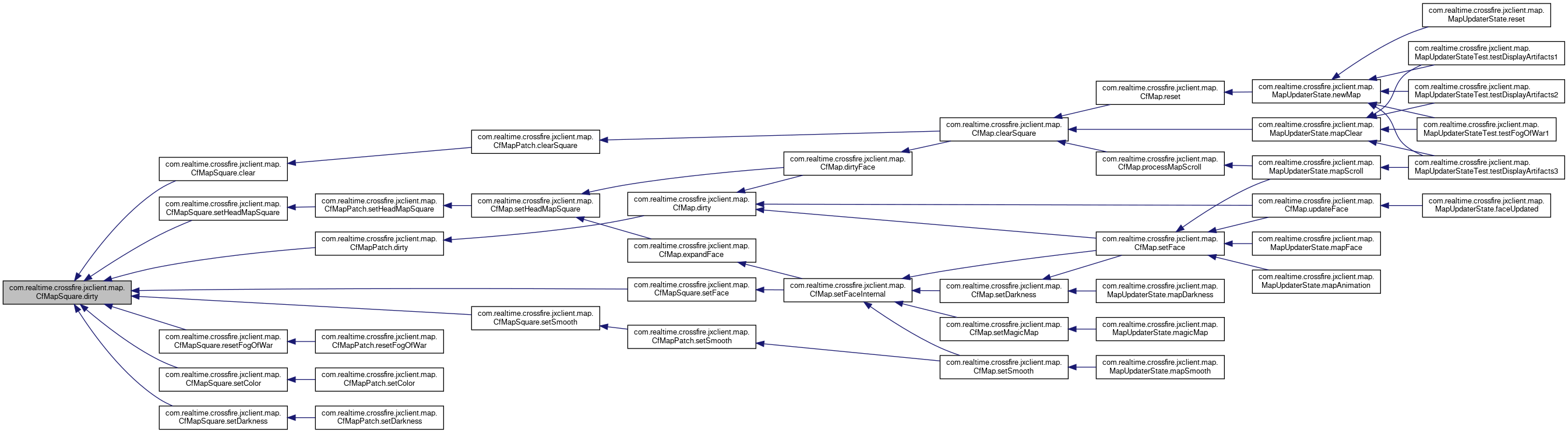

Here is the caller graph for this function:

◆ getColor()

int com.realtime.crossfire.jxclient.map.CfMapSquare.getColor ( )

Returns the magic map color of this square.

Returns: the color

Definition at line 258 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.color.

Referenced by com.realtime.crossfire.jxclient.map.CfMapPatch.getColor().

Here is the caller graph for this function:

◆ getDarkness()

int com.realtime.crossfire.jxclient.map.CfMapSquare.getDarkness ( )

Returns the darkness value of this square.

Returns: the darkness value of the square; 0=dark, 255=full bright

Definition at line 206 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.darkness.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.commandSentMap(), and com.realtime.crossfire.jxclient.map.CfMapPatch.getDarkness().

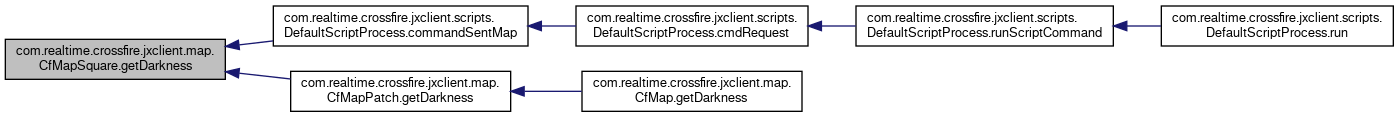

Here is the caller graph for this function:

◆ getFace()

Face com.realtime.crossfire.jxclient.map.CfMapSquare.getFace ( final int layer )

Returns the face of a layer.

Parameters

layer the layer to return the face

Returns: the face value

Definition at line 281 of file CfMapSquare.java.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.commandSentMap(), com.realtime.crossfire.jxclient.map.CfMapPatch.getFace(), com.realtime.crossfire.jxclient.gui.map.SmoothingRenderer.paintSmooth(), com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.redrawSquare(), com.realtime.crossfire.jxclient.map.CfMap.setFaceInternal(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.toString().

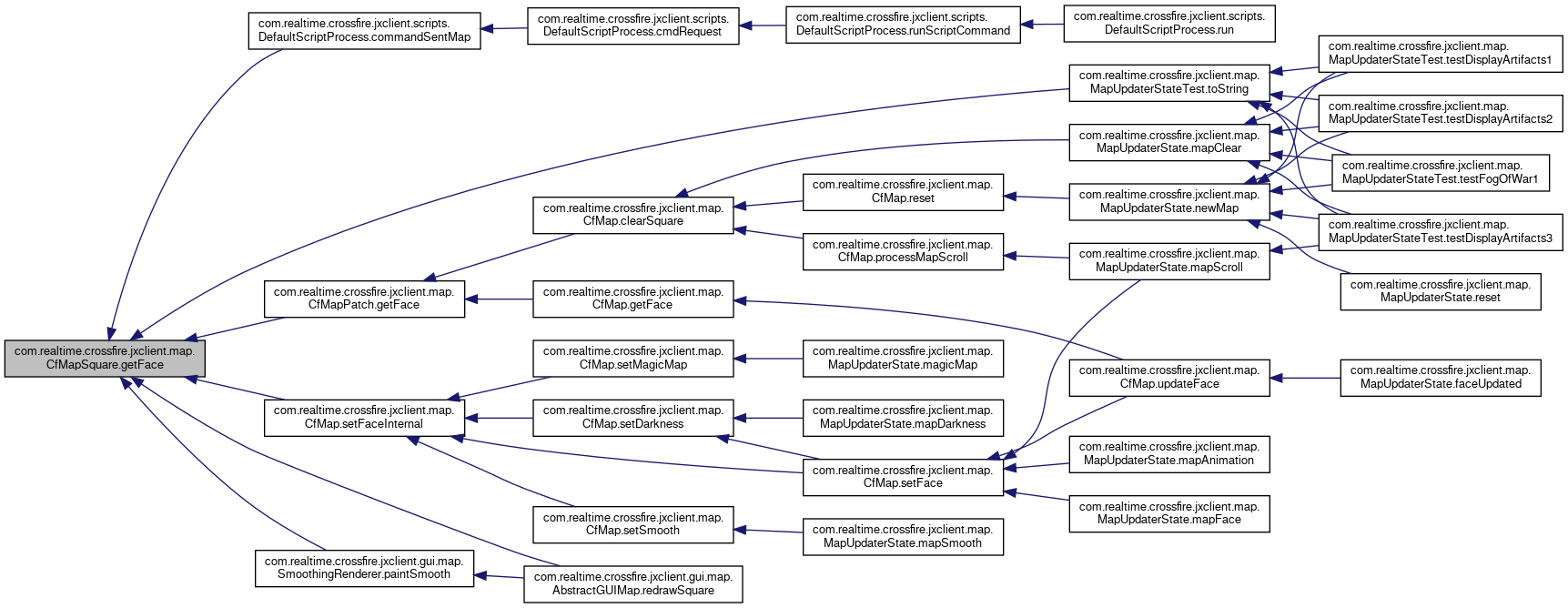

Here is the caller graph for this function:

◆ getHeadMapSquare()

CfMapSquare com.realtime.crossfire.jxclient.map.CfMapSquare.getHeadMapSquare ( final int layer )

Returns the map square of the head of a multi-square object.

Parameters

layer the layer to return the head for

Returns: the head map square, or
null
if this square does not contain a multi-tail

Definition at line 308 of file CfMapSquare.java.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.commandSentMap(), com.realtime.crossfire.jxclient.map.CfMapPatch.getHeadMapSquare(), com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.redrawSquare(), and com.realtime.crossfire.jxclient.map.MapUpdaterStateTest.toString().

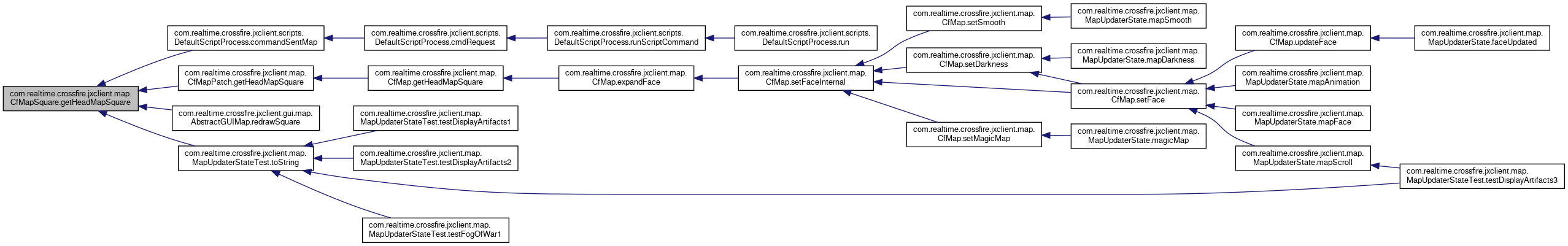

Here is the caller graph for this function:

◆ getSmooth()

int com.realtime.crossfire.jxclient.map.CfMapSquare.getSmooth ( final int layer )

Returns the smooth value of this square.

Parameters

layer

the layer between

0

and

LAYERS-1

Returns: the smooth value of the square

Definition at line 234 of file CfMapSquare.java.

Referenced by com.realtime.crossfire.jxclient.map.CfMapPatch.getSmooth(), and com.realtime.crossfire.jxclient.gui.map.SmoothingRenderer.paintSmooth().

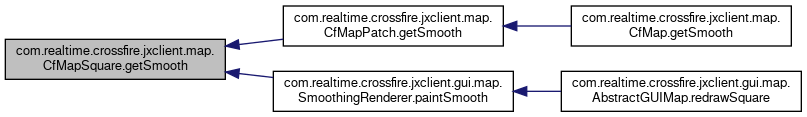

Here is the caller graph for this function:

◆ getX()

int com.realtime.crossfire.jxclient.map.CfMapSquare.getX ( )

Returns the absolute map x-coordinate of this square.

Returns: the x-coordinate

Definition at line 138 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.x.

Referenced by com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.redrawSquare().

Here is the caller graph for this function:

◆ getY()

int com.realtime.crossfire.jxclient.map.CfMapSquare.getY ( )

Returns the absolute map y-coordinate of this square.

Returns: the y-coordinate

Definition at line 146 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.y.

Referenced by com.realtime.crossfire.jxclient.gui.map.AbstractGUIMap.redrawSquare().

Here is the caller graph for this function:

◆ isFogOfWar()

boolean com.realtime.crossfire.jxclient.map.CfMapSquare.isFogOfWar ( )

Determines if the square is not up-to-date.

Returns: whether this square contains fog-of-war data

Definition at line 322 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.fogOfWar.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.commandSentMap(), and com.realtime.crossfire.jxclient.map.CfMapPatch.isFogOfWar().

Here is the caller graph for this function:

◆ resetFogOfWar()

boolean com.realtime.crossfire.jxclient.map.CfMapSquare.resetFogOfWar ( )

Returns and resets the "fog-of-war" flag.

Returns: whether this square's fog-of-war state has been reset

Definition at line 330 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.dirty().

Referenced by com.realtime.crossfire.jxclient.map.CfMapPatch.resetFogOfWar().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setColor()

boolean com.realtime.crossfire.jxclient.map.CfMapSquare.setColor ( final int color )

Sets the magic map color of this square.

Parameters

color the new color

Returns: whether fog-of-war has been cleared

Definition at line 243 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.color, com.realtime.crossfire.jxclient.map.CfMapSquare.dirty(), and com.realtime.crossfire.jxclient.map.CfMapSquare.fogOfWar.

Referenced by com.realtime.crossfire.jxclient.map.CfMapPatch.setColor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setDarkness()

boolean com.realtime.crossfire.jxclient.map.CfMapSquare.setDarkness ( final int darkness )

Sets the darkness value of this square.

Parameters

darkness

the new darkness value between

0

and

255

; 0=dark, 255=full bright

Returns: whether fog-of-war has been cleared

Definition at line 191 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.darkness, com.realtime.crossfire.jxclient.map.CfMapSquare.dirty(), and com.realtime.crossfire.jxclient.map.CfMapSquare.fogOfWar.

Referenced by com.realtime.crossfire.jxclient.map.CfMapPatch.setDarkness().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFace()

void com.realtime.crossfire.jxclient.map.CfMapSquare.setFace	(	final int	layer,
		@Nullable final Face	face
	)

Sets the face of a layer.

Parameters

layer	the layer for the new face between 0 and LAYERS-1
face	the face to set

Definition at line 268 of file CfMapSquare.java.

References com.realtime.crossfire.jxclient.map.CfMapSquare.dirty().

Referenced by com.realtime.crossfire.jxclient.map.CfMap.setFaceInternal().

Here is the call graph for this function:

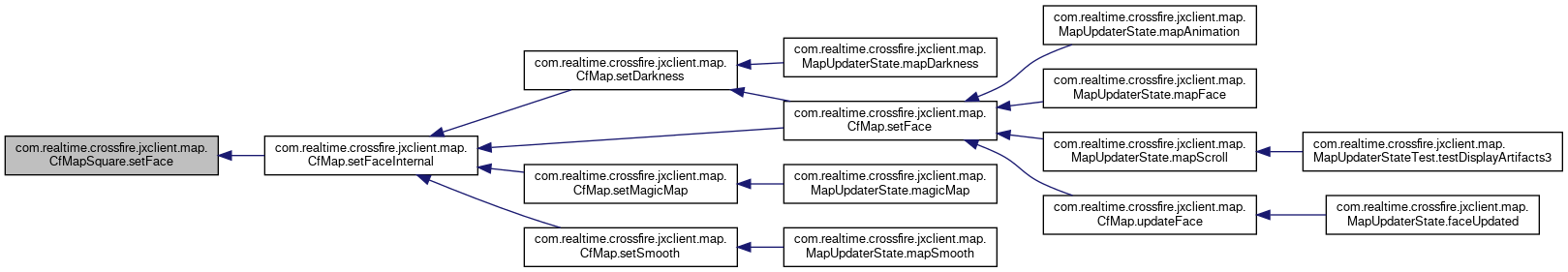

Here is the caller graph for this function:

◆ setHeadMapSquare()

void com.realtime.crossfire.jxclient.map.CfMapSquare.setHeadMapSquare	(	final int	layer,
		@Nullable final CfMapSquare	mapSquare,
		final boolean	setAlways
	)

Sets the map square containing the head face for a layer.

Parameters

layer	the layer for the new head face between 0 and LAYERS-1
mapSquare	the map square containing the head face; may be null
setAlways	if set, always update the face; if unset, only update when fog-of-war
