Maintains the pending (ncom) commands sent to the server. More...

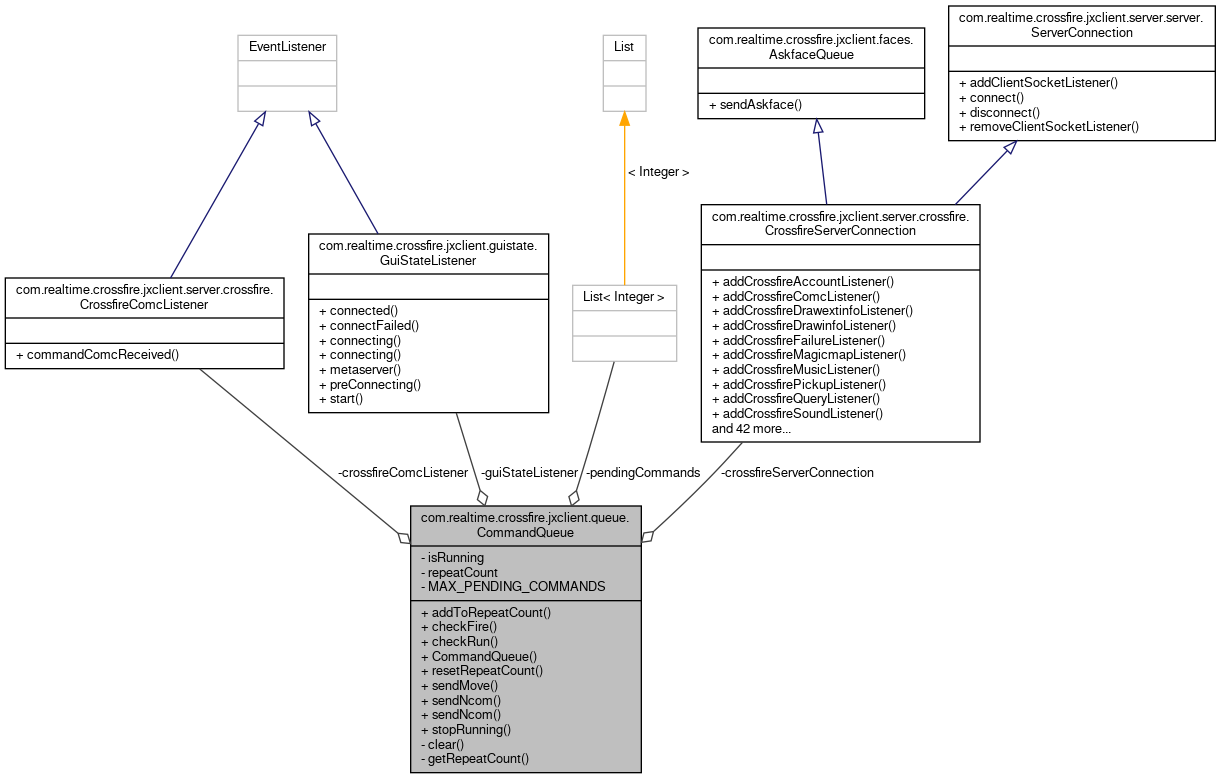

Collaboration diagram for com.realtime.crossfire.jxclient.queue.CommandQueue:

Public Member Functions
void	addToRepeatCount (final int digit)
	Adds a digit to the current repeat count. More...

boolean	checkFire ()
	Returns whether the character is firing. More...

boolean	checkRun ()
	Returns whether the character is running. More...

	CommandQueue (@NotNull final CrossfireServerConnection crossfireServerConnection, @NotNull final GuiStateManager guiStateManager)
	Creates a new instance. More...

void	resetRepeatCount ()
	Resets the current repeat count to zero. More...

void	sendMove (final int to, final int tag)
	Sends a "move" command to the server. More...

void	sendNcom (final boolean mustSend, @NotNull final String command)
	Sends an "ncom" command to the server. More...

void	sendNcom (final boolean mustSend, final int repeat, @NotNull final String command)
	Sends an "ncom" command to the server. More...

boolean	stopRunning ()
	Tells the server to stop running. More...

Private Member Functions
void	clear ()
	Forgets about sent commands. More...

int	getRepeatCount ()
	Returns the current repeat count and reset it to zero. More...

Private Attributes
final CrossfireComcListener	crossfireComcListener
	The listener to track comc commands. More...

final CrossfireServerConnection	crossfireServerConnection
	The server connection for sending ncom commands. More...

final GuiStateListener	guiStateListener
	The GuiStateListener for detecting established or dropped connections. More...

boolean	isRunning
	Whether a "run" command has been sent without a following "run_stop" command. More...

final List< Integer >	pendingCommands = new LinkedList<>()
	Records command ids of commands sent to the server for which no comc commands has been received. More...

int	repeatCount
	The default repeat counter for ncom commands. More...

Static Private Attributes
static final int	MAX_PENDING_COMMANDS = 10
	Maximum number of pending commands sent to the server. More...

Detailed Description

Maintains the pending (ncom) commands sent to the server.

Author: Andreas Kirschbaum

Definition at line 37 of file CommandQueue.java.

Constructor & Destructor Documentation

◆ CommandQueue()

com.realtime.crossfire.jxclient.queue.CommandQueue.CommandQueue	(	@NotNull final CrossfireServerConnection	crossfireServerConnection,
		@NotNull final GuiStateManager	guiStateManager
	)

Creates a new instance.

Parameters

crossfireServerConnection	the server connection for sending ncom commands
guiStateManager	the gui state manager to watch

Definition at line 143 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.server.crossfire.CrossfireServerConnection.addCrossfireComcListener(), com.realtime.crossfire.jxclient.queue.CommandQueue.crossfireComcListener, com.realtime.crossfire.jxclient.queue.CommandQueue.crossfireServerConnection, and com.realtime.crossfire.jxclient.queue.CommandQueue.guiStateListener.

Here is the call graph for this function:

Member Function Documentation

◆ addToRepeatCount()

void com.realtime.crossfire.jxclient.queue.CommandQueue.addToRepeatCount ( final int digit )

Adds a digit to the current repeat count.

Parameters

digit the digit (0-9) to add

Definition at line 170 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.repeatCount.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress().

Here is the caller graph for this function:

◆ checkFire()

boolean com.realtime.crossfire.jxclient.queue.CommandQueue.checkFire ( )

Returns whether the character is firing.

Returns: whether the character is firing MethodMayBeStatic

Definition at line 254 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.cmdRequest().

Here is the caller graph for this function:

◆ checkRun()

boolean com.realtime.crossfire.jxclient.queue.CommandQueue.checkRun ( )

Returns whether the character is running.

Returns: whether the character is running

Definition at line 243 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.isRunning, and com.realtime.crossfire.jxclient.queue.CommandQueue.pendingCommands.

Referenced by com.realtime.crossfire.jxclient.scripts.DefaultScriptProcess.cmdRequest().

Here is the caller graph for this function:

◆ clear()

void com.realtime.crossfire.jxclient.queue.CommandQueue.clear ( )

private

Forgets about sent commands.

Definition at line 178 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.isRunning, com.realtime.crossfire.jxclient.queue.CommandQueue.pendingCommands, and com.realtime.crossfire.jxclient.queue.CommandQueue.resetRepeatCount().

Here is the call graph for this function:

◆ getRepeatCount()

int com.realtime.crossfire.jxclient.queue.CommandQueue.getRepeatCount ( )

private

Returns the current repeat count and reset it to zero.

Returns: the current repeat count

Definition at line 153 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.repeatCount, and com.realtime.crossfire.jxclient.queue.CommandQueue.resetRepeatCount().

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.sendMove(), and com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom().

Here is the call graph for this function:

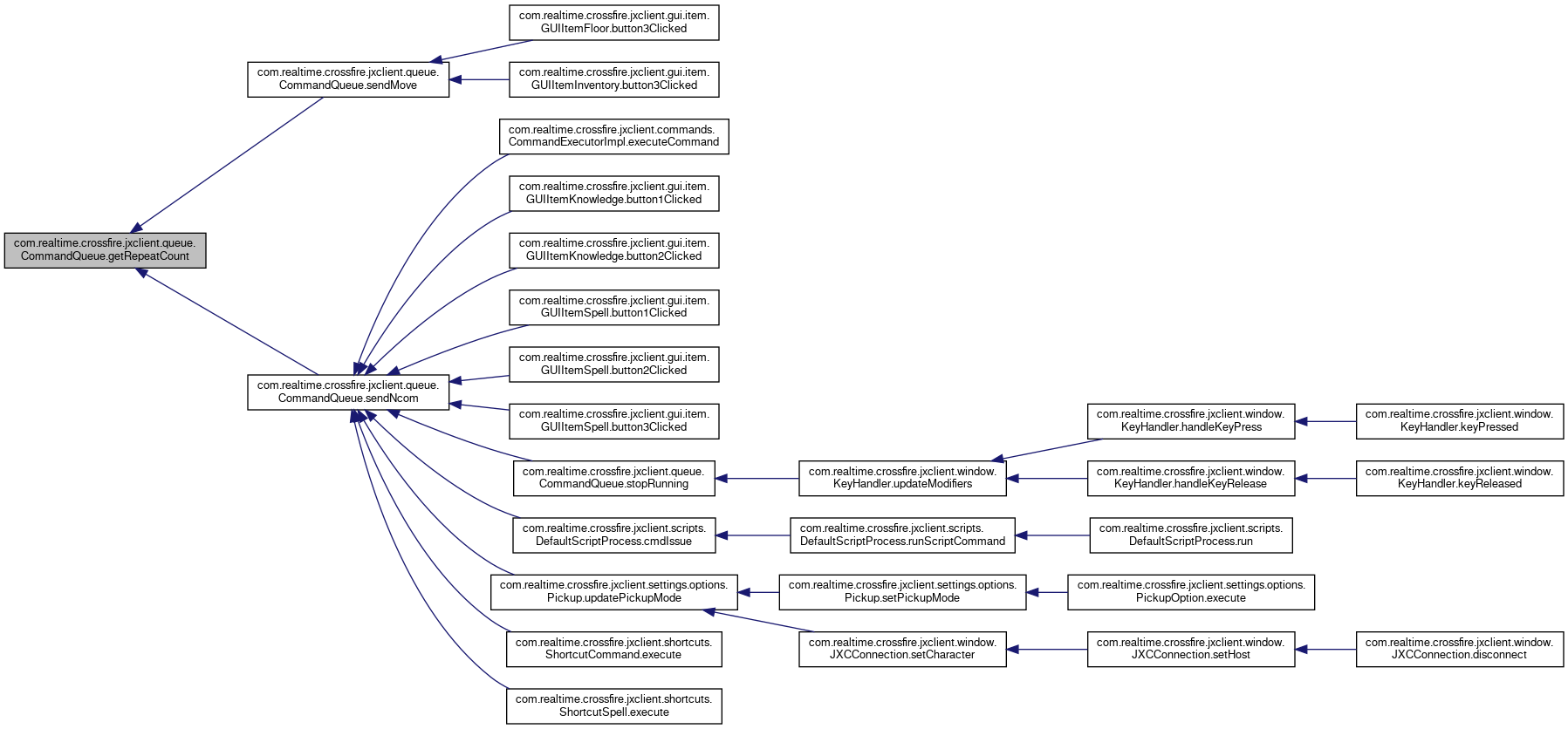

Here is the caller graph for this function:

◆ resetRepeatCount()

void com.realtime.crossfire.jxclient.queue.CommandQueue.resetRepeatCount ( )

Resets the current repeat count to zero.

Definition at line 162 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.repeatCount.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.clear(), and com.realtime.crossfire.jxclient.queue.CommandQueue.getRepeatCount().

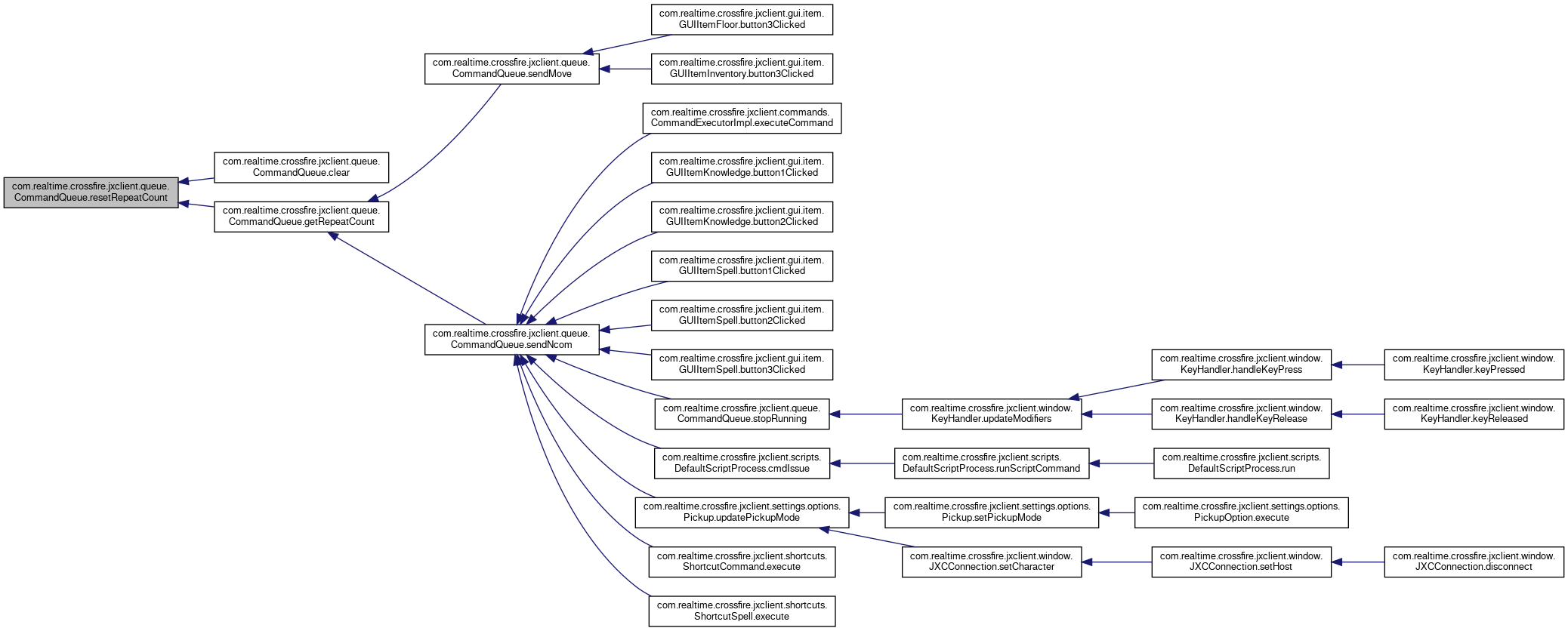

Here is the caller graph for this function:

◆ sendMove()

void com.realtime.crossfire.jxclient.queue.CommandQueue.sendMove	(	final int	to,
		final int	tag
	)

Sends a "move" command to the server.

The repeat count value is the client's current repeat count.

Parameters

to	the destination location
tag	the item to move

Definition at line 264 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.crossfireServerConnection, com.realtime.crossfire.jxclient.queue.CommandQueue.getRepeatCount(), and com.realtime.crossfire.jxclient.server.crossfire.CrossfireServerConnection.sendMove().

Referenced by com.realtime.crossfire.jxclient.gui.item.GUIItemFloor.button3Clicked(), and com.realtime.crossfire.jxclient.gui.item.GUIItemInventory.button3Clicked().

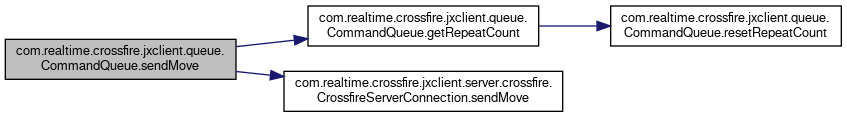

Here is the call graph for this function:

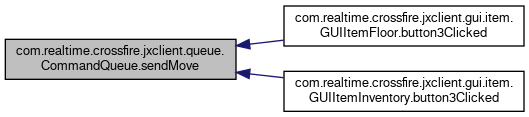

Here is the caller graph for this function:

◆ sendNcom() [1/2]

void com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom	(	final boolean	mustSend,
		@NotNull final String	command
	)

Sends an "ncom" command to the server.

This function uses the default repeat count.

Parameters

mustSend	if set, always send the command; if unset, drop the command if the command queue is full
command	the command to send

See also: #sendNcom(boolean, int, String)

Definition at line 194 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.getRepeatCount().

Here is the call graph for this function:

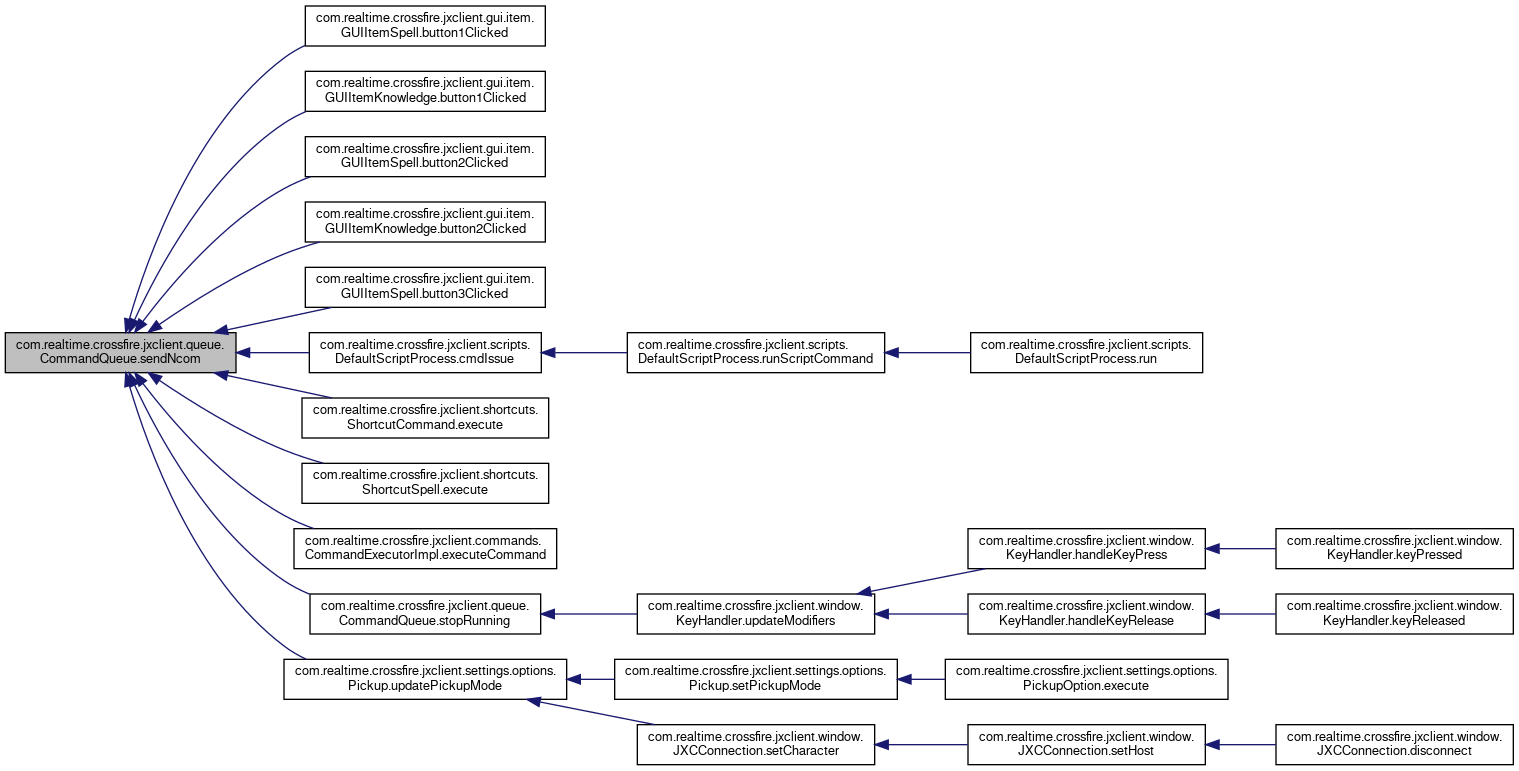

Here is the caller graph for this function:

◆ sendNcom() [2/2]

void com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom	(	final boolean	mustSend,
		final int	repeat,
		@NotNull final String	command
	)

Sends an "ncom" command to the server.

Parameters

mustSend	if set, always send the command; if unset, drop the command if the command queue is full
repeat	the repeat count
command	the command to send

See also: #sendNcom(boolean, String)

Definition at line 206 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.crossfireServerConnection, com.realtime.crossfire.jxclient.queue.CommandQueue.isRunning, com.realtime.crossfire.jxclient.queue.CommandQueue.MAX_PENDING_COMMANDS, com.realtime.crossfire.jxclient.queue.CommandQueue.pendingCommands, and com.realtime.crossfire.jxclient.server.crossfire.CrossfireServerConnection.sendNcom().

Here is the call graph for this function:

◆ stopRunning()

boolean com.realtime.crossfire.jxclient.queue.CommandQueue.stopRunning ( )

Tells the server to stop running.

If the character is not running, does nothing.

Returns: whether running was active

Definition at line 228 of file CommandQueue.java.

References com.realtime.crossfire.jxclient.queue.CommandQueue.isRunning, com.realtime.crossfire.jxclient.queue.CommandQueue.pendingCommands, and com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom().

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.updateModifiers().

Here is the call graph for this function:

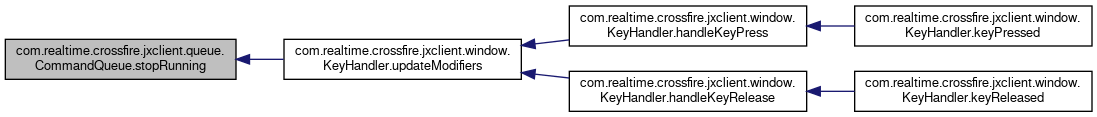

Here is the caller graph for this function:

Member Data Documentation

◆ crossfireComcListener

final CrossfireComcListener com.realtime.crossfire.jxclient.queue.CommandQueue.crossfireComcListener

private

Initial value:

= (packetNo, time) -> {
        synchronized (pendingCommands) {
            final int index = pendingCommands.indexOf(packetNo);
            if (index == -1) {
                System.err.println("Error: got unexpected comc command #"+packetNo);
                return;
            }
            if (index > 0) {
                System.err.println("Warning: got out of order comc command #"+packetNo);
            }
            for (int i = 0; i <= index; i++) {
                pendingCommands.remove(0);
            }
        }
    }

The listener to track comc commands.

Definition at line 75 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.CommandQueue().

◆ crossfireServerConnection

final CrossfireServerConnection com.realtime.crossfire.jxclient.queue.CommandQueue.crossfireServerConnection

private

The server connection for sending ncom commands.

Definition at line 49 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.CommandQueue(), com.realtime.crossfire.jxclient.queue.CommandQueue.sendMove(), and com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom().

◆ guiStateListener

final GuiStateListener com.realtime.crossfire.jxclient.queue.CommandQueue.guiStateListener

private

The GuiStateListener for detecting established or dropped connections.

Definition at line 98 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.CommandQueue().

◆ isRunning

boolean com.realtime.crossfire.jxclient.queue.CommandQueue.isRunning

private

Whether a "run" command has been sent without a following "run_stop" command.

Definition at line 68 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.checkRun(), com.realtime.crossfire.jxclient.queue.CommandQueue.clear(), com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom(), and com.realtime.crossfire.jxclient.queue.CommandQueue.stopRunning().

◆ MAX_PENDING_COMMANDS

final int com.realtime.crossfire.jxclient.queue.CommandQueue.MAX_PENDING_COMMANDS = 10

staticprivate

Maximum number of pending commands sent to the server.

Excess commands will be dropped.

Definition at line 43 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom().

◆ pendingCommands

final List<Integer> com.realtime.crossfire.jxclient.queue.CommandQueue.pendingCommands = new LinkedList<>()

private

Records command ids of commands sent to the server for which no comc commands has been received.

Note that the size may be larger than MAX_PENDING_COMMANDS due to "must send" commands.

Definition at line 57 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.checkRun(), com.realtime.crossfire.jxclient.queue.CommandQueue.clear(), com.realtime.crossfire.jxclient.queue.CommandQueue.sendNcom(), and com.realtime.crossfire.jxclient.queue.CommandQueue.stopRunning().

◆ repeatCount

int com.realtime.crossfire.jxclient.queue.CommandQueue.repeatCount

private

The default repeat counter for ncom commands.

Definition at line 62 of file CommandQueue.java.

Referenced by com.realtime.crossfire.jxclient.queue.CommandQueue.addToRepeatCount(), com.realtime.crossfire.jxclient.queue.CommandQueue.getRepeatCount(), and com.realtime.crossfire.jxclient.queue.CommandQueue.resetRepeatCount().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/gui/src/main/java/com/realtime/crossfire/jxclient/queue/CommandQueue.java
