Handles keyboard input processing. More...

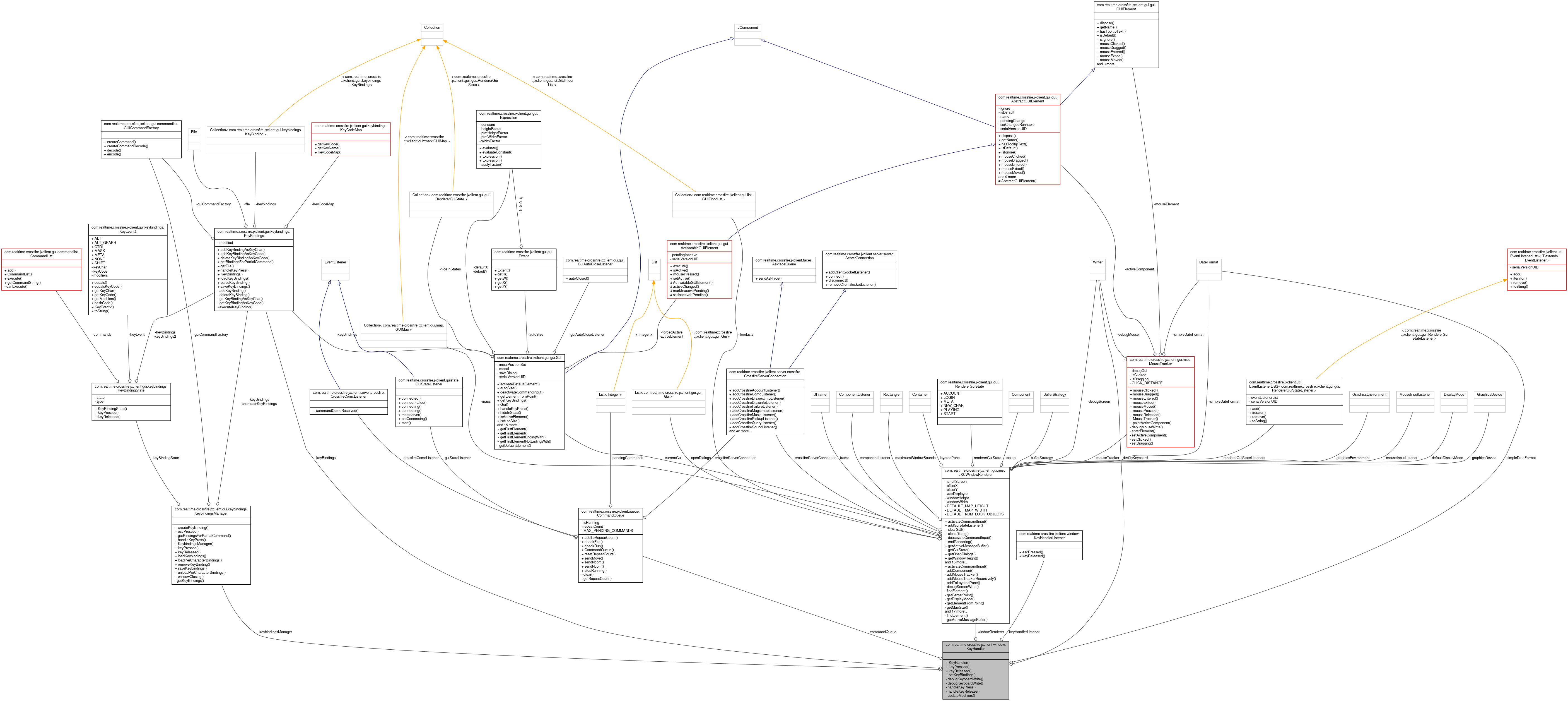

Collaboration diagram for com.realtime.crossfire.jxclient.window.KeyHandler:

Public Member Functions
	KeyHandler (@Nullable final Writer debugKeyboard, @NotNull final KeybindingsManager keybindingsManager, @NotNull final CommandQueue commandQueue, @NotNull final JXCWindowRenderer windowRenderer, @NotNull final KeyHandlerListener keyHandlerListener)
	Creates a new instance. More...

void	keyPressed (@NotNull final KeyEvent e)
	Handles a "key pressed" event. More...

void	keyReleased (@NotNull final KeyEvent e)
	Handles a "key released" event. More...

void	setKeyBindings (@NotNull final KeyBindings keyBindings)
	Sets the active KeyBindings. More...

Private Member Functions
void	debugKeyboardWrite (@NotNull final String type, @NotNull final KeyEvent keyEvent, @NotNull final KeyEvent2 keyEvent2)
	Writes a KeyEvent to the keyboard debug. More...

void	debugKeyboardWrite (@NotNull final CharSequence message)
	Writes a message to the keyboard debug. More...

void	handleKeyPress (@NotNull final KeyEvent2 e)
	Handles a "key pressed" event. More...

void	handleKeyRelease (@NotNull final KeyEvent2 e)
	Handles a "key released" event. More...

void	updateModifiers (@NotNull final KeyEvent2 keyEvent)
	Updates the saved modifier state from a key event. More...

Private Attributes
final CommandQueue	commandQueue
	The CommandQueue to use. More...

final Writer	debugKeyboard
	The Writer for logging keyboard debug output. More...

KeyBindings	keyBindings
	The active KeyBindings. More...

final KeybindingsManager	keybindingsManager
	The KeybindingsManager to use. More...

final KeyHandlerListener	keyHandlerListener
	The KeyHandlerListener to notify. More...

final DateFormat	simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss,SSS ")
	A formatter for timestamps. More...

final JXCWindowRenderer	windowRenderer
	The JXCWindowRenderer to use. More...

Detailed Description

Handles keyboard input processing.

Author: Lauwenmark; Andreas Kirschbaum

Definition at line 44 of file KeyHandler.java.

Constructor & Destructor Documentation

◆ KeyHandler()

com.realtime.crossfire.jxclient.window.KeyHandler.KeyHandler	(	@Nullable final Writer	debugKeyboard,
		@NotNull final KeybindingsManager	keybindingsManager,
		@NotNull final CommandQueue	commandQueue,
		@NotNull final JXCWindowRenderer	windowRenderer,
		@NotNull final KeyHandlerListener	keyHandlerListener
	)

Creates a new instance.

Parameters

debugKeyboard	the writer for logging keyboard debug output; may
keybindingsManager	the keybindings manager to use
commandQueue	the command queue to use
windowRenderer	the window renderer to use
keyHandlerListener	the key handler listener to notify

Definition at line 98 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.commandQueue, com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboard, com.realtime.crossfire.jxclient.window.KeyHandler.keybindingsManager, com.realtime.crossfire.jxclient.window.KeyHandler.keyHandlerListener, and com.realtime.crossfire.jxclient.window.KeyHandler.windowRenderer.

Member Function Documentation

◆ debugKeyboardWrite() [1/2]

void com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite	(	@NotNull final String	type,
		@NotNull final KeyEvent	keyEvent,
		@NotNull final KeyEvent2	keyEvent2
	)

private

Writes a KeyEvent to the keyboard debug.

Parameters

type	the event type
keyEvent	the key event to write
keyEvent2	the key event to write

Definition at line 307 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboard.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyRelease(), com.realtime.crossfire.jxclient.window.KeyHandler.keyPressed(), com.realtime.crossfire.jxclient.window.KeyHandler.keyReleased(), and com.realtime.crossfire.jxclient.window.KeyHandler.updateModifiers().

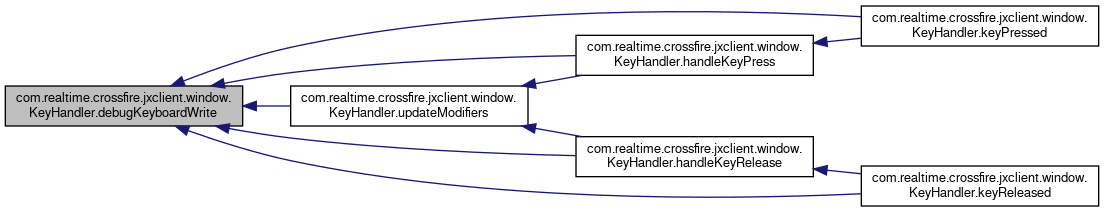

Here is the caller graph for this function:

◆ debugKeyboardWrite() [2/2]

void com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite ( @NotNull final CharSequence message )

private

Writes a message to the keyboard debug.

Parameters

message the message to write

Definition at line 319 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboard, and com.realtime.crossfire.jxclient.window.KeyHandler.simpleDateFormat.

◆ handleKeyPress()

void com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress ( @NotNull final KeyEvent2 e )

private

Handles a "key pressed" event.

Parameters

e	the key event to handle

Definition at line 119 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.keyPressed().

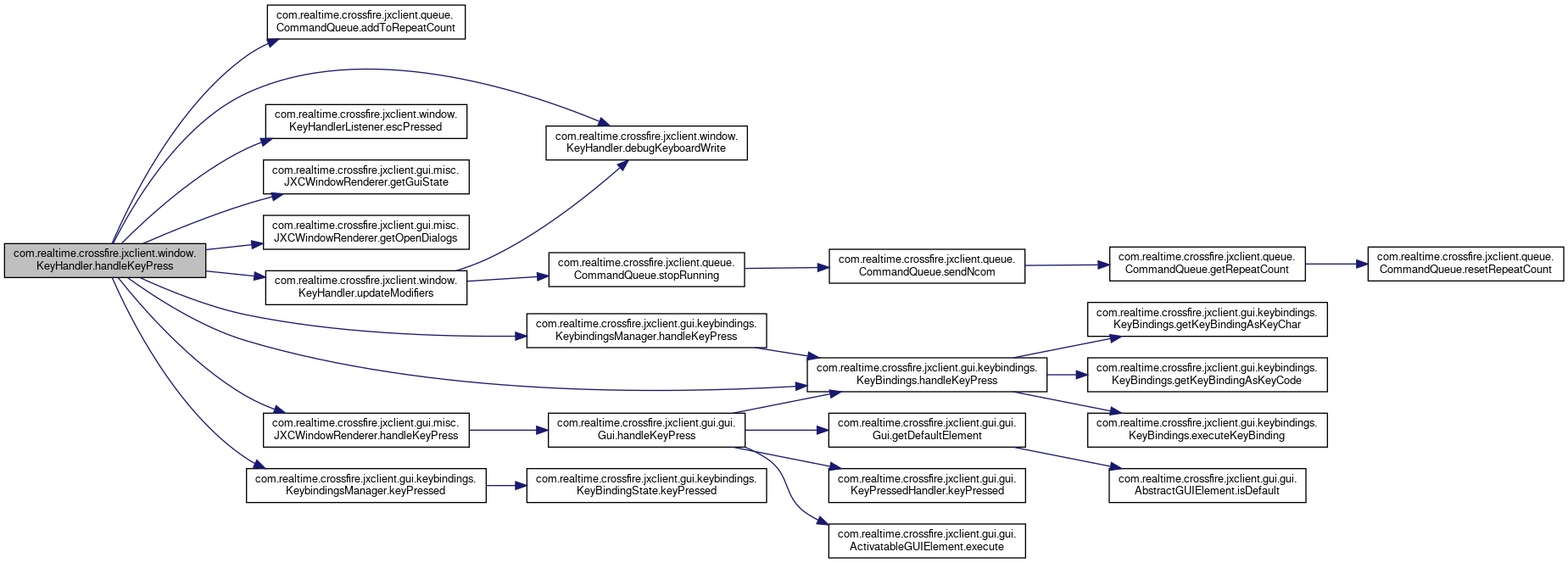

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleKeyRelease()

void com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyRelease ( @NotNull final KeyEvent2 e )

private

Handles a "key released" event.

Parameters

e	the key event to handle

Definition at line 237 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite(), com.realtime.crossfire.jxclient.window.KeyHandler.keybindingsManager, com.realtime.crossfire.jxclient.window.KeyHandler.keyHandlerListener, com.realtime.crossfire.jxclient.window.KeyHandlerListener.keyReleased(), com.realtime.crossfire.jxclient.gui.keybindings.KeybindingsManager.keyReleased(), and com.realtime.crossfire.jxclient.window.KeyHandler.updateModifiers().

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.keyReleased().

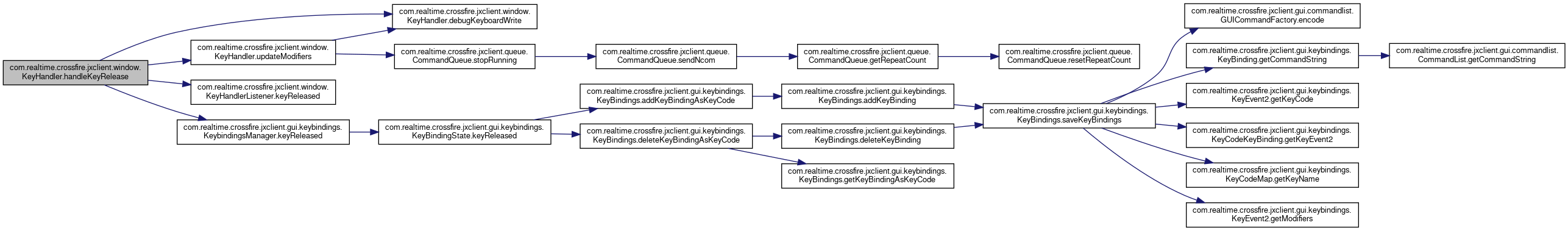

Here is the call graph for this function:

Here is the caller graph for this function:

◆ keyPressed()

void com.realtime.crossfire.jxclient.window.KeyHandler.keyPressed ( @NotNull final KeyEvent e )

Handles a "key pressed" event.

Parameters

e	the key event to handle

Definition at line 267 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite(), and com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress().

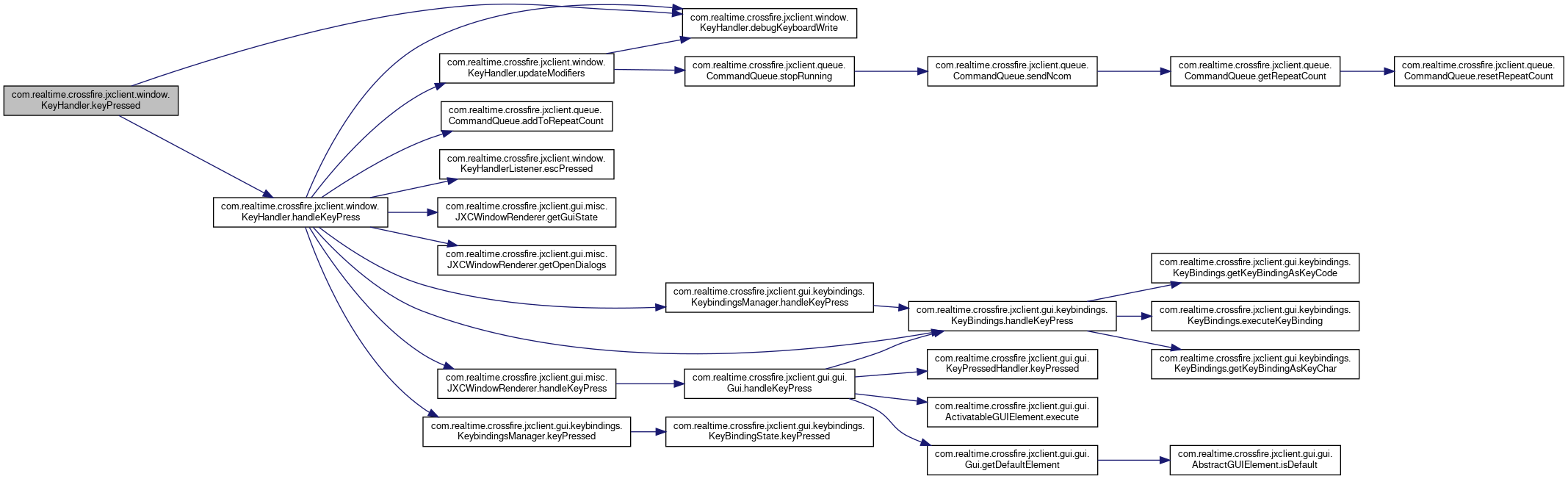

Here is the call graph for this function:

◆ keyReleased()

void com.realtime.crossfire.jxclient.window.KeyHandler.keyReleased ( @NotNull final KeyEvent e )

Handles a "key released" event.

Parameters

e	the key event to handle

Definition at line 281 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite(), and com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyRelease().

Here is the call graph for this function:

◆ setKeyBindings()

void com.realtime.crossfire.jxclient.window.KeyHandler.setKeyBindings ( @NotNull final KeyBindings keyBindings )

Sets the active KeyBindings.

Parameters

keyBindings

the key bindings or

null

to unset

Definition at line 111 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.keyBindings.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.init().

Here is the caller graph for this function:

◆ updateModifiers()

void com.realtime.crossfire.jxclient.window.KeyHandler.updateModifiers ( @NotNull final KeyEvent2 keyEvent )

private

Updates the saved modifier state from a key event.

Parameters

keyEvent the key event to process

Definition at line 295 of file KeyHandler.java.

References com.realtime.crossfire.jxclient.window.KeyHandler.commandQueue, com.realtime.crossfire.jxclient.gui.keybindings.KeyEvent2.CTRL, com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite(), and com.realtime.crossfire.jxclient.queue.CommandQueue.stopRunning().

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), and com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyRelease().

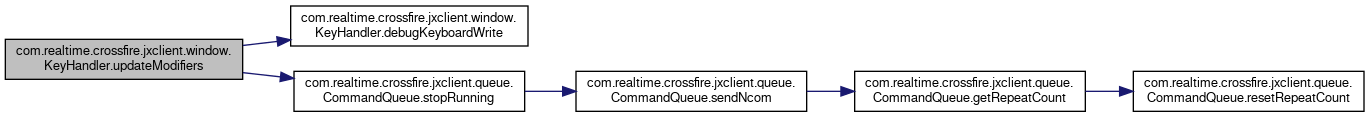

Here is the call graph for this function:

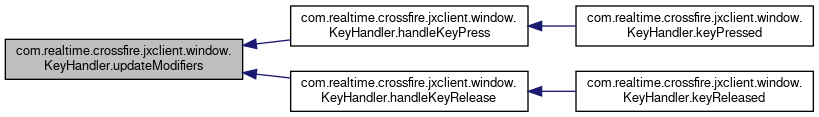

Here is the caller graph for this function:

Member Data Documentation

◆ commandQueue

final CommandQueue com.realtime.crossfire.jxclient.window.KeyHandler.commandQueue

private

The CommandQueue to use.

Definition at line 63 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), com.realtime.crossfire.jxclient.window.KeyHandler.KeyHandler(), and com.realtime.crossfire.jxclient.window.KeyHandler.updateModifiers().

◆ debugKeyboard

final Writer com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboard

private

The Writer for logging keyboard debug output.

Log nothing if

null

.

Definition at line 51 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite(), and com.realtime.crossfire.jxclient.window.KeyHandler.KeyHandler().

◆ keyBindings

KeyBindings com.realtime.crossfire.jxclient.window.KeyHandler.keyBindings

private

The active KeyBindings.

Set to

null

when no key bindings are active.

Definition at line 88 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), and com.realtime.crossfire.jxclient.window.KeyHandler.setKeyBindings().

◆ keybindingsManager

final KeybindingsManager com.realtime.crossfire.jxclient.window.KeyHandler.keybindingsManager

private

The KeybindingsManager to use.

Definition at line 57 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyRelease(), and com.realtime.crossfire.jxclient.window.KeyHandler.KeyHandler().

◆ keyHandlerListener

final KeyHandlerListener com.realtime.crossfire.jxclient.window.KeyHandler.keyHandlerListener

private

The KeyHandlerListener to notify.

Definition at line 75 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyRelease(), and com.realtime.crossfire.jxclient.window.KeyHandler.KeyHandler().

◆ simpleDateFormat

final DateFormat com.realtime.crossfire.jxclient.window.KeyHandler.simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss,SSS ")

private

A formatter for timestamps.

Definition at line 81 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.debugKeyboardWrite().

◆ windowRenderer

final JXCWindowRenderer com.realtime.crossfire.jxclient.window.KeyHandler.windowRenderer

private

The JXCWindowRenderer to use.

Definition at line 69 of file KeyHandler.java.

Referenced by com.realtime.crossfire.jxclient.window.KeyHandler.handleKeyPress(), and com.realtime.crossfire.jxclient.window.KeyHandler.KeyHandler().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/gui/src/main/java/com/realtime/crossfire/jxclient/window/KeyHandler.java
