#include "client.h"
#include <assert.h>
#include <stdbool.h>
#include "external.h"
#include "mapdata.h"

Include dependency graph for mapdata.c:

Data Structures
struct	BigCell
	The struct BigCell describes a tile outside the view area. More...

Macros
#define	CURRENT_MAX_VIEW 33

#define	FOG_BORDER_MIN 128
	After shifting the virtual map: new minimum distance of the view area to the new virtual map border. More...

#define	FOG_MAP_SIZE 512
	Size of virtual map. More...

#define	MAX_FACE_SIZE 16
	Maximum size of a big face image in tiles. More...

Functions
static void	clear_cells (int x, int y, int len_y)
	Clear cells the_map.cells[x][y..y+len_y-1]. More...

void	clear_move_to ()

static void	expand_clear_bigface (int x, int y, int w, int h, int layer, int set_need_update)
	Clear a face from bigfaces[]. More...

static void	expand_clear_bigface_from_layer (int x, int y, int layer, int set_need_update)
	Clear a face from bigfaces[]. More...

static void	expand_clear_face (int x, int y, int w, int h, int layer)
	Clear a face from the_map.cells[]. More...

static void	expand_clear_face_from_layer (int x, int y, int layer)
	Clear a face from the_map.cells[]. More...

static void	expand_need_update (int x, int y, int w, int h)
	Mark a face as "need_update". More...

static void	expand_need_update_from_layer (int x, int y, int layer)
	Mark a face as "need_update". More...

static void	expand_set_bigface (int x, int y, int layer, gint16 face, int clear)
	Update a face into bigfaces[]. More...

static void	expand_set_face (int x, int y, int layer, gint16 face, int clear)
	Update a face into the_map.cells[]. More...

bool	is_at_moveto ()

void	mapdata_add_label (int x, int y, int subtype, const char *label)

static void	mapdata_alloc (struct Map *const map, const int width, const int height)
	Allocate and set up pointers for a map, with cells represented as a C-style multi-dimensional array. More...

void	mapdata_animation (void)

gint16	mapdata_bigface (int x, int y, int layer, int ww, int hh)
	Return the face number of a multi-square pixmap at the given map tile. More...

gint16	mapdata_bigface_head (int x, int y, int layer, int ww, int hh)

bool	mapdata_can_smooth (int x, int y, int layer)

struct MapCell *	mapdata_cell (const int x, const int y)
	Get the stored map cell at the given map coordinate. More...

void	mapdata_clear (int x, int y)
	Mark the given cell as cleared in response to a Map2 clear command. More...

void	mapdata_clear_label (int px, int py)

void	mapdata_clear_old (int x, int y)
	Prepare a map cell, which may contain old fog of war data, for new visible map data. More...

void	mapdata_clear_space (int x, int y)

bool	mapdata_contains (int x, int y)
	Determine whether the map data contains the given cell. More...

gint16	mapdata_face (int x, int y, int layer)
	Return the face number of a single-square pixmap at the given map tile. More...

gint16	mapdata_face_info (int mx, int my, int layer, int dx, int dy)
	Return the face number of the pixmap in the given map cell and set the offset pointers to indicate where to correctly draw the face. More...

void	mapdata_free (void)
	Deallocate map data. More...

static void	mapdata_get_image_size (int face, guint8 w, guint8 h)
	Return the size of a face in tiles. More...

static bool	mapdata_has_tile (int x, int y, int layer)
	Check if the given map tile is a valid slot in the map array. More...

static void	mapdata_init (void)

int	mapdata_is_inside (int x, int y)
	Checks whether the given coordinates are within the current display size (as set by mapdata_set_size). More...

void	mapdata_newmap (void)
	Clears the map view. More...

void	mapdata_scroll (int dx, int dy)
	Scrolls the map view. More...

void	mapdata_set_anim_layer (int x, int y, guint16 anim, guint8 anim_speed, int layer)

void	mapdata_set_check_space (int x, int y)

void	mapdata_set_darkness (int x, int y, int darkness)

void	mapdata_set_face_layer (int x, int y, gint16 face, int layer)

void	mapdata_set_size (int viewx, int viewy)
	Initializes the module. More...

void	mapdata_set_smooth (int x, int y, guint8 smooth, int layer)

void	mapdata_size (int x, int y)
	Determine the size of the internal fog-of-war map. More...

static void	mark_resmooth (int x, int y, int layer)

void	pl_mpos (int px, int py)
	Compute player position in map coordinates. More...

static void	recenter_virtual_map_view (int diff_x, int diff_y)
	Check if current map position is out of bounds if shifted by (dx, dy). More...

void	run_move_to ()

static void	set_darkness (int x, int y, int darkness)
	Update darkness information. More...

void	set_move_to (int dx, int dy)

Variables
static struct BigCell	bigfaces [MAX_VIEW][MAX_VIEW][MAXLAYERS]
	The variable bigfaces[] contains information about big faces (faces with a width or height >1). More...

static struct BigCell *	bigfaces_head
	Contains the head of a list of all currently active big faces outside the view area. More...

int	global_offset_x = 0

int	global_offset_y = 0

static int	height

bool	move_to_attack = false

int	move_to_x = 0
	Move to coordinates on the current map. More...

int	move_to_y = 0

PlayerPosition	pl_pos
	Position of the player on the internal map. More...

PlayerPosition	script_pos
	Position of the player reported to client scripts. More...

static struct Map	the_map

int	want_offset_x = 0

int	want_offset_y = 0

static int	width

Detailed Description

Map processing functions.

Definition in file mapdata.c.

Macro Definition Documentation

◆ CURRENT_MAX_VIEW

#define CURRENT_MAX_VIEW 33

Definition at line 63 of file mapdata.c.

◆ FOG_BORDER_MIN

#define FOG_BORDER_MIN 128

After shifting the virtual map: new minimum distance of the view area to the new virtual map border.

Definition at line 51 of file mapdata.c.

◆ FOG_MAP_SIZE

#define FOG_MAP_SIZE 512

Size of virtual map.

Definition at line 45 of file mapdata.c.

◆ MAX_FACE_SIZE

#define MAX_FACE_SIZE 16

Maximum size of a big face image in tiles.

Larger faces will be clipped top/left.

Definition at line 56 of file mapdata.c.

Function Documentation

◆ clear_cells()

static void clear_cells	(	int	x,
		int	y,
		int	len_y
	)

static

Clear cells the_map.cells[x][y..y+len_y-1].

Definition at line 121 of file mapdata.c.

References MapCell::heads, mapdata_cell(), MAXLAYERS, MapCellLayer::size_x, and MapCellLayer::size_y.

Referenced by mapdata_init(), mapdata_newmap(), and recenter_virtual_map_view().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear_move_to()

void clear_move_to ( )

Definition at line 1510 of file mapdata.c.

References move_to_attack, move_to_x, and move_to_y.

Referenced by mapdata_newmap(), run_move_to(), and send_command().

Here is the caller graph for this function:

◆ expand_clear_bigface()

static void expand_clear_bigface	(	int	x,
		int	y,
		int	w,
		int	h,
		int	layer,
		int	set_need_update
	)

static

Clear a face from bigfaces[].

x, y, and layer are the coordinates and layer of the head relative to pl_pos.

w and h give the width and height of the face to clear.

If set_need_update is set, all affected tiles are marked as "need_update".

Definition at line 371 of file mapdata.c.

References bigfaces, MapCellLayer::face, MapCellTailLayer::face, BigCell::head, Map::height, height, mapdata_cell(), MAX_FACE_SIZE, MAX_VIEW, MAXLAYERS, MapCell::need_update, pl_pos, MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, BigCell::tail, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by expand_clear_bigface_from_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_clear_bigface_from_layer()

static void expand_clear_bigface_from_layer	(	int	x,
		int	y,
		int	layer,
		int	set_need_update
	)

static

Clear a face from bigfaces[].

x, y, and layer are the coordinates and layer of the head relative to pl_pos.

If set_need_update is set, all affected tiles are marked as "need_update".

Definition at line 425 of file mapdata.c.

References bigfaces, bigfaces_head, expand_clear_bigface(), MapCellLayer::face, BigCell::head, MAX_VIEW, MAXLAYERS, BigCell::next, BigCell::prev, MapCellLayer::size_x, and MapCellLayer::size_y.

Referenced by expand_set_bigface(), mapdata_newmap(), and mapdata_scroll().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_clear_face()

static void expand_clear_face	(	int	x,
		int	y,
		int	w,
		int	h,
		int	layer
	)

static

Clear a face from the_map.cells[].

x, y, and layer are the coordinates of the head and layer relative to pl_pos.

w and h give the width and height of the face to clear.

Definition at line 238 of file mapdata.c.

References MapCellLayer::animation, MapCellLayer::animation_left, MapCellLayer::animation_phase, MapCellLayer::animation_speed, MapCellLayer::face, MapCellTailLayer::face, MapCell::heads, Map::height, mapdata_cell(), mark_resmooth(), MAX_FACE_SIZE, MAXLAYERS, MapCell::need_resmooth, MapCell::need_update, MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, MapCell::tails, the_map, and Map::width.

Referenced by expand_clear_face_from_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_clear_face_from_layer()

static void expand_clear_face_from_layer	(	int	x,
		int	y,
		int	layer
	)

static

Clear a face from the_map.cells[].

x, y, and layer are the coordinates of the head and layer relative to pl_pos.

Definition at line 293 of file mapdata.c.

References expand_clear_face(), MapCell::heads, Map::height, mapdata_cell(), MAXLAYERS, MapCellLayer::size_x, MapCellLayer::size_y, the_map, and Map::width.

Referenced by expand_set_face(), mapdata_animation(), mapdata_bigface(), mapdata_clear_old(), mapdata_set_anim_layer(), and mapdata_set_face_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_need_update()

static void expand_need_update	(	int	x,
		int	y,
		int	w,
		int	h
	)

static

Mark a face as "need_update".

x and y are the coordinates of the head relative to pl_pos.

w and h is the size of the face.

Definition at line 536 of file mapdata.c.

References Map::height, mapdata_cell(), MAX_FACE_SIZE, MapCell::need_update, the_map, and Map::width.

Referenced by expand_need_update_from_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_need_update_from_layer()

static void expand_need_update_from_layer	(	int	x,
		int	y,
		int	layer
	)

static

Mark a face as "need_update".

x, y, and layer are the coordinates and layer of the head relative to pl_pos.

Definition at line 564 of file mapdata.c.

References expand_need_update(), MapCellLayer::face, MapCell::heads, Map::height, mapdata_cell(), MAXLAYERS, MapCellLayer::size_x, MapCellLayer::size_y, the_map, and Map::width.

Referenced by mapdata_clear().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_set_bigface()

static void expand_set_bigface	(	int	x,
		int	y,
		int	layer,
		gint16	face,
		int	clear
	)

static

Update a face into bigfaces[].

x, y, and layer are the coordinates and layer of the head relative to pl_pos.

face is the new face to set.

Definition at line 471 of file mapdata.c.

References bigfaces, bigfaces_head, expand_clear_bigface_from_layer(), MapCellLayer::face, MapCellTailLayer::face, BigCell::head, Map::height, height, mapdata_cell(), mapdata_get_image_size(), MAX_FACE_SIZE, MAX_VIEW, MAXLAYERS, MapCell::need_update, BigCell::next, pl_pos, BigCell::prev, MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, BigCell::tail, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by mapdata_animation(), mapdata_clear_space(), mapdata_set_anim_layer(), and mapdata_set_face_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_set_face()

static void expand_set_face	(	int	x,
		int	y,
		int	layer,
		gint16	face,
		int	clear
	)

static

Update a face into the_map.cells[].

x, y, and layer are the coordinates and layer of the head relative to pl_pos.

face is the new face to set. if clear is set, clear this face. If not set, don't clear. the reason clear may not be set is because this is an animation update - animations must all be the same size, so when we set the data for the space, we will just overwrite the old data. Problem with clearing is that clobbers the animation data.

Definition at line 320 of file mapdata.c.

References expand_clear_face_from_layer(), MapCellLayer::face, MapCellTailLayer::face, MapCell::heads, Map::height, mapdata_cell(), mapdata_get_image_size(), mark_resmooth(), MAX_FACE_SIZE, MAXLAYERS, MapCell::need_update, MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, MapCell::tails, the_map, and Map::width.

Referenced by mapdata_animation(), mapdata_set_anim_layer(), and mapdata_set_face_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_at_moveto()

bool is_at_moveto ( )

Definition at line 1516 of file mapdata.c.

References move_to_x, move_to_y, and pl_mpos().

Referenced by draw_move_to(), and run_move_to().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_add_label()

void mapdata_add_label	(	int	x,
		int	y,
		int	subtype,
		const char *	label
	)

Definition at line 806 of file mapdata.c.

References Map::height, height, MapCell::label, MapLabel::label, mapdata_cell(), mapdata_clear_label(), MAX_VIEW, MapCell::need_update, pl_pos, MapLabel::subtype, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_alloc()

static void mapdata_alloc	(	struct Map *const	map,
		const int	width,
		const int	height
	)

static

Allocate and set up pointers for a map, with cells represented as a C-style multi-dimensional array.

Definition at line 585 of file mapdata.c.

References height, map, and width.

Referenced by mapdata_init().

Here is the caller graph for this function:

◆ mapdata_animation()

void mapdata_animation ( void )

Definition at line 1400 of file mapdata.c.

References MapCellLayer::animation, MapCellLayer::animation_left, MapCellLayer::animation_phase, MapCellLayer::animation_speed, animations, bigfaces, CURRENT_MAX_VIEW, expand_clear_face_from_layer(), expand_set_bigface(), expand_set_face(), MapCellLayer::face, Animations::faces, BigCell::head, MapCell::heads, height, mapdata_cell(), MAXANIM, MAXLAYERS, MIN, Animations::num_animations, Animations::phase, pl_pos, Animations::speed_left, MapCell::state, VISIBLE, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by client_tick().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_bigface()

gint16 mapdata_bigface	(	int	x,
		int	y,
		int	layer,
		int *	ww,
		int *	hh
	)

Return the face number of a multi-square pixmap at the given map tile.

Returns the face to display at a given location.

Parameters

x	X-coordinate of tile on-screen
y	Y-coordinate of tile on-screen
layer
ww
hh

Returns: Pixmap face number, or zero if the tile does not exist

Definition at line 1113 of file mapdata.c.

References bigfaces, expand_clear_face_from_layer(), MapCellLayer::face, MapCellTailLayer::face, FOG, BigCell::head, MapCell::heads, height, mapdata_cell(), mapdata_has_tile(), MAX_FACE_SIZE, pl_pos, MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, MapCell::state, BigCell::tail, MapCell::tails, width, PlayerPosition::x, and PlayerPosition::y.

Here is the call graph for this function:

◆ mapdata_bigface_head()

gint16 mapdata_bigface_head	(	int	x,
		int	y,
		int	layer,
		int *	ww,
		int *	hh
	)

Definition at line 1194 of file mapdata.c.

References bigfaces, MapCellLayer::face, BigCell::head, mapdata_has_tile(), MapCellLayer::size_x, and MapCellLayer::size_y.

Here is the call graph for this function:

◆ mapdata_can_smooth()

bool mapdata_can_smooth	(	int	x,
		int	y,
		int	layer
	)

Definition at line 154 of file mapdata.c.

References MapCell::heads, mapdata_cell(), and MapCell::smooth.

Referenced by drawsmooth().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_cell()

struct MapCell* mapdata_cell	(	const int	x,
		const int	y
	)

inline

Get the stored map cell at the given map coordinate.

Definition at line 139 of file mapdata.c.

References Map::_cells, and the_map.

Referenced by clear_cells(), drawsmooth(), expand_clear_bigface(), expand_clear_face(), expand_clear_face_from_layer(), expand_need_update(), expand_need_update_from_layer(), expand_set_bigface(), expand_set_face(), ExtSmooth(), map_draw_labels(), map_draw_layer(), mapcell_darkness(), mapdata_add_label(), mapdata_animation(), mapdata_bigface(), mapdata_can_smooth(), mapdata_clear(), mapdata_clear_label(), mapdata_clear_old(), mapdata_face(), mapdata_face_info(), mapdata_newmap(), mapdata_scroll(), mapdata_set_anim_layer(), mapdata_set_check_space(), mapdata_set_face_layer(), mapdata_set_smooth(), mark_resmooth(), recenter_virtual_map_view(), send_map(), and set_darkness().

Here is the caller graph for this function:

◆ mapdata_clear()

void mapdata_clear	(	int	x,
		int	y
	)

Mark the given cell as cleared in response to a Map2 clear command.

While the server shouldn't be clearing cells it didn't send, in practice we sometimes do clearing ourselves (e.g. when we scroll the map).

Definition at line 195 of file mapdata.c.

References EMPTY, expand_need_update_from_layer(), FOG, MapCell::heads, Map::height, mapdata_cell(), mapdata_clear_label(), MAXLAYERS, MapCell::need_update, pl_pos, MapCell::state, the_map, VISIBLE, Map::width, PlayerPosition::x, and PlayerPosition::y.

Referenced by mapdata_clear_space(), mapdata_scroll(), and mapdata_set_check_space().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_clear_label()

void mapdata_clear_label	(	int	px,
		int	py
	)

Definition at line 830 of file mapdata.c.

References MapCell::label, MapLabel::label, mapdata_cell(), and MapLabel::next.

Referenced by Map2Cmd(), mapdata_add_label(), mapdata_clear(), and mapdata_clear_old().

Here is the call graph for this function:

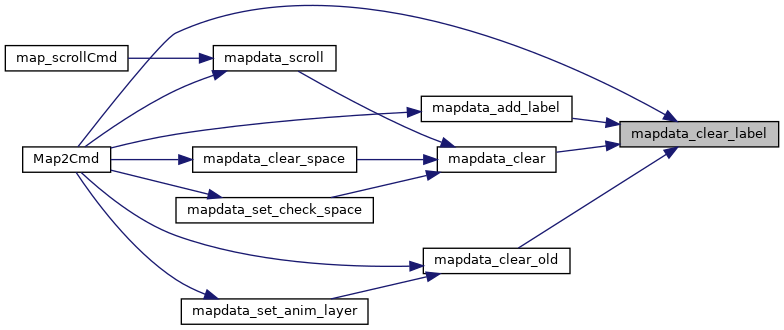

Here is the caller graph for this function:

◆ mapdata_clear_old()

void mapdata_clear_old	(	int	x,
		int	y
	)

Prepare a map cell, which may contain old fog of war data, for new visible map data.

Call this when Map2 is imminently going to provide an update for the given tile. A better name for this function would be mapdata_prepare().

Definition at line 844 of file mapdata.c.

References MapCell::darkness, expand_clear_face_from_layer(), FOG, Map::height, height, mapdata_cell(), mapdata_clear_label(), MAX_VIEW, MAXLAYERS, MapCell::need_update, pl_pos, MapCell::state, the_map, VISIBLE, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd(), and mapdata_set_anim_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_clear_space()

void mapdata_clear_space	(	int	x,
		int	y
	)

Definition at line 674 of file mapdata.c.

References expand_set_bigface(), Map::height, height, mapdata_clear(), MAX_VIEW, MAXLAYERS, pl_pos, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_contains()

bool mapdata_contains	(	int	x,
		int	y
	)

Determine whether the map data contains the given cell.

Definition at line 146 of file mapdata.c.

References Map::height, the_map, and Map::width.

Referenced by drawsmooth(), ExtSmooth(), and send_map().

Here is the caller graph for this function:

◆ mapdata_face()

gint16 mapdata_face	(	int	x,
		int	y,
		int	layer
	)

Return the face number of a single-square pixmap at the given map tile.

Returns the face to display at a given location.

Parameters

x	X-coordinate of tile on-screen
y	Y-coordinate of tile on-screen
layer

Returns: Pixmap face number, or zero if the tile does not exist

Definition at line 1079 of file mapdata.c.

References MapCellLayer::face, MapCell::heads, BigCell::layer, mapdata_cell(), mapdata_has_tile(), pl_pos, BigCell::x, PlayerPosition::x, BigCell::y, and PlayerPosition::y.

Here is the call graph for this function:

◆ mapdata_face_info()

gint16 mapdata_face_info	(	int	mx,
		int	my,
		int	layer,
		int *	dx,
		int *	dy
	)

Return the face number of the pixmap in the given map cell and set the offset pointers to indicate where to correctly draw the face.

Offsets are zero for single-tile maps and negative for multi-tile maps. This provides a consistent way to draw tiles no matter single or multi part.

Parameters

mx	Virtual map x-coordinate
my	Virtual map y-coordinate
layer	Map layer number
dx	Pointer to store x-offset
dy	Pointer to store y-offset

Returns: Pixmap face number, zero if the tile does not exist

Definition at line 1087 of file mapdata.c.

References MapCellLayer::face, MapCellTailLayer::face, MapCell::heads, height, mapdata_cell(), MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, MapCell::tails, and width.

Referenced by map_draw_layer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_free()

void mapdata_free ( void )

Deallocate map data.

Do not call functions other than mapdata_set_size() after calling mapdata_free().

Definition at line 645 of file mapdata.c.

References Map::_cells, Map::height, the_map, and Map::width.

Referenced by mapdata_set_size(), and reset_vars_common().

Here is the caller graph for this function:

◆ mapdata_get_image_size()

static void mapdata_get_image_size	(	int	face,
		guint8 *	w,
		guint8 *	h
	)

static

Return the size of a face in tiles.

The returned size is at between 1 and MAX_FACE_SIZE (inclusive).

Definition at line 1380 of file mapdata.c.

References MapCellLayer::face, get_map_image_size(), and MAX_FACE_SIZE.

Referenced by expand_set_bigface(), and expand_set_face().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_has_tile()

static bool mapdata_has_tile	(	int	x,
		int	y,
		int	layer
	)

static

Check if the given map tile is a valid slot in the map array.

Definition at line 1062 of file mapdata.c.

References height, BigCell::layer, MAXLAYERS, width, BigCell::x, and BigCell::y.

Referenced by mapdata_bigface(), mapdata_bigface_head(), and mapdata_face().

Here is the caller graph for this function:

◆ mapdata_init()

static void mapdata_init ( void )

static

Definition at line 604 of file mapdata.c.

References bigfaces, bigfaces_head, clear_cells(), MapCellLayer::face, MapCellTailLayer::face, FOG_MAP_SIZE, global_offset_x, global_offset_y, BigCell::head, Map::height, height, BigCell::layer, mapdata_alloc(), MAX_VIEW, MAXLAYERS, BigCell::next, pl_pos, BigCell::prev, MapCellLayer::size_x, MapCellTailLayer::size_x, MapCellLayer::size_y, MapCellTailLayer::size_y, BigCell::tail, the_map, want_offset_x, want_offset_y, Map::width, width, BigCell::x, PlayerPosition::x, BigCell::y, and PlayerPosition::y.

Referenced by mapdata_set_size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_is_inside()

int mapdata_is_inside	(	int	x,
		int	y
	)

Checks whether the given coordinates are within the current display size (as set by mapdata_set_size).

Definition at line 665 of file mapdata.c.

References height.

◆ mapdata_newmap()

void mapdata_newmap ( void )

Clears the map view.

Must be called whenever a newmap command was received from the server.

Definition at line 1028 of file mapdata.c.

References bigfaces_head, clear_cells(), clear_move_to(), csocket, ClientSocket::dir, expand_clear_bigface_from_layer(), global_offset_x, global_offset_y, Map::height, BigCell::layer, mapdata_cell(), MapCell::need_update, script_pos, the_map, want_offset_x, want_offset_y, Map::width, BigCell::x, PlayerPosition::x, BigCell::y, and PlayerPosition::y.

Referenced by NewmapCmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_scroll()

void mapdata_scroll	(	int	dx,
		int	dy
	)

Scrolls the map view.

Must be called whenever a map_scroll command was received from the server.

Definition at line 955 of file mapdata.c.

References bigfaces_head, CONFIG_MAPSCROLL, display_mapscroll(), expand_clear_bigface_from_layer(), BigCell::head, height, BigCell::layer, mapdata_cell(), mapdata_clear(), MapCell::need_update, BigCell::next, pl_pos, recenter_virtual_map_view(), run_move_to(), script_pos, MapCellLayer::size_x, MapCellLayer::size_y, want_config, width, BigCell::x, PlayerPosition::x, BigCell::y, and PlayerPosition::y.

Referenced by Map2Cmd(), and map_scrollCmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_set_anim_layer()

void mapdata_set_anim_layer	(	int	x,
		int	y,
		guint16	anim,
		guint8	anim_speed,
		int	layer
	)

Definition at line 904 of file mapdata.c.

References ANIM_FLAGS_MASK, ANIM_MASK, ANIM_RANDOM, ANIM_SYNC, MapCellLayer::animation, MapCellLayer::animation_left, MapCellLayer::animation_phase, MapCellLayer::animation_speed, animations, expand_clear_face_from_layer(), expand_set_bigface(), expand_set_face(), Animations::faces, MapCell::heads, Map::height, height, LOG(), LOG_WARNING, mapdata_cell(), mapdata_clear_old(), MAX_VIEW, Animations::num_animations, Animations::phase, pl_pos, Animations::speed, Animations::speed_left, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_set_check_space()

void mapdata_set_check_space	(	int	x,
		int	y
	)

Definition at line 707 of file mapdata.c.

References MapCell::darkness, MapCellLayer::face, MapCellTailLayer::face, MapCell::heads, Map::height, height, mapdata_cell(), mapdata_clear(), MAX_VIEW, MAXLAYERS, pl_pos, MapCell::tails, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_set_darkness()

void mapdata_set_darkness	(	int	x,
		int	y,
		int	darkness
	)

Definition at line 755 of file mapdata.c.

References MapCell::darkness, Map::height, height, MAX_VIEW, pl_pos, set_darkness(), the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_set_face_layer()

void mapdata_set_face_layer	(	int	x,
		int	y,
		gint16	face,
		int	layer
	)

Definition at line 875 of file mapdata.c.

References expand_clear_face_from_layer(), expand_set_bigface(), expand_set_face(), Map::height, height, mapdata_cell(), MAX_VIEW, MapCell::need_update, pl_pos, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_set_size()

void mapdata_set_size	(	int	viewx,
		int	viewy
	)

Initializes the module.

Allocates memory for the_map. This functions must be called before any other function is used, and whenever a new display size was negotiated with the server.

Definition at line 654 of file mapdata.c.

References Map::height, height, mapdata_free(), mapdata_init(), pl_pos, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.

Referenced by SetupCmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_set_smooth()

void mapdata_set_smooth	(	int	x,
		int	y,
		guint8	smooth,
		int	layer
	)

Definition at line 778 of file mapdata.c.

References Map::height, mapdata_cell(), MAX_VIEW, MapCell::need_resmooth, pl_pos, MapCell::smooth, the_map, Map::width, PlayerPosition::x, and PlayerPosition::y.

Referenced by Map2Cmd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapdata_size()

void mapdata_size	(	int *	x,
		int *	y
	)

Determine the size of the internal fog-of-war map.

Definition at line 162 of file mapdata.c.

References Map::height, the_map, and Map::width.

Referenced by script_process_cmd().

Here is the caller graph for this function:

◆ mark_resmooth()

static void mark_resmooth	(	int	x,
		int	y,
		int	layer
	)

static

Definition at line 217 of file mapdata.c.

References Map::height, mapdata_cell(), MapCell::need_resmooth, MapCell::smooth, the_map, and Map::width.

Referenced by expand_clear_face(), and expand_set_face().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pl_mpos()

void pl_mpos	(	int *	px,
		int *	py
	)

Compute player position in map coordinates.

Unlike pl_pos.x and pl_pos.y which store the top left corner of the virtual map, this returns the actual position of the player.

Definition at line 1487 of file mapdata.c.

References CONFIG_MAPHEIGHT, CONFIG_MAPWIDTH, pl_pos, use_config, PlayerPosition::x, and PlayerPosition::y.

Referenced by is_at_moveto(), run_move_to(), and set_move_to().

Here is the caller graph for this function:

◆ recenter_virtual_map_view()

static void recenter_virtual_map_view	(	int	diff_x,
		int	diff_y
	)

static

Check if current map position is out of bounds if shifted by (dx, dy).

If so, shift the virtual map so that the map view is within bounds again.

Assures that [pl_pos.x-MAX_FACE_SIZE..pl_pos.x+MAX_VIEW+1] is within the bounds of the virtual map area. This covers the area a map1a command may affect plus a one tile border.

Definition at line 1223 of file mapdata.c.

References clear_cells(), FOG_BORDER_MIN, Map::height, height, mapdata_cell(), MAX_FACE_SIZE, MAX_VIEW, pl_pos, the_map, Map::width, width, PlayerPosition::x, and PlayerPosition::y.
