An net.sf.gridarta.utils.EditorAction that moves the selected game object in the SelectedSquareModel to the bottom. More...

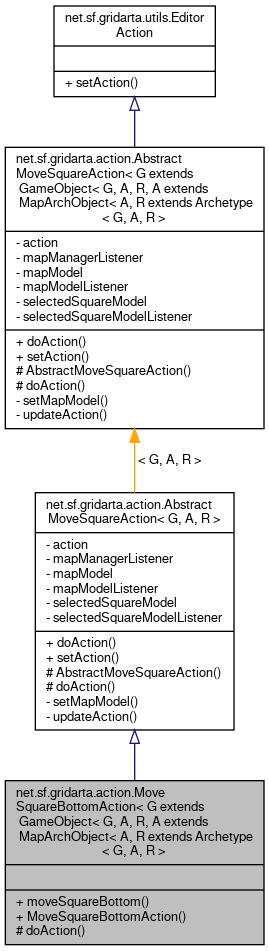

Inheritance diagram for net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

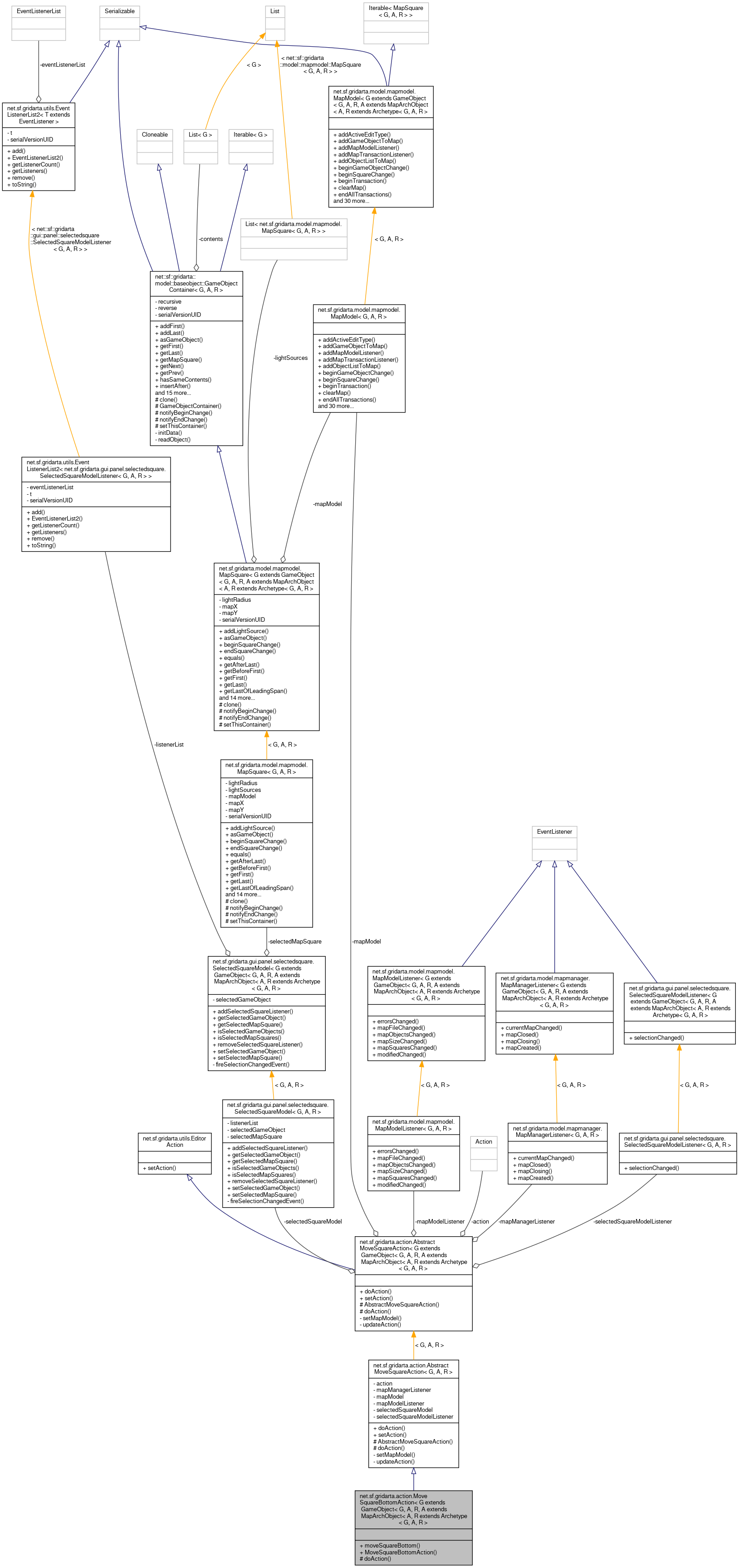

Collaboration diagram for net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
void	moveSquareBottom ()
	Action method that moves the selected game object to the bottom. More...

	MoveSquareBottomAction (@NotNull final SelectedSquareModel< G, A, R > selectedSquareModel, @Nullable final MapManager< G, A, R > mapManager)
	Creates a new instance. More...

Public Member Functions inherited from net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >
boolean	doAction (final boolean performAction)
	Executes the action. More...

void	setAction ( @NotNull final Action action, @NotNull final String name)
	Sets the Action instance for this editor action. More...

Protected Member Functions
boolean	doAction (final boolean performAction, @Nullable final G gameObject)

Protected Member Functions inherited from net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >
	AbstractMoveSquareAction ( @NotNull final SelectedSquareModel< G, A, R > selectedSquareModel, @Nullable final MapManager< G, A, R > mapManager)
	Creates a new instance. More...

abstract boolean	doAction (boolean performAction, @Nullable G gameObject)
	Executes the action. More...

Detailed Description

An net.sf.gridarta.utils.EditorAction that moves the selected game object in the SelectedSquareModel to the bottom.

Author: Andreas Kirschbaum

Definition at line 38 of file MoveSquareBottomAction.java.

Constructor & Destructor Documentation

◆ MoveSquareBottomAction()

net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.MoveSquareBottomAction	(	@NotNull final SelectedSquareModel< G, A, R >	selectedSquareModel,
		@Nullable final MapManager< G, A, R >	mapManager
	)

Creates a new instance.

Parameters

selectedSquareModel	the selected square model to update
mapManager	the map manager to track or null

Definition at line 45 of file MoveSquareBottomAction.java.

Member Function Documentation

◆ doAction()

boolean net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doAction	(	final boolean	performAction,
		@Nullable final G	gameObject
	)

protected

Definition at line 58 of file MoveSquareBottomAction.java.

References net.sf.gridarta.model.mapmodel.MapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.beginTransaction(), net.sf.gridarta.model.mapmodel.MapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.endTransaction(), net.sf.gridarta.model.mapmodel.MapSquare< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMapModel(), net.sf.gridarta.model.mapmodel.MapSquare< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMapSquare(), and net.sf.gridarta.action.AbstractMoveSquareAction< G, A, R >.mapModel.

Referenced by net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.moveSquareBottom(), and net.sf.gridarta.action.SelectedSquareActionsTest.testMoveTailPart().

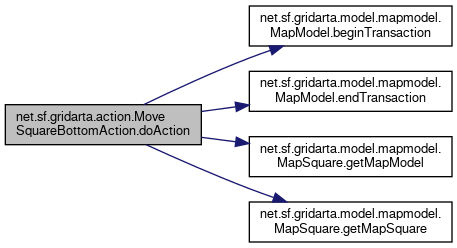

Here is the call graph for this function:

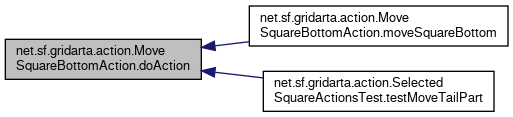

Here is the caller graph for this function:

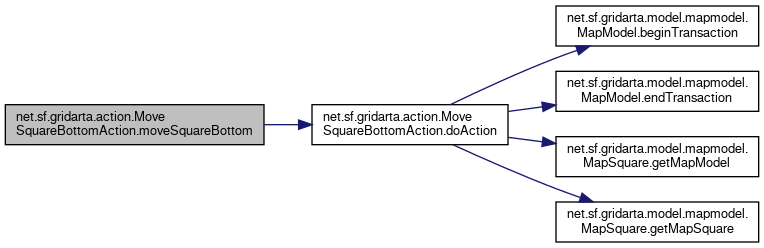

◆ moveSquareBottom()

void net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.moveSquareBottom ( )

Action method that moves the selected game object to the bottom.

Definition at line 53 of file MoveSquareBottomAction.java.

References net.sf.gridarta.action.MoveSquareBottomAction< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doAction().
