Records a set of changed map squares. More...

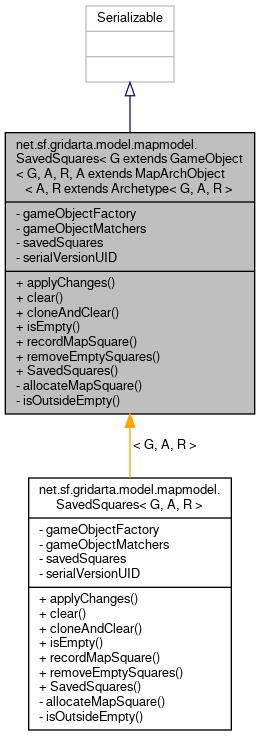

Inheritance diagram for net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

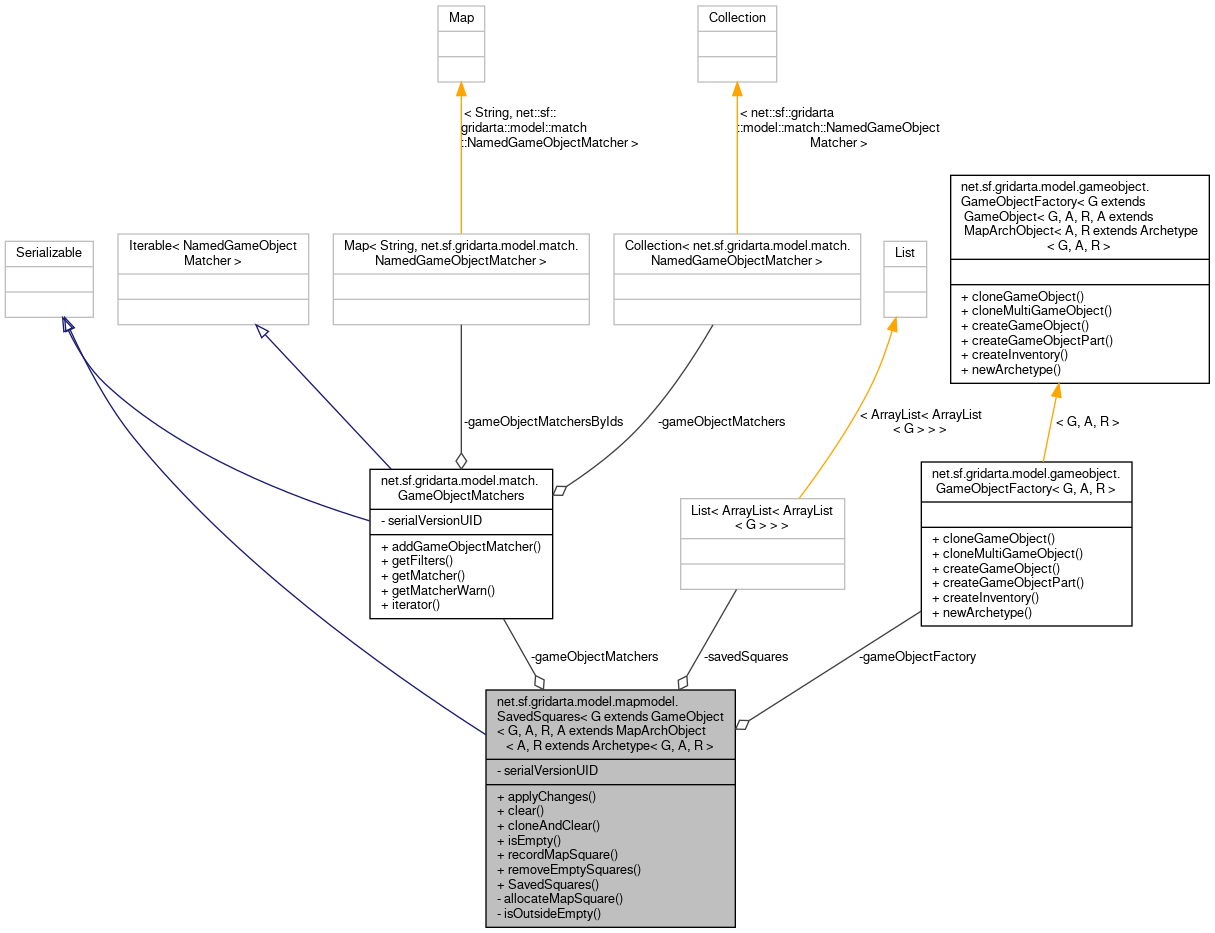

Collaboration diagram for net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
void	applyChanges (@NotNull final MapModel< G, A, R > mapModel)
	Applies the saved squares to the given map model. More...

void	clear ()
	Forgets all saved squares. More...

SavedSquares< G, A, R >	cloneAndClear ()
	Creates a new instance having the same contents as this instance, then forgets all saves squares in this instance. More...

boolean	isEmpty ()
	Returns whether no saved squares exist. More...

void	recordMapSquare (@NotNull final MapSquare< G, A, R > mapSquare)
	Records a map square as changed. More...

void	removeEmptySquares (@NotNull final Size2D size)
	Removes empty squares outside a given area. More...

	SavedSquares (@NotNull final GameObjectFactory< G, A, R > gameObjectFactory, @NotNull final GameObjectMatchers gameObjectMatchers)
	Creates a new instance. More...

Private Member Functions
ArrayList< G >	allocateMapSquare (final int x, final int y)
	Allocates a saved map square. More...

boolean	isOutsideEmpty (final int width, final int height)
	Returns whether all squares outside a given area are empty or unchanged. More...

Private Attributes
final GameObjectFactory< G, A, R >	gameObjectFactory
	The GameObjectFactory to use. More...

final GameObjectMatchers	gameObjectMatchers
	The GameObjectMatchers to use. More...

final List< ArrayList< ArrayList< G > > >	savedSquares = new ArrayList<>()
	The saved squares. More...

Static Private Attributes
static final long	serialVersionUID = 1L
	The serial version UID. More...

Detailed Description

Records a set of changed map squares.

Author: Andreas Kirschbaum

Definition at line 41 of file SavedSquares.java.

Constructor & Destructor Documentation

◆ SavedSquares()

net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.SavedSquares	(	@NotNull final GameObjectFactory< G, A, R >	gameObjectFactory,
		@NotNull final GameObjectMatchers	gameObjectMatchers
	)

Creates a new instance.

Parameters

gameObjectFactory	the game object factory to use
gameObjectMatchers	the game object matchers to use

Definition at line 72 of file SavedSquares.java.

Member Function Documentation

◆ allocateMapSquare()

ArrayList<G> net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.allocateMapSquare	(	final int	x,
		final int	y
	)

private

Allocates a saved map square.

Parameters

x	the x-coordinate
y	the y-coordinate

Returns: the newly allocated map square or
null
if the map square already did exist

Definition at line 106 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.recordMapSquare().

Here is the caller graph for this function:

◆ applyChanges()

void net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.applyChanges ( @NotNull final MapModel< G, A, R > mapModel )

Applies the saved squares to the given map model.

Parameters

mapModel the map model to change

Definition at line 176 of file SavedSquares.java.

◆ clear()

void net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.clear ( )

Forgets all saved squares.

Definition at line 155 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.DefaultMapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.fireBeginTransaction(), and net.sf.gridarta.model.mapmodel.DefaultMapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.fireEndTransaction().

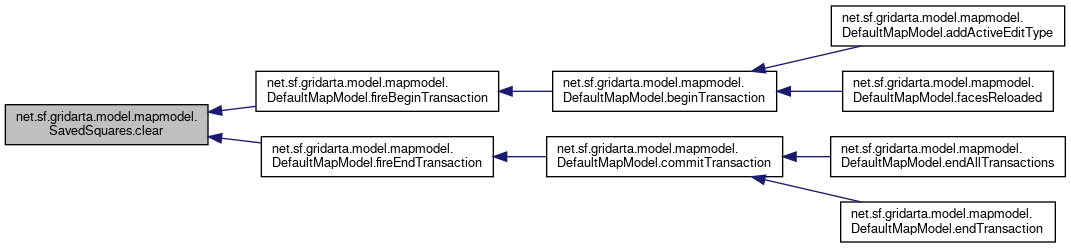

Here is the caller graph for this function:

◆ cloneAndClear()

SavedSquares<G, A, R> net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.cloneAndClear ( )

Creates a new instance having the same contents as this instance, then forgets all saves squares in this instance.

Returns: the new instance

Definition at line 165 of file SavedSquares.java.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.UndoControl().

Here is the caller graph for this function:

◆ isEmpty()

boolean net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.isEmpty ( )

Returns whether no saved squares exist.

Returns: whether no saved squares exist

Definition at line 148 of file SavedSquares.java.

◆ isOutsideEmpty()

boolean net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.isOutsideEmpty	(	final int	width,
		final int	height
	)

private

Returns whether all squares outside a given area are empty or unchanged.

Parameters

width	the width of the area
height	the height of the area

Returns: whether no non-empty squares exist

Definition at line 261 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.removeEmptySquares().

Here is the caller graph for this function:

◆ recordMapSquare()

void net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.recordMapSquare ( @NotNull final MapSquare< G, A, R > mapSquare )

Records a map square as changed.

Does nothing if the square already has been saved.

Parameters

mapSquare the map square to save

Definition at line 82 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.DefaultMapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.beginGameObjectChange(), and net.sf.gridarta.model.mapmodel.DefaultMapModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.beginSquareChange().

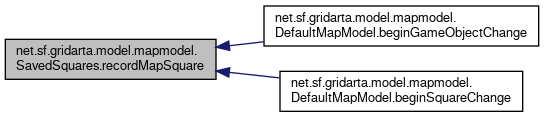

Here is the caller graph for this function:

◆ removeEmptySquares()

void net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.removeEmptySquares ( @NotNull final Size2D size )

Removes empty squares outside a given area.

Parameters

size the area

Definition at line 234 of file SavedSquares.java.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.UndoControl().

Here is the caller graph for this function:

Member Data Documentation

◆ gameObjectFactory

final GameObjectFactory<G, A, R> net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.gameObjectFactory

private

The GameObjectFactory to use.

Definition at line 59 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.cloneAndClear(), and net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.SavedSquares().

◆ gameObjectMatchers

final GameObjectMatchers net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.gameObjectMatchers

private

The GameObjectMatchers to use.

Definition at line 65 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.cloneAndClear(), and net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.SavedSquares().

◆ savedSquares

final List<ArrayList<ArrayList<G> > > net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.savedSquares = new ArrayList<>()

private

The saved squares.

Maps x-coordinate to y-coordinate to map squares contents. Not saved map squares (or map columns) are null.

Definition at line 53 of file SavedSquares.java.

Referenced by net.sf.gridarta.model.mapmodel.SavedSquares< G, A, R >.cloneAndClear().

◆ serialVersionUID

final long net.sf.gridarta.model.mapmodel.SavedSquares< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.serialVersionUID = 1L

staticprivate

The serial version UID.

Definition at line 46 of file SavedSquares.java.

The documentation for this class was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/mapmodel/SavedSquares.java
