jEdit's text area component. More...

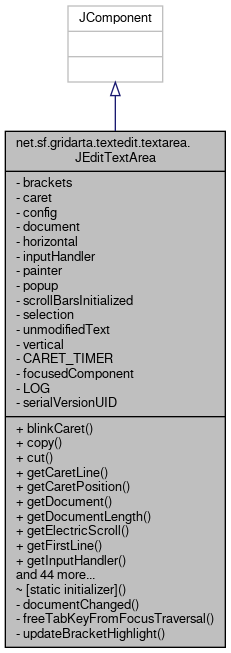

Inheritance diagram for net.sf.gridarta.textedit.textarea.JEditTextArea:

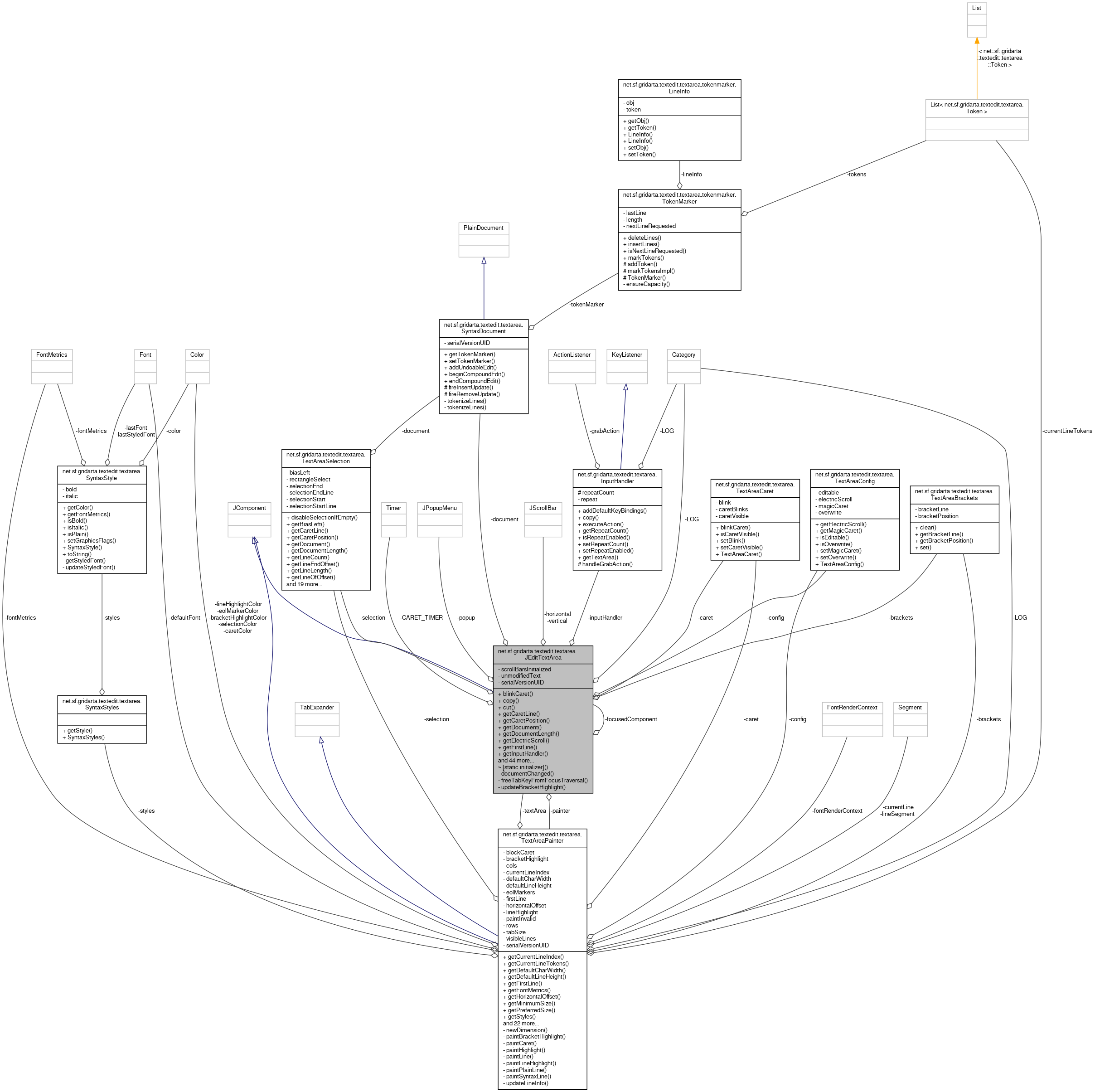

Collaboration diagram for net.sf.gridarta.textedit.textarea.JEditTextArea:

Classes
class	AdjustHandler

class	CaretBlinker

class	CaretUndo

class	ComponentHandler

class	DocumentHandler

class	DragHandler

class	FocusHandler

class	MouseHandler
	RefusedBequest More...

Public Member Functions
void	blinkCaret ()
	Blinks the caret. More...

void	copy ()
	Places the selected text into the clipboard. More...

void	cut ()
	Deletes the selected text from the text area and places it into the clipboard. More...

int	getCaretLine ()
	Returns the caret line. More...

int	getCaretPosition ()
	Returns the caret position. More...

Document	getDocument ()
	Returns the document this text area is editing. More...

int	getDocumentLength ()
	Returns the length of the document. More...

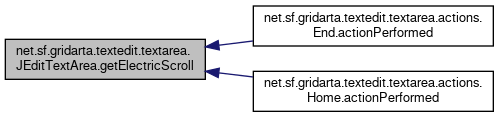

int	getElectricScroll ()
	Returns the number of lines from the top and button of the text area that are always visible. More...

int	getFirstLine ()
	Returns the line displayed at the text area's origin. More...

InputHandler	getInputHandler ()
	Returns the input handler. More...

int	getLineCount ()
	Returns the number of lines in the document. More...

int	getLineEndOffset (final int line)
	Returns the end offset of the specified line. More...

int	getLineStartOffset (final int line)
	Returns the start offset of the specified line. More...

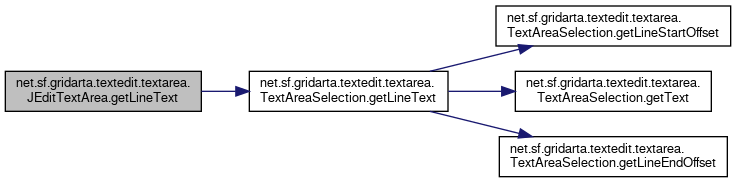

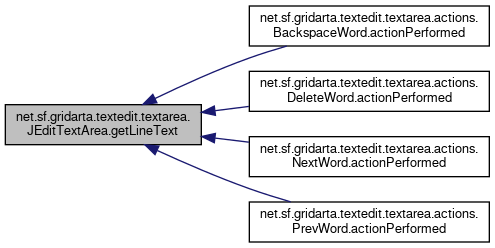

CharSequence	getLineText (final int lineIndex)
	Returns the text on the specified line. More...

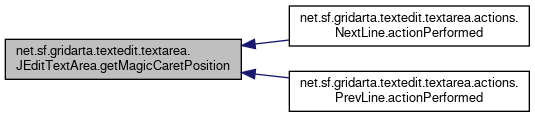

int	getMagicCaretPosition ()
	Returns the `magic' caret position. More...

int	getMarkPosition ()
	Returns the mark position. More...

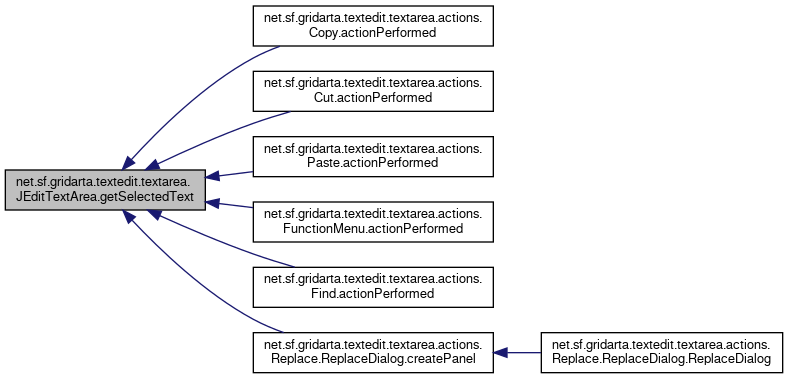

String	getSelectedText ()
	Returns the selected text, or null if no selection is active. More...

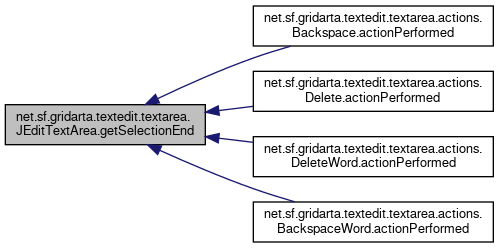

int	getSelectionEnd ()
	Returns the selection end offset. More...

int	getSelectionStart ()
	Returns the selection start offset. More...

String	getText ()
	Returns the entire text of this text area. More...

String	getText (final int start, final int len)
	Returns the specified substring of the document. More...

void	getText (final int start, final int len, @NotNull final Segment segment)
	Copies the specified substring of the document into a segment. More...

int	getVisibleLines ()
	Returns the number of lines visible in this text area. More...

boolean	isEditable ()
	Returns true if this text area is editable, false otherwise. More...

boolean	isModified ()
	Return whether the text content has been modified from the "unmodified" state. More...

boolean	isOverwriteEnabled ()
	Returns whether overwrite mode is active. More...

boolean	isSelectionRectangular ()
	Returns true if the selection is rectangular, false otherwise. More...

	JEditTextArea (@NotNull final TextAreaDefaults defaults, @NotNull final SyntaxDocument document, final boolean paintInvalid)
	Creates a new JEditTextArea with the specified settings. More...

int	lineToY (final int line)
	Converts a line index to a y co-ordinate. More...

int	offsetToX (final int line, final int offset)
	Converts an offset in a line into an x co-ordinate. More...

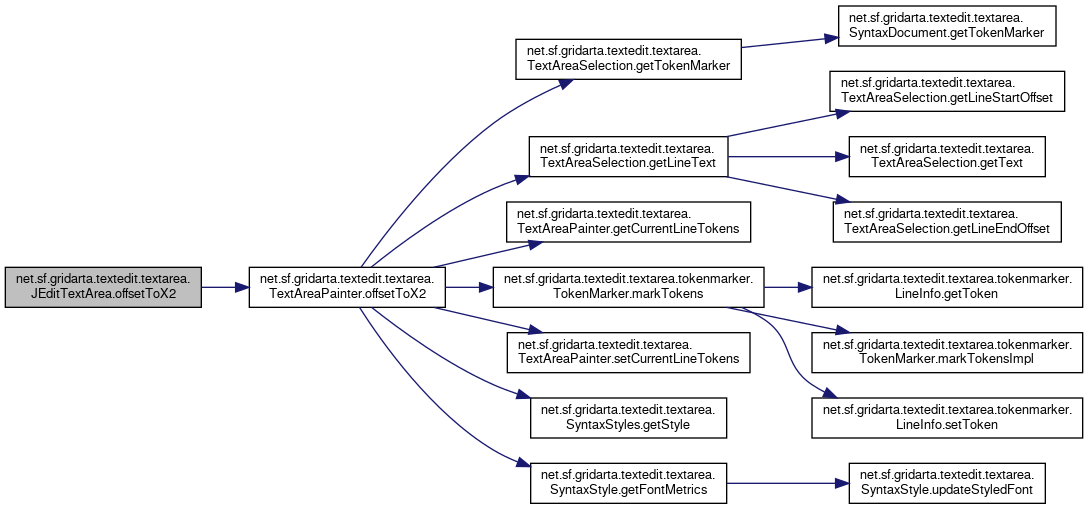

int	offsetToX2 (final int line, final int offset)
	Converts an offset in a line into an x co-ordinate. More...

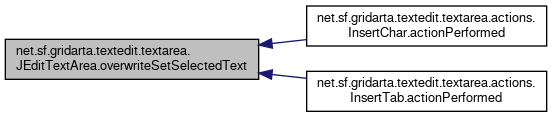

void	overwriteSetSelectedText (@NotNull final String str)
	Similar to. More...

void	paste ()
	Inserts the clipboard contents into the text. More...

void	processKeyEvent (@NotNull final KeyEvent e)
	Forwards key events directly to the input handler. More...

void	removeNotify ()
	Called by the AWT when this component is removed from it's parent. More...

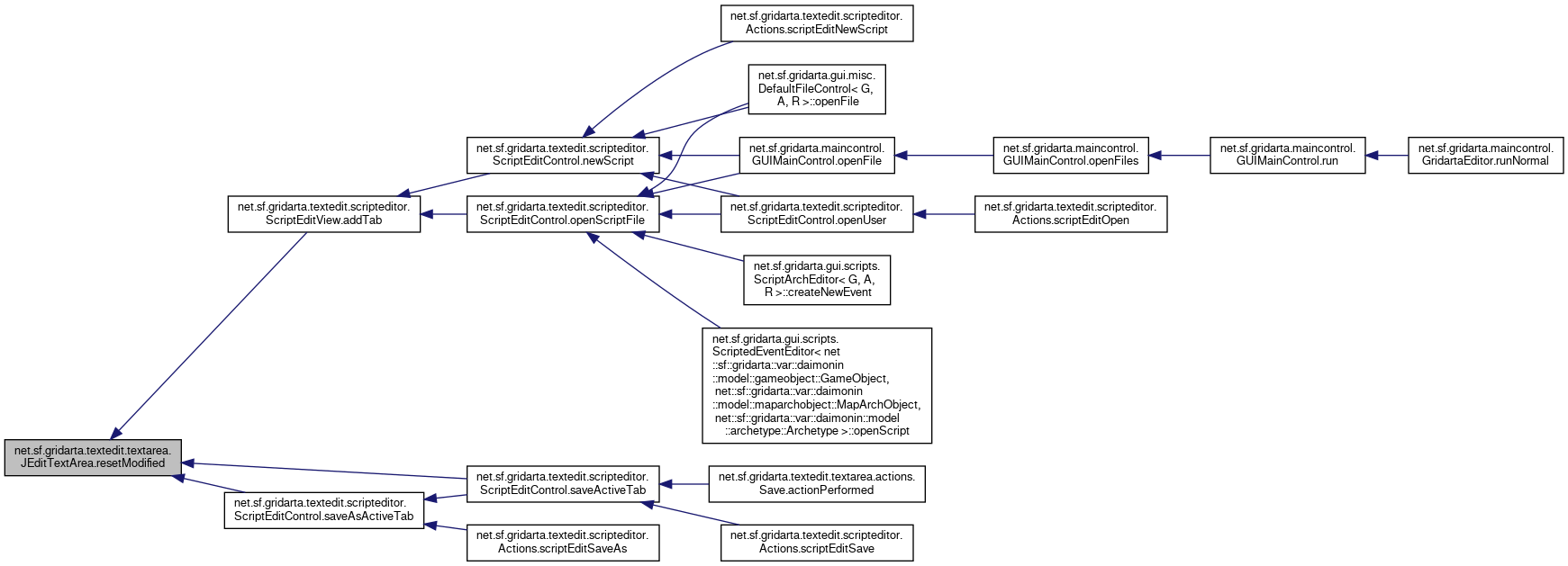

void	resetModified ()
	Reset the "modified" state. More...

void	scrollTo (final int line, final int offset)
	Ensures that the specified line and offset is visible by scrolling the text area if necessary. More...

void	scrollToCaret ()
	Ensures that the caret is visible by scrolling the text area if necessary. More...

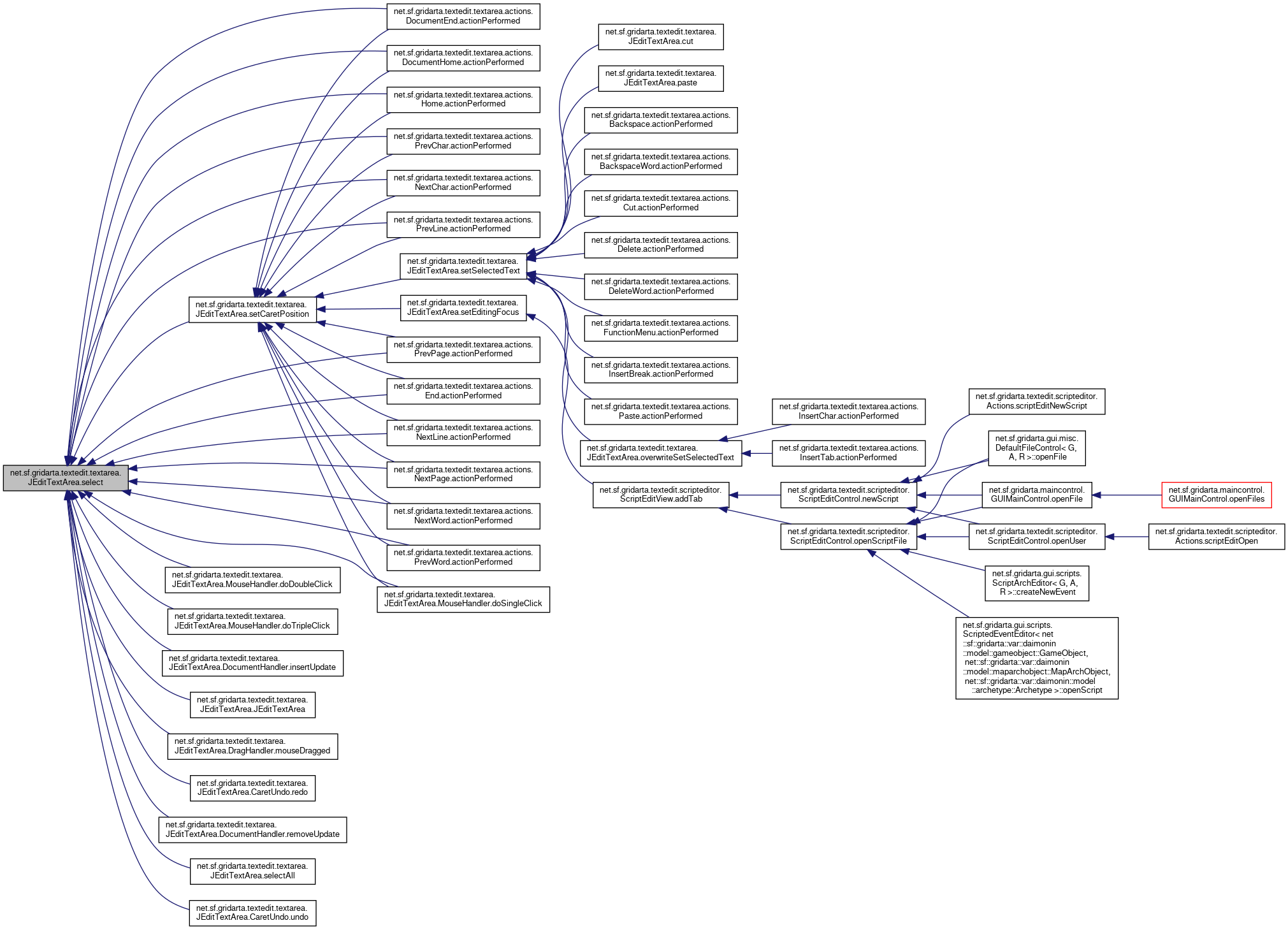

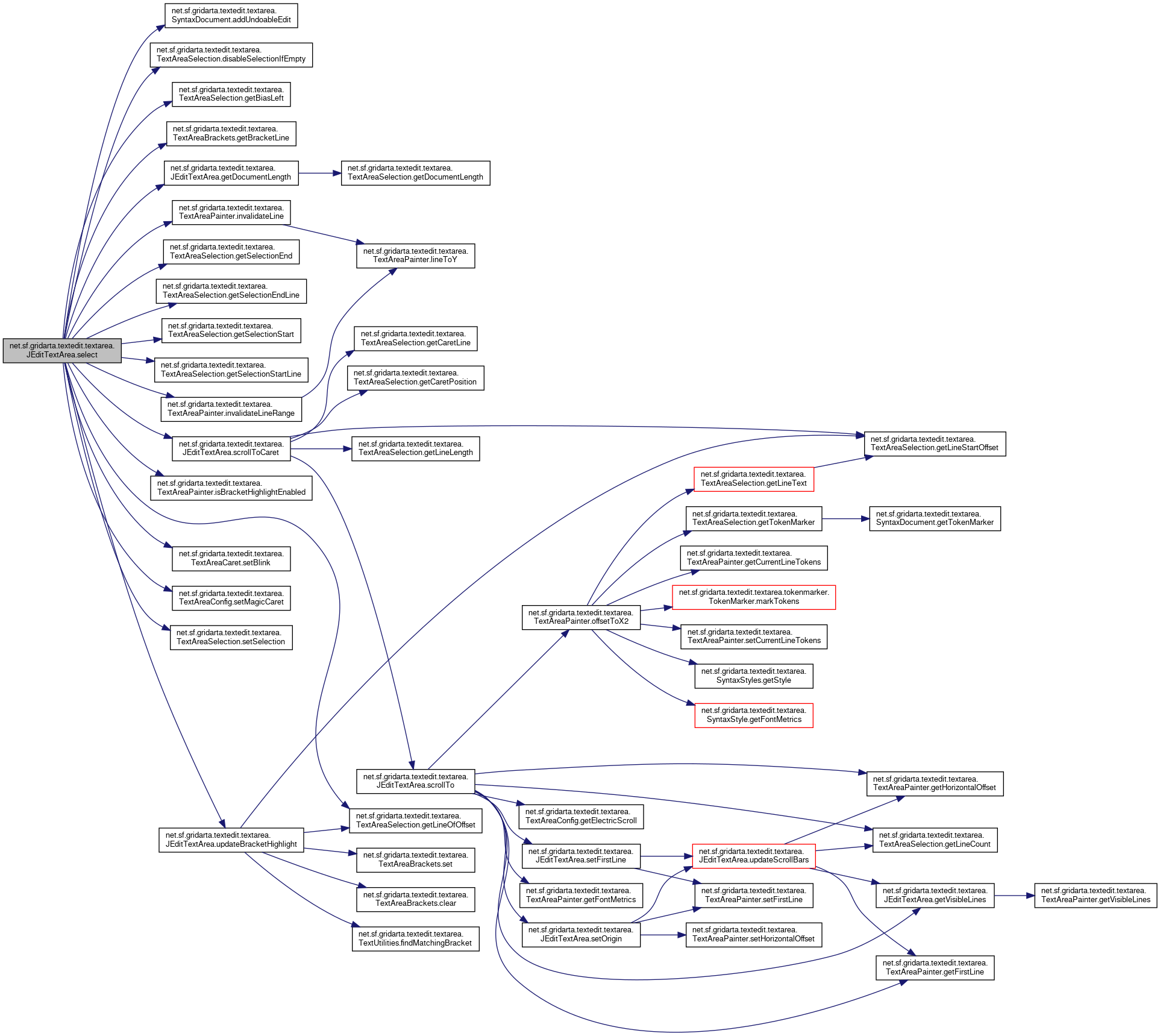

void	select (final int start, final int end)
	Selects from the start offset to the end offset. More...

void	selectAll ()
	Selects all text in the document. More...

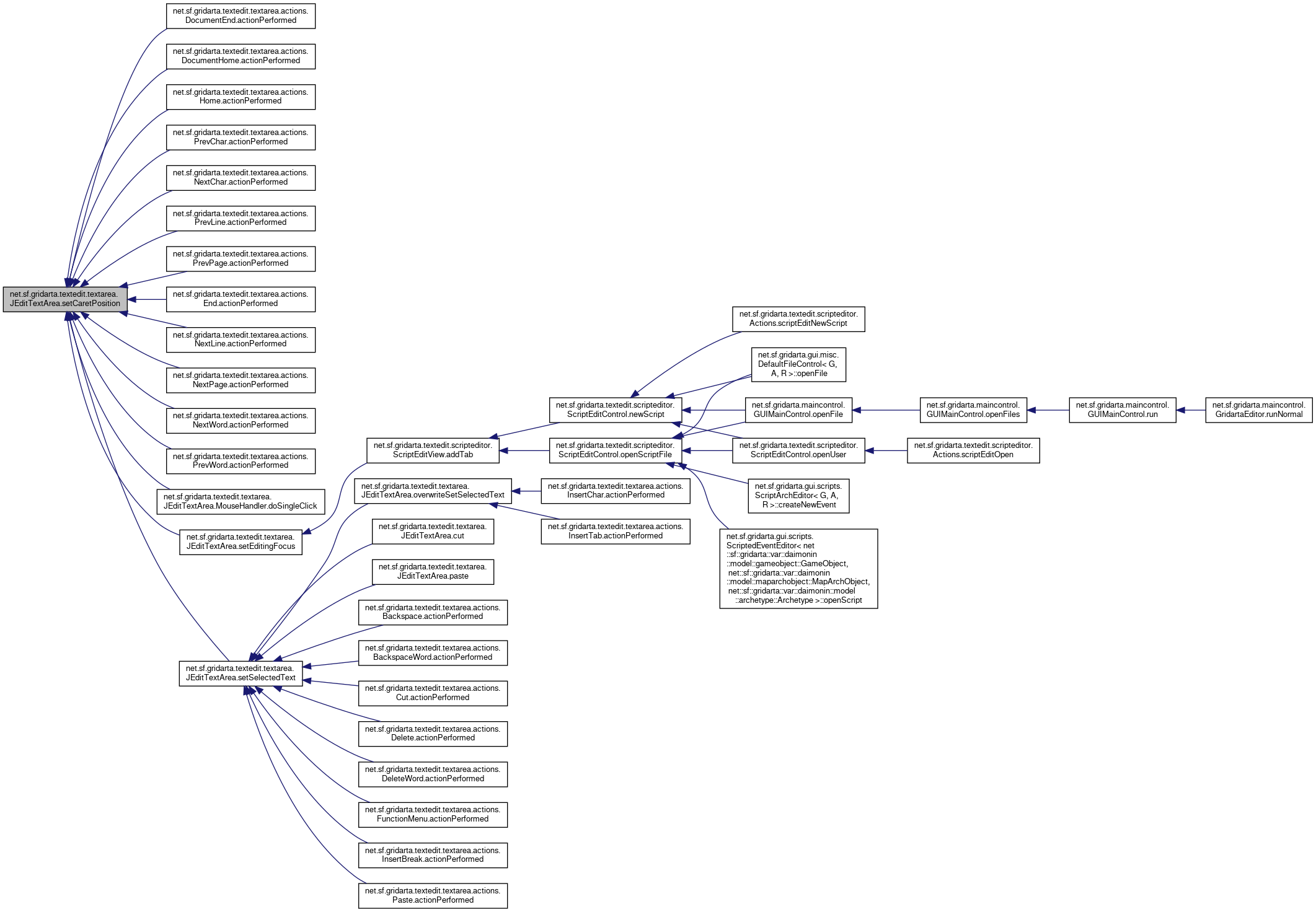

void	setCaretPosition (final int caret)
	Sets the caret position. More...

void	setCaretVisible (final boolean caretVisible)
	Sets if the caret should be visible. More...

void	setEditingFocus ()
	Sets the focus to this TextArea, so this component is instantly registered for key press events. More...

void	setFirstLine (final int firstLine)
	Sets the line displayed at the text area's origin without updating the scroll bars. More...

void	setFont (@NotNull final Font font)
	Set the TextArea font. More...

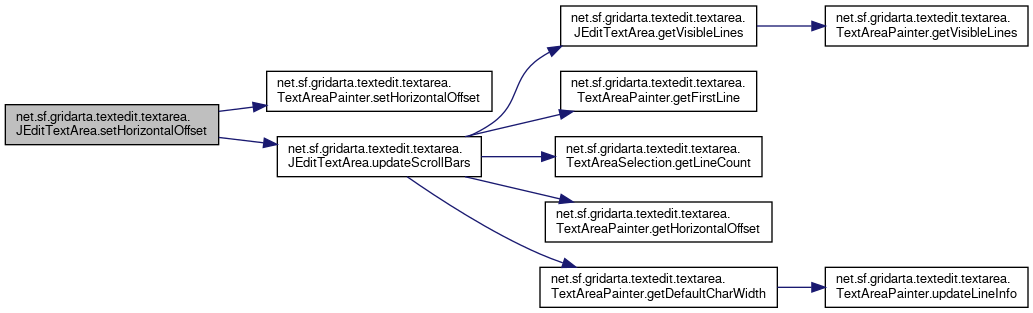

void	setHorizontalOffset (final int horizontalOffset)
	Sets the horizontal offset of drawn lines. More...

void	setMagicCaretPosition (final int magicCaret)
	Sets the `magic' caret position. More...

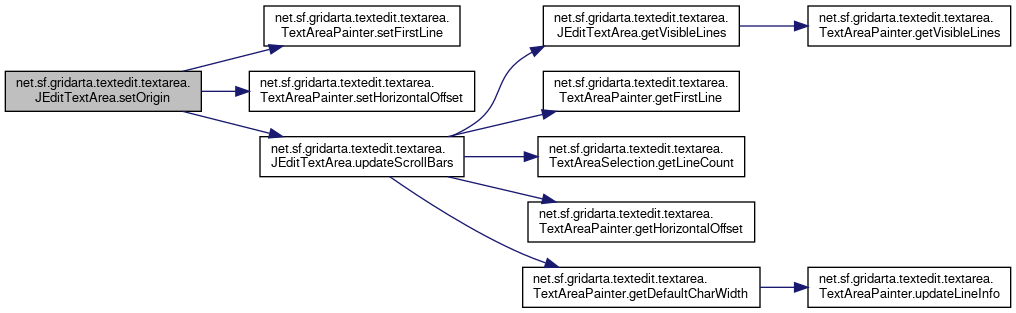

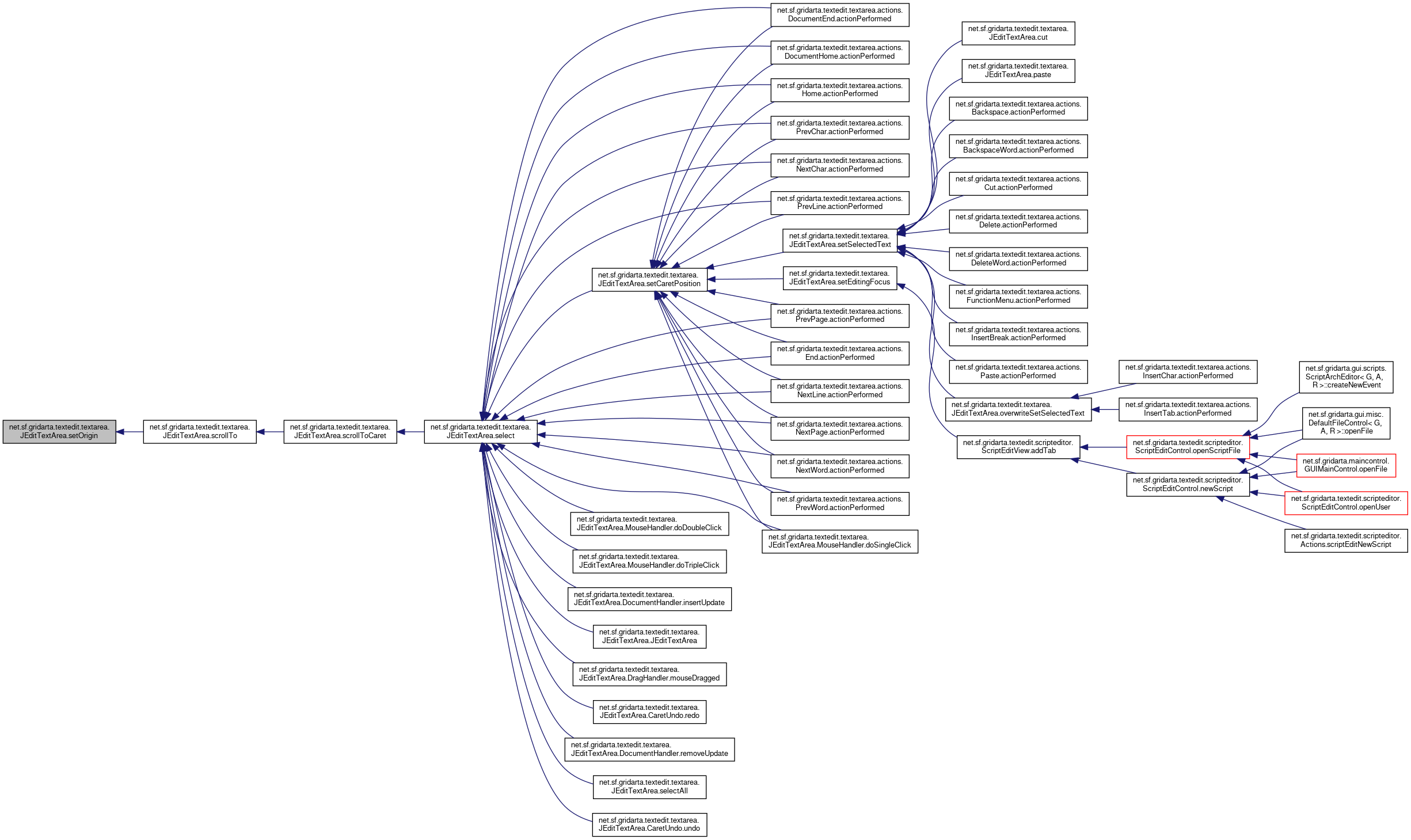

void	setOrigin (final int firstLine, final int horizontalOffset)
	A fast way of changing both the first line and horizontal offset. More...

void	setOverwriteEnabled (final boolean overwrite)
	Sets whether overwrite mode is active. More...

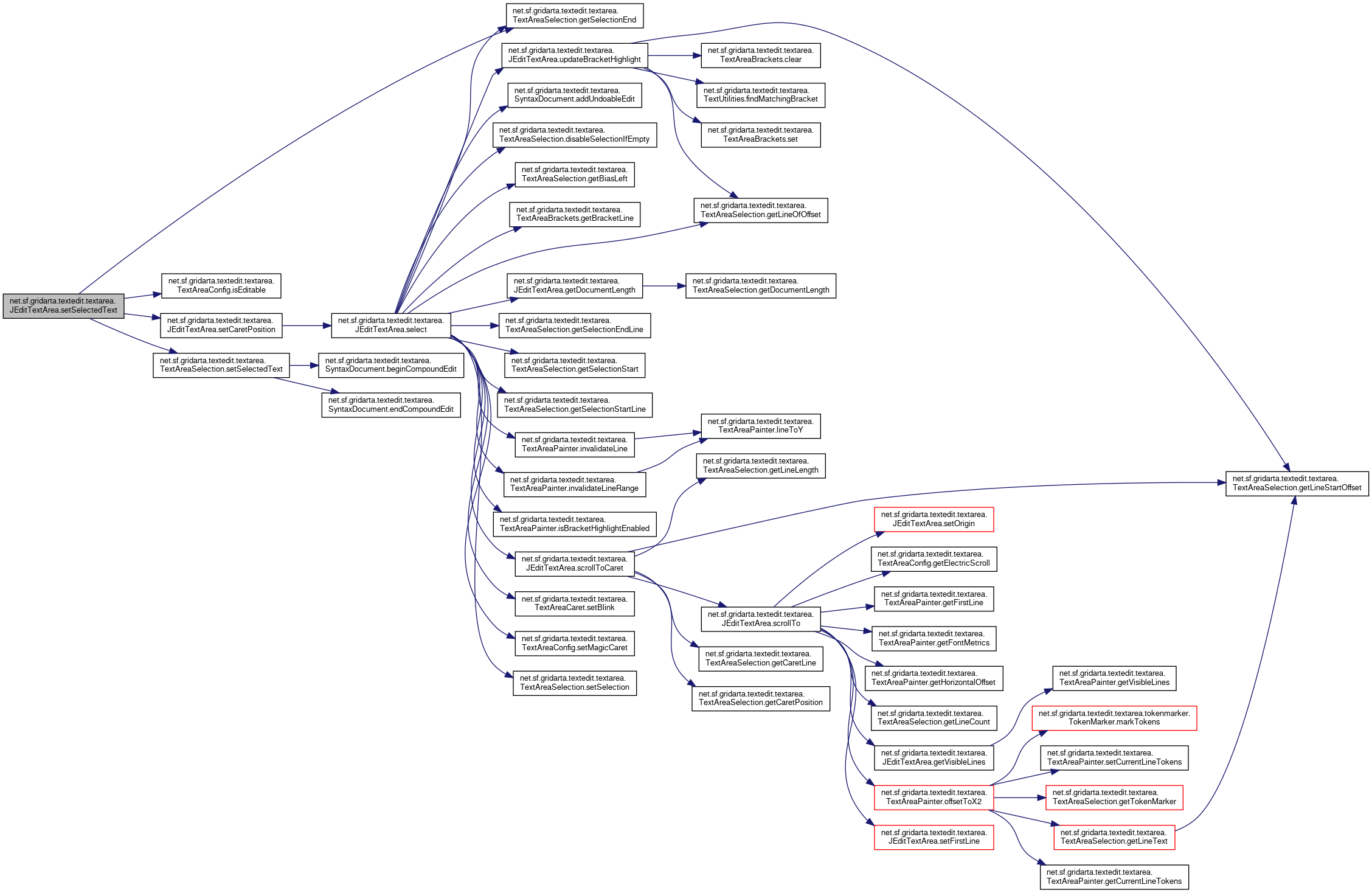

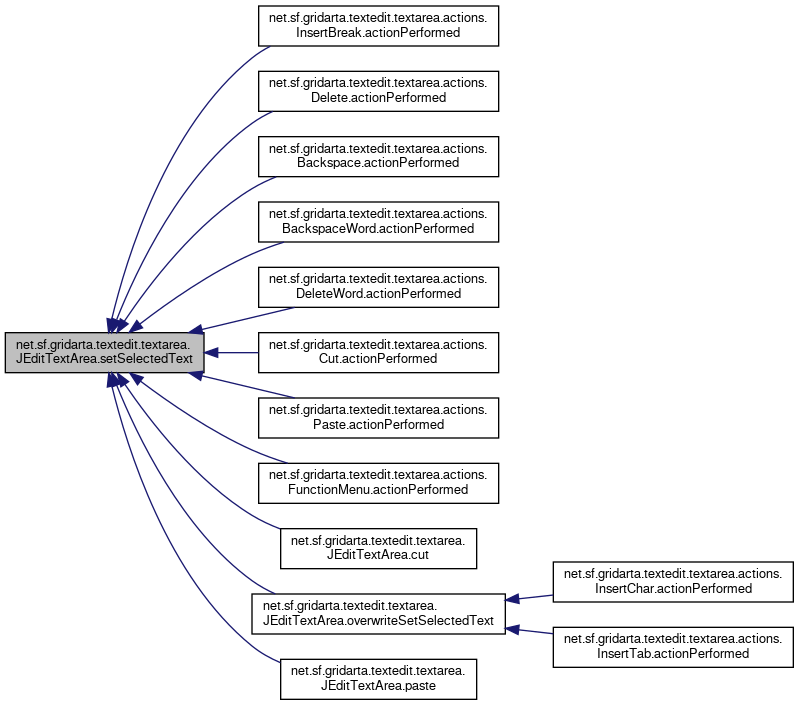

void	setSelectedText (@NotNull final String selectedText)
	Replaces the selection with the specified text. More...

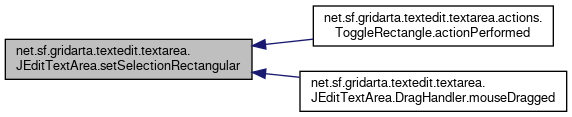

void	setSelectionRectangular (final boolean rectangleSelect)
	Sets if the selection should be rectangular. More...

void	setText (@NotNull final String text)
	Sets the entire text of this text area. More...

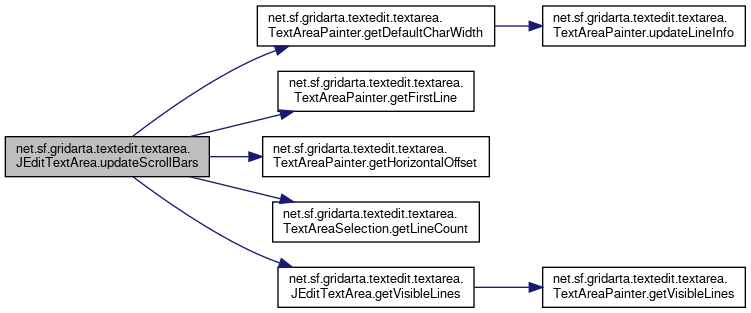

void	updateScrollBars ()
	Updates the state of the scroll bars. More...

int	xToOffset (final int line, final int x)
	Converts an x co-ordinate to an offset within a line. More...

Private Member Functions
void	documentChanged (@NotNull final DocumentEvent evt)

void	freeTabKeyFromFocusTraversal ()
	In JDKs above 1.4, the tab key is used for focus traversal. More...

void	updateBracketHighlight (final int newCaretPosition)

Private Attributes
final TextAreaBrackets	brackets = new TextAreaBrackets()

final TextAreaCaret	caret

final TextAreaConfig	config
	The TextAreaConfig for this instance. More...

final SyntaxDocument	document

final JScrollBar	horizontal = new JScrollBar(Adjustable.HORIZONTAL)

final InputHandler	inputHandler

final TextAreaPainter	painter

final JPopupMenu	popup

boolean	scrollBarsInitialized

final TextAreaSelection	selection

String	unmodifiedText = ""
	The text contents in the last "unmodified" state. More...

final JScrollBar	vertical = new JScrollBar(Adjustable.VERTICAL)

Static Private Attributes
static final Timer	CARET_TIMER = new Timer(500, new CaretBlinker())

static JEditTextArea	focusedComponent

static final Category	LOG = Logger.getLogger(JEditTextArea.class)
	The Logger for printing log messages. More...

static final long	serialVersionUID = 1L
	Serial Version UID. More...

Detailed Description

jEdit's text area component.

It is more suited for editing program source code than JEditorPane, because it drops the unnecessary features (images, variable-width lines, and so on) and adds a whole bunch of useful goodies such as:

More flexible key binding scheme
Supports macro recorders
Rectangular selection
Bracket highlighting
Syntax highlighting
Command repetition
Block caret can be enabled

It is also faster and doesn't have as many problems. It can be used in other applications; the only other part of jEdit it depends on is the syntax package.

To use it in your app, treat it like any other component, for example:

JEditTextArea ta = new JEditTextArea();
ta.setTokenMarker(new JavaTokenMarker());
ta.setText("public class Test {\n"
    + "    public static void main(String[] args) {\n"
    + "        System.err.println(\"Hello World");

"
    + "    }

"
    + "}");

Author: Slava Pestov; Andreas Vogl; Andreas Kirschbaum

Definition at line 90 of file JEditTextArea.java.

Constructor & Destructor Documentation

◆ JEditTextArea()

net.sf.gridarta.textedit.textarea.JEditTextArea.JEditTextArea	(	@NotNull final TextAreaDefaults	defaults,
		@NotNull final SyntaxDocument	document,
		final boolean	paintInvalid
	)

Creates a new JEditTextArea with the specified settings.

Parameters

defaults	the default settings
paintInvalid	whether invalid lines should be painted as red tildes

Definition at line 160 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.ScrollLayout.BOTTOM, net.sf.gridarta.textedit.textarea.ScrollLayout.CENTER, net.sf.gridarta.textedit.textarea.JEditTextArea.document, net.sf.gridarta.textedit.textarea.JEditTextArea.freeTabKeyFromFocusTraversal(), net.sf.gridarta.textedit.textarea.ScrollLayout.RIGHT, net.sf.gridarta.textedit.textarea.JEditTextArea.select(), and net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars().

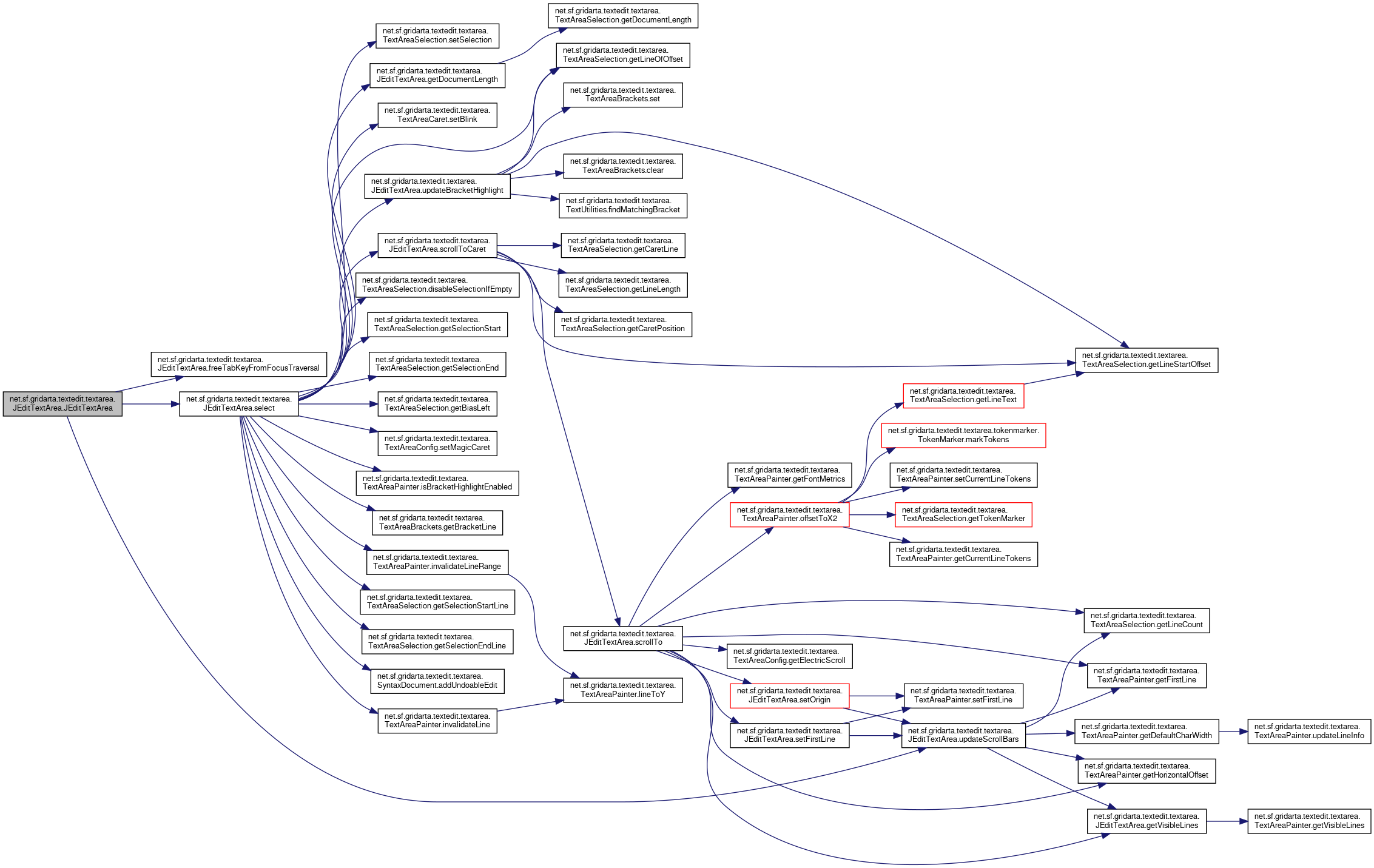

Here is the call graph for this function:

Member Function Documentation

◆ blinkCaret()

void net.sf.gridarta.textedit.textarea.JEditTextArea.blinkCaret ( )

Blinks the caret.

Definition at line 285 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaCaret.blinkCaret(), and net.sf.gridarta.textedit.textarea.TextAreaPainter.invalidateSelectedLines().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.CaretBlinker.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copy()

void net.sf.gridarta.textedit.textarea.JEditTextArea.copy ( )

Places the selected text into the clipboard.

Definition at line 839 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.InputHandler.getRepeatCount(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectedText(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectionEnd(), and net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectionStart().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.cut().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cut()

void net.sf.gridarta.textedit.textarea.JEditTextArea.cut ( )

Deletes the selected text from the text area and places it into the clipboard.

Definition at line 829 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.JEditTextArea.copy(), net.sf.gridarta.textedit.textarea.TextAreaConfig.isEditable(), and net.sf.gridarta.textedit.textarea.JEditTextArea.setSelectedText().

Here is the call graph for this function:

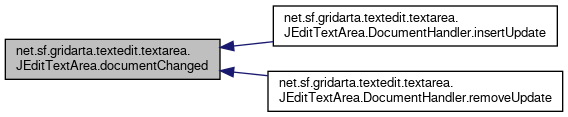

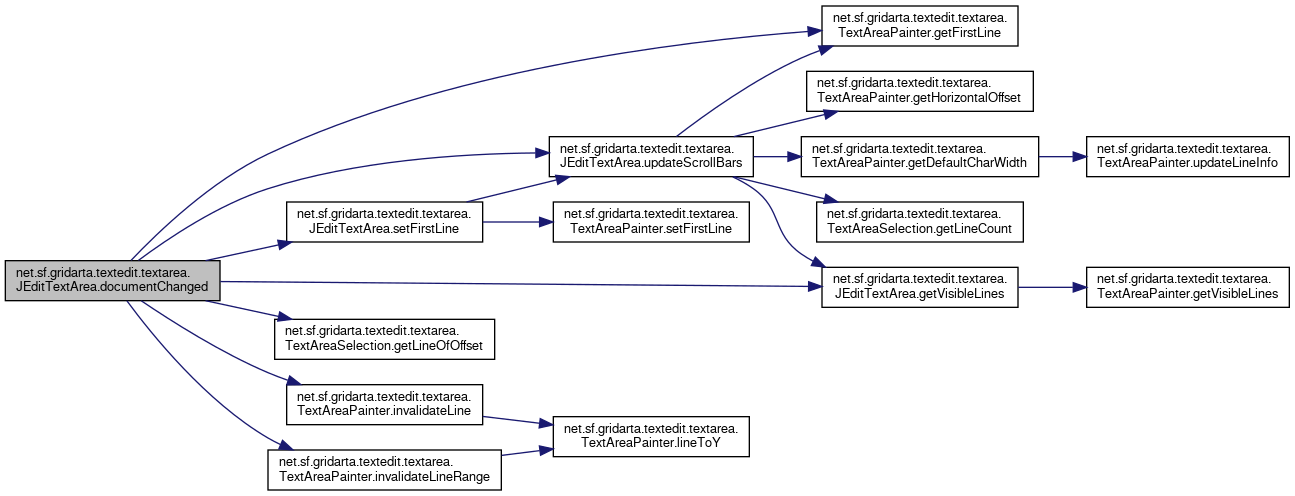

◆ documentChanged()

void net.sf.gridarta.textedit.textarea.JEditTextArea.documentChanged ( @NotNull final DocumentEvent evt )

private

Definition at line 938 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.getFirstLine(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineOfOffset(), net.sf.gridarta.textedit.textarea.JEditTextArea.getVisibleLines(), net.sf.gridarta.textedit.textarea.TextAreaPainter.invalidateLine(), net.sf.gridarta.textedit.textarea.TextAreaPainter.invalidateLineRange(), net.sf.gridarta.textedit.textarea.JEditTextArea.setFirstLine(), and net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.DocumentHandler.insertUpdate(), and net.sf.gridarta.textedit.textarea.JEditTextArea.DocumentHandler.removeUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freeTabKeyFromFocusTraversal()

void net.sf.gridarta.textedit.textarea.JEditTextArea.freeTabKeyFromFocusTraversal ( )

private

In JDKs above 1.4, the tab key is used for focus traversal.

That means the tab key normally does not "work" inside the text area. But that would be a pity, because we need the tab key for indentation.

So what this method does is setting the focus traversal to "tab + <control>", in order to "free" the tab key from focus traversal events. In JDKs above 1.4, this task can be accomplished simply by three lines of code:

Set forwardTraversalKeys = new HashSet();
forwardTraversalKeys.add(KeyStroke.getKeyStroke("control TAB"));
setFocusTraversalKeys(KeyboardFocusManager.FORWARD_TRAVERSAL_KEYS,
forwardTraversalKeys);

Now, what's the big deal there? The problem is that the class "KeyboardFocusManager" as well as the method "setFocusTraversalKeys" are undefined in JDKs 1.3.* and below. Hence, if above code was inserted as-is, this application would no longer compile with java 1.3.

The solution to this problem is implemented here: The critical classes and methods are accessed through the reflection interface, which allows to execute them if defined but still compile if undefined.

Definition at line 228 of file JEditTextArea.java.

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.JEditTextArea().

Here is the caller graph for this function:

◆ getCaretLine()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getCaretLine ( )

Returns the caret line.

Definition at line 617 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getCaretLine().

Here is the call graph for this function:

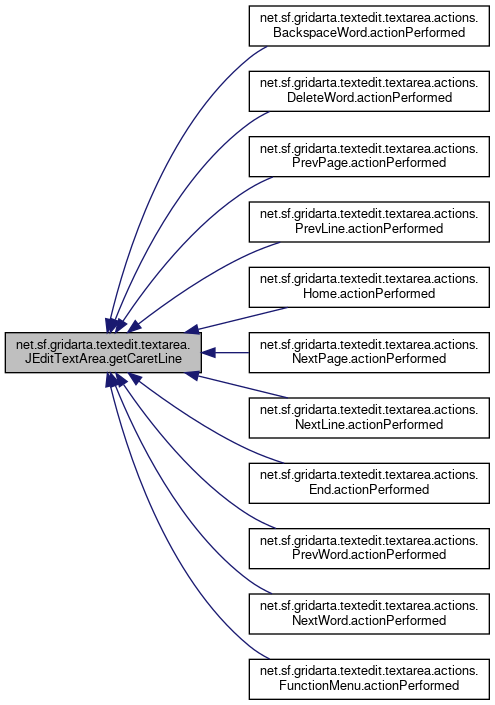

Here is the caller graph for this function:

◆ getCaretPosition()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getCaretPosition ( )

Returns the caret position.

This will either be the selection start or the selection end, depending on which direction the selection was made in.

Definition at line 610 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getCaretPosition().

Here is the call graph for this function:

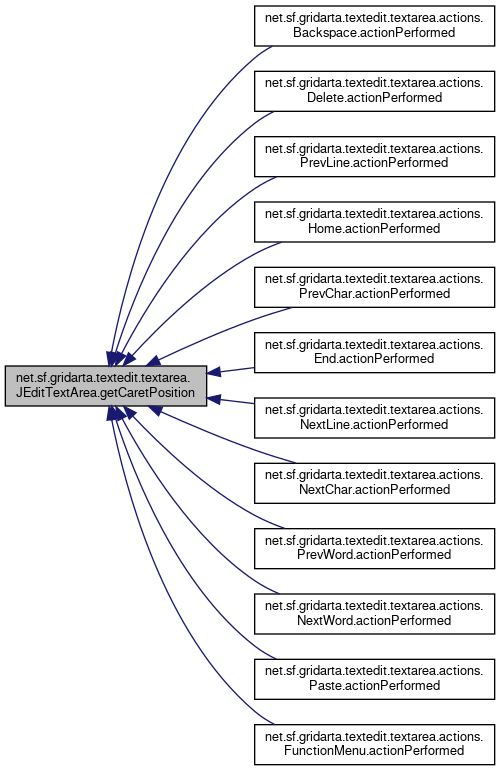

Here is the caller graph for this function:

◆ getDocument()

Document net.sf.gridarta.textedit.textarea.JEditTextArea.getDocument ( )

Returns the document this text area is editing.

Definition at line 505 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getDocument().

Here is the call graph for this function:

Here is the caller graph for this function:

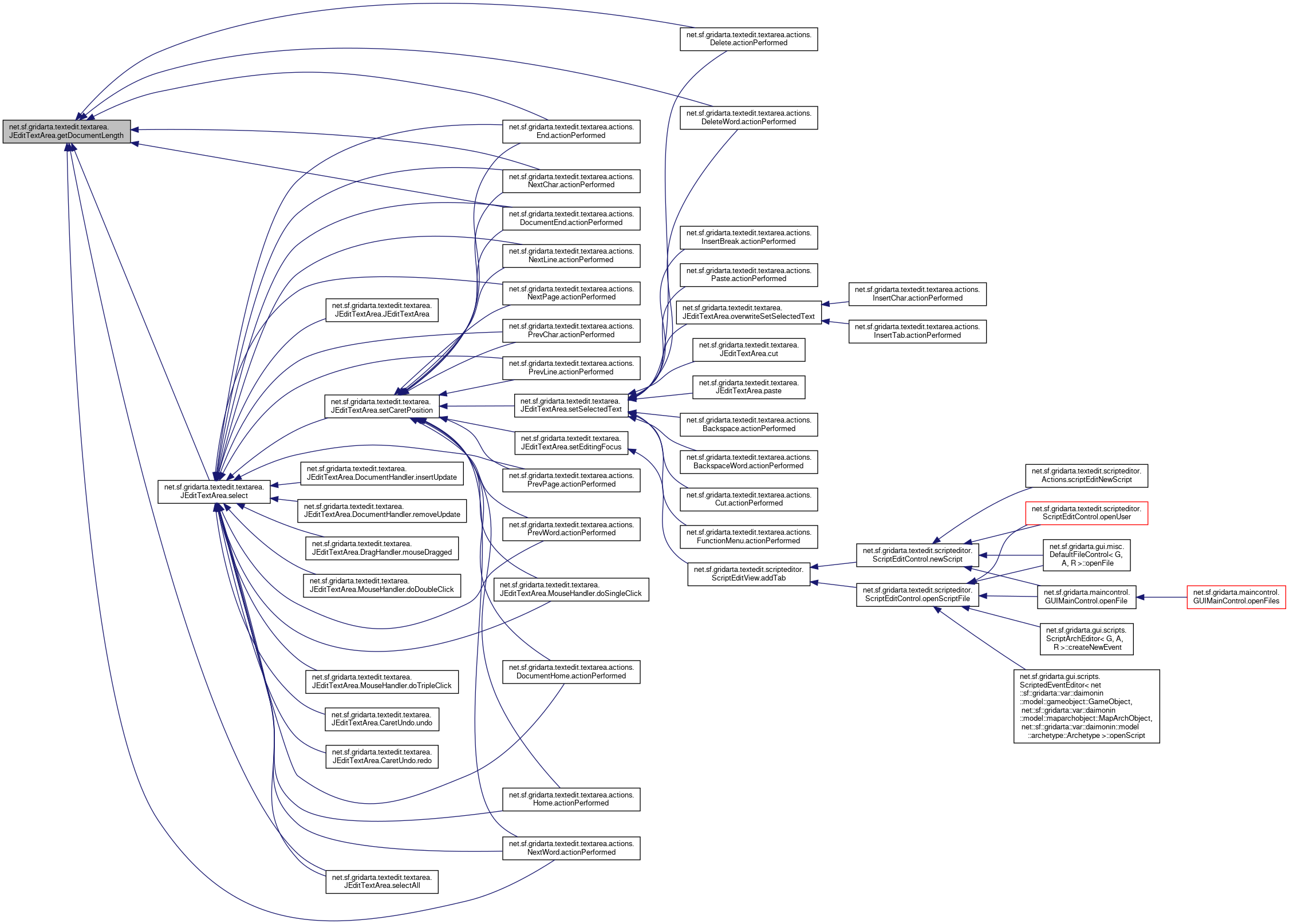

◆ getDocumentLength()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getDocumentLength ( )

Returns the length of the document.

Equivalent to calling

getDocument().getLength()

.

Definition at line 513 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getDocumentLength().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getElectricScroll()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getElectricScroll ( )

Returns the number of lines from the top and button of the text area that are always visible.

Definition at line 295 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaConfig.getElectricScroll().

Referenced by net.sf.gridarta.textedit.textarea.actions.End.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.Home.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFirstLine()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getFirstLine ( )

Returns the line displayed at the text area's origin.

Definition at line 325 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.getFirstLine().

Referenced by net.sf.gridarta.textedit.textarea.actions.End.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.PrevPage.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.NextPage.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.Home.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getInputHandler()

InputHandler net.sf.gridarta.textedit.textarea.JEditTextArea.getInputHandler ( )

Returns the input handler.

Definition at line 269 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.JEditTextArea.inputHandler.

Referenced by net.sf.gridarta.textedit.textarea.actions.InsertChar.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.Repeat.actionPerformed().

Here is the caller graph for this function:

◆ getLineCount()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getLineCount ( )

Returns the number of lines in the document.

Definition at line 520 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineCount().

Referenced by net.sf.gridarta.textedit.textarea.actions.End.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.NextPage.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.NextLine.actionPerformed().

Here is the call graph for this function:

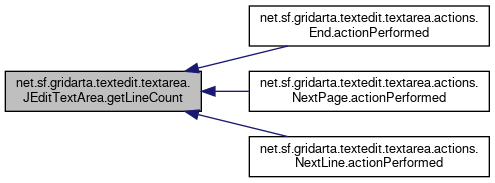

Here is the caller graph for this function:

◆ getLineEndOffset()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getLineEndOffset ( final int line )

Returns the end offset of the specified line.

Parameters

line the line

Returns: the end offset of the specified line, or -1 if the line is invalid

Definition at line 540 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineEndOffset().

Referenced by net.sf.gridarta.textedit.textarea.actions.End.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getLineStartOffset()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getLineStartOffset ( final int line )

Returns the start offset of the specified line.

Parameters

line the line

Returns: the start offset of the specified line, or -1 if the line is invalid

Definition at line 530 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineStartOffset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getLineText()

CharSequence net.sf.gridarta.textedit.textarea.JEditTextArea.getLineText ( final int lineIndex )

Returns the text on the specified line.

Parameters

lineIndex the line

Returns: the text, or null if the line is invalid

Definition at line 587 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineText().

Referenced by net.sf.gridarta.textedit.textarea.actions.BackspaceWord.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.DeleteWord.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.NextWord.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.PrevWord.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMagicCaretPosition()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getMagicCaretPosition ( )

Returns the `magic' caret position.

This can be used to preserve the column position when moving up and down lines.

Definition at line 743 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaConfig.getMagicCaret().

Referenced by net.sf.gridarta.textedit.textarea.actions.NextLine.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.PrevLine.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMarkPosition()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getMarkPosition ( )

Returns the mark position.

This will be the opposite selection bound to the caret position.

See also: getCaretPosition()

Definition at line 626 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getMarkPosition().

Here is the call graph for this function:

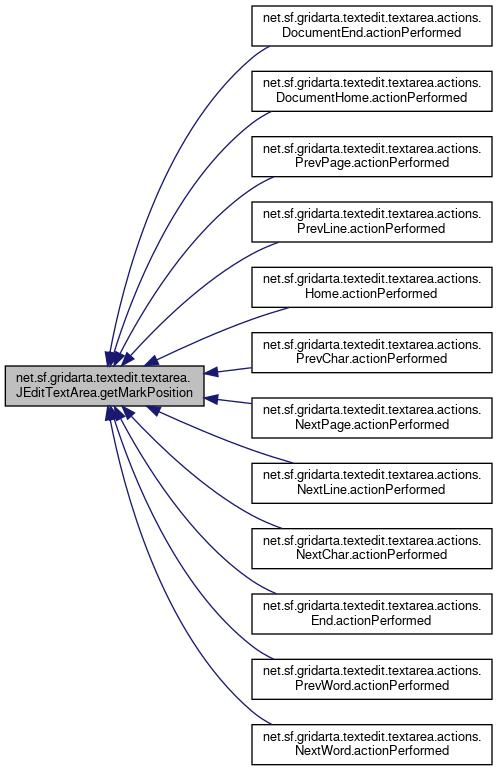

Here is the caller graph for this function:

◆ getSelectedText()

String net.sf.gridarta.textedit.textarea.JEditTextArea.getSelectedText ( )

Returns the selected text, or null if no selection is active.

Definition at line 714 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectedText().

Referenced by net.sf.gridarta.textedit.textarea.actions.Copy.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.Cut.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.Paste.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.FunctionMenu.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.Find.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.Replace.ReplaceDialog.createPanel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSelectionEnd()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getSelectionEnd ( )

Returns the selection end offset.

Definition at line 601 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectionEnd().

Referenced by net.sf.gridarta.textedit.textarea.actions.Backspace.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.Delete.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.DeleteWord.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.BackspaceWord.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSelectionStart()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getSelectionStart ( )

Returns the selection start offset.

Definition at line 594 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectionStart().

Referenced by net.sf.gridarta.textedit.textarea.actions.Backspace.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.Delete.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.DeleteWord.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.BackspaceWord.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getText() [1/3]

String net.sf.gridarta.textedit.textarea.JEditTextArea.getText ( )

Returns the entire text of this text area.

Definition at line 548 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getText().

Referenced by net.sf.gridarta.gui.dialog.gameobjectattributes.DialogAttributeText< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getObjectText(), net.sf.gridarta.textedit.scripteditor.ScriptEditControl.saveActiveTab(), and net.sf.gridarta.textedit.scripteditor.ScriptEditControl.saveAsActiveTab().

Here is the call graph for this function:

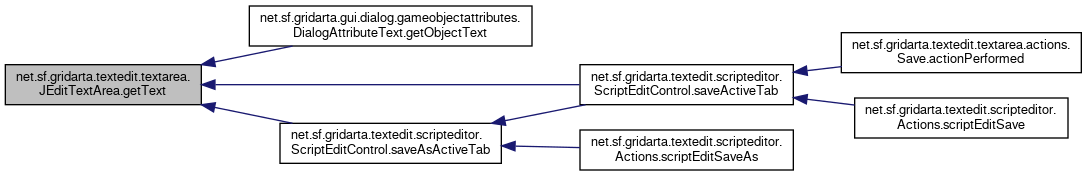

Here is the caller graph for this function:

◆ getText() [2/3]

String net.sf.gridarta.textedit.textarea.JEditTextArea.getText	(	final int	start,
		final int	len
	)

Returns the specified substring of the document.

Parameters

start	the start offset
len	the length of the substring

Returns: the substring, or null if the offsets are invalid

Definition at line 566 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getText().

Here is the call graph for this function:

◆ getText() [3/3]

void net.sf.gridarta.textedit.textarea.JEditTextArea.getText	(	final int	start,
		final int	len,
		@NotNull final Segment	segment
	)

Copies the specified substring of the document into a segment.

If the offsets are invalid, the segment will contain a null string.

Parameters

start	the start offset
len	the length of the substring
segment	the segment

Definition at line 577 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getText().

Here is the call graph for this function:

◆ getVisibleLines()

int net.sf.gridarta.textedit.textarea.JEditTextArea.getVisibleLines ( )

Returns the number of lines visible in this text area.

Definition at line 347 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.getVisibleLines().

Referenced by net.sf.gridarta.textedit.textarea.actions.End.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.NextPage.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.PrevPage.actionPerformed(), net.sf.gridarta.textedit.textarea.JEditTextArea.documentChanged(), net.sf.gridarta.textedit.textarea.JEditTextArea.scrollTo(), and net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isEditable()

boolean net.sf.gridarta.textedit.textarea.JEditTextArea.isEditable ( )

Returns true if this text area is editable, false otherwise.

Definition at line 735 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaConfig.isEditable().

Referenced by net.sf.gridarta.textedit.textarea.actions.InsertBreak.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.InsertTab.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.InsertChar.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.Backspace.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.Delete.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isModified()

boolean net.sf.gridarta.textedit.textarea.JEditTextArea.isModified ( )

Return whether the text content has been modified from the "unmodified" state.

Returns: true
if the text content has been modified, or
false
if it is unmodified

Definition at line 970 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getText().

Referenced by net.sf.gridarta.textedit.scripteditor.ScriptEditControl.closeActiveTab().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isOverwriteEnabled()

boolean net.sf.gridarta.textedit.textarea.JEditTextArea.isOverwriteEnabled ( )

Returns whether overwrite mode is active.

Returns: whether overwrite mode is active

Definition at line 795 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaConfig.isOverwrite().

Referenced by net.sf.gridarta.textedit.textarea.actions.Overwrite.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isSelectionRectangular()

boolean net.sf.gridarta.textedit.textarea.JEditTextArea.isSelectionRectangular ( )

Returns true if the selection is rectangular, false otherwise.

Definition at line 811 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.isSelectionRectangular().

Referenced by net.sf.gridarta.textedit.textarea.actions.ToggleRectangle.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lineToY()

int net.sf.gridarta.textedit.textarea.JEditTextArea.lineToY ( final int line )

Converts a line index to a y co-ordinate.

Parameters

line the line

Definition at line 467 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.lineToY().

Referenced by net.sf.gridarta.textedit.textarea.actions.FunctionMenu.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

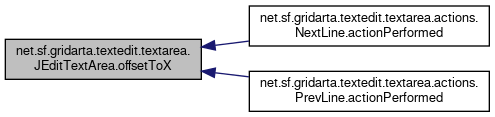

◆ offsetToX()

int net.sf.gridarta.textedit.textarea.JEditTextArea.offsetToX	(	final int	line,
		final int	offset
	)

Converts an offset in a line into an x co-ordinate.

This is a slow version that can be used any time.

Parameters

line	the line
offset	the offset, from the start of the line

Definition at line 477 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.offsetToX().

Referenced by net.sf.gridarta.textedit.textarea.actions.NextLine.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.PrevLine.actionPerformed().

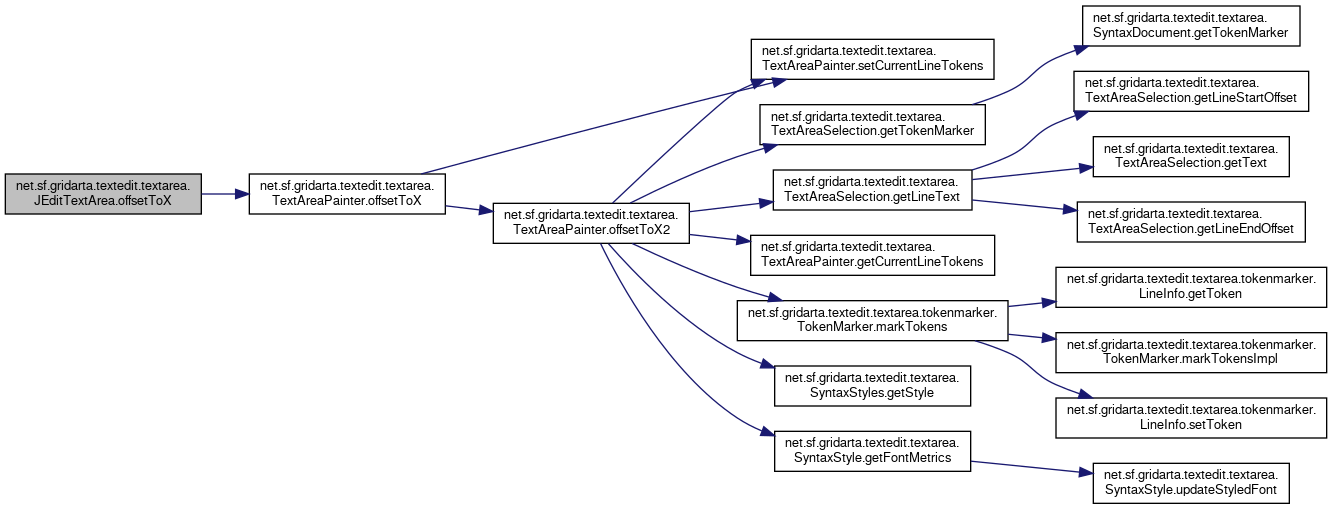

Here is the call graph for this function:

Here is the caller graph for this function:

◆ offsetToX2()

int net.sf.gridarta.textedit.textarea.JEditTextArea.offsetToX2	(	final int	line,
		final int	offset
	)

Converts an offset in a line into an x co-ordinate.

This is a fast version that should only be used if no changes were made to the text since the last repaint.

Parameters

line	the line
offset	the offset, from the start of the line

Definition at line 488 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.offsetToX2().

Referenced by net.sf.gridarta.textedit.textarea.actions.FunctionMenu.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ overwriteSetSelectedText()

void net.sf.gridarta.textedit.textarea.JEditTextArea.overwriteSetSelectedText ( @NotNull final String str )

Similar to.

setSelectedText()

, but overstrikes the appropriate number of characters if overwrite mode is enabled.

Parameters

str	the string

See also: #setSelectedText(String); isOverwriteEnabled()

Definition at line 763 of file JEditTextArea.java.

Referenced by net.sf.gridarta.textedit.textarea.actions.InsertChar.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.InsertTab.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ paste()

void net.sf.gridarta.textedit.textarea.JEditTextArea.paste ( )

Inserts the clipboard contents into the text.

Definition at line 858 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.InputHandler.getRepeatCount(), net.sf.gridarta.textedit.textarea.TextAreaConfig.isEditable(), and net.sf.gridarta.textedit.textarea.JEditTextArea.setSelectedText().

Here is the call graph for this function:

◆ processKeyEvent()

void net.sf.gridarta.textedit.textarea.JEditTextArea.processKeyEvent ( @NotNull final KeyEvent e )

Forwards key events directly to the input handler.

This is slightly faster than using a KeyListener because some Swing overhead is avoided.

Definition at line 899 of file JEditTextArea.java.

◆ removeNotify()

void net.sf.gridarta.textedit.textarea.JEditTextArea.removeNotify ( )

Called by the AWT when this component is removed from it's parent.

This stops clears the currently focused component.

Definition at line 887 of file JEditTextArea.java.

◆ resetModified()

void net.sf.gridarta.textedit.textarea.JEditTextArea.resetModified ( )

Reset the "modified" state.

Definition at line 977 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getText().

Referenced by net.sf.gridarta.textedit.scripteditor.ScriptEditView.addTab(), net.sf.gridarta.textedit.scripteditor.ScriptEditControl.saveActiveTab(), and net.sf.gridarta.textedit.scripteditor.ScriptEditControl.saveAsActiveTab().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scrollTo()

void net.sf.gridarta.textedit.textarea.JEditTextArea.scrollTo	(	final int	line,
		final int	offset
	)

Ensures that the specified line and offset is visible by scrolling the text area if necessary.

Parameters

line	the line to scroll to
offset	the offset in the line to scroll to

Definition at line 424 of file JEditTextArea.java.

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.scrollToCaret().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scrollToCaret()

void net.sf.gridarta.textedit.textarea.JEditTextArea.scrollToCaret ( )

Ensures that the caret is visible by scrolling the text area if necessary.

Definition at line 394 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getCaretLine(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getCaretPosition(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineLength(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineStartOffset(), and net.sf.gridarta.textedit.textarea.JEditTextArea.scrollTo().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.select().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ select()

void net.sf.gridarta.textedit.textarea.JEditTextArea.select	(	final int	start,
		final int	end
	)

Selects from the start offset to the end offset.

This is the general selection method used by all other selecting methods. The caret position will be start if start < end, and end if end > start.

Parameters

start	the start offset
end	the end offset

Definition at line 654 of file JEditTextArea.java.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ selectAll()

void net.sf.gridarta.textedit.textarea.JEditTextArea.selectAll ( )

Selects all text in the document.

Definition at line 643 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.JEditTextArea.getDocumentLength(), and net.sf.gridarta.textedit.textarea.JEditTextArea.select().

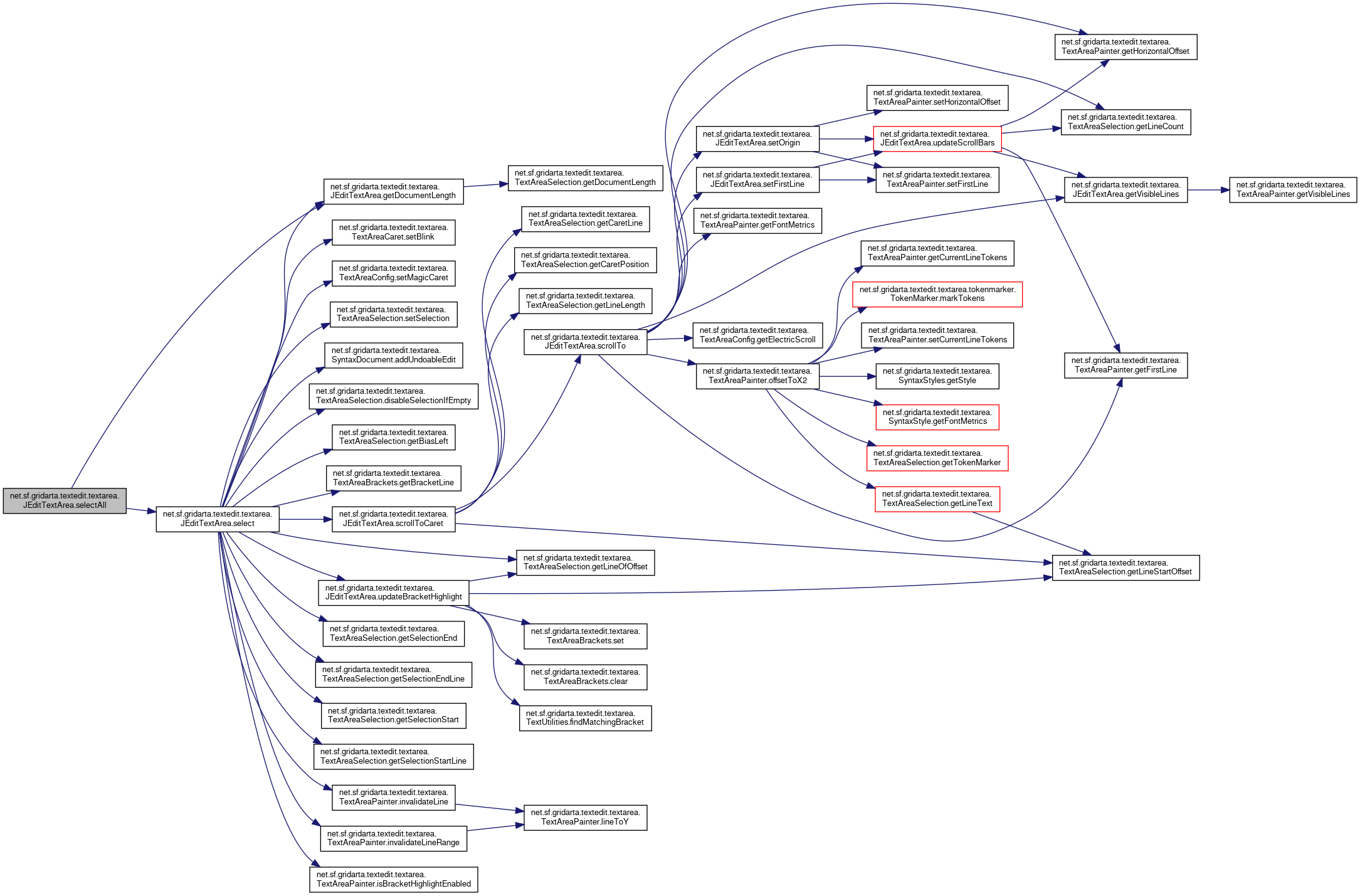

Here is the call graph for this function:

◆ setCaretPosition()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setCaretPosition ( final int caret )

Sets the caret position.

The new selection will consist of the caret position only (hence no text will be selected).

Parameters

caret the caret position

See also: select(int, int)

Definition at line 636 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.JEditTextArea.select().

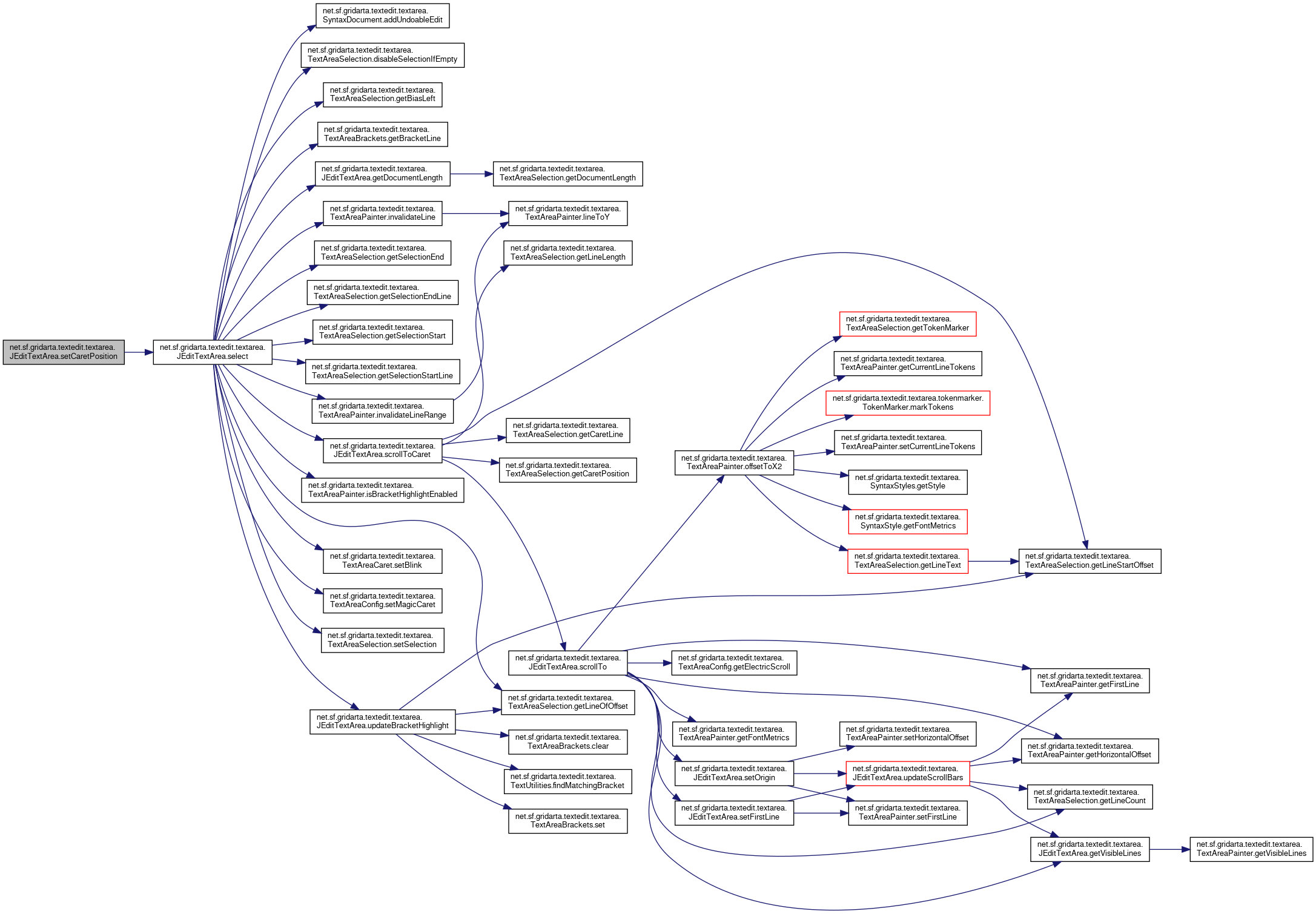

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCaretVisible()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setCaretVisible ( final boolean caretVisible )

Sets if the caret should be visible.

Parameters

caretVisible true if the caret should be visible, false otherwise

Definition at line 277 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.invalidateSelectedLines(), and net.sf.gridarta.textedit.textarea.TextAreaCaret.setCaretVisible().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.FocusHandler.focusGained(), net.sf.gridarta.textedit.textarea.JEditTextArea.FocusHandler.focusLost(), net.sf.gridarta.textedit.textarea.JEditTextArea.MouseHandler.mousePressed(), and net.sf.gridarta.textedit.textarea.JEditTextArea.setEditingFocus().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setEditingFocus()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setEditingFocus ( )

Sets the focus to this TextArea, so this component is instantly registered for key press events.

The graphics context must be fully initialized before calling this method.

Definition at line 407 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.JEditTextArea.setCaretPosition(), and net.sf.gridarta.textedit.textarea.JEditTextArea.setCaretVisible().

Referenced by net.sf.gridarta.textedit.scripteditor.ScriptEditView.addTab().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFirstLine()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setFirstLine ( final int firstLine )

Sets the line displayed at the text area's origin without updating the scroll bars.

Definition at line 333 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.setFirstLine(), and net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars().

Referenced by net.sf.gridarta.textedit.textarea.actions.NextPage.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.PrevPage.actionPerformed(), net.sf.gridarta.textedit.textarea.JEditTextArea.AdjustHandler.adjustmentValueChanged(), net.sf.gridarta.textedit.textarea.JEditTextArea.documentChanged(), and net.sf.gridarta.textedit.textarea.JEditTextArea.scrollTo().

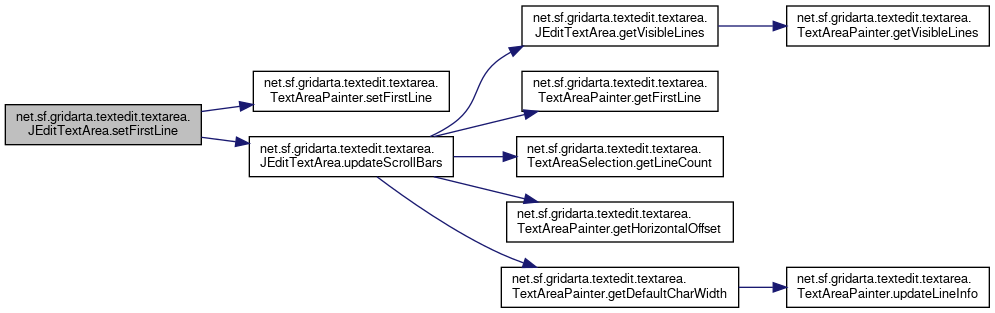

Here is the call graph for this function:

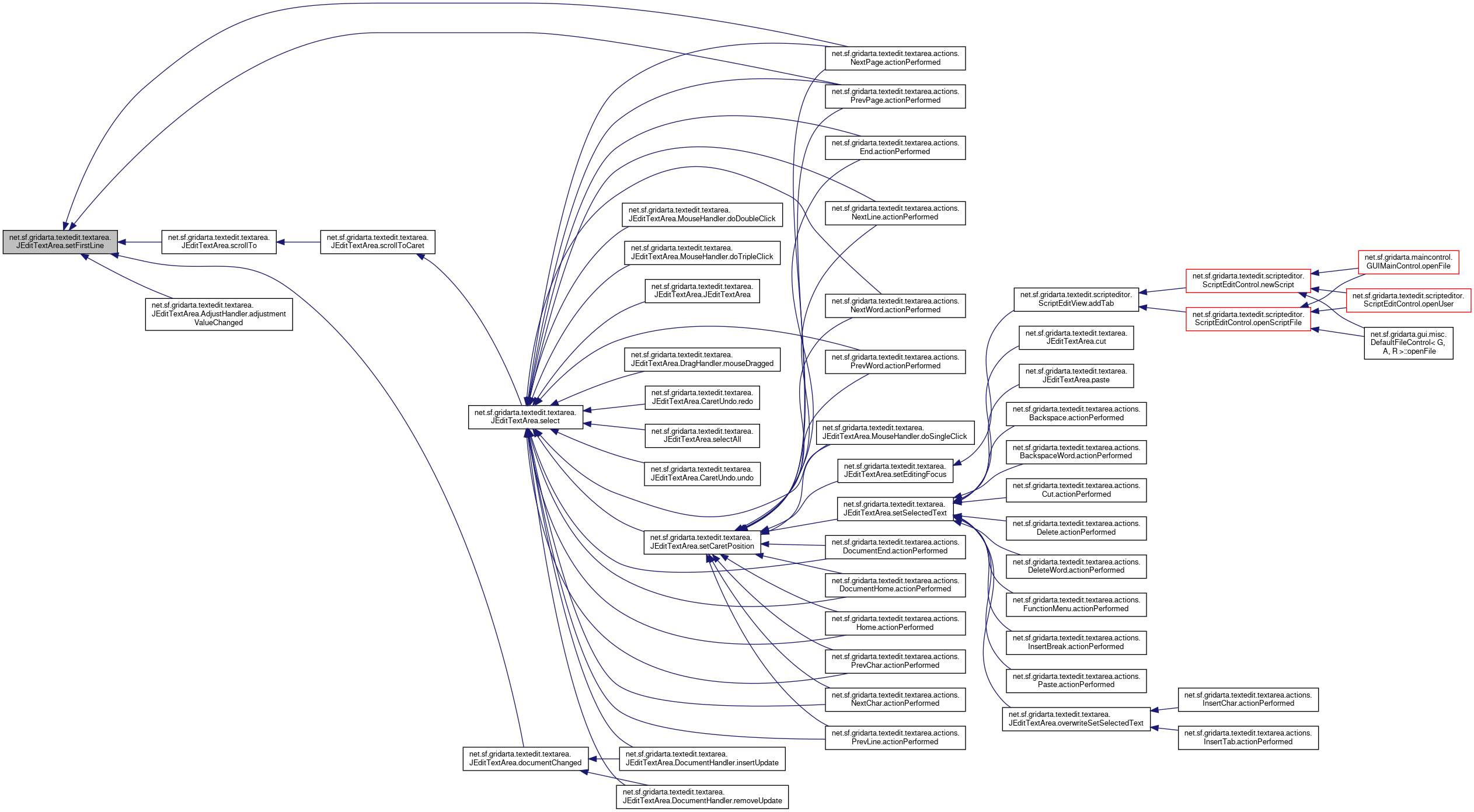

Here is the caller graph for this function:

◆ setFont()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setFont ( @NotNull final Font font )

Set the TextArea font.

Parameters

font font

Definition at line 261 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.setFont().

Here is the call graph for this function:

◆ setHorizontalOffset()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setHorizontalOffset ( final int horizontalOffset )

Sets the horizontal offset of drawn lines.

This can be used to implement horizontal scrolling.

Parameters

horizontalOffset offset The new horizontal offset

Definition at line 356 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.setHorizontalOffset(), and net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.AdjustHandler.adjustmentValueChanged().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMagicCaretPosition()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setMagicCaretPosition ( final int magicCaret )

Sets the `magic' caret position.

This can be used to preserve the column position when moving up and down lines.

Parameters

magicCaret the magic caret position

Definition at line 752 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaConfig.setMagicCaret().

Referenced by net.sf.gridarta.textedit.textarea.actions.NextLine.actionPerformed(), and net.sf.gridarta.textedit.textarea.actions.PrevLine.actionPerformed().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOrigin()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setOrigin	(	final int	firstLine,
		final int	horizontalOffset
	)

A fast way of changing both the first line and horizontal offset.

Parameters

firstLine	the new first line
horizontalOffset	the new horizontal offset

Definition at line 373 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.setFirstLine(), net.sf.gridarta.textedit.textarea.TextAreaPainter.setHorizontalOffset(), and net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.scrollTo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOverwriteEnabled()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setOverwriteEnabled ( final boolean overwrite )

Sets whether overwrite mode is active.

Parameters

overwrite whether overwrite mode is active

Definition at line 803 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.invalidateSelectedLines(), and net.sf.gridarta.textedit.textarea.TextAreaConfig.setOverwrite().

Referenced by net.sf.gridarta.textedit.textarea.actions.Overwrite.actionPerformed().

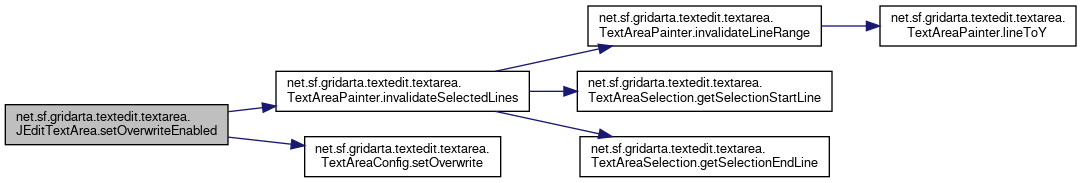

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSelectedText()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setSelectedText ( @NotNull final String selectedText )

Replaces the selection with the specified text.

Parameters

selectedText the replacement text for the selection

Definition at line 722 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.getSelectionEnd(), net.sf.gridarta.textedit.textarea.TextAreaConfig.isEditable(), net.sf.gridarta.textedit.textarea.JEditTextArea.setCaretPosition(), and net.sf.gridarta.textedit.textarea.TextAreaSelection.setSelectedText().

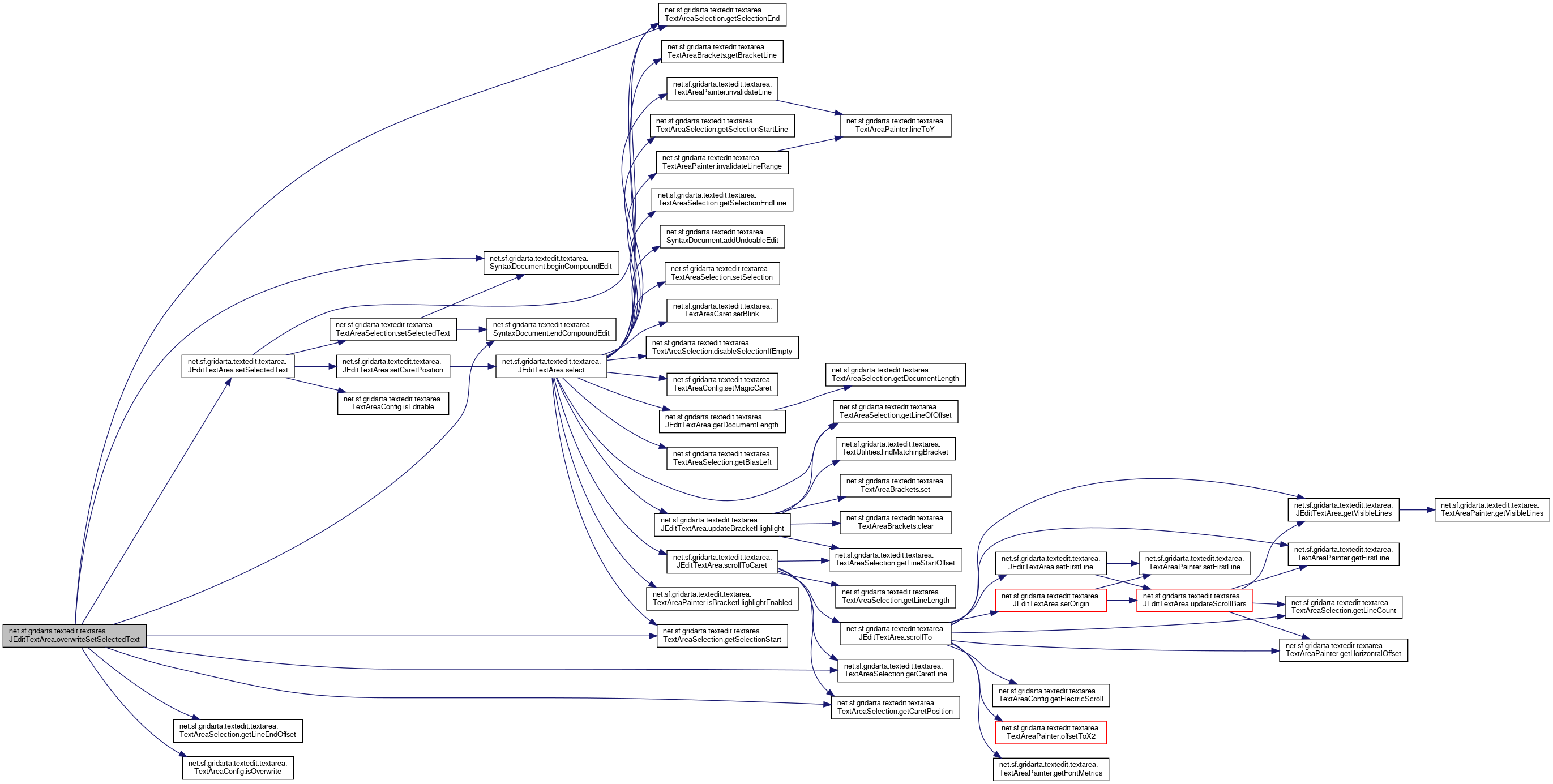

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSelectionRectangular()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setSelectionRectangular ( final boolean rectangleSelect )

Sets if the selection should be rectangular.

Parameters

rectangleSelect true if the selection should be rectangular, false otherwise

Definition at line 820 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.invalidateSelectedLines(), and net.sf.gridarta.textedit.textarea.TextAreaSelection.setSelectionRectangular().

Referenced by net.sf.gridarta.textedit.textarea.actions.ToggleRectangle.actionPerformed(), and net.sf.gridarta.textedit.textarea.JEditTextArea.DragHandler.mouseDragged().

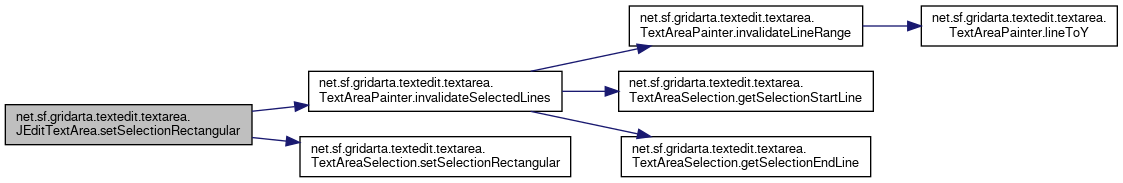

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setText()

void net.sf.gridarta.textedit.textarea.JEditTextArea.setText ( @NotNull final String text )

Sets the entire text of this text area.

Definition at line 555 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaSelection.setText().

Here is the call graph for this function:

◆ updateBracketHighlight()

void net.sf.gridarta.textedit.textarea.JEditTextArea.updateBracketHighlight ( final int newCaretPosition )

private

Definition at line 917 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaBrackets.clear(), net.sf.gridarta.textedit.textarea.TextUtilities.findMatchingBracket(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineOfOffset(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineStartOffset(), and net.sf.gridarta.textedit.textarea.TextAreaBrackets.set().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.select().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateScrollBars()

void net.sf.gridarta.textedit.textarea.JEditTextArea.updateScrollBars ( )

Updates the state of the scroll bars.

This should be called if the number of lines in the document changes, or when the size of the text are changes.

Definition at line 304 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.getDefaultCharWidth(), net.sf.gridarta.textedit.textarea.TextAreaPainter.getFirstLine(), net.sf.gridarta.textedit.textarea.TextAreaPainter.getHorizontalOffset(), net.sf.gridarta.textedit.textarea.TextAreaSelection.getLineCount(), and net.sf.gridarta.textedit.textarea.JEditTextArea.getVisibleLines().

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.documentChanged(), net.sf.gridarta.textedit.textarea.JEditTextArea.JEditTextArea(), net.sf.gridarta.textedit.textarea.TextAreaPainter.recalculateVisibleLines(), net.sf.gridarta.textedit.textarea.JEditTextArea.setFirstLine(), net.sf.gridarta.textedit.textarea.JEditTextArea.setHorizontalOffset(), and net.sf.gridarta.textedit.textarea.JEditTextArea.setOrigin().

Here is the call graph for this function:

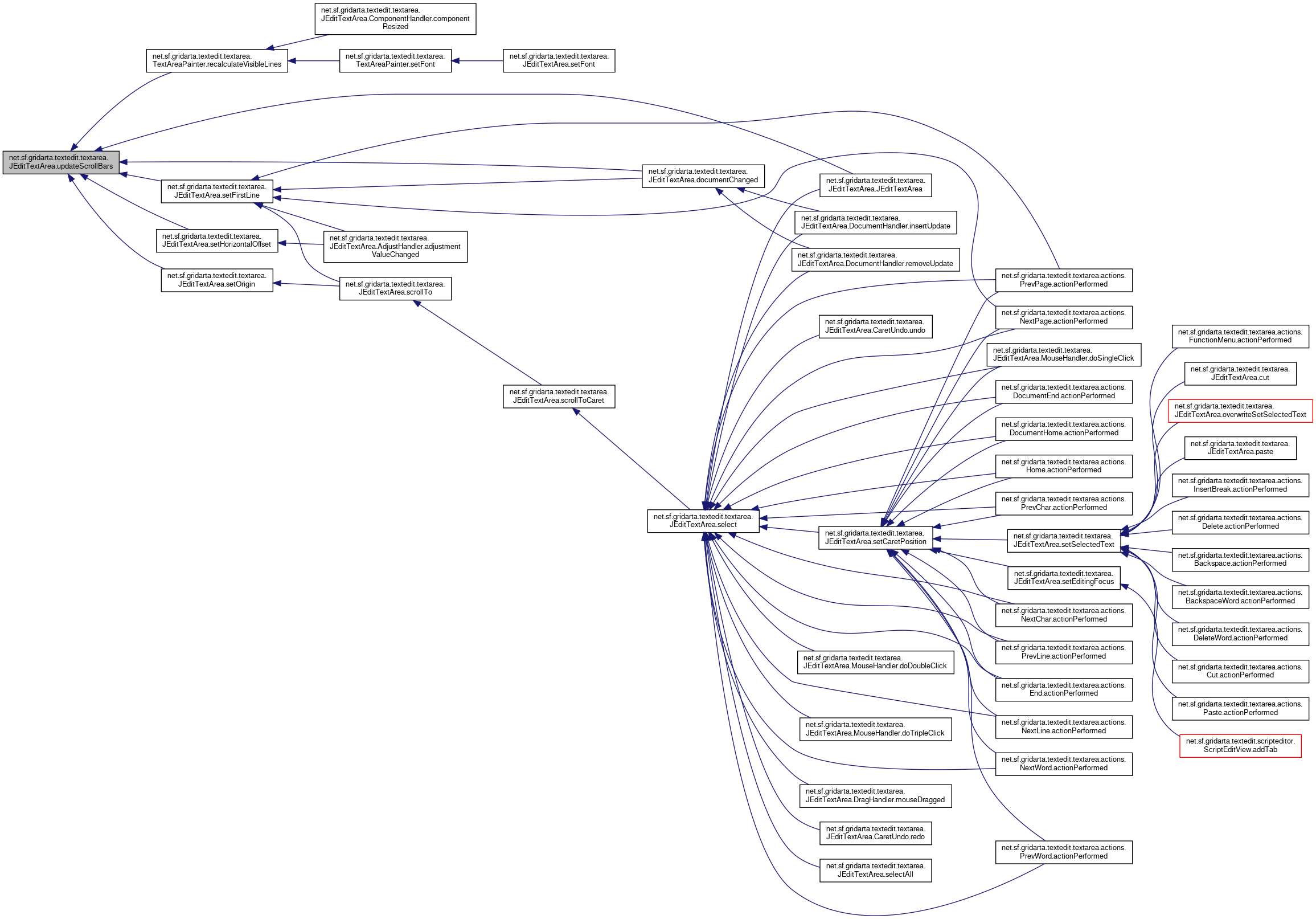

Here is the caller graph for this function:

◆ xToOffset()

int net.sf.gridarta.textedit.textarea.JEditTextArea.xToOffset	(	final int	line,
		final int	x
	)

Converts an x co-ordinate to an offset within a line.

Parameters

line	the line
x	the x co-ordinate

Definition at line 497 of file JEditTextArea.java.

References net.sf.gridarta.textedit.textarea.TextAreaPainter.xToOffset().

Referenced by net.sf.gridarta.textedit.textarea.actions.NextLine.actionPerformed(), net.sf.gridarta.textedit.textarea.actions.PrevLine.actionPerformed(), and net.sf.gridarta.textedit.textarea.JEditTextArea.MouseHandler.mousePressed().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ brackets

final TextAreaBrackets net.sf.gridarta.textedit.textarea.JEditTextArea.brackets = new TextAreaBrackets()

private

Definition at line 146 of file JEditTextArea.java.

◆ caret

final TextAreaCaret net.sf.gridarta.textedit.textarea.JEditTextArea.caret

private

Definition at line 126 of file JEditTextArea.java.

◆ CARET_TIMER

final Timer net.sf.gridarta.textedit.textarea.JEditTextArea.CARET_TIMER = new Timer(500, new CaretBlinker())

staticprivate

Definition at line 112 of file JEditTextArea.java.

◆ config

final TextAreaConfig net.sf.gridarta.textedit.textarea.JEditTextArea.config

private

The TextAreaConfig for this instance.

Definition at line 152 of file JEditTextArea.java.

◆ document

final SyntaxDocument net.sf.gridarta.textedit.textarea.JEditTextArea.document

private

Definition at line 140 of file JEditTextArea.java.

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.JEditTextArea().

◆ focusedComponent

JEditTextArea net.sf.gridarta.textedit.textarea.JEditTextArea.focusedComponent

staticprivate

Definition at line 109 of file JEditTextArea.java.

◆ horizontal

final JScrollBar net.sf.gridarta.textedit.textarea.JEditTextArea.horizontal = new JScrollBar(Adjustable.HORIZONTAL)

private

Definition at line 132 of file JEditTextArea.java.

◆ inputHandler

final InputHandler net.sf.gridarta.textedit.textarea.JEditTextArea.inputHandler

private

Definition at line 137 of file JEditTextArea.java.

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.getInputHandler().

◆ LOG

final Category net.sf.gridarta.textedit.textarea.JEditTextArea.LOG = Logger.getLogger(JEditTextArea.class)

staticprivate

The Logger for printing log messages.

Definition at line 95 of file JEditTextArea.java.

◆ painter

final TextAreaPainter net.sf.gridarta.textedit.textarea.JEditTextArea.painter

private

Definition at line 120 of file JEditTextArea.java.

◆ popup

final JPopupMenu net.sf.gridarta.textedit.textarea.JEditTextArea.popup

private

Definition at line 123 of file JEditTextArea.java.

◆ scrollBarsInitialized

boolean net.sf.gridarta.textedit.textarea.JEditTextArea.scrollBarsInitialized

private

Definition at line 134 of file JEditTextArea.java.

◆ selection

final TextAreaSelection net.sf.gridarta.textedit.textarea.JEditTextArea.selection

private

Definition at line 143 of file JEditTextArea.java.

◆ serialVersionUID

final long net.sf.gridarta.textedit.textarea.JEditTextArea.serialVersionUID = 1L

staticprivate

Serial Version UID.

Definition at line 100 of file JEditTextArea.java.

◆ unmodifiedText

String net.sf.gridarta.textedit.textarea.JEditTextArea.unmodifiedText = ""

private

The text contents in the last "unmodified" state.

Definition at line 106 of file JEditTextArea.java.

◆ vertical

final JScrollBar net.sf.gridarta.textedit.textarea.JEditTextArea.vertical = new JScrollBar(Adjustable.VERTICAL)

private

Definition at line 129 of file JEditTextArea.java.

Referenced by net.sf.gridarta.textedit.textarea.JEditTextArea.AdjustHandler.adjustmentValueChanged().

The documentation for this class was generated from the following file:

gridarta-gridarta/src/textedit/src/main/java/net/sf/gridarta/textedit/textarea/JEditTextArea.java

Classes

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ JEditTextArea()

Member Function Documentation

◆ blinkCaret()

◆ copy()

◆ cut()

◆ documentChanged()

◆ freeTabKeyFromFocusTraversal()

◆ getCaretLine()

◆ getCaretPosition()

◆ getDocument()

◆ getDocumentLength()

◆ getElectricScroll()

◆ getFirstLine()

◆ getInputHandler()

◆ getLineCount()

◆ getLineEndOffset()

◆ getLineStartOffset()

◆ getLineText()

◆ getMagicCaretPosition()

◆ getMarkPosition()

◆ getSelectedText()

◆ getSelectionEnd()

◆ getSelectionStart()

◆ getText() [1/3]

◆ getText() [2/3]

◆ getText() [3/3]

◆ getVisibleLines()

◆ isEditable()

◆ isModified()

◆ isOverwriteEnabled()

◆ isSelectionRectangular()

◆ lineToY()

◆ offsetToX()

◆ offsetToX2()

◆ overwriteSetSelectedText()

◆ paste()

◆ processKeyEvent()

◆ removeNotify()

◆ resetModified()

◆ scrollTo()

◆ scrollToCaret()

◆ select()

◆ selectAll()

◆ setCaretPosition()

◆ setCaretVisible()

◆ setEditingFocus()

◆ setFirstLine()

◆ setFont()

◆ setHorizontalOffset()

◆ setMagicCaretPosition()

◆ setOrigin()

◆ setOverwriteEnabled()

◆ setSelectedText()

◆ setSelectionRectangular()

◆ setText()

◆ updateBracketHighlight()

◆ updateScrollBars()

◆ xToOffset()

Member Data Documentation

◆ brackets

◆ caret

◆ CARET_TIMER

◆ config

◆ document

◆ focusedComponent

◆ horizontal

◆ inputHandler

◆ LOG

◆ painter

◆ popup

◆ scrollBarsInitialized

◆ selection

◆ serialVersionUID
