Manages a set of animated map squares. More...

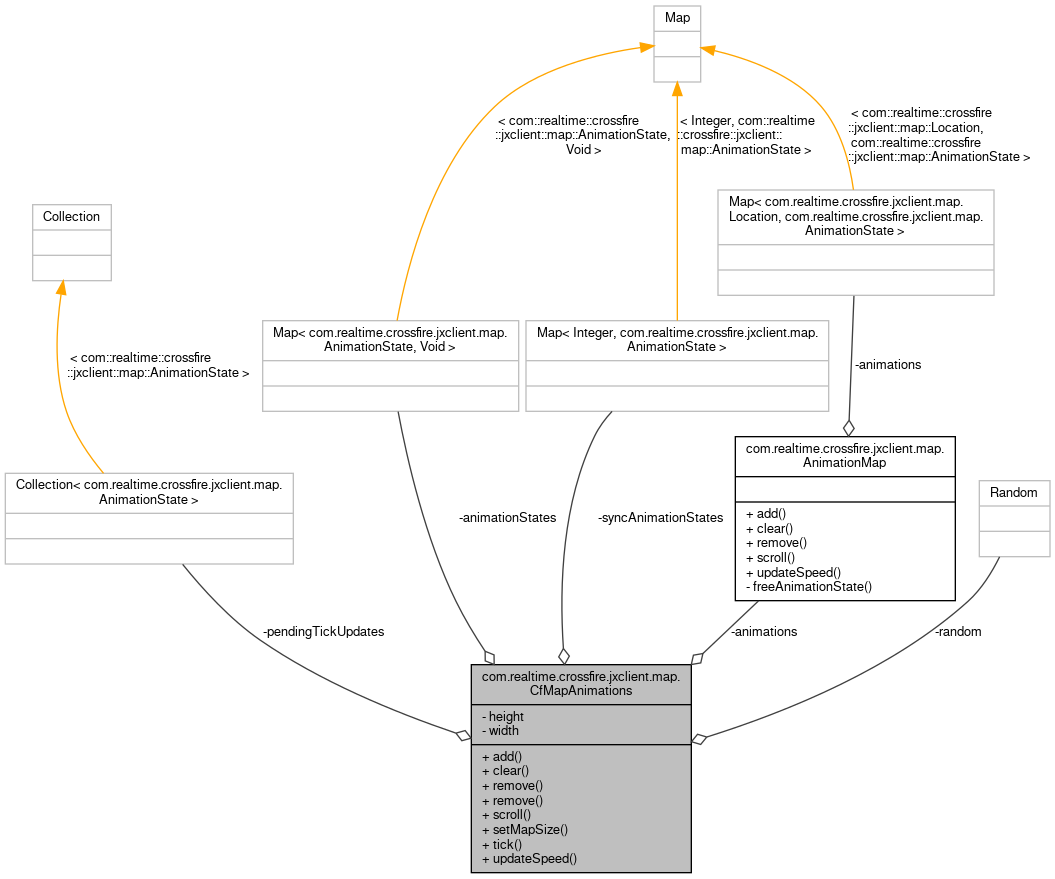

Collaboration diagram for com.realtime.crossfire.jxclient.map.CfMapAnimations:

Public Member Functions
void	add (@NotNull final MapUpdaterState mapUpdaterState, @NotNull final Location location, @NotNull final Animation animation, final int type)
	Adds a visible animation. More...

void	clear ()
	Forgets all animations. More...

void	remove (final int x, final int y)
	Removes all visible animations for a tile. More...

void	remove (@NotNull final Location location)
	Removes a visible animation. More...

void	scroll (final int dx, final int dy)
	Scrolls the animations. More...

void	setMapSize (final int width, final int height)
	Updates the map size. More...

void	tick (@NotNull final MapUpdaterState mapUpdaterState, final int tickNo)
	Processes a tick command. More...

void	updateSpeed (@NotNull final MapUpdaterState mapUpdaterState, @NotNull final Location location, final int speed)
	Updates the animation speed value. More...

Private Attributes
final AnimationMap	animations = new AnimationMap()
	The animations in the visible map area. More...

final Map< AnimationState, Void >	animationStates = new WeakHashMap<>()
	All AnimationState instances referenced by animations. More...

int	height
	The height of the visible map area. More...

final Collection< AnimationState >	pendingTickUpdates = new ArrayList<>()
	The AnimationState instances that have been added but not yet received a "tick" value. More...

final Random	random = new Random()
	The random number generator for Map2#ANIM_RANDOM type animations. More...

final Map< Integer, AnimationState >	syncAnimationStates = new HashMap<>()
	All AnimationState for Map2#ANIM_SYNC animations. More...

int	width
	The width of the visible map area. More...

Detailed Description

Manages a set of animated map squares.

Author: Andreas Kirschbaum

Definition at line 38 of file CfMapAnimations.java.

Member Function Documentation

◆ add()

void com.realtime.crossfire.jxclient.map.CfMapAnimations.add	(	@NotNull final MapUpdaterState	mapUpdaterState,
		@NotNull final Location	location,
		@NotNull final Animation	animation,
		final int	type
	)

Adds a visible animation.

Parameters

mapUpdaterState	the map updater state instance to use
location	the location to animate
animation	the animation to display
type	the animation type

Definition at line 99 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.map.AnimationMap.add(), com.realtime.crossfire.jxclient.protocol.Map2.ANIM_NORMAL, com.realtime.crossfire.jxclient.protocol.Map2.ANIM_RANDOM, and com.realtime.crossfire.jxclient.protocol.Map2.ANIM_SYNC.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

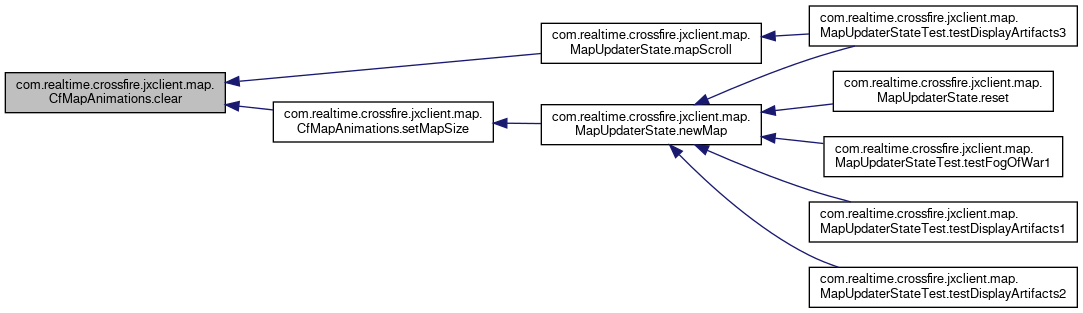

◆ clear()

void com.realtime.crossfire.jxclient.map.CfMapAnimations.clear ( )

Forgets all animations.

Definition at line 85 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.map.AnimationMap.clear().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapScroll(), and com.realtime.crossfire.jxclient.map.CfMapAnimations.setMapSize().

Here is the call graph for this function:

Here is the caller graph for this function:

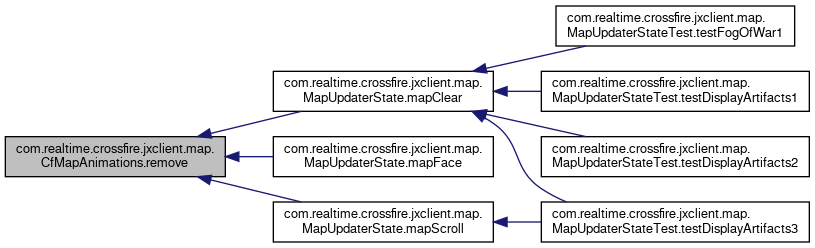

◆ remove() [1/2]

void com.realtime.crossfire.jxclient.map.CfMapAnimations.remove	(	final int	x,
		final int	y
	)

Removes all visible animations for a tile.

Parameters

x	the x-coordinate to un-animate
y	the y-coordinate to un-animate

Definition at line 144 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.protocol.Map2.NUM_LAYERS, and com.realtime.crossfire.jxclient.map.AnimationMap.remove().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapClear(), com.realtime.crossfire.jxclient.map.MapUpdaterState.mapFace(), and com.realtime.crossfire.jxclient.map.MapUpdaterState.mapScroll().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ remove() [2/2]

void com.realtime.crossfire.jxclient.map.CfMapAnimations.remove ( @NotNull final Location location )

Removes a visible animation.

Parameters

location the location to un-animate

Definition at line 154 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.map.AnimationMap.remove().

Here is the call graph for this function:

◆ scroll()

void com.realtime.crossfire.jxclient.map.CfMapAnimations.scroll	(	final int	dx,
		final int	dy
	)

Scrolls the animations.

Animations scrolled off the visible are are dropped.

Parameters

dx	the x-distance to scroll
dy	the y-distance to scroll

Definition at line 174 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.map.AnimationMap.scroll().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapScroll().

Here is the call graph for this function:

Here is the caller graph for this function:

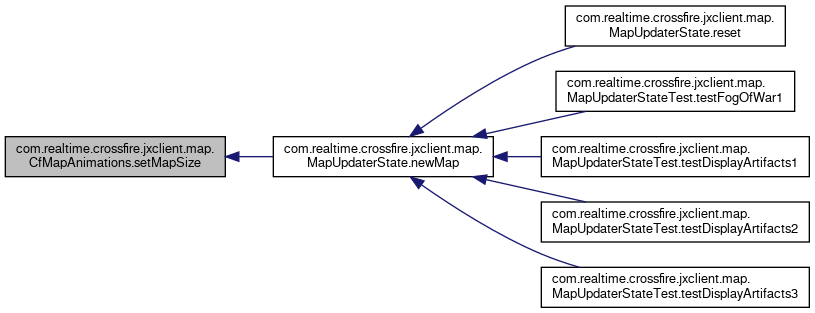

◆ setMapSize()

void com.realtime.crossfire.jxclient.map.CfMapAnimations.setMapSize	(	final int	width,
		final int	height
	)

Updates the map size.

Parameters

width	the map width
height	the map height

Definition at line 202 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.map.CfMapAnimations.clear(), com.realtime.crossfire.jxclient.map.CfMapAnimations.height, and com.realtime.crossfire.jxclient.map.CfMapAnimations.width.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.newMap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tick()

void com.realtime.crossfire.jxclient.map.CfMapAnimations.tick	(	@NotNull final MapUpdaterState	mapUpdaterState,
		final int	tickNo
	)

Processes a tick command.

Parameters

mapUpdaterState	the instance to update
tickNo	the current tick number

Definition at line 183 of file CfMapAnimations.java.

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.tick().

Here is the caller graph for this function:

◆ updateSpeed()

void com.realtime.crossfire.jxclient.map.CfMapAnimations.updateSpeed	(	@NotNull final MapUpdaterState	mapUpdaterState,
		@NotNull final Location	location,
		final int	speed
	)

Updates the animation speed value.

Parameters

mapUpdaterState	the map updater state instance to use
location	the location to update
speed	the new animation speed

Definition at line 164 of file CfMapAnimations.java.

References com.realtime.crossfire.jxclient.map.AnimationMap.updateSpeed().

Referenced by com.realtime.crossfire.jxclient.map.MapUpdaterState.mapAnimationSpeed().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ animations

final AnimationMap com.realtime.crossfire.jxclient.map.CfMapAnimations.animations = new AnimationMap()

private

The animations in the visible map area.

Definition at line 61 of file CfMapAnimations.java.

◆ animationStates

final Map<AnimationState, Void> com.realtime.crossfire.jxclient.map.CfMapAnimations.animationStates = new WeakHashMap<>()

private

All AnimationState instances referenced by animations.

Definition at line 67 of file CfMapAnimations.java.

◆ height

int com.realtime.crossfire.jxclient.map.CfMapAnimations.height

private

The height of the visible map area.

Definition at line 55 of file CfMapAnimations.java.

Referenced by com.realtime.crossfire.jxclient.map.CfMapAnimations.setMapSize().

◆ pendingTickUpdates

final Collection<AnimationState> com.realtime.crossfire.jxclient.map.CfMapAnimations.pendingTickUpdates = new ArrayList<>()

private

The AnimationState instances that have been added but not yet received a "tick" value.

Definition at line 80 of file CfMapAnimations.java.

◆ random

final Random com.realtime.crossfire.jxclient.map.CfMapAnimations.random = new Random()

private

The random number generator for Map2#ANIM_RANDOM type animations.

Definition at line 45 of file CfMapAnimations.java.

◆ syncAnimationStates

final Map<Integer, AnimationState> com.realtime.crossfire.jxclient.map.CfMapAnimations.syncAnimationStates = new HashMap<>()

private

All AnimationState for Map2#ANIM_SYNC animations.

Definition at line 73 of file CfMapAnimations.java.

◆ width

int com.realtime.crossfire.jxclient.map.CfMapAnimations.width

private

The width of the visible map area.

Definition at line 50 of file CfMapAnimations.java.

Referenced by com.realtime.crossfire.jxclient.map.CfMapAnimations.setMapSize().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/network/src/main/java/com/realtime/crossfire/jxclient/map/CfMapAnimations.java
