Utility class implementing actions that operate on ExitConnectorModels. More...

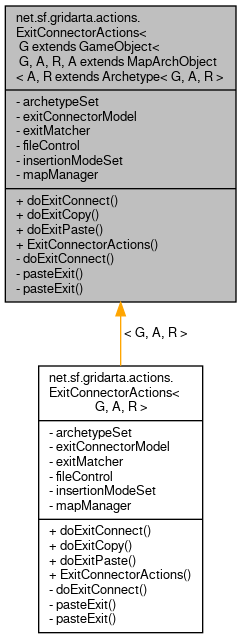

Inheritance diagram for net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

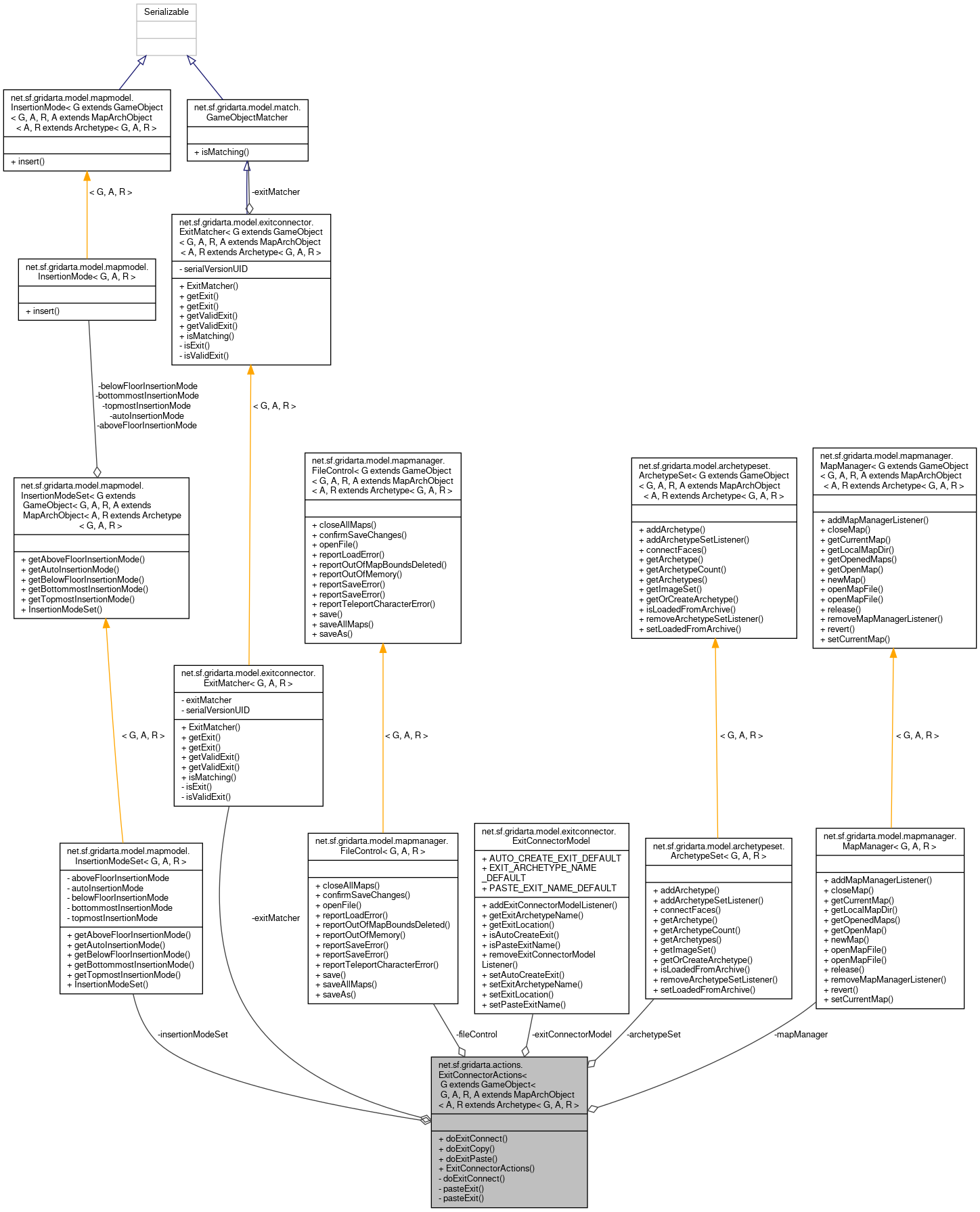

Collaboration diagram for net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
boolean	doExitConnect (final boolean performAction, @NotNull final MapControl< G, A, R > mapControl, @NotNull final Point targetLocation)
	Executes the "exit connect" action. More...

boolean	doExitCopy (final boolean performAction, @NotNull final MapControl< G, A, R > mapControl, @NotNull final Point location)
	Executes the "exit copy" action. More...

boolean	doExitPaste (final boolean performAction, @NotNull final MapControl< G, A, R > mapControl, @NotNull final Point targetLocation)
	Executes the "exit paste" action. More...

	ExitConnectorActions (@NotNull final ExitConnectorModel exitConnectorModel, @NotNull final ExitMatcher< G, A, R > exitMatcher, @NotNull final ArchetypeSet< G, A, R > archetypeSet, @NotNull final MapManager< G, A, R > mapManager, @NotNull final FileControl< G, A, R > fileControl, @NotNull final InsertionModeSet< G, A, R > insertionModeSet)
	Creates a new instance. More...

Private Member Functions
boolean	doExitConnect (final boolean performAction, @Nullable final BaseObject<?, ?, ?, ?> targetExit, @Nullable final BaseObject< G, A, R, ?> targetArchetype, @NotNull final MapModel< G, A, R > targetMapModel, @NotNull final Point targetLocation, @NotNull final MapFile targetMapFile, @NotNull final MapModel< G, A, R > sourceMapModel, @NotNull final ExitLocation sourceExitLocation)
	Executes part of the "exit connect" action. More...

void	pasteExit (@NotNull final BaseObject<?, ?, ?, ?> gameObject, @NotNull final MapModel< G, A, R > mapModel, @NotNull final ExitLocation exitLocation, @Nullable final MapFile gameObjectMapFile)
	Pastes exit information into an exit game object. More...

boolean	pasteExit (@NotNull final Point location, @NotNull final MapModel< G, A, R > mapModel, @NotNull final BaseObject< G, A, R, ?> archetype, @NotNull final ExitLocation exitLocation, @Nullable final MapFile mapFile)
	Creates a new exit game object. More...

Private Attributes
final ArchetypeSet< G, A, R >	archetypeSet
	The ArchetypeSet to use. More...

final ExitConnectorModel	exitConnectorModel
	The ExitConnectorModel to use. More...

final ExitMatcher< G, A, R >	exitMatcher
	The ExitMatcher to use. More...

final FileControl< G, A, R >	fileControl
	The FileControl to use. More...

final InsertionModeSet< G, A, R >	insertionModeSet
	The InsertionModeSet to use. More...

final MapManager< G, A, R >	mapManager
	The MapManager for loading maps. More...

Detailed Description

Utility class implementing actions that operate on ExitConnectorModels.

Author: Andreas Kirschbaum

Definition at line 47 of file ExitConnectorActions.java.

Constructor & Destructor Documentation

◆ ExitConnectorActions()

net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.ExitConnectorActions	(	@NotNull final ExitConnectorModel	exitConnectorModel,
		@NotNull final ExitMatcher< G, A, R >	exitMatcher,
		@NotNull final ArchetypeSet< G, A, R >	archetypeSet,
		@NotNull final MapManager< G, A, R >	mapManager,
		@NotNull final FileControl< G, A, R >	fileControl,
		@NotNull final InsertionModeSet< G, A, R >	insertionModeSet
	)

Creates a new instance.

Parameters

exitConnectorModel	the exit connector model to use
exitMatcher	the exit matcher to use
archetypeSet	the archetype set to use
mapManager	the map manager for loading maps
fileControl	the file control to use
insertionModeSet	the insertion mode set to use

Definition at line 94 of file ExitConnectorActions.java.

Member Function Documentation

◆ doExitConnect() [1/2]

boolean net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitConnect	(	final boolean	performAction,
		@NotNull final MapControl< G, A, R >	mapControl,
		@NotNull final Point	targetLocation
	)

Executes the "exit connect" action.

Parameters

performAction	whether the action should be performed
mapControl	the map control to connect with
targetLocation	the target location to connect

Returns: whether the action was or can be performed

Definition at line 189 of file ExitConnectorActions.java.

Referenced by net.sf.gridarta.actions.ExitConnectorActions< G, A, R >.doExitConnect(), net.sf.gridarta.gui.exitconnector.ExitConnectorController< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitConnect(), net.sf.gridarta.actions.ExitConnectorActionsTest.testExitConnect1(), and net.sf.gridarta.actions.ExitConnectorActionsTest.testExitConnectAuto1().

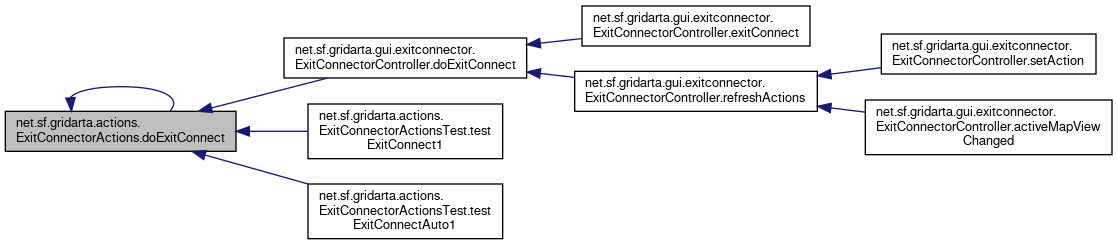

Here is the caller graph for this function:

◆ doExitConnect() [2/2]

boolean net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitConnect	(	final boolean	performAction,
		@Nullable final BaseObject<?, ?, ?, ?>	targetExit,
		@Nullable final BaseObject< G, A, R, ?>	targetArchetype,
		@NotNull final MapModel< G, A, R >	targetMapModel,
		@NotNull final Point	targetLocation,
		@NotNull final MapFile	targetMapFile,
		@NotNull final MapModel< G, A, R >	sourceMapModel,
		@NotNull final ExitLocation	sourceExitLocation
	)

private

Executes part of the "exit connect" action.

Parameters

performAction	whether the action should be performed
targetExit	the target exit game object or null
targetArchetype	the target exit archetype; null if targetExit is non- null ; unused otherwise
targetMapModel	the target's map model
targetLocation	the target's coordinates
targetMapFile	the target's file
sourceMapModel	the source's map model
sourceExitLocation	the source's exit location

Returns: whether the action was or can be performed; whether the action was or can be performed

Definition at line 263 of file ExitConnectorActions.java.

◆ doExitCopy()

boolean net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitCopy	(	final boolean	performAction,
		@NotNull final MapControl< G, A, R >	mapControl,
		@NotNull final Point	location
	)

Executes the "exit copy" action.

Parameters

performAction	whether the action should be performed
mapControl	the map control to copy from
location	the cursor location

Returns: whether the action was or can be performed

Definition at line 110 of file ExitConnectorActions.java.

Referenced by net.sf.gridarta.gui.exitconnector.ExitConnectorController< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitCopy(), net.sf.gridarta.actions.ExitConnectorActionsTest.testExitCopy1(), and net.sf.gridarta.actions.ExitConnectorActionsTest.testExitPaste2().

Here is the caller graph for this function:

◆ doExitPaste()

boolean net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitPaste	(	final boolean	performAction,
		@NotNull final MapControl< G, A, R >	mapControl,
		@NotNull final Point	targetLocation
	)

Executes the "exit paste" action.

Parameters

performAction	whether the action should be performed
mapControl	the map control to paste into
targetLocation	the target location to paste to

Returns: whether the action was or can be performed

Definition at line 133 of file ExitConnectorActions.java.

Referenced by net.sf.gridarta.gui.exitconnector.ExitConnectorController< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doExitPaste(), net.sf.gridarta.actions.ExitConnectorActionsTest.testExitPaste1(), net.sf.gridarta.actions.ExitConnectorActionsTest.testExitPaste2(), and net.sf.gridarta.actions.ExitConnectorActionsTest.testPath().

Here is the caller graph for this function:

◆ pasteExit() [1/2]

void net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.pasteExit	(	@NotNull final BaseObject<?, ?, ?, ?>	gameObject,
		@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final ExitLocation	exitLocation,
		@Nullable final MapFile	gameObjectMapFile
	)

private

Pastes exit information into an exit game object.

Parameters

gameObject	the exit game object to paste into
mapModel	the map model to paste into
exitLocation	the exit information to paste
gameObjectMapFile	the map file of gameObject or null if on an unsaved map

Definition at line 320 of file ExitConnectorActions.java.

Referenced by net.sf.gridarta.actions.ExitConnectorActions< G, A, R >.doExitConnect(), and net.sf.gridarta.actions.ExitConnectorActions< G, A, R >.doExitPaste().

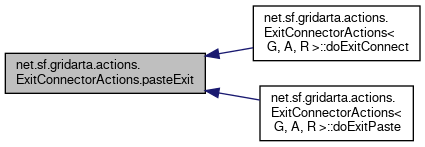

Here is the caller graph for this function:

◆ pasteExit() [2/2]

boolean net.sf.gridarta.actions.ExitConnectorActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.pasteExit	(	@NotNull final Point	location,
		@NotNull final MapModel< G, A, R >	mapModel,
		@NotNull final BaseObject< G, A, R, ?>	archetype,
		@NotNull final ExitLocation	exitLocation,
		@Nullable final MapFile	mapFile
	)

private

Creates a new exit game object.

Parameters

location	the location to insert into
mapModel	the map model to insert into
archetype	the archetype to insert
exitLocation	the exit information to use
mapFile	the map file to insert into or null for unsaved maps
