A set of InsertionModes. More...

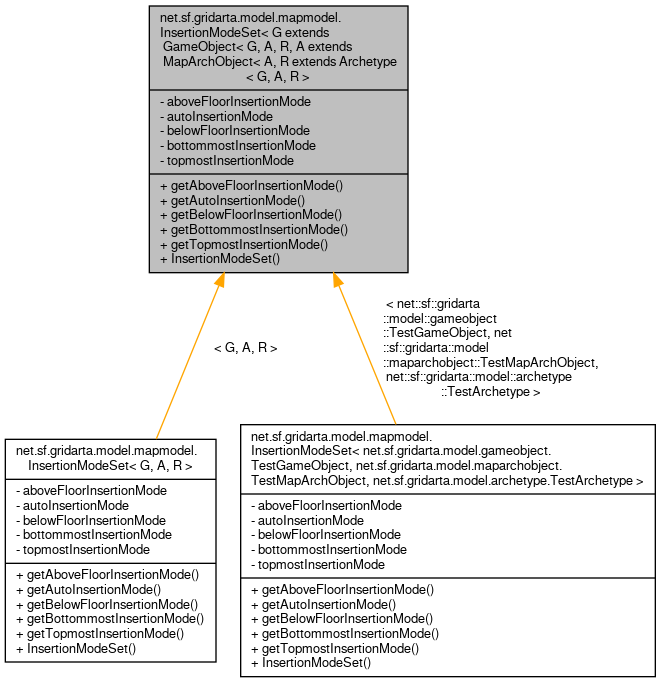

Inheritance diagram for net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

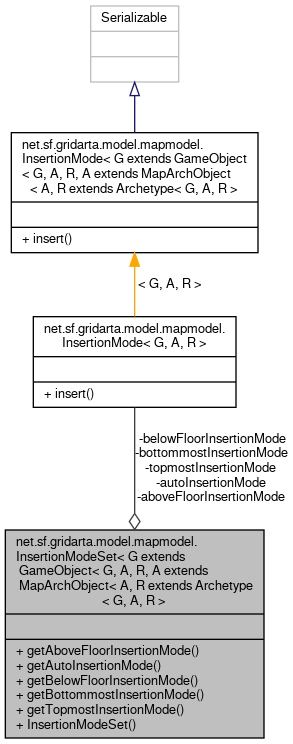

Collaboration diagram for net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
InsertionMode< G, A, R >	getAboveFloorInsertionMode ()
	Returns the "above floor" insertion mode. More...

InsertionMode< G, A, R >	getAutoInsertionMode ()
	Returns the "auto" insertion mode. More...

InsertionMode< G, A, R >	getBelowFloorInsertionMode ()
	Returns the "below floor" insertion mode. More...

InsertionMode< G, A, R >	getBottommostInsertionMode ()
	Returns the "bottommost" insertion mode. More...

InsertionMode< G, A, R >	getTopmostInsertionMode ()
	Returns the "topmost" insertion mode. More...

	InsertionModeSet (@NotNull final InsertionMode< G, A, R > topmostInsertionMode, @Nullable final GameObjectMatcher floorGameObjectMatcher, @Nullable final GameObjectMatcher wallGameObjectMatcher, @Nullable final GameObjectMatcher belowFloorGameObjectMatcher, @Nullable final GameObjectMatcher systemObjectGameObjectMatcher)
	Creates a new instance. More...

Private Attributes
final InsertionMode< G, A, R >	aboveFloorInsertionMode
	The "above floor" insertion mode. More...

final InsertionMode< G, A, R >	autoInsertionMode
	The "auto" insertion mode. More...

final InsertionMode< G, A, R >	belowFloorInsertionMode
	The "below floor" insertion mode. More...

final InsertionMode< G, A, R >	bottommostInsertionMode = new BottommostInsertionMode<>()
	The "bottommost" insertion mode. More...

final InsertionMode< G, A, R >	topmostInsertionMode
	The "topmost" insertion mode. More...

Detailed Description

A set of InsertionModes.

Author: Andreas Kirschbaum

Definition at line 33 of file InsertionModeSet.java.

Constructor & Destructor Documentation

◆ InsertionModeSet()

net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.InsertionModeSet	(	@NotNull final InsertionMode< G, A, R >	topmostInsertionMode,
		@Nullable final GameObjectMatcher	floorGameObjectMatcher,
		@Nullable final GameObjectMatcher	wallGameObjectMatcher,
		@Nullable final GameObjectMatcher	belowFloorGameObjectMatcher,
		@Nullable final GameObjectMatcher	systemObjectGameObjectMatcher
	)

Creates a new instance.

Parameters

topmostInsertionMode	the "topmost" insertion mode
floorGameObjectMatcher	the game object matcher for selecting floor game objects
wallGameObjectMatcher	the game object matcher for selecting wall game objects
belowFloorGameObjectMatcher	the game object matcher for selecting below floor game objects
systemObjectGameObjectMatcher	the game object matcher for selecting game objects that should stay on top

Definition at line 77 of file InsertionModeSet.java.

Member Function Documentation

◆ getAboveFloorInsertionMode()

InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getAboveFloorInsertionMode ( )

Returns the "above floor" insertion mode.

Returns: the insertion mode

Definition at line 107 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.gui.panel.tools.InsertionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doInsert(), and net.sf.gridarta.gui.panel.tools.SelectionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.released().

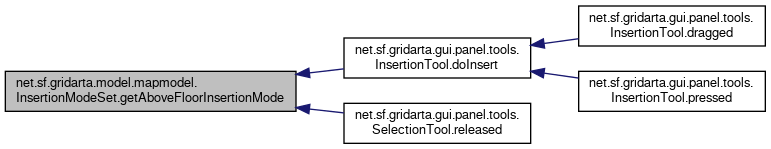

Here is the caller graph for this function:

◆ getAutoInsertionMode()

InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getAutoInsertionMode ( )

Returns the "auto" insertion mode.

Returns: the insertion mode

Definition at line 89 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doFillAuto(), net.sf.gridarta.gui.panel.tools.InsertionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doInsert(), net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doRandFillAuto(), and net.sf.gridarta.gui.panel.tools.SelectionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.released().

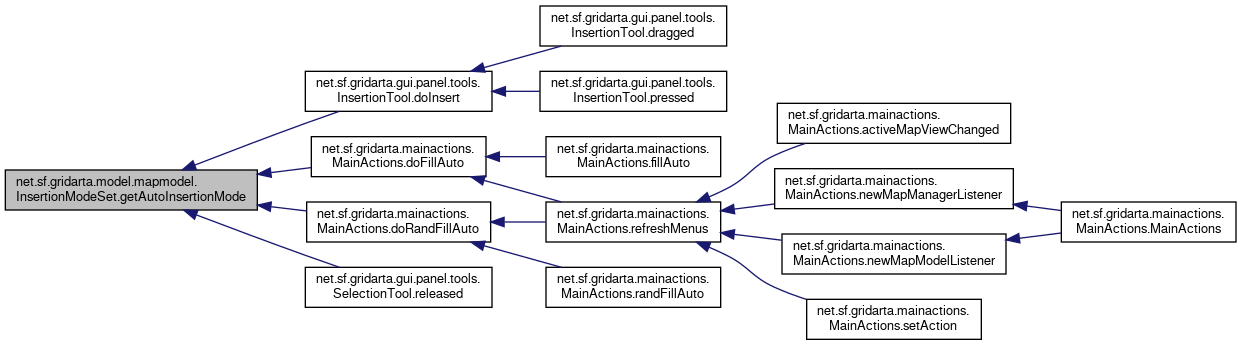

Here is the caller graph for this function:

◆ getBelowFloorInsertionMode()

InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getBelowFloorInsertionMode ( )

Returns the "below floor" insertion mode.

Returns: the insertion mode

Definition at line 116 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.gui.panel.tools.InsertionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doInsert(), and net.sf.gridarta.gui.panel.tools.SelectionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.released().

Here is the caller graph for this function:

◆ getBottommostInsertionMode()

InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getBottommostInsertionMode ( )

Returns the "bottommost" insertion mode.

Returns: the insertion mode

Definition at line 125 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doFillBelow(), net.sf.gridarta.gui.panel.tools.InsertionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doInsert(), net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doRandFillBelow(), and net.sf.gridarta.gui.panel.tools.SelectionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.released().

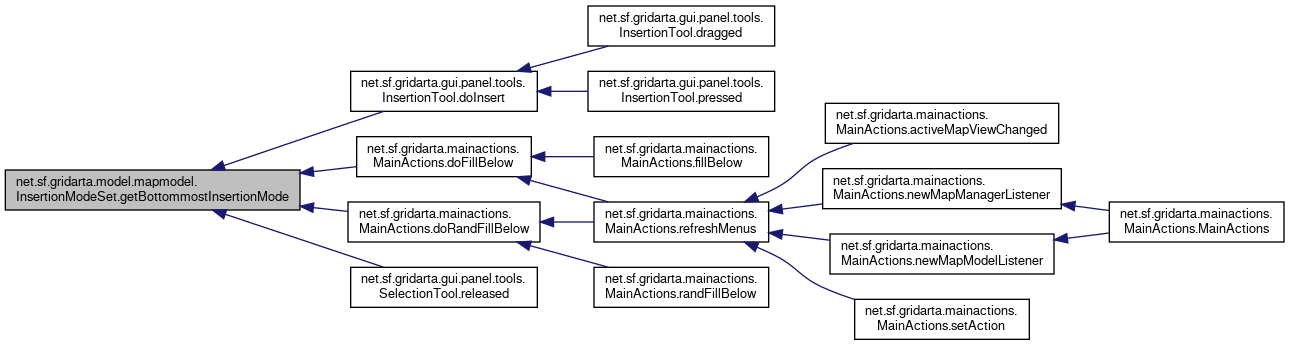

Here is the caller graph for this function:

◆ getTopmostInsertionMode()

InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getTopmostInsertionMode ( )

Returns the "topmost" insertion mode.

Returns: the insertion mode

Definition at line 98 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doFillAbove(), net.sf.gridarta.gui.panel.tools.InsertionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doInsert(), net.sf.gridarta.mainactions.MainActions< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doRandFillAbove(), net.sf.gridarta.gui.dialog.replace.ReplaceDialog< G, A, R >.doReplace(), net.sf.gridarta.gui.misc.ShiftProcessor< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.insertAllAndClear(), net.sf.gridarta.gui.copybuffer.CopyBuffer< G, A, R >.paste(), net.sf.gridarta.actions.ExitConnectorActions< G, A, R >.pasteExit(), net.sf.gridarta.gui.copybuffer.CopyBuffer< G, A, R >.pasteTiled(), and net.sf.gridarta.gui.panel.tools.SelectionTool< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.released().

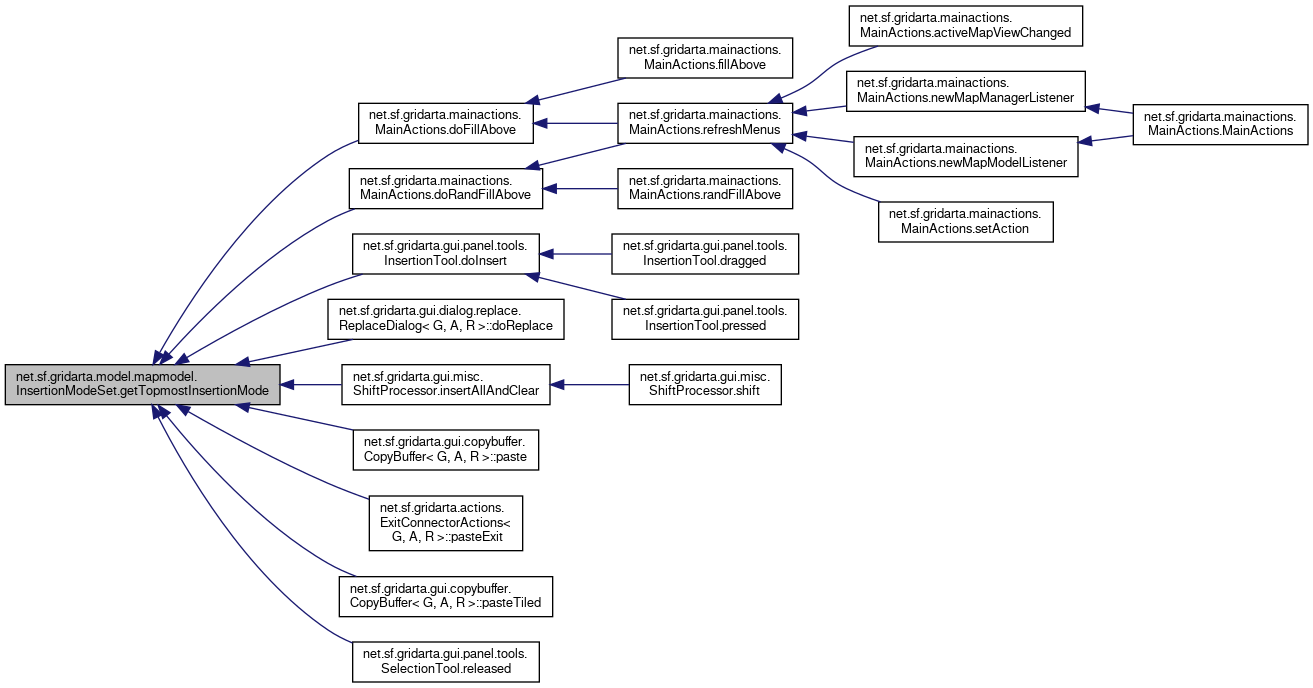

Here is the caller graph for this function:

Member Data Documentation

◆ aboveFloorInsertionMode

final InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.aboveFloorInsertionMode

private

The "above floor" insertion mode.

Definition at line 51 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.model.mapmodel.InsertionModeSet< net.sf.gridarta.model.gameobject.TestGameObject, net.sf.gridarta.model.maparchobject.TestMapArchObject, net.sf.gridarta.model.archetype.TestArchetype >.getAboveFloorInsertionMode().

◆ autoInsertionMode

final InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.autoInsertionMode

private

The "auto" insertion mode.

Definition at line 39 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.model.mapmodel.InsertionModeSet< net.sf.gridarta.model.gameobject.TestGameObject, net.sf.gridarta.model.maparchobject.TestMapArchObject, net.sf.gridarta.model.archetype.TestArchetype >.getAutoInsertionMode().

◆ belowFloorInsertionMode

final InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.belowFloorInsertionMode

private

The "below floor" insertion mode.

Definition at line 57 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.model.mapmodel.InsertionModeSet< net.sf.gridarta.model.gameobject.TestGameObject, net.sf.gridarta.model.maparchobject.TestMapArchObject, net.sf.gridarta.model.archetype.TestArchetype >.getBelowFloorInsertionMode().

◆ bottommostInsertionMode

final InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.bottommostInsertionMode = new BottommostInsertionMode<>()

private

The "bottommost" insertion mode.

Definition at line 63 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.model.mapmodel.InsertionModeSet< net.sf.gridarta.model.gameobject.TestGameObject, net.sf.gridarta.model.maparchobject.TestMapArchObject, net.sf.gridarta.model.archetype.TestArchetype >.getBottommostInsertionMode().

◆ topmostInsertionMode

final InsertionMode<G, A, R> net.sf.gridarta.model.mapmodel.InsertionModeSet< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.topmostInsertionMode

private

The "topmost" insertion mode.

Definition at line 45 of file InsertionModeSet.java.

Referenced by net.sf.gridarta.model.mapmodel.InsertionModeSet< net.sf.gridarta.model.gameobject.TestGameObject, net.sf.gridarta.model.maparchobject.TestMapArchObject, net.sf.gridarta.model.archetype.TestArchetype >.getTopmostInsertionMode(), and net.sf.gridarta.model.mapmodel.InsertionModeSet< net.sf.gridarta.model.gameobject.TestGameObject, net.sf.gridarta.model.maparchobject.TestMapArchObject, net.sf.gridarta.model.archetype.TestArchetype >.InsertionModeSet().

The documentation for this class was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/mapmodel/InsertionModeSet.java
