Maintains the undo state for one map control. More...

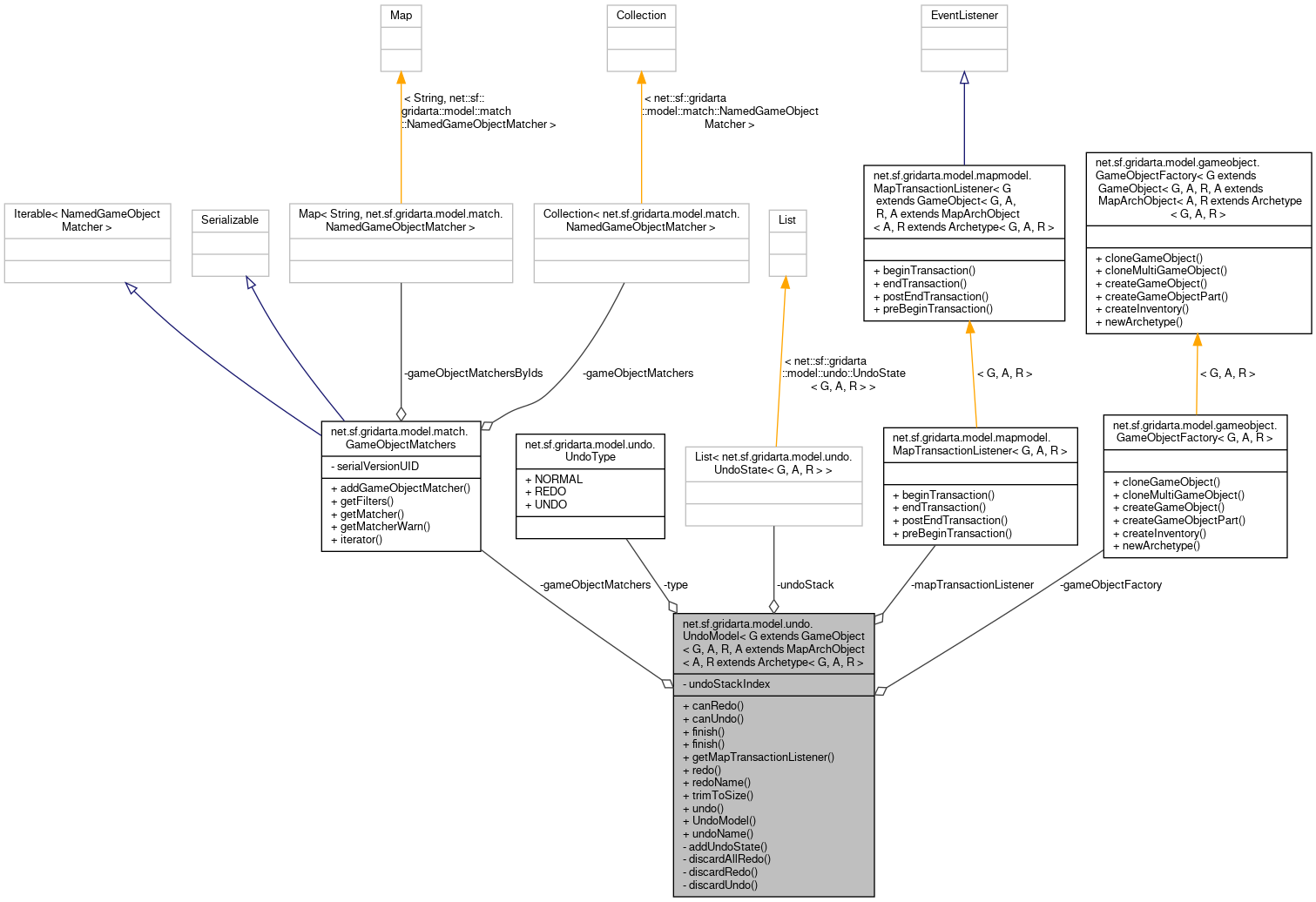

Collaboration diagram for net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >:

Public Member Functions
boolean	canRedo ()
	Return whether a "redo" operation is possible. More...

boolean	canUndo ()
	Return whether an "undo" operation is possible. More...

void	finish (@NotNull final UndoState< G, A, R > undoState)
	Finishes an undo or redo operation. More...

void	finish ()
	Finishes an undo or redo operation. More...

MapTransactionListener< G, A, R >	getMapTransactionListener ()
	Returns the MapTransactionListener that was passed to the constructor. More...

UndoState< G, A, R >	redo ()
	Perform a "redo" operation. More...

String	redoName ()
	Return the "redo" operation name. More...

void	trimToSize (final int maxUndoStates)
	Discard old undo information. More...

UndoState< G, A, R >	undo ()
	Perform an "undo" operation. More...

	UndoModel (@NotNull final GameObjectFactory< G, A, R > gameObjectFactory, @NotNull final GameObjectMatchers gameObjectMatchers, @NotNull final MapTransactionListener< G, A, R > mapTransactionListener)
	Creates a new instance. More...

String	undoName ()
	Return the "undo" operation name. More...

Private Member Functions
void	addUndoState (@NotNull final UndoState< G, A, R > undoState)
	Add a new undo state to the undo stack. More...

void	discardAllRedo ()
	Discard all "redo" information. More...

void	discardRedo ()
	Discard one "redo" information. More...

void	discardUndo ()
	Discard one "undo" information. More...

Private Attributes
final GameObjectFactory< G, A, R >	gameObjectFactory
	The GameObjectFactory to use. More...

final GameObjectMatchers	gameObjectMatchers
	The GameObjectMatchers to use. More...

final MapTransactionListener< G, A, R >	mapTransactionListener
	The stored MapTransactionListener. More...

UndoType	type = UndoType.NORMAL
	The type for recording undo information. More...

final List< UndoState< G, A, R > >	undoStack = new ArrayList<>()
	The undo stack. More...

int	undoStackIndex
	Current index into undoStack. More...

Detailed Description

Maintains the undo state for one map control.

The state consists of a linear list of UndoStates. Possible operations are "undo" and "redo". If a map is changed after performing one or more "undo" operations, the previously recorded "redo" operations are discarded.

Author: Andreas Kirschbaum

Definition at line 40 of file UndoModel.java.

Constructor & Destructor Documentation

◆ UndoModel()

net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.UndoModel	(	@NotNull final GameObjectFactory< G, A, R >	gameObjectFactory,
		@NotNull final GameObjectMatchers	gameObjectMatchers,
		@NotNull final MapTransactionListener< G, A, R >	mapTransactionListener
	)

Creates a new instance.

Parameters

gameObjectFactory	the game object factory to use
gameObjectMatchers	the game object matchers to use
mapTransactionListener	the map transaction listener to store

Definition at line 85 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.gameObjectFactory, net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.gameObjectMatchers, and net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapTransactionListener.

Member Function Documentation

◆ addUndoState()

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addUndoState ( @NotNull final UndoState< G, A, R > undoState )

private

Add a new undo state to the undo stack.

This discards the existing "redo" information (if present).

Parameters

undoState the undo state to add

Definition at line 106 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardAllRedo().

Referenced by net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.finish().

Here is the call graph for this function:

Here is the caller graph for this function:

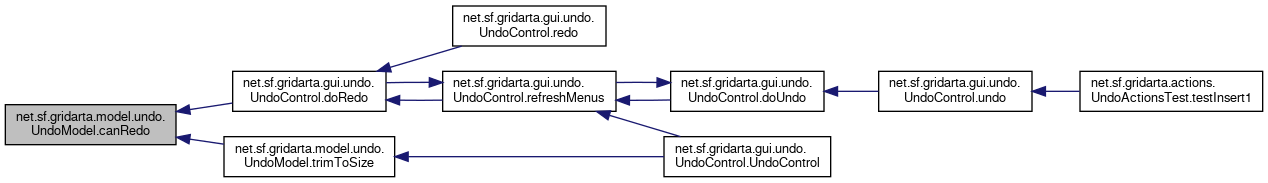

◆ canRedo()

boolean net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.canRedo ( )

Return whether a "redo" operation is possible.

Returns: true
if a "redo" operation is possible,
false
otherwise

Definition at line 142 of file UndoModel.java.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doRedo(), and net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.trimToSize().

Here is the caller graph for this function:

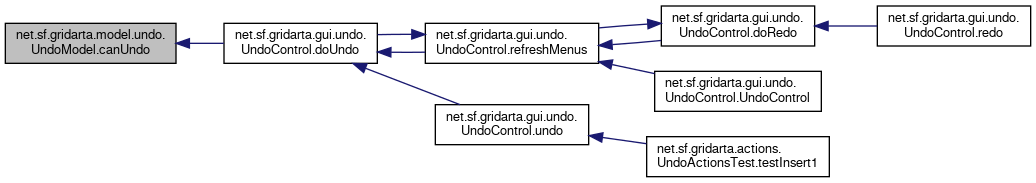

◆ canUndo()

boolean net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.canUndo ( )

Return whether an "undo" operation is possible.

Returns: true
if an "undo" operation is possible,
false
otherwise

Definition at line 133 of file UndoModel.java.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.doUndo().

Here is the caller graph for this function:

◆ discardAllRedo()

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardAllRedo ( )

private

Discard all "redo" information.

Definition at line 257 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardRedo().

Referenced by net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addUndoState().

Here is the call graph for this function:

Here is the caller graph for this function:

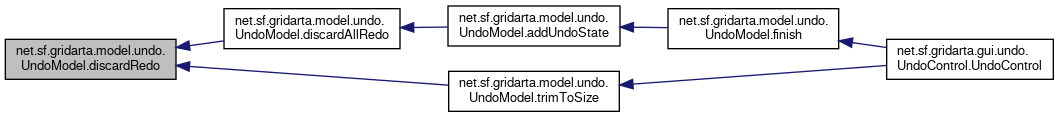

◆ discardRedo()

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardRedo ( )

private

Discard one "redo" information.

Definition at line 266 of file UndoModel.java.

Referenced by net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardAllRedo(), and net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.trimToSize().

Here is the caller graph for this function:

◆ discardUndo()

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardUndo ( )

private

Discard one "undo" information.

Definition at line 275 of file UndoModel.java.

Referenced by net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.trimToSize().

Here is the caller graph for this function:

◆ finish() [1/2]

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.finish ( @NotNull final UndoState< G, A, R > undoState )

Finishes an undo or redo operation.

Does nothing if none is in progress.

Parameters

undoState the changes of the operation

Definition at line 208 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.addUndoState(), and net.sf.gridarta.model.undo.UndoType.NORMAL.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.UndoControl().

Here is the call graph for this function:

Here is the caller graph for this function:

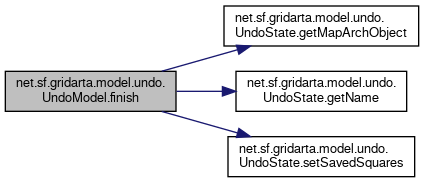

◆ finish() [2/2]

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.finish ( )

Finishes an undo or redo operation.

Does nothing if none is in progress.

Definition at line 229 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoState< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMapArchObject(), net.sf.gridarta.model.undo.UndoState< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getName(), net.sf.gridarta.model.undo.UndoType.NORMAL, net.sf.gridarta.model.undo.UndoState< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.setSavedSquares(), and net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.undoStackIndex.

Here is the call graph for this function:

◆ getMapTransactionListener()

MapTransactionListener<G, A, R> net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.getMapTransactionListener ( )

Returns the MapTransactionListener that was passed to the constructor.

Returns: the map transaction listener

Definition at line 97 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.mapTransactionListener.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.UndoControl().

Here is the caller graph for this function:

◆ redo()

UndoState<G, A, R> net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.redo ( )

Perform a "redo" operation.

Returns: the undo state to apply; the returned object must not be modified by the caller

Definition at line 193 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoType.REDO.

◆ redoName()

String net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.redoName ( )

Return the "redo" operation name.

Returns: the "redo" operation name

Definition at line 162 of file UndoModel.java.

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.refreshMenus().

Here is the caller graph for this function:

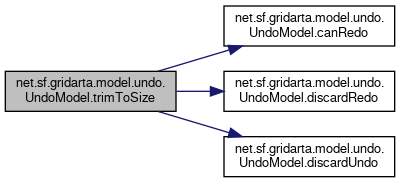

◆ trimToSize()

void net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.trimToSize ( final int maxUndoStates )

Discard old undo information.

Parameters

maxUndoStates the maximum number of undo states to save

Definition at line 118 of file UndoModel.java.

References net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.canRedo(), net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardRedo(), and net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.discardUndo().

Referenced by net.sf.gridarta.gui.undo.UndoControl< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.UndoControl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ undo()

UndoState<G, A, R> net.sf.gridarta.model.undo.UndoModel< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R >.undo ( )

Perform an "undo" operation.
