The main FaceQueue for loading faces. More...

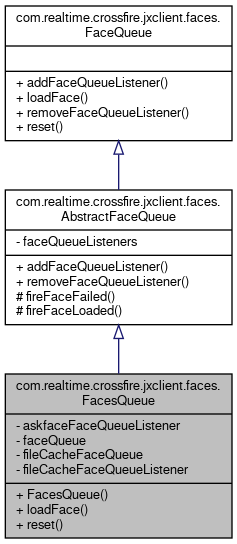

Inheritance diagram for com.realtime.crossfire.jxclient.faces.FacesQueue:

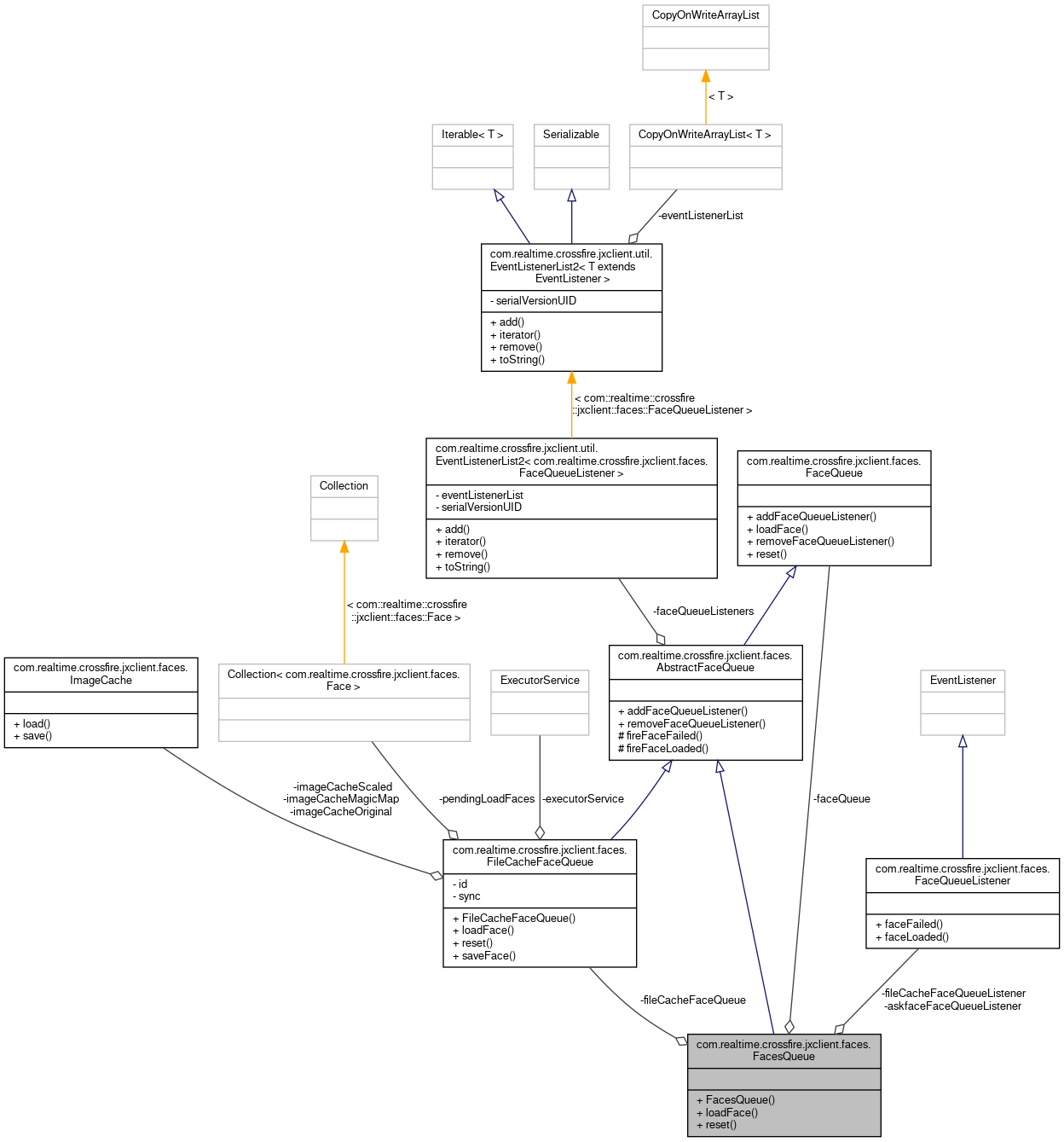

Collaboration diagram for com.realtime.crossfire.jxclient.faces.FacesQueue:

Public Member Functions

FacesQueue (@NotNull final FaceQueue faceQueue, @NotNull final ImageCache imageCacheOriginal, @NotNull final ImageCache imageCacheScaled, @NotNull final ImageCache imageCacheMagicMap)

Creates a new instance. More...

void loadFace (@NotNull final Face face)

Request a face.Must eventually call either FaceQueueListener#faceLoaded(Face, FaceImages) or FaceQueueListener#faceFailed(Face) for the face. Faces re-requested while still processing may be notified only once.

Parameters

face	the requested face

More...

void reset ()

Reset the processing: forget about pending faces.This function is called whenever the server socket breaks, or when a new connection has been established. More...

Public Member Functions inherited from com.realtime.crossfire.jxclient.faces.AbstractFaceQueue

void addFaceQueueListener (@NotNull final FaceQueueListener faceQueueListener)

Adds a FaceQueueListener to be notified about processed faces.

Parameters

faceQueueListener the listener to add

More...

void removeFaceQueueListener (@NotNull final FaceQueueListener faceQueueListener)

Removes a FaceQueueListener to be notified about processed faces.

Parameters

faceQueueListener the listener to remove

More...

Private Attributes
final FaceQueueListener	askfaceFaceQueueListener
	The FaceQueueListener attached to faceQueue. More...

final FaceQueue	faceQueue
	The FaceQueue instance used to query faces from the Crossfire server. More...

final FileCacheFaceQueue	fileCacheFaceQueue
	The FileCacheFaceQueue instance used to load faces from the file cache. More...

final FaceQueueListener	fileCacheFaceQueueListener
	The FaceQueueListener attached to fileCacheFaceQueue. More...

Additional Inherited Members
Protected Member Functions inherited from com.realtime.crossfire.jxclient.faces.AbstractFaceQueue
void	fireFaceFailed (@NotNull final Face face)
	Notify all listener with FaceQueueListener#faceFailed(Face). More...

void	fireFaceLoaded (@NotNull final Face face, @NotNull final FaceImages faceImages)
	Notify all listener with FaceImages). More...

Detailed Description

The main FaceQueue for loading faces.

It first delegates to a FileCacheFaceQueue to load the face from the disk cache. If this fails, the face is requested through a AskfaceFaceQueue.

Author: Andreas Kirschbaum

Definition at line 32 of file FacesQueue.java.

Constructor & Destructor Documentation

◆ FacesQueue()

com.realtime.crossfire.jxclient.faces.FacesQueue.FacesQueue	(	@NotNull final FaceQueue	faceQueue,
		@NotNull final ImageCache	imageCacheOriginal,
		@NotNull final ImageCache	imageCacheScaled,
		@NotNull final ImageCache	imageCacheMagicMap
	)

Creates a new instance.

Parameters

faceQueue	the face queue for sending askface commands
imageCacheOriginal	the image cache used for loading original image files
imageCacheScaled	the image cache used for loading scaled image files
imageCacheMagicMap	the image cache used for loading magic map image files

Definition at line 97 of file FacesQueue.java.

References com.realtime.crossfire.jxclient.faces.AbstractFaceQueue.addFaceQueueListener(), com.realtime.crossfire.jxclient.faces.FacesQueue.askfaceFaceQueueListener, com.realtime.crossfire.jxclient.faces.FacesQueue.faceQueue, com.realtime.crossfire.jxclient.faces.FacesQueue.fileCacheFaceQueue, and com.realtime.crossfire.jxclient.faces.FacesQueue.fileCacheFaceQueueListener.

Here is the call graph for this function:

Member Function Documentation

◆ loadFace()

void com.realtime.crossfire.jxclient.faces.FacesQueue.loadFace ( @NotNull final Face face )

Request a face.Must eventually call either FaceQueueListener#faceLoaded(Face, FaceImages) or FaceQueueListener#faceFailed(Face) for the face. Faces re-requested while still processing may be notified only once.

Parameters

face	the requested face

Implements com.realtime.crossfire.jxclient.faces.FaceQueue.

Definition at line 117 of file FacesQueue.java.

References com.realtime.crossfire.jxclient.faces.FacesQueue.fileCacheFaceQueue, and com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.loadFace().

Here is the call graph for this function:

◆ reset()

void com.realtime.crossfire.jxclient.faces.FacesQueue.reset ( )

Reset the processing: forget about pending faces.This function is called whenever the server socket breaks, or when a new connection has been established.

Implements com.realtime.crossfire.jxclient.faces.FaceQueue.

Definition at line 108 of file FacesQueue.java.

References com.realtime.crossfire.jxclient.faces.FacesQueue.faceQueue, com.realtime.crossfire.jxclient.faces.FacesQueue.fileCacheFaceQueue, com.realtime.crossfire.jxclient.faces.FaceQueue.reset(), and com.realtime.crossfire.jxclient.faces.FileCacheFaceQueue.reset().

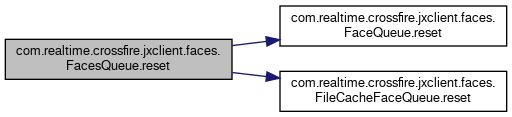

Here is the call graph for this function:

Member Data Documentation

◆ askfaceFaceQueueListener

final FaceQueueListener com.realtime.crossfire.jxclient.faces.FacesQueue.askfaceFaceQueueListener

private

Initial value:

= new FaceQueueListener() {
        @Override
        public void faceLoaded(@NotNull final Face face, @NotNull final FaceImages faceImages) {
            fireFaceLoaded(face, faceImages);
            fileCacheFaceQueue.saveFace(face, faceImages);
        }
        @Override
        public void faceFailed(@NotNull final Face face) {
            fireFaceFailed(face);
        }
    }

The FaceQueueListener attached to faceQueue.

Definition at line 72 of file FacesQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FacesQueue.FacesQueue().

◆ faceQueue

final FaceQueue com.realtime.crossfire.jxclient.faces.FacesQueue.faceQueue

private

The FaceQueue instance used to query faces from the Crossfire server.

Definition at line 46 of file FacesQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FacesQueue.FacesQueue(), and com.realtime.crossfire.jxclient.faces.FacesQueue.reset().

◆ fileCacheFaceQueue

final FileCacheFaceQueue com.realtime.crossfire.jxclient.faces.FacesQueue.fileCacheFaceQueue

private

The FileCacheFaceQueue instance used to load faces from the file cache.

Definition at line 39 of file FacesQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FacesQueue.FacesQueue(), com.realtime.crossfire.jxclient.faces.FacesQueue.loadFace(), and com.realtime.crossfire.jxclient.faces.FacesQueue.reset().

◆ fileCacheFaceQueueListener

final FaceQueueListener com.realtime.crossfire.jxclient.faces.FacesQueue.fileCacheFaceQueueListener

private

Initial value:

= new FaceQueueListener() {
        @Override
        public void faceLoaded(@NotNull final Face face, @NotNull final FaceImages faceImages) {
            fireFaceLoaded(face, faceImages);
        }
        @Override
        public void faceFailed(@NotNull final Face face) {
            faceQueue.loadFace(face);
        }
    }

The FaceQueueListener attached to fileCacheFaceQueue.

Definition at line 53 of file FacesQueue.java.

Referenced by com.realtime.crossfire.jxclient.faces.FacesQueue.FacesQueue().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/model/src/main/java/com/realtime/crossfire/jxclient/faces/FacesQueue.java
