The main window. More...

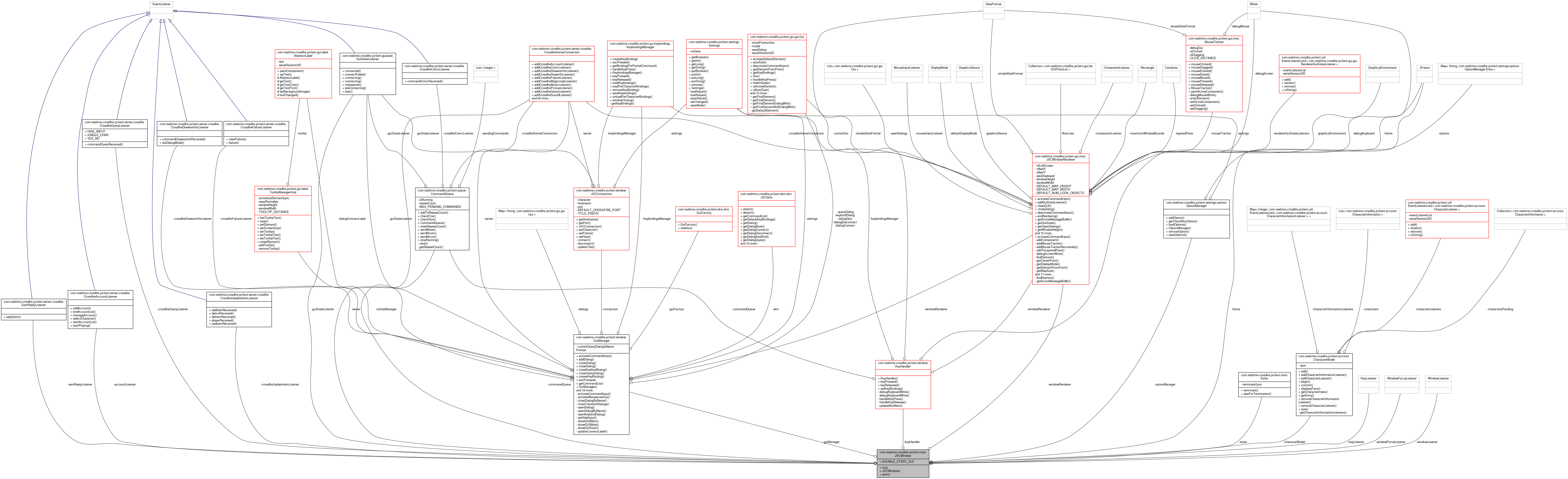

Collaboration diagram for com.realtime.crossfire.jxclient.main.JXCWindow:

Public Member Functions
void	init (@Nullable final Resolution resolution, @NotNull final String skinName, final boolean fullScreen, @NotNull final SkinLoader skinLoader)
	Initializes the instance: loads and displays the skin. More...

	JXCWindow (@NotNull final Exiter exiter, @NotNull final CrossfireServerConnection server, @NotNull final OptionManager optionManager, @NotNull final GuiStateManager guiStateManager, @NotNull final JXCWindowRenderer windowRenderer, @NotNull final CommandQueue commandQueue, @NotNull final GuiManager guiManager, @NotNull final KeyHandler keyHandler, @NotNull final CharacterModel characterModel, @NotNull final JXCConnection connection)
	Creates a new instance. More...

void	term ()
	Frees all resources. More...

Static Public Attributes
static final boolean	DISABLE_START_GUI = true
	TODO: Remove when more options are implemented in the start screen gui. More...

Private Attributes
final CrossfireAccountListener	accountListener
	The CrossfireAccountListener attached to server. More...

final CharacterModel	characterModel
	The CharacterModel to update. More...

final CommandQueue	commandQueue
	The command queue instance for this window. More...

final CrossfireQueryListener	crossfireQueryListener
	The CrossfireQueryListener attached to server. More...

final CrossfireUpdateItemListener	crossfireUpdateItemListener
	The CrossfireUpdateItemListener to receive item updates. More...

final Exiter	exiter
	The Exiter to use. More...

final JFrame	frame = new JFrame("")
	The main window. More...

final GuiManager	guiManager
	The GuiManager for controlling the main GUI state. More...

final GuiStateListener	guiStateListener
	The GuiStateListener for detecting established or dropped connections. More...

final KeyHandler	keyHandler
	The KeyHandler for processing keyboard input. More...

final KeyListener	keyListener
	The KeyListener attached to the main window. More...

final OptionManager	optionManager
	The option manager for this window. More...

final SentReplyListener	sentReplyListener
	The SentReplyListener for detecting "reply" commands sent to the server. More...

final CrossfireServerConnection	server
	The CrossfireServerConnection to use. More...

final WindowFocusListener	windowFocusListener
	The WindowFocusListener registered for this window. More...

final WindowListener	windowListener
	The window listener attached to this frame. More...

final JXCWindowRenderer	windowRenderer
	The JXCWindowRenderer for this window. More...

Detailed Description

The main window.

Author: Lauwenmark; Andreas Kirschbaum

Definition at line 67 of file JXCWindow.java.

Constructor & Destructor Documentation

◆ JXCWindow()

com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow	(	@NotNull final Exiter	exiter,
		@NotNull final CrossfireServerConnection	server,
		@NotNull final OptionManager	optionManager,
		@NotNull final GuiStateManager	guiStateManager,
		@NotNull final JXCWindowRenderer	windowRenderer,
		@NotNull final CommandQueue	commandQueue,
		@NotNull final GuiManager	guiManager,
		@NotNull final KeyHandler	keyHandler,
		@NotNull final CharacterModel	characterModel,
		@NotNull final JXCConnection	connection
	)

Creates a new instance.

Parameters

exiter	the exiter to use
server	the crossfire server connection to use
optionManager	the option manager instance to use
guiStateManager	the gui state manager to use
windowRenderer	the window renderer to use
commandQueue	the command queue instance
guiManager	the gui manager instance
keyHandler	the key handler for keyboard input
characterModel	the character model to update
connection	the connection to update

Definition at line 424 of file JXCWindow.java.

Here is the call graph for this function:

Member Function Documentation

◆ init()

void com.realtime.crossfire.jxclient.main.JXCWindow.init	(	@Nullable final Resolution	resolution,
		@NotNull final String	skinName,
		final boolean	fullScreen,
		@NotNull final SkinLoader	skinLoader
	)

Initializes the instance: loads and displays the skin.

Parameters

resolution	the size of the client area, null for default
skinName	the skin to load
fullScreen	whether full-screen mode should be enabled
skinLoader	the skin loader instance

Definition at line 481 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXClient.JXClient().

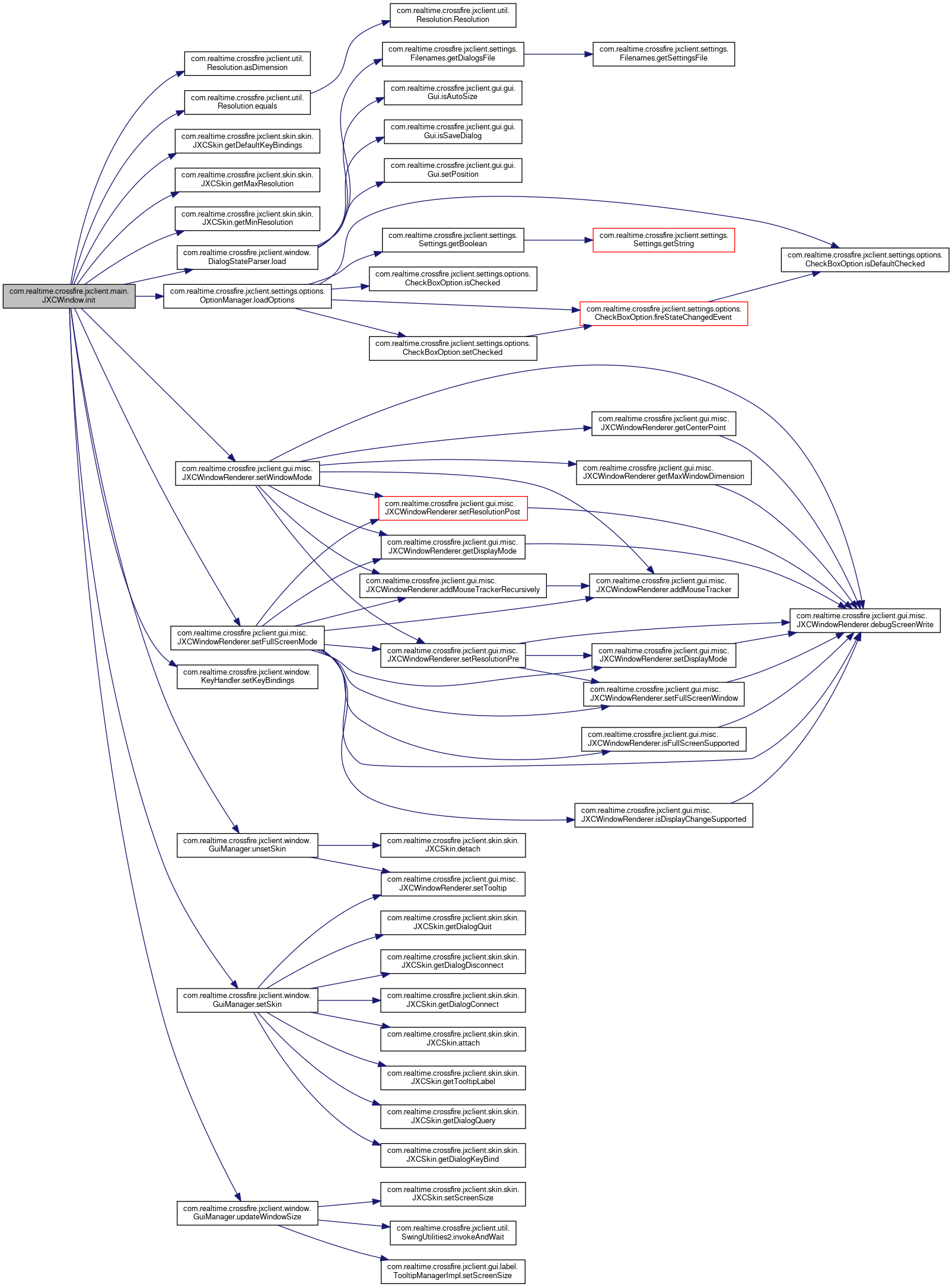

Here is the call graph for this function:

Here is the caller graph for this function:

◆ term()

void com.realtime.crossfire.jxclient.main.JXCWindow.term ( )

Frees all resources.

Should be called before the application terminates.

Definition at line 527 of file JXCWindow.java.

References com.realtime.crossfire.jxclient.main.JXCWindow.guiManager, com.realtime.crossfire.jxclient.main.JXCWindow.optionManager, com.realtime.crossfire.jxclient.settings.options.OptionManager.saveOptions(), and com.realtime.crossfire.jxclient.window.GuiManager.term().

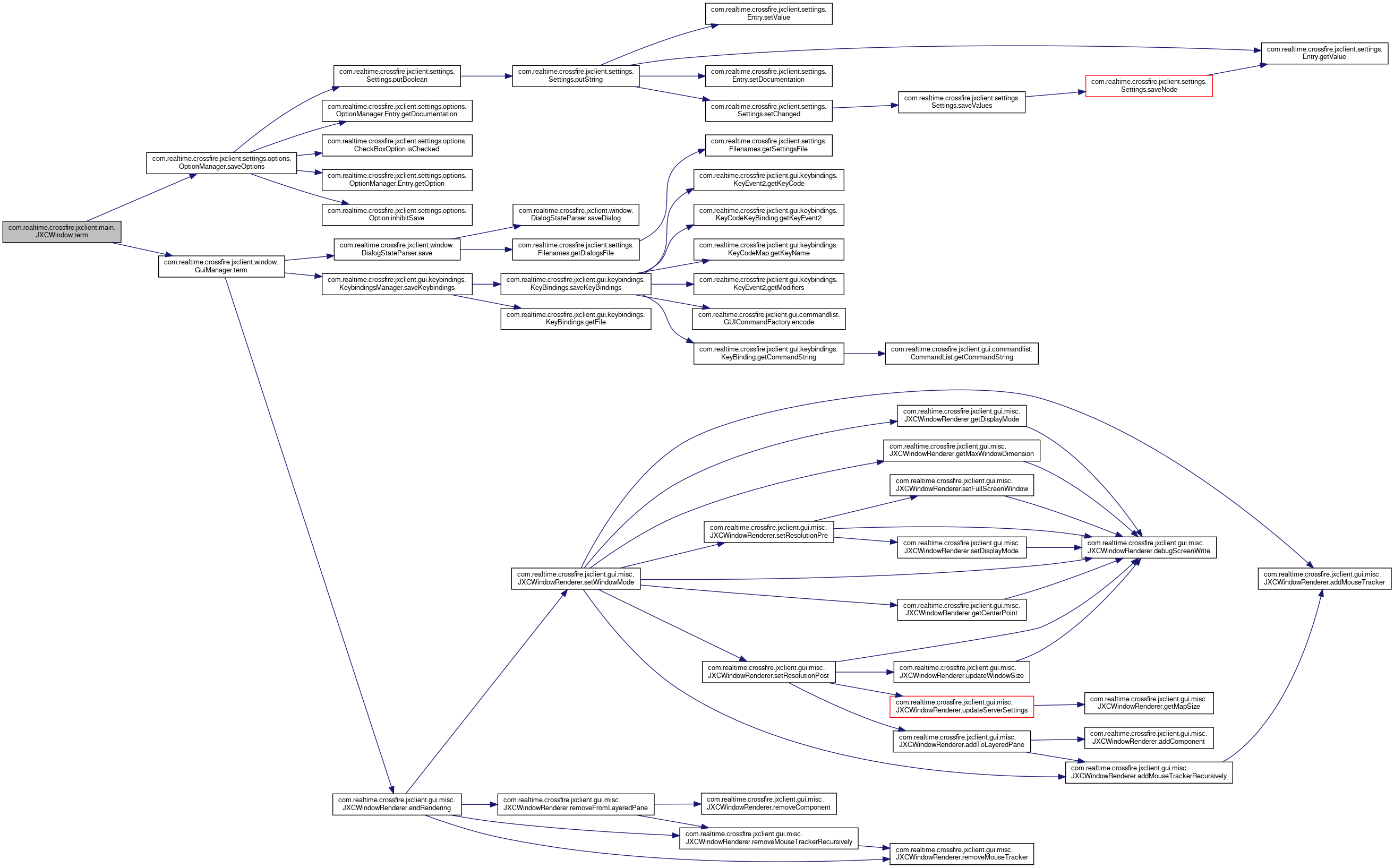

Here is the call graph for this function:

Member Data Documentation

◆ accountListener

final CrossfireAccountListener com.realtime.crossfire.jxclient.main.JXCWindow.accountListener

private

The CrossfireAccountListener attached to server.

Definition at line 330 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ characterModel

final CharacterModel com.realtime.crossfire.jxclient.main.JXCWindow.characterModel

private

The CharacterModel to update.

Definition at line 120 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ commandQueue

final CommandQueue com.realtime.crossfire.jxclient.main.JXCWindow.commandQueue

private

The command queue instance for this window.

Definition at line 96 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ crossfireQueryListener

final CrossfireQueryListener com.realtime.crossfire.jxclient.main.JXCWindow.crossfireQueryListener

private

Initial value:

= new CrossfireQueryListener() {
        @Override
        public void commandQueryReceived(@NotNull final String prompt, final int queryType) {
            SwingUtilities.invokeLater(new Runnable() {
                @Override
                public void run() {
                    guiManager.openQueryDialog(prompt, queryType);
                }
            });
        }
    }

The CrossfireQueryListener attached to server.

It parses query messages to open/close dialogs.

Definition at line 243 of file JXCWindow.java.

◆ crossfireUpdateItemListener

final CrossfireUpdateItemListener com.realtime.crossfire.jxclient.main.JXCWindow.crossfireUpdateItemListener

private

The CrossfireUpdateItemListener to receive item updates.

Definition at line 154 of file JXCWindow.java.

◆ DISABLE_START_GUI

final boolean com.realtime.crossfire.jxclient.main.JXCWindow.DISABLE_START_GUI = true

static

TODO: Remove when more options are implemented in the start screen gui.

Definition at line 72 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXClient.JXClient().

◆ exiter

final Exiter com.realtime.crossfire.jxclient.main.JXCWindow.exiter

private

The Exiter to use.

Definition at line 78 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ frame

final JFrame com.realtime.crossfire.jxclient.main.JXCWindow.frame = new JFrame("")

private

The main window.

Definition at line 126 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.init(), and com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ guiManager

final GuiManager com.realtime.crossfire.jxclient.main.JXCWindow.guiManager

private

The GuiManager for controlling the main GUI state.

Definition at line 84 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.init(), com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow(), and com.realtime.crossfire.jxclient.main.JXCWindow.term().

◆ guiStateListener

final GuiStateListener com.realtime.crossfire.jxclient.main.JXCWindow.guiStateListener

private

The GuiStateListener for detecting established or dropped connections.

Definition at line 265 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ keyHandler

final KeyHandler com.realtime.crossfire.jxclient.main.JXCWindow.keyHandler

private

The KeyHandler for processing keyboard input.

Definition at line 108 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.init(), and com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ keyListener

final KeyListener com.realtime.crossfire.jxclient.main.JXCWindow.keyListener

private

Initial value:

= new KeyListener() {
        @Override
        public void keyTyped(@NotNull final KeyEvent e) {

        }
        @Override
        public void keyPressed(@NotNull final KeyEvent e) {
            keyHandler.keyPressed(e);
        }
        @Override
        public void keyReleased(@NotNull final KeyEvent e) {
            keyHandler.keyReleased(e);
        }
    }

The KeyListener attached to the main window.

Definition at line 219 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ optionManager

final OptionManager com.realtime.crossfire.jxclient.main.JXCWindow.optionManager

private

The option manager for this window.

Definition at line 114 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.init(), com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow(), and com.realtime.crossfire.jxclient.main.JXCWindow.term().

◆ sentReplyListener

final SentReplyListener com.realtime.crossfire.jxclient.main.JXCWindow.sentReplyListener

private

Initial value:

= new SentReplyListener() {
        @Override
        public void replySent() {
            guiManager.closeQueryDialog();
        }
    }

The SentReplyListener for detecting "reply" commands sent to the server.

Definition at line 316 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ server

final CrossfireServerConnection com.realtime.crossfire.jxclient.main.JXCWindow.server

private

The CrossfireServerConnection to use.

Definition at line 90 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ windowFocusListener

final WindowFocusListener com.realtime.crossfire.jxclient.main.JXCWindow.windowFocusListener

private

Initial value:

= new WindowAdapter() {
        @Override
        public void windowLostFocus(final WindowEvent e) {
            commandQueue.stopRunning();
        }
    }

The WindowFocusListener registered for this window.

It resets the keyboard modifier state when the window loses the focus. The idea is to prevent the following: user switches from JXClient to another window with CTRL+ALT+direction key. This makes JXClient enter RUN mode since CTRL was pressed. The following key release event is not received by JXClient because it does not own the focus. Therefore JXClient's CTRL state is still active when the user switches back to JXClient. A following direction key then causes the character to run which is not what the player wants.

Definition at line 141 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ windowListener

final WindowListener com.realtime.crossfire.jxclient.main.JXCWindow.windowListener

private

Initial value:

= new WindowAdapter() {
        @Override
        public void windowClosing(@NotNull final WindowEvent e) {
            if (!guiManager.openQuitDialog()) {
                exiter.terminate();
            }
        }
        @Override
        public void windowClosed(@NotNull final WindowEvent e) {
            if (!frame.isVisible()) {
                exiter.terminate();
            }
        }
    }

The window listener attached to this frame.

Definition at line 196 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

◆ windowRenderer

final JXCWindowRenderer com.realtime.crossfire.jxclient.main.JXCWindow.windowRenderer

private

The JXCWindowRenderer for this window.

Definition at line 102 of file JXCWindow.java.

Referenced by com.realtime.crossfire.jxclient.main.JXCWindow.init(), and com.realtime.crossfire.jxclient.main.JXCWindow.JXCWindow().

The documentation for this class was generated from the following file:

crossfire-code/jxclient/trunk/src/gui/src/main/java/com/realtime/crossfire/jxclient/main/JXCWindow.java
