Class related to GameObject to store multi-part information. More...

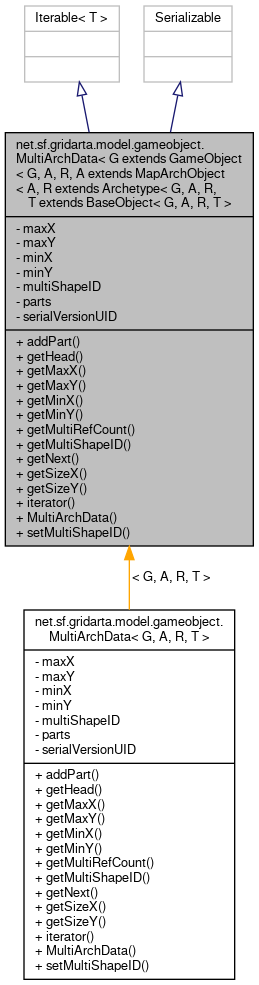

Inheritance diagram for net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >:

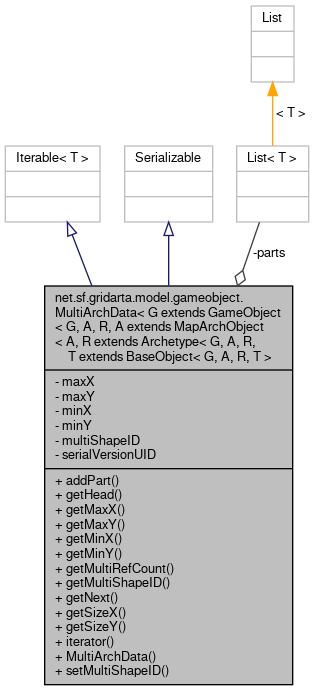

Collaboration diagram for net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >:

Public Member Functions
void	addPart (@NotNull final T tail)
	Add a part to this multi-part object. More...

T	getHead ()
	Return the head part of this multi-part object. More...

int	getMaxX ()
	Determine the maximum x-coordinate of any part. More...

int	getMaxY ()
	Determine the maximum y-coordinate of any part. More...

int	getMinX ()
	Determine the minimum x-coordinate of any part. More...

int	getMinY ()
	Determine the minimum y-coordinate of any part. More...

int	getMultiRefCount ()
	Returns the number of parts this multi-part object contains. More...

int	getMultiShapeID ()
	Return the shape ID of this object. More...

T	getNext (@NotNull final T ob)
	Return the part following a given part. More...

int	getSizeX ()
	Determine the horizontal extent in squares. More...

int	getSizeY ()
	Determine the vertical extent in squares. More...

Iterator< T >	iterator ()

	MultiArchData (@NotNull final T head, final int multiShapeID)
	Create a new instance. More...

void	setMultiShapeID (final int multiShapeID)
	Set the shape ID of this object. More...

Private Attributes
int	maxX
	The maximum coordinate of any part; it is never negative. More...

int	maxY
	The maximum coordinate of any part; it is never negative. More...

int	minX
	The minimum coordinate of any part; it is never positive. More...

int	minY
	The minimum coordinate of any part; it is never positive. More...

int	multiShapeID
	The shape ID of this object. More...

final List< T >	parts = new ArrayList<>()
	All parts belonging to this multi-part object; the first element is the head part. More...

Static Private Attributes
static final long	serialVersionUID = 1L
	The serial version UID. More...

Detailed Description

Class related to GameObject to store multi-part information.

This data is only used for multi-part objects. When the editor is running, usually a big number of

GameObject

s exist - most of them single-part objects. The encapsulation of this "multi-part-only" data can save a little bit of memory.

Author: Andreas Vogl; Andreas Kirschbaum

Definition at line 41 of file MultiArchData.java.

Constructor & Destructor Documentation

◆ MultiArchData()

net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.MultiArchData	(	@NotNull final T	head,
		final int	multiShapeID
	)

Create a new instance.

Parameters

head	the head part of the multi-part object
multiShapeID	the shape ID of this object

Definition at line 91 of file MultiArchData.java.

Member Function Documentation

◆ addPart()

void net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.addPart ( @NotNull final T tail )

Add a part to this multi-part object.

Parameters

tail	the tail part to add

Definition at line 201 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.addTailPart().

Here is the caller graph for this function:

◆ getHead()

T net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getHead ( )

Return the head part of this multi-part object.

Returns: the head part

Definition at line 180 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getHead().

Here is the caller graph for this function:

◆ getMaxX()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getMaxX ( )

Determine the maximum x-coordinate of any part.

The value is relative to the head part. For single-part objects 0 is returned.

Returns: the maximum x-coordinate

Definition at line 128 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getMaxX().

Here is the caller graph for this function:

◆ getMaxY()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getMaxY ( )

Determine the maximum y-coordinate of any part.

The value is relative to the head part. For single-part objects 0 is returned.

Returns: the maximum y-coordinate

Definition at line 137 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getMaxY().

Here is the caller graph for this function:

◆ getMinX()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getMinX ( )

Determine the minimum x-coordinate of any part.

The value is relative to the head part. For single-part objects 0 is returned.

Returns: the minimum x-coordinate

Definition at line 146 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getMinX().

Here is the caller graph for this function:

◆ getMinY()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getMinY ( )

Determine the minimum y-coordinate of any part.

The value is relative to the head part. For single-part objects 0 is returned.

Returns: the minimum y-coordinate

Definition at line 155 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getMinY().

Here is the caller graph for this function:

◆ getMultiRefCount()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getMultiRefCount ( )

Returns the number of parts this multi-part object contains.

Returns: the number of parts this multi-part object contains

Definition at line 101 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getMultiRefCount().

Here is the caller graph for this function:

◆ getMultiShapeID()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getMultiShapeID ( )

Return the shape ID of this object.

Returns: the shape ID of this object

Definition at line 163 of file MultiArchData.java.

◆ getNext()

T net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getNext ( @NotNull final T ob )

Return the part following a given part.

Parameters

ob	the current part

Returns: the part following the current part or
null
if this part was the last.

Definition at line 191 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getMultiNext().

Here is the caller graph for this function:

◆ getSizeX()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getSizeX ( )

Determine the horizontal extent in squares.

For single-part objects 1 is returned.

Returns: the horizontal extent

Definition at line 110 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getSizeX().

Here is the caller graph for this function:

◆ getSizeY()

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.getSizeY ( )

Determine the vertical extent in squares.

For single-part objects 1 is returned.

Returns: the vertical extent

Definition at line 119 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.getSizeY().

Here is the caller graph for this function:

◆ iterator()

Iterator<T> net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.iterator ( )

Definition at line 220 of file MultiArchData.java.

◆ setMultiShapeID()

void net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.setMultiShapeID ( final int multiShapeID )

Set the shape ID of this object.

Parameters

multiShapeID the new shape ID of this object

Definition at line 171 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.archetype.AbstractArchetype< TestGameObject, TestMapArchObject, TestArchetype >.setMultiShapeID(), and net.sf.gridarta.model.baseobject.AbstractBaseObject< G, A, R, G >.updateArchetype().

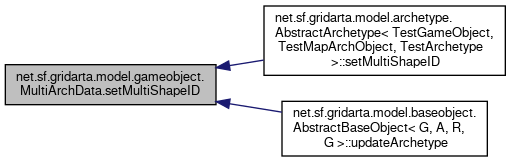

Here is the caller graph for this function:

Member Data Documentation

◆ maxX

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.maxX

private

The maximum coordinate of any part; it is never negative.

Definition at line 52 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.getMaxX().

◆ maxY

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.maxY

private

The maximum coordinate of any part; it is never negative.

Definition at line 58 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.getMaxY().

◆ minX

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.minX

private

The minimum coordinate of any part; it is never positive.

Definition at line 64 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.getMinX().

◆ minY

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.minY

private

The minimum coordinate of any part; it is never positive.

Definition at line 70 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.getMinY().

◆ multiShapeID

int net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.multiShapeID

private

The shape ID of this object.

Definition at line 76 of file MultiArchData.java.

Referenced by net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.getMultiShapeID(), net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.MultiArchData(), and net.sf.gridarta.model.gameobject.MultiArchData< G, A, R, T >.setMultiShapeID().

◆ parts

final List<T> net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.parts = new ArrayList<>()

private

All parts belonging to this multi-part object; the first element is the head part.

Definition at line 84 of file MultiArchData.java.

◆ serialVersionUID

final long net.sf.gridarta.model.gameobject.MultiArchData< G extends GameObject< G, A, R, A extends MapArchObject< A, R extends Archetype< G, A, R, T extends BaseObject< G, A, R, T >.serialVersionUID = 1L

staticprivate

The serial version UID.

Definition at line 46 of file MultiArchData.java.

The documentation for this class was generated from the following file:

gridarta-gridarta/src/model/src/main/java/net/sf/gridarta/model/gameobject/MultiArchData.java
