#include "global.h"
#include <ctype.h>
#include <errno.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/stat.h>
#include <math.h>
#include <unistd.h>
#include "sproto.h"
#include "loader.h"
#include "output_file.h"
#include "path.h"
#include "stats.h"

Include dependency graph for map.cpp:

Data Structures
struct	Map_Layer_Info

Functions
static void	add_face_layer (int low_layer, int high_layer, object ob, object layers[], int honor_visibility)

static int	adjacent_map (const mapstruct map1, const mapstruct map2, int dx, int dy)

void	allocate_map (mapstruct *m)

int	blocked_link (object ob, mapstruct m, int16_t sx, int16_t sy)

int	calculate_difficulty (mapstruct *m)

int	change_map_light (mapstruct *m, int change)

int	check_path (const char *name, int prepend_dir)

void	clean_object (object *op)

void	clean_tmp_map (mapstruct *m)

static void	create_items_path (const char s, char buf, size_t size)

void	create_overlay_pathname (const char name, char buf, size_t size)

char *	create_pathname (const char name, char buf, size_t size)

void	create_template_pathname (const char name, char buf, size_t size)

void	delete_map (mapstruct *m)

static void	delete_unique_items (mapstruct *m)

void	dump_all_maps (void)

void	dump_map (const mapstruct *m)

static void	fix_container_multipart (object *container)

void	free_all_maps (void)

static void	free_all_objects (mapstruct *m)

void	free_map (mapstruct *m)

mapstruct *	get_empty_map (int sizex, int sizey)

mapstruct *	get_linked_map (void)

int	get_map_flags (mapstruct oldmap, mapstruct newmap, int16_t x, int16_t y, int16_t nx, int16_t *ny)

mapstruct *	get_map_from_coord (mapstruct m, int16_t x, int16_t *y)

int	get_rangevector (object op1, const object op2, rv_vector *retval, int flags)

int	get_rangevector_from_mapcoord (const mapstruct m, int x, int y, const object op2, rv_vector *retval)

mapstruct *	has_been_loaded (const char *name)

static void	link_multipart_objects (mapstruct *m)

static mapstruct *	load_and_link_tiled_map (mapstruct *orig_map, int tile_num)

static int	load_map_header (FILE fp, mapstruct m)

void	load_objects (mapstruct m, FILE fp, int mapflags)

static int	load_overlay_map (const char filename, mapstruct m)

static int	load_temporary_map (mapstruct *m)

static void	load_unique_objects (mapstruct *m)

object *	map_find_by_flag (mapstruct *map, int x, int y, int flag)

const char *	map_get_path (const object *item)

void	map_path (const char map, int flags, char pathname, size_t bufsize)

bool	map_path_unique (const char *path)

void	map_remove_unique_files (const mapstruct *map)

uint32_t	map_size (mapstruct *m)

mapstruct *	mapfile_load (const char *map, int flags)

mapstruct *	mapfile_load_lowlevel (const char map, const char pathname, int flags)

int	ob_blocked (const object ob, mapstruct m, int16_t x, int16_t y)

int	on_same_map (const object op1, const object op2)

int	out_of_map (mapstruct *m, int x, int y)

static shopitems *	parse_shop_string (const char input_string, const mapstruct map)

static void	print_shop_string (mapstruct m, char output_string, int size)

mapstruct *	ready_map_name (const char *name, int flags)

int	save_map (mapstruct *m, int flag)

int	save_objects (mapstruct m, FILE fp, FILE *fp2, int flag)

void	set_map_reset_time (mapstruct *map)

void	update_position (mapstruct *m, int x, int y)

Variables
static const Map_Layer_Info	map_layer_info [MAP_LAYERS]

const char *const	map_layer_name [MAP_LAYERS]

Detailed Description

Map-related functions.

Definition in file map.cpp.

Function Documentation

◆ add_face_layer()

static void add_face_layer	(	int	low_layer,
		int	high_layer,
		object *	ob,
		object *	layers[],
		int	honor_visibility
	)

inlinestatic

This function is used for things that can have multiple layers - NO_PICK, ITEM, LIVING, FLYING. Basically, we want to store in the empty spot, and if both full, store highest visiblity objects. Since update_position() goes from bottom to top order, if the new object is equal to existing we take the new object since it is higher in the stack.

Parameters

low_layer	lower bounds to check (inclusive).
high_layer	upper bounds to check (inclusive).
ob	object to add to the layer.
layers	layers to change.
honor_visibility	if it is set to 0,then we do a pure stacking logic - this is used for the no pick layer, since stacking ordering there is basically fixed - don't want to re-order walls, pentagrams, etc.

Definition at line 2041 of file map.cpp.

References object::face, banquet::l, guildjoin::ob, Ice::tmp, and Face::visibility.

Referenced by update_position().

Here is the caller graph for this function:

◆ adjacent_map()

static int adjacent_map	(	const mapstruct *	map1,
		const mapstruct *	map2,
		int *	dx,
		int *	dy
	)

static

Return whether map2 is adjacent to map1. If so, store the distance from map1 to map2 in dx/dy.

Parameters

map1
map2	maps to consider.
dx
dy	distance. Must not be NULL. Not altered if returns 0.

Returns: 1 if maps are adjacent, 0 else.

Definition at line 2445 of file map.cpp.

References MAP_HEIGHT, MAP_WIDTH, and mapstruct::tile_map.

Referenced by get_rangevector(), get_rangevector_from_mapcoord(), and on_same_map().

Here is the caller graph for this function:

◆ allocate_map()

void allocate_map ( mapstruct * m )

This basically allocates the dynamic array of spaces for the map.

Parameters

m	map to check.

Note: will never fail, since it calls fatal() if memory allocation failure.

Definition at line 813 of file map.cpp.

References fatal(), llevError, LOG(), m, MAP_IN_MEMORY, map_size(), and OUT_OF_MEMORY.

Referenced by get_empty_map(), load_temporary_map(), mapfile_load_lowlevel(), and mapsave_test().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ blocked_link()

int blocked_link	(	object *	ob,
		mapstruct *	m,
		int16_t	sx,
		int16_t	sy
	)

Returns true if the given coordinate is blocked except by the object passed is not blocking. This is used with multipart monsters - if we want to see if a 2x2 monster can move 1 space to the left, we don't want its own area to block it from moving there.

Parameters

ob	object we ignore. Must not be NULL.
m	map we're considering.
sx
sy	target coordinates

Returns: TRUE if the space is blocked by something other than ob.

Note: the coordinates & map passed in should have been updated for tiling by the caller.

Definition at line 344 of file map.cpp.

References CHECK_INV, check_inv_recursive(), DOOR, draw_ext_info(), FLAG_ALIVE, FLAG_WIZ, FOR_MAP_FINISH, FOR_MAP_PREPARE, GET_MAP_MOVE_BLOCK, HEAD, llevError, LOG(), m, MSG_TYPE_ATTACK, MSG_TYPE_ATTACK_NOKEY, NDI_NAVY, NDI_UNIQUE, guildjoin::ob, OB_MOVE_BLOCK, OB_TYPE_MOVE_BLOCK, OUT_OF_REAL_MAP, P_IS_ALIVE, PLAYER, QUERY_FLAG, Ice::tmp, and TRANSPORT.

Referenced by move_ob(), and path_to_player().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculate_difficulty()

int calculate_difficulty ( mapstruct * m )

This routine is supposed to find out the difficulty of the map. Difficulty does not have a lot to do with character level, but does have a lot to do with treasure on the map.

Difficulty can now be set by the map creature. If the value stored in the map is zero, then use this routine. Maps should really have a difficulty set than using this function - human calculation is much better than this functions guesswork.

Parameters

m	map for which to compute difficulty.

Returns: difficulty of the map.

Definition at line 1888 of file map.cpp.

References archetype::clone, living::exp, FLAG_GENERATOR, FLAG_MONSTER, FOR_MAP_FINISH, FOR_MAP_PREPARE, if(), level_exp(), m, MAP_DIFFICULTY, MAP_HEIGHT, MAP_WIDTH, object_get_value(), give::op, QUERY_FLAG, object::stats, diamondslots::x, and diamondslots::y.

Referenced by cfapi_map_get_map_property(), generate_random_map(), mapfile_load(), and CREMapInformationManager::process().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ change_map_light()

int change_map_light	(	mapstruct *	m,
		int	change
	)

Used to change map light level (darkness) up or down. It should now be possible to change a value by more than 1.

Move this from los.c to map.c since this is more related to maps than los. postive values make it darker, negative make it brighter

Will inform players on the map.

Parameters

m	map to change.
change	delta of light.

Returns: TRUE if light changed, FALSE else.

Definition at line 1986 of file map.cpp.

References ext_info_map(), m, MAX_DARKNESS, MSG_SUBTYPE_NONE, MSG_TYPE_MISC, NDI_BLACK, and update_all_map_los().

Referenced by cast_change_map_lightlevel(), cfapi_map_change_light(), dawn_to_dusk(), generate_random_map(), and set_darkness_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_path()

int check_path	(	const char *	name,
		int	prepend_dir
	)

This function checks if a file with the given path exists.

Parameters

name	map path to check.
prepend_dir	If set, then we call create_pathname (which prepends libdir & mapdir). Otherwise, we assume the name given is fully complete.

Returns: -1 if it fails, otherwise the mode of the file is returned.

Note: Only the editor actually cares about the writablity of this - the rest of the code only cares that the file is readable. when the editor goes away, the call to stat should probably be replaced by an access instead (similar to the windows one, but that seems to be missing the prepend_dir processing

Definition at line 201 of file map.cpp.

References buf, create_pathname(), MAX_BUF, give::name, S_IRGRP, S_IROTH, S_IRUSR, S_IWGRP, S_IWOTH, S_IWUSR, and strlcpy().

Referenced by cfapi_system_check_path(), and check_login().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clean_object()

void clean_object ( object * op )

Remove and free all objects in the inventory of the given object.

Parameters

op	object to clean.

Todo:: move to common/object.c ?

Definition at line 1590 of file map.cpp.

References clean_object(), FLAG_IS_LINKED, FOR_INV_FINISH, FOR_INV_PREPARE, object_free_drop_inventory(), object_remove(), give::op, QUERY_FLAG, remove_button_link(), and Ice::tmp.

Referenced by cfapi_object_clean_object(), clean_object(), delete_unique_items(), and free_all_objects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clean_tmp_map()

void clean_tmp_map ( mapstruct * m )

Removse the temporary file used by the map.

Parameters

m	map, which mustn't be NULL but can have no temporary file set.

Definition at line 1945 of file map.cpp.

References m, and nlohmann::detail::void().

Referenced by clean_tmp_files(), flush_old_maps(), and ready_map_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_items_path()

static void create_items_path	(	const char *	s,
		char *	buf,
		size_t	size
	)

static

This makes absolute path to the itemfile where unique objects will be saved. Converts '/' to '@'.

Parameters

s	path of the map for the item.
buf	buffer that will contain path. Must not be NULL.
size	buffer's length.

Definition at line 166 of file map.cpp.

References buf, Settings::localdir, settings, Floor::t, and Settings::uniquedir.

Referenced by load_unique_objects(), map_remove_unique_files(), and save_map().

Here is the caller graph for this function:

◆ create_overlay_pathname()

void create_overlay_pathname	(	const char *	name,
		char *	buf,
		size_t	size
	)

Same as create_pathname(), but for the overlay maps. /

Parameters

name	path of the overlay map.
buf	buffer that will contain the full path.
size	buffer's length.

Definition at line 125 of file map.cpp.

References buf, Settings::localdir, Settings::mapdir, give::name, and settings.

Referenced by cfapi_map_create_path(), command_overlay_reset(), load_overlay_map(), map_path(), and save_map().

Here is the caller graph for this function:

◆ create_pathname()

char* create_pathname	(	const char *	name,
		char *	buf,
		size_t	size
	)

Get the full path to a map file. This simply means prepending the correct map directory to the given path.

Parameters

name	path of the map.
buf	buffer that will contain the full path.
size	buffer's length.

Returns: buf.

Definition at line 104 of file map.cpp.

References buf, Settings::datadir, Settings::mapdir, give::name, and settings.

Referenced by cfapi_map_create_path(), check_path(), CREMapInformationManager::checkItem(), enter_fixed_template_map(), map_path(), CREMapInformationManager::process(), process_map(), CREMapInformationManager::recurseStyleDirectory(), and save_map().

Here is the caller graph for this function:

◆ create_template_pathname()

void create_template_pathname	(	const char *	name,
		char *	buf,
		size_t	size
	)

same as create_pathname(), but for the template maps.

Parameters

name	path of the template map.
buf	buffer that will contain the full path.
size	buf's length

Definition at line 145 of file map.cpp.

References buf, Settings::localdir, give::name, settings, and Settings::templatedir.

Referenced by enter_fixed_template_map(), and enter_random_template_map().

Here is the caller graph for this function:

◆ delete_map()

void delete_map ( mapstruct * m )

Frees the map, including the mapstruct.

This deletes all the data on the map (freeing pointers) and then removes this map from the global linked list of maps.

Parameters

m	pointer to mapstruct, if NULL no action. Will be invalid after this function.

Definition at line 1699 of file map.cpp.

References first_map, FREE_AND_CLEAR_STR_IF, free_map(), llevError, LOG(), m, MAP_IN_MEMORY, MAP_SAVING, mapstruct::next, and Ice::tmp.

Referenced by cfapi_map_delete_map(), CREMapInformationManager::checkItem(), flush_old_maps(), free_all_maps(), free_style_maps(), init_dynamic(), key_confirm_quit(), mapfile_load_lowlevel(), monsterFight(), CREMapInformationManager::process(), process_map(), ready_map_name(), START_TEST(), swap_map(), and test_stand_in_light().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ delete_unique_items()

static void delete_unique_items ( mapstruct * m )

static

This goes through map 'm' and removes any unique items on the map.

Parameters

m	map to check.

Definition at line 1324 of file map.cpp.

References clean_object(), FLAG_IS_FLOOR, FLAG_IS_LINKED, FLAG_UNIQUE, FOR_MAP_FINISH, FOR_MAP_PREPARE, m, MAP_HEIGHT, MAP_WIDTH, object_free_drop_inventory(), object_remove(), give::op, QUERY_FLAG, and remove_button_link().

Referenced by load_unique_objects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dump_all_maps()

void dump_all_maps ( void )

Prints out debug-information about all maps. This basically just goes through all the maps and calls dump_map() on each one. Can be used by a DM with the dumpallmaps command.

Definition at line 268 of file map.cpp.

References dump_map(), first_map, and m.

Referenced by command_dumpallmaps().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dump_map()

void dump_map ( const mapstruct * m )

Prints out debug-information about a map. Dumping these at llevError doesn't seem right, but is necessary to make sure the information is in fact logged. Can be used by a DM with the dumpmap command.

Parameters

m	map to dump.

Definition at line 245 of file map.cpp.

References llevError, LOG(), m, MAP_ENTER_X, MAP_ENTER_Y, MAP_HEIGHT, and MAP_WIDTH.

Referenced by command_dumpmap(), and dump_all_maps().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fix_container_multipart()

static void fix_container_multipart ( object * container )

static

Go through all the objects in a container (recursively) looking for objects whose arch says they are multipart yet according to the info we have, they only have the head (as would be expected when they are saved). We do have to look for the old maps that did save the more sections and not re-add sections for them.

Parameters

container object that contains the inventory.

Definition at line 534 of file map.cpp.

References add_string(), arch_to_object(), CLEAR_FLAG, FLAG_REMOVED, FOR_INV_FINISH, FOR_INV_PREPARE, free_string(), object::more, archetype::more, give::op, and Ice::tmp.

Referenced by link_multipart_objects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ free_all_maps()

void free_all_maps ( void )

Frees all allocated maps.

Definition at line 1954 of file map.cpp.

References delete_map(), first_map, mapstruct::in_memory, llevDebug, LOG(), MAP_IN_MEMORY, and MAP_SAVING.

Referenced by cleanup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ free_all_objects()

static void free_all_objects ( mapstruct * m )

static

Remove and free all objects in the given map.

Parameters

m	map to free.

Definition at line 1606 of file map.cpp.

References clean_object(), FLAG_REMOVED, FREE_OBJ_NO_DESTROY_CALLBACK, GET_MAP_OB, HEAD, llevDebug, llevError, LOG(), m, MAP_HEIGHT, MAP_IN_MEMORY, MAP_WIDTH, object_free(), object_remove(), objects, give::op, and QUERY_FLAG.

Referenced by free_map(), and save_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ free_map()

void free_map ( mapstruct * m )

Frees everything allocated by the given mapstructure. Don't free tmpname or the reset group - our caller is left to do that. Mapstructure itself is not freed.

Parameters

m	map to free.

Definition at line 1653 of file map.cpp.

References EVENT_MAPUNLOAD, events_execute_global_event(), free_all_objects(), FREE_AND_CLEAR, free_objectlinkpt(), llevError, LOG(), m, and MAP_SWAPPED.

Referenced by delete_map(), CRECombatSimulator::fight(), main(), mapsave_test(), START_TEST(), swap_map(), and teardown().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_empty_map()

mapstruct* get_empty_map	(	int	sizex,
		int	sizey
	)

Creates and returns a map of the specific size. Used in random map code and the editor.

Parameters

sizex
sizey	map size.

Returns: new map.

Note: will never return NULL, as get_linked_map() never fails.

Definition at line 843 of file map.cpp.

References allocate_map(), get_linked_map(), m, and MAP_SWAPPED.

Referenced by cfapi_map_get_map(), do_map(), do_test(), CRECombatSimulator::fight(), make_map_floor(), monsterFight(), setup(), START_TEST(), and test_stand_in_light().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_linked_map()

mapstruct* get_linked_map ( void )

Allocates, initialises, and returns a pointer to a mapstruct, linked through first_map.

Returns: new structure.

Note: will never return NULL, but call fatal() if memory error.

Definition at line 776 of file map.cpp.

References fatal(), first_map, disinfect::map, MAP_ENTER_X, MAP_ENTER_Y, MAP_HEIGHT, MAP_RESET_TIMEOUT, MAP_SWAPPED, MAP_TIMEOUT, MAP_WIDTH, and OUT_OF_MEMORY.

Referenced by get_empty_map(), mapfile_load_lowlevel(), mapsave_test(), and read_map_log().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_map_flags()

int get_map_flags	(	mapstruct *	oldmap,
		mapstruct **	newmap,
		int16_t	x,
		int16_t	y,
		int16_t *	nx,
		int16_t *	ny
	)

This rolls up wall, blocks_magic, blocks_view, etc, all into one function that just returns a P_.. value (see map.h) it will also do map translation for tiled maps, returning new values into newmap, nx, and ny. Any and all of those values can be null, in which case if a new map is needed (returned by a P_NEW_MAP value, another call to get_map_from_coord is needed. The case of not passing values is if we're just checking for the existence of something on those spaces, but don't expect to insert/remove anything from those spaces.

Parameters

oldmap	map for which we want information.
newmap	if not NULL, will contain the actual map checked if not oldmap.
x
y	coordinates to check
nx
ny	if not NULL, will contain the actual coordinates checked.

Returns: flags for specified position, with maybe P_OUT_OF_MAP or P_NEW_MAP set.

Definition at line 300 of file map.cpp.

References MapSpace::flags, get_map_from_coord(), P_NEW_MAP, P_OUT_OF_MAP, mapstruct::spaces, mapstruct::width, diamondslots::x, and diamondslots::y.

Referenced by alchemy(), animate_weapon(), armour_improver_type_apply(), attempt_jump(), can_see_monsterP(), cast_cause_disease(), cast_cone(), cast_create_obj(), cast_destruction(), cast_detection(), cast_earth_to_dust(), cast_light(), cast_polymorph(), cast_raise_dead_spell(), cast_spell(), cast_transfer(), cfapi_map_get_map_property(), cfapi_map_get_object_at(), check_bullet(), check_infection(), check_wall(), command_save(), common_process_projectile(), counterspell(), create_bomb(), dimension_door(), dispel_rune(), do_harvest(), do_skill_ident(), do_throw(), draw_client_map(), eventListener(), expand_lighted_sight(), expand_sight(), find_target_for_friendly_spell(), find_traps(), fire_arch_from_position(), fire_bolt(), fire_bow(), forklightning(), get_pointed_target(), hideability(), hit_map(), legacy_monster_stand_in_light(), magic_mapping_mark(), magic_mapping_mark_recursive(), magic_wall(), monster_communicate(), monster_find_nearest_enemy(), monster_npc_call_help(), mood_change(), move_aura(), move_ball_spell(), move_bolt(), move_bullet(), move_ob(), move_player_mover(), move_swarm_spell(), move_to(), ob_blocked(), object_find_multi_free_spot_within_radius(), ok_to_put_more(), path_to_player(), pets_get_enemy(), pets_move(), pets_move_golem(), pick_arrow_target(), probe(), process_players1(), remove_adjacent_doors(), remove_trap(), roll_ob(), singing(), skill_attack(), spell_failure(), spell_find_dir(), stand_near_hostile(), steal(), teleport(), try_fit(), use_oratory(), weapon_improver_type_apply(), and write_rune().

Here is the call graph for this function:

◆ get_map_from_coord()

mapstruct* get_map_from_coord	(	mapstruct *	m,
		int16_t *	x,
		int16_t *	y
	)

This is basically the same as out_of_map above(), but instead we return NULL if no map is valid (coordinates out of bounds and no tiled map), otherwise it returns the map as that the coordinates are really on, and updates x and y to be the localized coordinates. Using this is more efficient than calling out_of_map and then figuring out what the real map is

Parameters

m	map we want to look at. Must not be NULL.
x
y	coordinates, which will contain the real position that was checked.

Returns: map that is at specified location. Will be NULL if not on any map.

Note: refactored to remove the recursion. This should help stack space and optimization.

Definition at line 2362 of file map.cpp.

References load_and_link_tiled_map(), m, MAP_HEIGHT, MAP_IN_MEMORY, MAP_WIDTH, OUT_OF_REAL_MAP, diamondslots::x, and diamondslots::y.

Referenced by cfapi_map_get_map(), draw_client_map2(), get_map_flags(), look_at(), monster_stand_in_light_internal(), monster_use_bow(), move_player_attack(), object_insert_in_map(), object_remove(), and pets_move().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_rangevector()

int get_rangevector	(	object *	op1,
		const object *	op2,
		rv_vector *	retval,
		int	flags
	)

From map.c This is used by get_player to determine where the other creature is. get_rangevector takes into account map tiling, so you just can not look the the map coordinates and get the right value. distance_x/y are distance away, which can be negative. direction is the crossfire direction scheme that the creature should head. part is the part of the monster that is closest.

get_rangevector looks at op1 and op2, and fills in the structure for op1 to get to op2. We already trust that the caller has verified that the two objects are at least on adjacent maps. If not, results are not likely to be what is desired.

Parameters

op1	object which wants to go to op2's location.
op2	target of op1.
retval	vector for op1 to go to op2.
flags	if 1, don't translate for closest body part of 'op1'

Returns: 1=ok; 0=the objects are not on the same map

Definition at line 2522 of file map.cpp.

References adjacent_map(), rv_vector::direction, rv_vector::distance, rv_vector::distance_x, rv_vector::distance_y, find_dir_2(), flags, ihypot(), object::map, object::more, rv_vector::part, Ice::tmp, object::x, and object::y.

Referenced by command_follow(), do_follow(), flee_player(), monster_can_detect_enemy(), monster_can_hit(), monster_cast_spell(), monster_find_enemy(), monster_move(), monster_use_bow(), monster_use_range(), monster_use_scroll(), monster_use_skill(), move_towards(), path_to_player(), pets_get_enemy(), pets_move(), player_can_view(), and spring_trap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_rangevector_from_mapcoord()

int get_rangevector_from_mapcoord	(	const mapstruct *	m,
		int	x,
		int	y,
		const object *	op2,
		rv_vector *	retval
	)

This is basically the same as get_rangevector() above, but instead of the first parameter being an object, it instead is the map and x,y coordinates - this is used for path to player - since the object is not infact moving but we are trying to traverse the path, we need this. Since no object is pasted, the best field of the rv_vector is set to NULL.

Parameters

m	map to consider.
x
y	origin coordinates.
op2	target object.
retval	vector to get to op2.

Returns: 1=ok; 0=the objects are not on the same map

Definition at line 2590 of file map.cpp.

References adjacent_map(), rv_vector::direction, rv_vector::distance, rv_vector::distance_x, rv_vector::distance_y, find_dir_2(), isqrt(), m, object::map, rv_vector::part, diamondslots::x, object::x, diamondslots::y, and object::y.

Referenced by path_to_player().

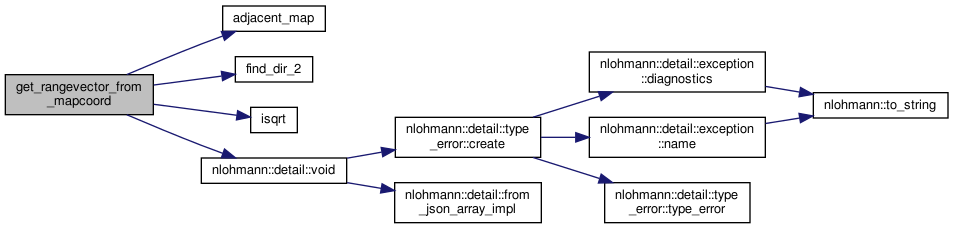

Here is the call graph for this function:

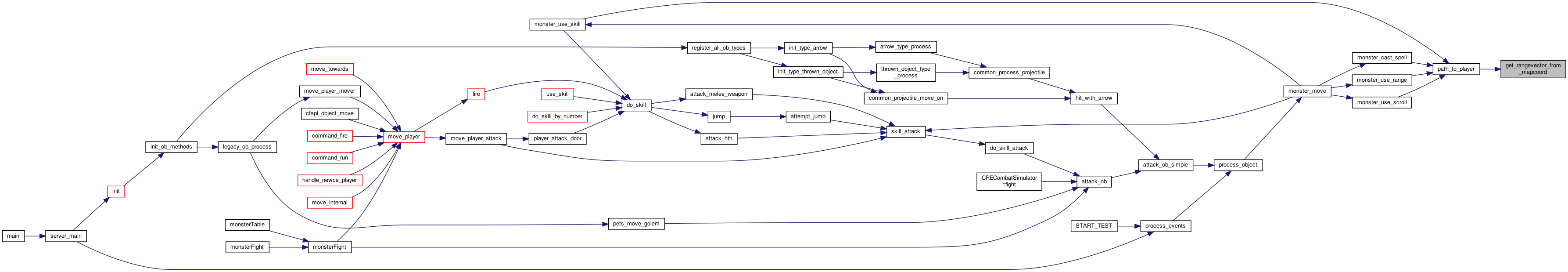

Here is the caller graph for this function:

◆ has_been_loaded()

mapstruct* has_been_loaded ( const char * name )

Checks whether map has been loaded.

Parameters

name	path of the map to search. Can be NULL.

Returns: the mapstruct which has a name matching the given argument. return NULL if no match is found.

Definition at line 79 of file map.cpp.

References first_map, disinfect::map, and give::name.

Referenced by add_npc_to_random_map(), cfapi_map_has_been_loaded(), check_login(), command_reset(), is_legal_2ways_exit(), monsterFight(), and ready_map_name().

Here is the caller graph for this function:

◆ link_multipart_objects()

static void link_multipart_objects ( mapstruct * m )

static

Go through all the objects on the map looking for objects whose arch says they are multipart yet according to the info we have, they only have the head (as would be expected when they are saved). We do have to look for the old maps that did save the more sections and not re-add sections for them.

Parameters

m	map to check.

Definition at line 575 of file map.cpp.

References fix_container_multipart(), FOR_MAP_FINISH, FOR_MAP_PREPARE, m, MAP_HEIGHT, MAP_WIDTH, object_fix_multipart(), Ice::tmp, diamondslots::x, and diamondslots::y.

Referenced by load_objects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_and_link_tiled_map()

static mapstruct* load_and_link_tiled_map	(	mapstruct *	orig_map,
		int	tile_num
	)

static

This updates the orig_map->tile_map[tile_num] value after loading the map. It also takes care of linking back the freshly loaded maps tile_map values if it tiles back to this one. It returns the value of orig_map->tile_map[tile_num]. It really only does this so that it is easier for calling functions to verify success.

Parameters

orig_map	map for which we load the tiled map.
tile_num	tile to load. Must be between 0 and 3 inclusive.

Returns: linked map, or NULL on failure.

Definition at line 2250 of file map.cpp.

References HUGE_BUF, llevError, LOG(), python_init::path, mapstruct::path, path_combine_and_normalize(), ready_map_name(), mapstruct::tile_map, and mapstruct::tile_path.

Referenced by get_map_from_coord(), and out_of_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_map_header()

static int load_map_header	(	FILE *	fp,
		mapstruct *	m
	)

static

This loads the header information of the map. The header contains things like difficulty, size, timeout, etc. this used to be stored in the map object, but with the addition of tiling, fields beyond that easily named in an object structure were needed, so it just made sense to put all the stuff in the map object so that names actually make sense.

Parameters

fp	file to read from.
m	map being read.

Returns: 0 on success, 1 on failure.

Definition at line 989 of file map.cpp.

References add_string(), buf, get_region_by_name(), HUGE_BUF, castle_read::key, llevError, LOG(), m, msgbuf, parse_shop_string(), strdup_local, create-tower::tile, and autojail::value.

Referenced by load_overlay_map(), load_temporary_map(), and mapfile_load_lowlevel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_objects()

void load_objects	(	mapstruct *	m,
		FILE *	fp,
		int	mapflags
	)

Loads (and parses) the objects into a given map from the specified file pointer.

Parameters

m	m being loaded.
fp	file to read from.
mapflags	the same as we get with mapfile_load()

Definition at line 603 of file map.cpp.

References FLAG_IS_FLOOR, FLAG_OBJ_ORIGINAL, FLAG_OVERLAY_FLOOR, FLAG_UNIQUE, FOR_MAP_FINISH, FOR_MAP_PREPARE, INS_ABOVE_FLOOR_ONLY, INS_MAP_LOAD, INS_NO_MERGE, INS_NO_WALK_ON, INS_ON_TOP, link_multipart_objects(), LL_MORE, LL_NORMAL, llevDebug, llevError, LO_NEWFILE, LO_REPEAT, load_object(), LOG(), m, MAP_HEIGHT, MAP_OVERLAY, MAP_PLAYER_UNIQUE, MAP_STYLE, MAP_WIDTH, object::more, object_free_drop_inventory(), object_insert_in_map_at(), object_new(), object_remove_from_active_list(), object_sum_weight(), give::op, PLAYER, PROFILE_BEGIN, PROFILE_END, QUERY_FLAG, and SET_FLAG.

Referenced by load_overlay_map(), load_temporary_map(), load_unique_objects(), mapfile_load_lowlevel(), and mapsave_test().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_overlay_map()

static int load_overlay_map	(	const char *	filename,
		mapstruct *	m
	)

static

Loads an overlay for a map, which has been loaded earlier, from file.

Parameters

filename	filename for overlay.
m	map we want to load.

Returns: 0 on success, non zero in case of error, which is LOG'ed.

Definition at line 1289 of file map.cpp.

References create_overlay_pathname(), npc_dialog::filename, llevError, load_map_header(), load_objects(), LOG(), m, MAP_IN_MEMORY, MAP_LOADING, MAP_OVERLAY, and MAX_BUF.

Referenced by ready_map_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_temporary_map()

static int load_temporary_map ( mapstruct * m )

static

Loads a map, which has been loaded earlier, from file.

Parameters

m	map we want to reload.

Returns: 0 if success, non zero if failure, in which case error was LOG'ed.

Definition at line 1253 of file map.cpp.

References allocate_map(), llevError, load_map_header(), load_objects(), LOG(), m, MAP_IN_MEMORY, and MAP_LOADING.

Referenced by ready_map_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_unique_objects()

static void load_unique_objects ( mapstruct * m )

static

Loads unique objects from file(s) into the map which is in memory

Parameters

m	map to load unique items into.

Definition at line 1349 of file map.cpp.

References disinfect::count, create_items_path(), delete_unique_items(), llevDebug, LO_NOREAD, load_object(), load_objects(), LOG(), m, MAP_IN_MEMORY, MAP_LOADING, MAX_BUF, and give::name.

Referenced by ready_map_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ map_find_by_flag()

object* map_find_by_flag	(	mapstruct *	map,
		int	x,
		int	y,
		int	flag
	)

Finds an object in a map tile by flag number. Checks the objects' heads.

Parameters

map	the map to search.
x	the x-coordiate to search.
y	the y-coordiate to search.
flag	the flag to seacrh for

Returns: first object's head in the tile that has the flag set. NULL if no match.

Note: will not search in inventory of objects.

Definition at line 2651 of file map.cpp.

References GET_MAP_OB, HEAD, disinfect::map, QUERY_FLAG, Ice::tmp, diamondslots::x, and diamondslots::y.

Referenced by cast_light(), common_process_projectile(), do_monster_change(), do_mood_floor(), get_pointed_target(), and mood_change().

Here is the caller graph for this function:

◆ map_get_path()

const char* map_get_path ( const object * item )

Return the map path on which the specified item is.

Parameters

item	what to return the map path for.

Returns: path, map's name, or error string, never NULL.

Definition at line 2693 of file map.cpp.

References map_get_path().

Referenced by gate_type_process(), and map_get_path().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ map_path()

void map_path	(	const char *	map,
		int	flags,
		char *	pathname,
		size_t	bufsize
	)

test_mapsave.cpp – save stability test

This file creates a program that loads and saves a map given by the in-game PATH (e.g. /world/world_105_115). If everything is working, load/save should not change the file.

Due to the lack of correct linked list reversing, we load/save twice to get the same order of objects again.

For normal (e.g. world) maps, load/save saves to a temporary file, so we can avoid modifying the original file and diff between the original and saved temporary file.

For unique (e.g. apartment) maps, this test SAVES OVER THE ORIGINAL FILE. So you should make a copy of the original file so you can diff the result.

Definition at line 1166 of file map.cpp.

References create_overlay_pathname(), create_pathname(), flags, Settings::localdir, disinfect::map, MAP_OVERLAY, MAP_PLAYER_UNIQUE, Settings::playerdir, and settings.

Referenced by main(), map_info(), and mapfile_load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ map_path_unique()

bool map_path_unique ( const char * path )

Return true if the given map path leads to a unique map. This is needed to correctly load a map with the MAP_UNIQUE flag set, because there are some contexts in which only a map path is available.

Definition at line 2713 of file map.cpp.

References python_init::path.

Referenced by cast_create_town_portal(), enter_exit(), and town_portal_destroy_existing().

Here is the caller graph for this function:

◆ map_remove_unique_files()

void map_remove_unique_files ( const mapstruct * map )

Remove files containing the map's unique items.

Parameters

map

Definition at line 2668 of file map.cpp.

References disinfect::count, create_items_path(), HUGE_BUF, llevError, Settings::localdir, LOG(), disinfect::map, python_init::path, Settings::playerdir, and settings.

Referenced by command_reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ map_size()

uint32_t map_size ( mapstruct * m )

Calculate map size without intermediate sign extension.

Definition at line 799 of file map.cpp.

References m.

Referenced by allocate_map(), command_style_map_info(), and malloc_info().

Here is the caller graph for this function:

◆ mapfile_load()

mapstruct* mapfile_load	(	const char *	map,
		int	flags
	)

Opens the file "filename" and reads information about the map from the given file, and stores it in a newly allocated mapstruct. A pointer to this structure is returned, or NULL on failure. flags correspond to those in map.h. Main ones used are MAP_PLAYER_UNIQUE, in which case we don't do any name changes, and

Parameters

map	Map path
flags	Additional options for loading the map: MAP_PLAYER_UNIQUE: Load from a player-specific directory MAP_OVERLAY: map is an overlay MAP_STYLE: style map - don't add active objects, don't add to server managed map list.

Returns: loaded map, or NULL if failure.

Definition at line 1217 of file map.cpp.

References apply_auto_fix(), calculate_difficulty(), EVENT_MAPLOAD, events_execute_global_event(), flags, llevDebug, LOG(), m, disinfect::map, MAP_DIFFICULTY, MAP_NO_DIFFICULTY, map_path(), MAP_STYLE, mapfile_load_lowlevel(), maps_loaded_total, MAX_BUF, PROFILE_BEGIN, PROFILE_END, set_map_reset_time(), and update_buttons().

Referenced by enter_fixed_template_map(), enter_unique_map(), load_style_map(), main(), mapsave_test(), CREMapInformationManager::process(), and ready_map_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapfile_load_lowlevel()

mapstruct* mapfile_load_lowlevel	(	const char *	map,
		const char *	pathname,
		int	flags
	)

Definition at line 1176 of file map.cpp.

References allocate_map(), delete_map(), flags, get_linked_map(), HUGE_BUF, llevDebug, llevError, load_map_header(), load_objects(), LOG(), m, disinfect::map, MAP_IN_MEMORY, MAP_LOADING, MAP_PLAYER_UNIQUE, MAP_STYLE, and safe_strncpy.

Referenced by main(), and mapfile_load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ob_blocked()

int ob_blocked	(	const object *	ob,
		mapstruct *	m,
		int16_t	x,
		int16_t	y
	)

Returns true if the given object can't fit in the given spot. This is meant for multi space objects - for single space objecs, just calling get_map_blocked and checking that against movement type of object. This function goes through all the parts of the multipart object and makes sure they can be inserted.

While this doesn't call out of map, the get_map_flags does.

This function has been used to deprecate arch_out_of_map - this function also does that check, and since in most cases, a call to one would follow the other, doesn't make a lot of sense to have two separate functions for this.

This returns nonzero if this arch can not go on the space provided, 0 otherwise. the return value will contain the P_.. value so the caller can know why this object can't go on the map. Note that callers should not expect P_NEW_MAP to be set in return codes - since the object is multispace - if we did return values, what do you return if half the object is one map, half on another.

Parameters

ob	object to test.
m
x
y	map and coordinates to check.

Returns: 0 if the object can fit on specified space, non-zero else.

Definition at line 479 of file map.cpp.

References AB_NO_PASS, get_map_flags(), GET_MAP_MOVE_BLOCK, m, object::more, MOVE_ALL, object::move_type, guildjoin::ob, OB_TYPE_MOVE_BLOCK, P_IS_ALIVE, P_OUT_OF_MAP, Ice::tmp, TRANSPORT, diamondslots::x, and diamondslots::y.

Referenced by enter_map(), monster_compute_path(), move_creator(), object_find_first_free_spot(), object_find_free_spot(), object_find_multi_free_spot_around(), object_find_multi_free_spot_within_radius(), pets_summon_golem(), pets_summon_object(), and turn_one_transport().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ on_same_map()

int on_same_map	(	const object *	op1,
		const object *	op2
	)

Checks whether 2 objects are on the same map or not.

Note we only look one map out to keep the processing simple and efficient. This could probably be a macro. MSW 2001-08-05

Parameters

op1	first object.
op2	second object.

Returns: TRUE if op1 and op2 are effectively on the same map (as related to map tiling).

Note: This looks for a path from op1 to op2, so if the tiled maps are assymetric and op2 has a path to op1, this will still return false.

Definition at line 2628 of file map.cpp.

References adjacent_map(), and object::map.

Referenced by abort_attack(), adj_attackroll(), cfapi_object_on_same_map(), get_attack_mode(), monster_check_enemy(), monster_find_enemy(), monster_move(), move_ball_spell(), pets_attempt_follow(), pets_get_enemy(), pets_move(), and share_exp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ out_of_map()

int out_of_map	(	mapstruct *	m,
		int	x,
		int	y
	)

this returns TRUE if the coordinates (x,y) are out of map m. This function also takes into account any tiling considerations, loading adjacant maps as needed. This is the function should always be used when it necessary to check for valid coordinates. This function will recursively call itself for the tiled maps.

Parameters

m	map to consider. Must not be NULL.
x
y	coordinates.

Returns: 1 if out of map, 0 else

Definition at line 2289 of file map.cpp.

References load_and_link_tiled_map(), m, MAP_HEIGHT, MAP_IN_MEMORY, MAP_WIDTH, out_of_map(), diamondslots::x, and diamondslots::y.

Referenced by animate_bomb(), cfapi_map_out_of_map(), command_create(), enter_map(), esrv_draw_look(), explode_bullet(), look_at(), move_player_attack(), move_teleporter(), object_insert_in_map(), object_teleport(), and out_of_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parse_shop_string()

static shopitems* parse_shop_string	(	const char *	input_string,
		const mapstruct *	map
	)

static

Takes a string from a map definition and outputs a pointer to the array of shopitems corresponding to that string. Memory is allocated for this, it must be freed at a later date. Called by parse_map_headers() below.

Parameters

input_string	shop item line.
map	map for which to parse the string, in case of warning.

Returns: new array that should be freed by the caller.

Definition at line 865 of file map.cpp.

References CALLOC, fatal(), get_typedata(), get_typedata_by_name(), shopitems::index, llevDebug, llevError, LOG(), disinfect::map, typedata::name, shopitems::name, typedata::name_pl, shopitems::name_pl, typedata::number, OUT_OF_MEMORY, item::q, strdup_local, shopitems::strength, strip_endline(), and shopitems::typenum.

Referenced by load_map_header().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ print_shop_string()

static void print_shop_string	(	mapstruct *	m,
		char *	output_string,
		int	size
	)

static

Opposite of parse string(), this puts the string that was originally fed in to the map (or something equivilent) into output_string.

Parameters

m	map we're considering.
output_string	string to write to.
size	output_string's length.

Definition at line 947 of file map.cpp.

References m, MAX_BUF, and Ice::tmp.

Referenced by save_map().

Here is the caller graph for this function:

◆ ready_map_name()

mapstruct* ready_map_name	(	const char *	name,
		int	flags
	)

Makes sure the given map is loaded and swapped in.

Parameters

name	path name of the map.
flags	0x1 (MAP_FLUSH): flush the map - always load from the map directory, and don't do unique items or the like. 0x2 (MAP_PLAYER_UNIQUE) - this is a unique map for each player. dont do any more name translation on it.

Returns: pointer to the given map, NULL on failure.

Definition at line 1762 of file map.cpp.

References buf, clean_tmp_map(), decay_objects(), delete_map(), EVENT_MAPREADY, events_execute_global_event(), flags, has_been_loaded(), load_overlay_map(), load_temporary_map(), load_unique_objects(), Settings::localdir, m, MAP_FLUSH, MAP_IN_MEMORY, MAP_LOADING, MAP_OVERLAY, MAP_PLAYER_UNIQUE, mapfile_load(), MAX_BUF, give::name, Settings::playerdir, seconds(), set_darkness_map(), and settings.

Referenced by cast_create_town_portal(), cfapi_map_get_map(), CREMapInformationManager::checkItem(), enter_exit(), enter_fixed_template_map(), enter_player_maplevel(), enter_random_template_map(), enter_unique_map(), init_dynamic(), is_legal_2ways_exit(), load_and_link_tiled_map(), place_exits(), process_map(), START_TEST(), and town_portal_destroy_existing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ save_map()

int save_map	(	mapstruct *	m,
		int	flag
	)

Saves a map to file. If flag is SAVE_MODE_INPLACE, it is saved into the same file it was (originally) loaded from. Otherwise a temporary filename will be genarated, and the file will be stored there. The temporary filename will be stored in the mapstructure. If the map is unique, we also save to the filename in the map (this should have been updated when first loaded)

Parameters

m	map to save.
flag	One of SAVE_MODE_xxx values.

Returns: one of SAVE_ERROR_xxx values.

Definition at line 1396 of file map.cpp.

References create_items_path(), create_overlay_pathname(), create_pathname(), npc_dialog::filename, FMT64U, free_all_objects(), llevDebug, llevError, Settings::localdir, LOG(), m, make_path_to_file(), MAP_IN_MEMORY, MAP_SAVING, maps_saved_total, MAX_BUF, give::name, of_cancel(), of_close(), of_open(), Settings::playerdir, print_shop_string(), PROFILE_BEGIN, PROFILE_END, altar_valkyrie::res, SAVE_ERROR_CLOSE, SAVE_ERROR_NO_PATH, SAVE_ERROR_OK, SAVE_ERROR_RCREATION, SAVE_ERROR_UCREATION, SAVE_ERROR_URENAME, SAVE_FLAG_NO_REMOVE, SAVE_MODE, SAVE_MODE_NORMAL, SAVE_MODE_OVERLAY, save_objects(), settings, strlcpy(), and Settings::tmpdir.

Referenced by clean_tmp_files(), command_overlay_save(), generate_map(), main(), START_TEST(), and swap_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ save_objects()

int save_objects	(	mapstruct *	m,
		FILE *	fp,
		FILE *	fp2,
		int	flag
	)

This saves all the objects on the map in a non destructive fashion. We only save the head of multi part objects - this is needed in order to do map tiling properly.

Parameters

m	map to save.
fp	file where regular objects are saved.
fp2	file to save unique objects.
flag	combination of SAVE_FLAG_xxx flags.

Returns: one of SAVE_ERROR_xxx value.

Definition at line 715 of file map.cpp.

References disinfect::count, FLAG_IS_FLOOR, FLAG_OBJ_ORIGINAL, FLAG_UNIQUE, FLAG_UNPAID, FOR_MAP_FINISH, FOR_MAP_PREPARE, llevDebug, LOG(), m, MAP_HEIGHT, MAP_WIDTH, object_get_owner(), give::op, PLAYER, PROFILE_BEGIN, PROFILE_END, QUERY_FLAG, SAVE_FLAG_NO_REMOVE, SAVE_FLAG_SAVE_UNPAID, save_object_in_sb(), stringbuffer_finish(), and stringbuffer_new().

Referenced by mapsave_test(), and save_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_map_reset_time()

void set_map_reset_time ( mapstruct * map )

Updates the map's timeout.

Parameters

map	map to update.

Definition at line 2224 of file map.cpp.

References disinfect::map, MAP_DEFAULTRESET, MAP_MAXRESET, MAP_RESET_TIMEOUT, MAP_WHEN_RESET, and seconds().

Referenced by map_info(), mapfile_load(), and swap_map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_position()

void update_position	(	mapstruct *	m,
		int	x,
		int	y
	)

This function updates various attributes about a specific space on the map (what it looks like, whether it blocks magic, has a living creatures, prevents people from passing through, etc)

Parameters

m	map considered
x
y	coordinates to update

Definition at line 2110 of file map.cpp.

References add_face_layer(), blank_face, blocks_prayer, FLAG_ALIVE, FLAG_BLOCKSVIEW, FLAG_DAMNED, FLAG_IS_FLOOR, FLAG_MONSTER, FLAG_NO_MAGIC, FLAG_NO_PICK, FLAG_WIZ, flags, FOR_MAP_FINISH, FOR_MAP_PREPARE, GET_MAP_FACE_OBJS, GET_MAP_FLAGS, Map_Layer_Info::high_layer, Map_Layer_Info::honor_visibility, llevDebug, llevError, LOG(), m, MAP_LAYER_FLOOR, MAP_LAYER_FLY1, MAP_LAYER_FLY2, map_layer_info, MAP_LAYER_ITEM1, MAP_LAYER_ITEM3, MAP_LAYER_LIVING1, MAP_LAYER_LIVING2, MAP_LAYER_NO_PICK1, MAP_LAYER_NO_PICK2, MAP_LAYERS, MOVE_FLYING, object_value_set_shared(), P_BLOCKSVIEW, P_IS_ALIVE, P_NEED_UPDATE, P_NO_CLERIC, P_NO_ERROR, P_NO_MAGIC, P_PLAYER, PLAYER, QUERY_FLAG, SET_MAP_FLAGS, SET_MAP_LIGHT, SET_MAP_MOVE_BLOCK, SET_MAP_MOVE_OFF, SET_MAP_MOVE_ON, SET_MAP_MOVE_SLOW, SET_MAP_PLAYER, Ice::tmp, diamondslots::x, and diamondslots::y.

Referenced by cfapi_map_update_position(), cfapi_object_set_property(), do_turn(), draw_client_map(), object_insert_in_ob(), object_remove(), and object_update().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ map_layer_info

const Map_Layer_Info map_layer_info[MAP_LAYERS]

static

Initial value:

= {
    { MAP_LAYER_FLOOR, 1 },
    { MAP_LAYER_NO_PICK2, 0 }, { MAP_LAYER_NO_PICK2, 0 },
    { MAP_LAYER_ITEM3, 1 }, { MAP_LAYER_ITEM3, 1 }, { MAP_LAYER_ITEM3, 1 },
    { MAP_LAYER_LIVING2, 1 }, { MAP_LAYER_LIVING2, 1 },
    { MAP_LAYER_FLY2, 1 }, { MAP_LAYER_FLY2, 1 }
}

the ob->map_layer holds the low layer. For the update_position() logic, we also need to know the higher layer and whether visibility should be honored. This table has that information, so that it doesn't need to be hardcoded.

Definition at line 63 of file map.cpp.

Referenced by update_position().

◆ map_layer_name

const char* const map_layer_name[MAP_LAYERS]

Initial value:

= {
    "floor", "no_pick", "no_pick", "item", "item",
    "item", "living", "living", "fly", "fly"
}

These correspond to the layer names in map.h - since some of the types can be on multiple layers, names are duplicated to correspond to that layer.

Definition at line 46 of file map.cpp.

Referenced by get_ob_diff(), and while().

Data Structures

Functions

Variables

Detailed Description

Function Documentation

◆ add_face_layer()

◆ adjacent_map()

◆ allocate_map()

◆ blocked_link()

◆ calculate_difficulty()

◆ change_map_light()

◆ check_path()

◆ clean_object()

◆ clean_tmp_map()

◆ create_items_path()

◆ create_overlay_pathname()

◆ create_pathname()

◆ create_template_pathname()

◆ delete_map()

◆ delete_unique_items()

◆ dump_all_maps()

◆ dump_map()

◆ fix_container_multipart()

◆ free_all_maps()

◆ free_all_objects()

◆ free_map()

◆ get_empty_map()

◆ get_linked_map()

◆ get_map_flags()

◆ get_map_from_coord()

◆ get_rangevector()

◆ get_rangevector_from_mapcoord()

◆ has_been_loaded()

◆ link_multipart_objects()

◆ load_and_link_tiled_map()

◆ load_map_header()

◆ load_objects()

◆ load_overlay_map()

◆ load_temporary_map()

◆ load_unique_objects()

◆ map_find_by_flag()

◆ map_get_path()

◆ map_path()

◆ map_path_unique()

◆ map_remove_unique_files()

◆ map_size()

◆ mapfile_load()

◆ mapfile_load_lowlevel()

◆ ob_blocked()

◆ on_same_map()

◆ out_of_map()

◆ parse_shop_string()

◆ print_shop_string()

◆ ready_map_name()

◆ save_map()

◆ save_objects()

◆ set_map_reset_time()

◆ update_position()

Variable Documentation

◆ map_layer_info

◆ map_layer_name
